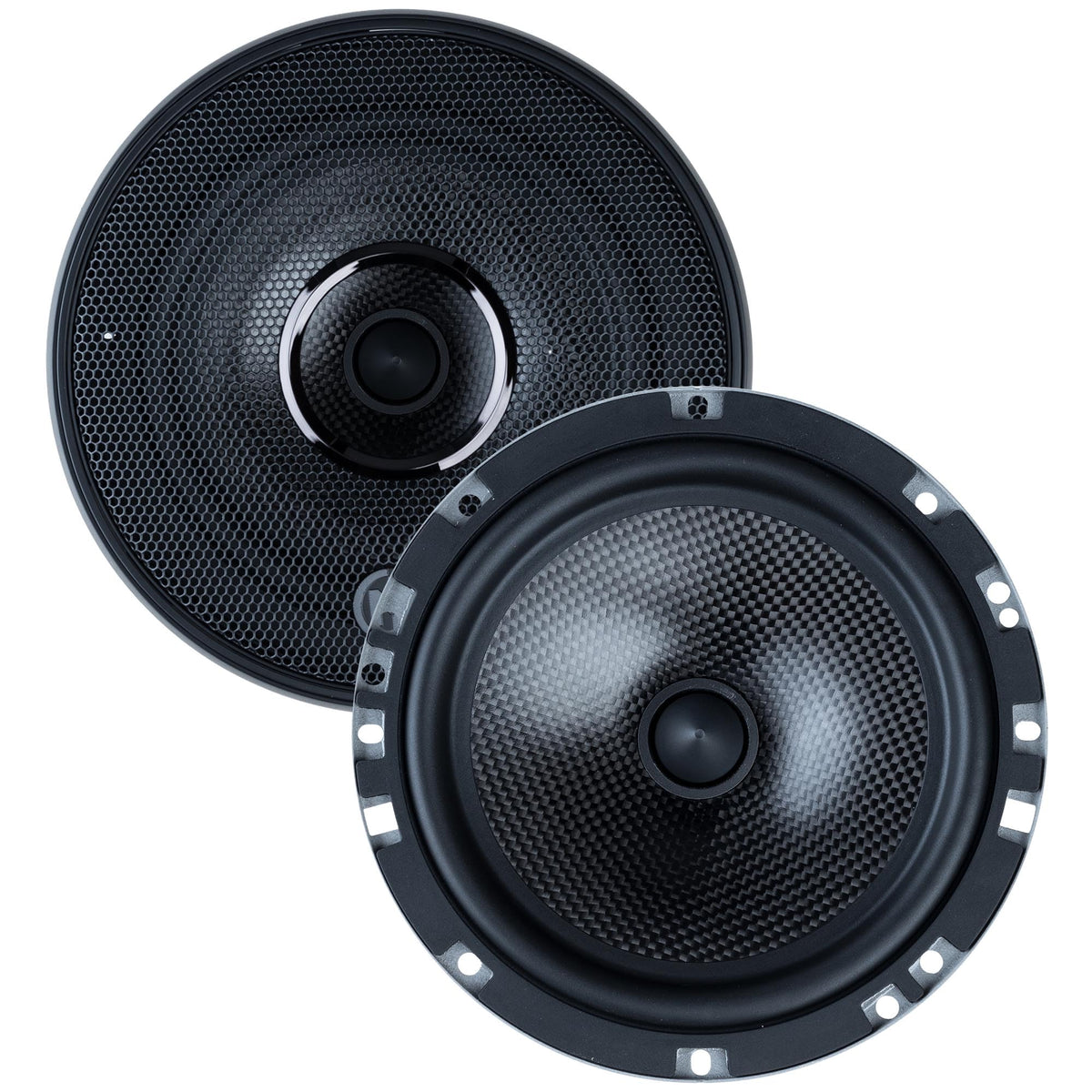

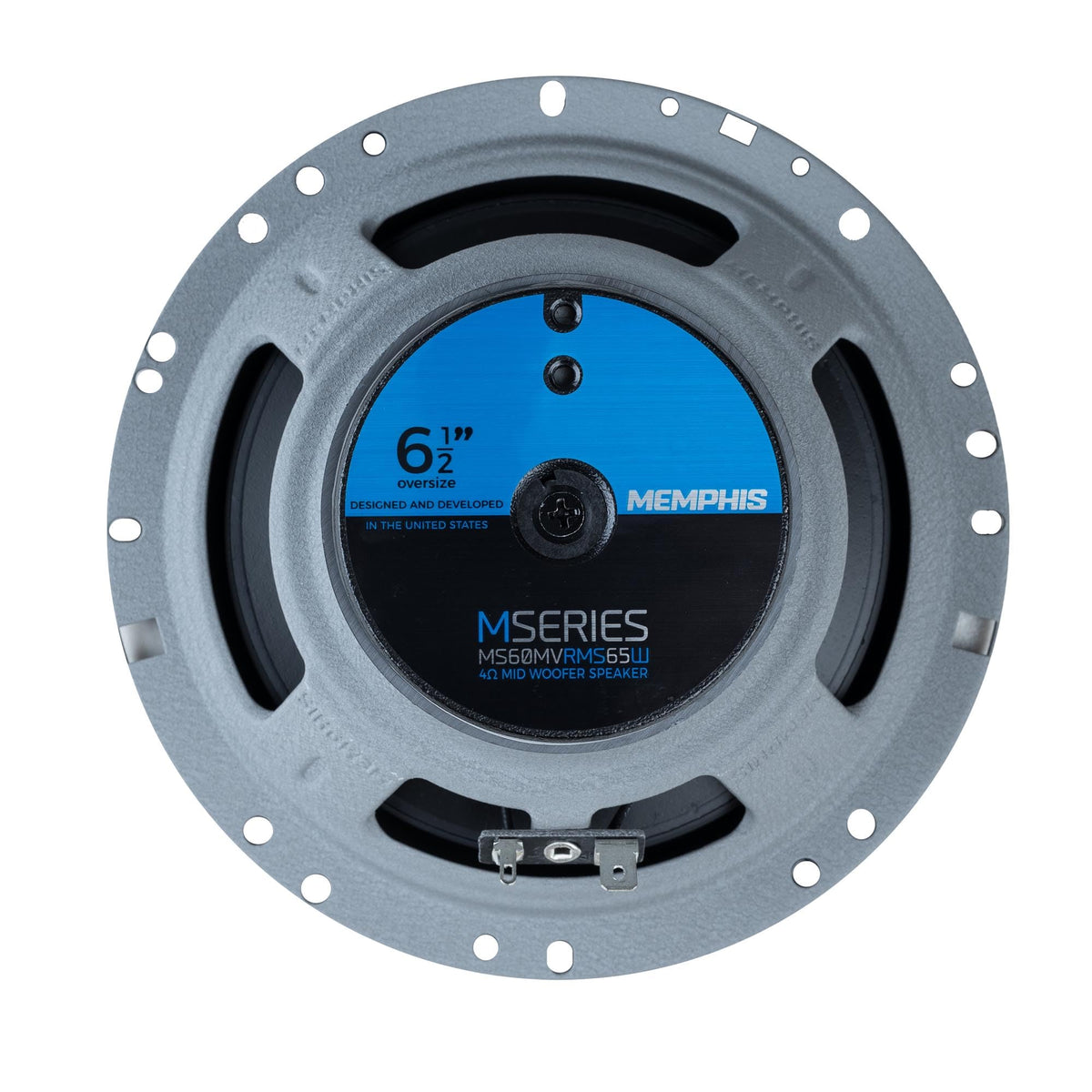

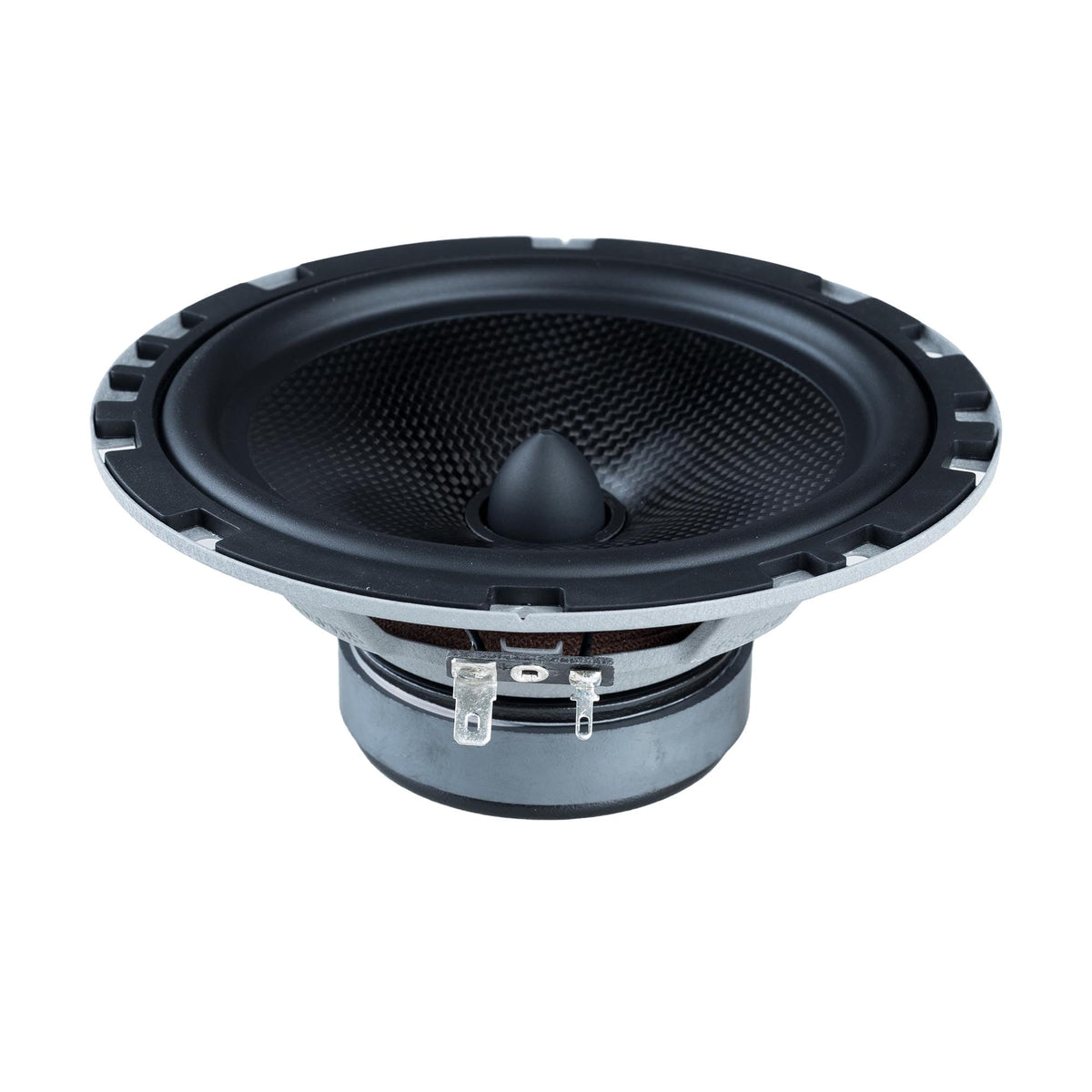

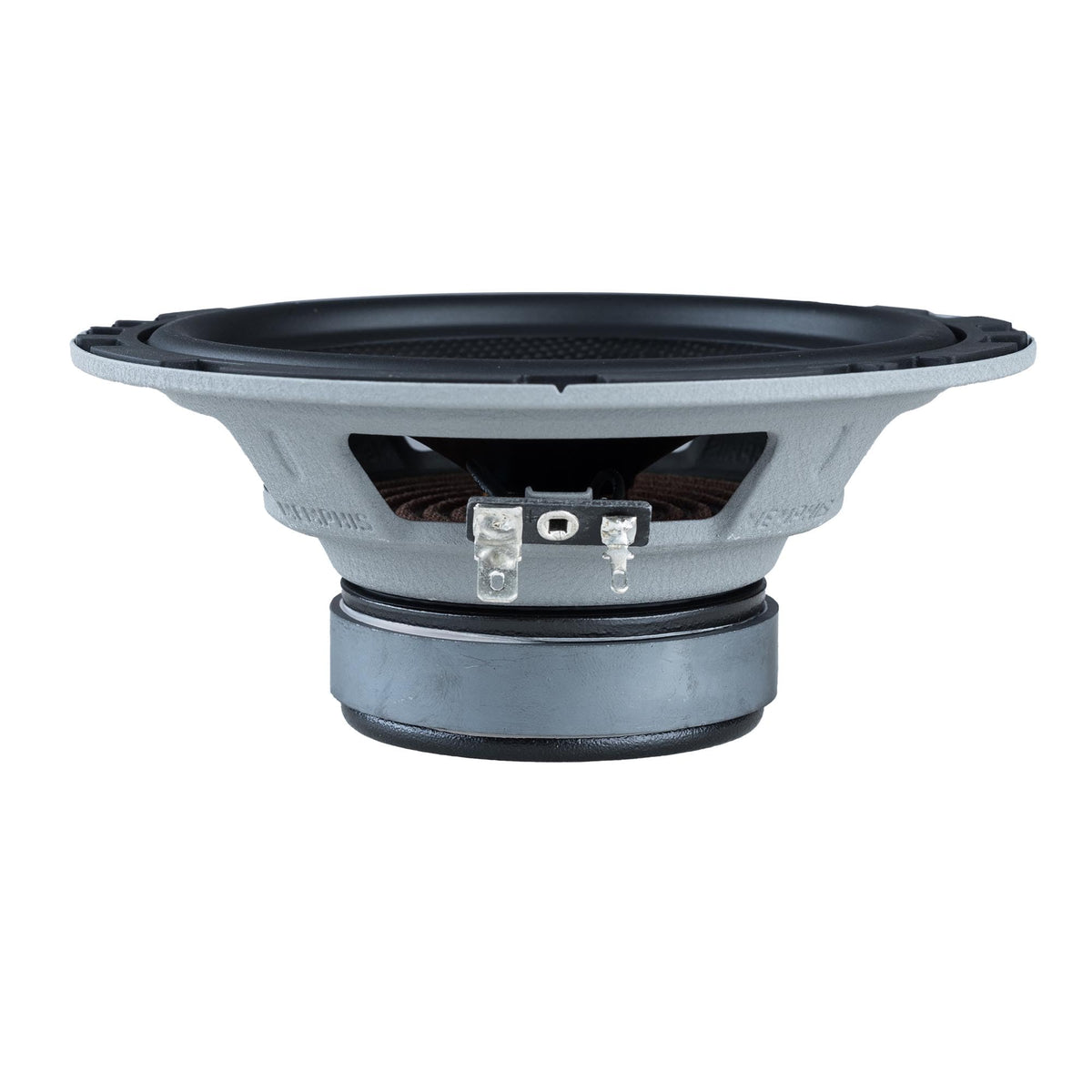

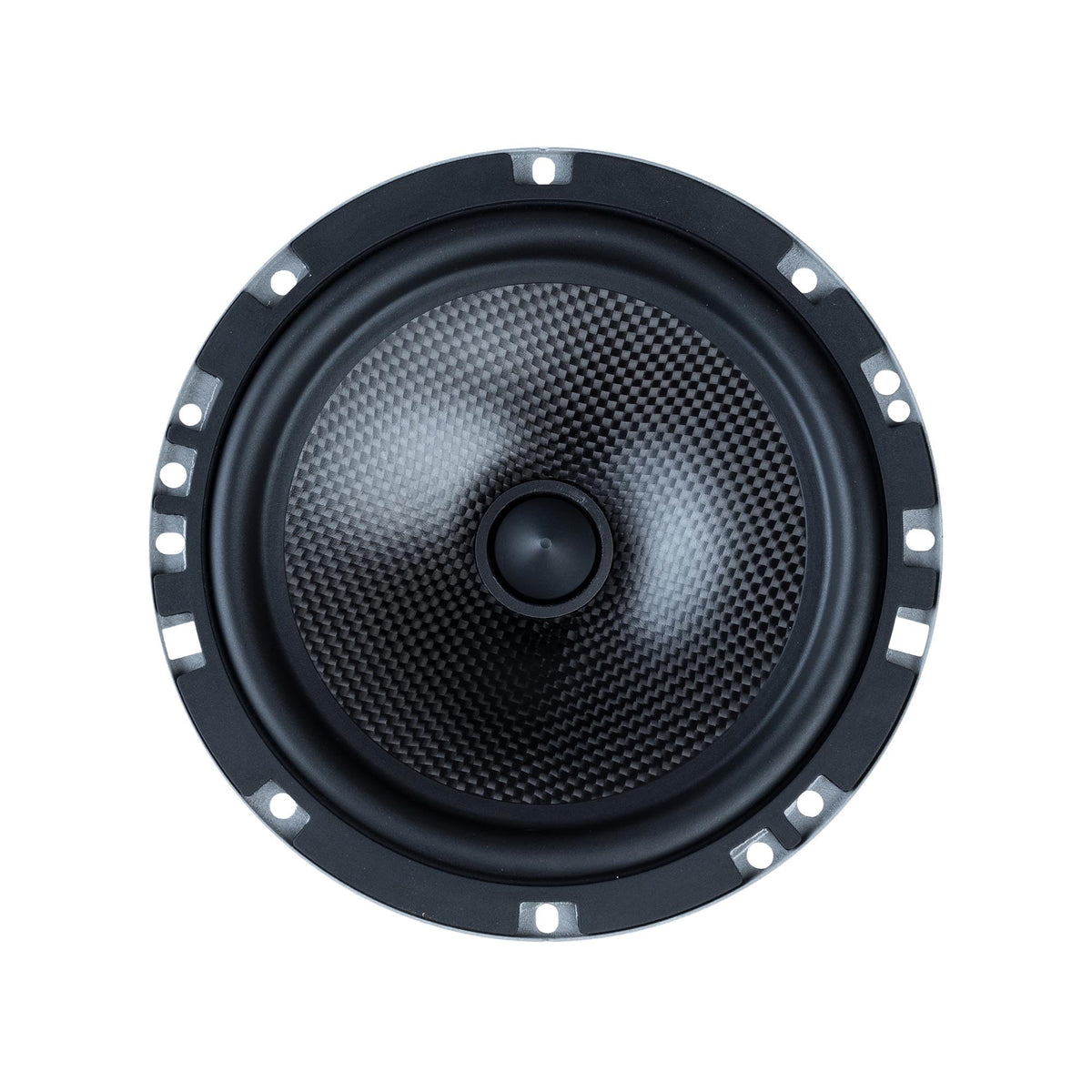

Memphis MS60MV 6.5" Oversized Mid Woofer Pair

The Memphis MS60MV is a pair of 6.5-inch oversized mid woofers made for component-style car audio upgrades. It is intended to strengthen the midbass and midrange range where vocals, guitars, drums, and other core musical details live. This makes it a practical option for replacing worn factory speakers or building a more tailored multi-driver system.

Each MS60MV uses a carbon fiber cone and rubber surround to combine low moving mass with durable suspension support. The result is a controlled, focused presentation designed for midrange and midbass duties rather than full-range playback. A center-mounted black phase plug is used to help reduce distortion and support high-frequency response from the driver.

The speakers include external passive crossovers with a 12 dB crossover design. These networks help manage frequency distribution in a component installation and allow the mid woofers to integrate more cleanly with additional drivers. Memphis also includes its MClip crossover mounting solution for flexible crossover placement.

The MS60MV is a mid-woofer-only design, so it does not include tweeters. It can be used on its own for dedicated midrange duty, or paired with the optional Memphis MSA1 1-inch tweeter for a 2-way component system. For a 3-way arrangement, Memphis identifies the optional MSA1 tweeter and MS25 2.5-inch midrange as complementary additions.

With a 4-ohm impedance, 89 dB sensitivity, and manufacturer-rated handling of 75 watts RMS and 150 watts peak, the MS60MV is suited to properly matched aftermarket amplification. Its oversized 6.5-inch format, included grilles, and relatively shallow 2.4-inch published mounting depth make it appropriate for many custom door and panel installations. Verify cutout diameter, depth clearance, and crossover mounting space before installation.

Key Features

• Carbon Fiber Cone: Provides a rigid, lightweight diaphragm for controlled midrange and midbass reproduction.
• Black Phase Plug: Helps reduce distortion and support clearer upper-midrange response.
• External Passive Crossovers: Manage frequency distribution for component-system integration.
• 12 dB Crossover Design: Supports a defined frequency transition between system drivers.
• MClip Mounting Solution: Gives the included crossovers flexible mounting options during installation.
• Rubber Surround: Provides durable cone-edge support for automotive use.

Design & Installation

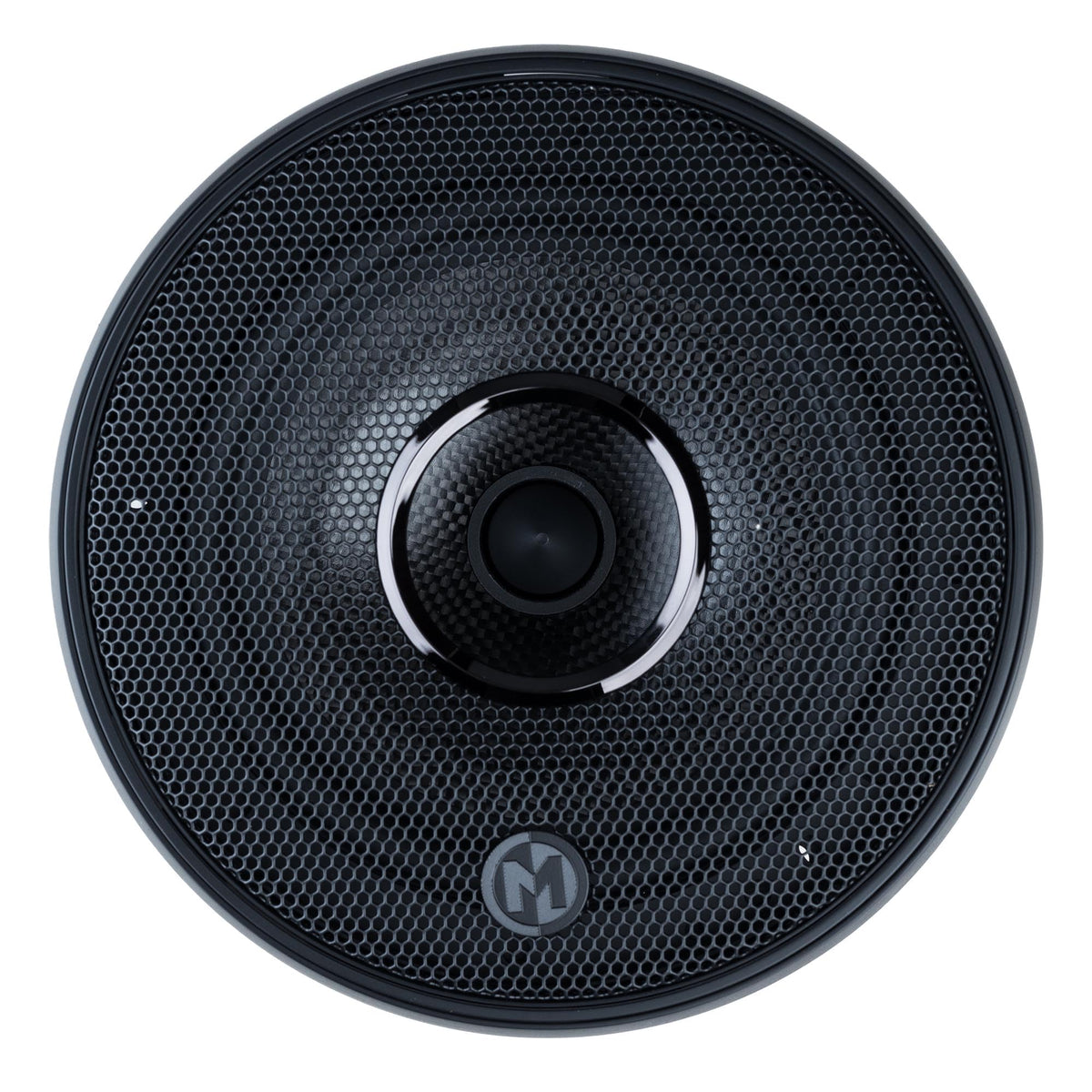

The MS60MV combines a carbon fiber cone, rubber surround, 10-ounce magnet, and center-mounted black phase plug in an oversized 6.5-inch mid-woofer layout. Grilles are included to help protect the drivers after installation. The speaker is a dedicated mid-woofer design and should not be treated as a complete coaxial speaker system.

Plan for the published 2.4-inch mounting depth and confirm actual clearance at the intended location; independently listed fitment data also identifies a 5.63-inch cutout diameter and approximately 0.25-inch mounting height. Install the included external crossovers using the MClip brackets on the speaker basket or at a remote location with adequate space. For a component system, pair the MS60MV with compatible optional Memphis drivers and match amplification to its 4-ohm load and RMS rating.
