Memphis SRX300.4V 4-Channel Car Amplifier

The Memphis SRX300.4V is a four-channel car audio amplifier designed to add dedicated power to factory-replacement or aftermarket speakers. It supplies 50 watts RMS to each channel at 4 ohms or 75 watts RMS per channel at 2 ohms. This makes it a practical choice for front-and-rear speaker upgrades that need more output and control than a head unit can provide.

Its four-channel layout supports several system approaches, including powering four speakers or using bridged channel pairs for two 4-ohm loads. In bridged operation, it delivers 150 watts RMS per pair at 4 ohms. The amplifier is stable to 2 ohms per channel in stereo operation and 4 ohms when bridged.

Independent front and rear control sections help tailor the amplifier to the speakers connected to each pair of channels. Selectable high-pass, full-range, and low-pass crossover modes allow it to support full-range speakers, components, or appropriate bridged applications. Selectable bass boost settings provide another adjustment for system tuning.

The SRX300.4V accepts both RCA preamp signals and speaker-level signals, allowing it to work with many aftermarket and factory audio systems. A 4-channel or 2-channel input-mode switch can simplify installations when the source unit has only a front-channel signal available. Built-in protection circuitry monitors for short circuits, overheating, and over- or under-voltage conditions.

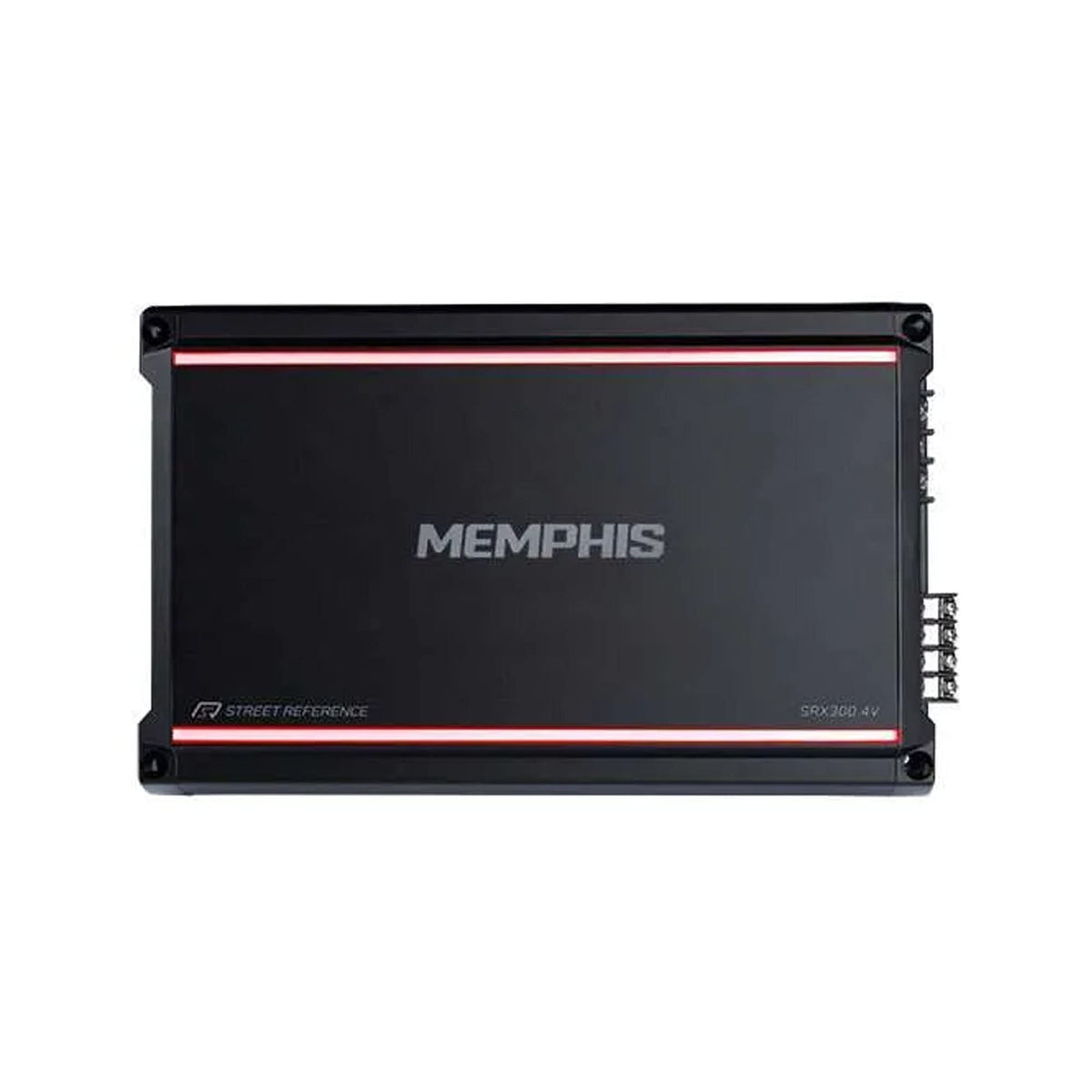

A textured aluminum heatsink helps manage heat while giving the amplifier a clean black finish. The integrated LED accent light strip adds visible illumination for installations where the amplifier is on display. Memphis recommends its 8GKIT amplifier wiring kit for this model.

Key Features

• Four-Channel Output: Powers front and rear speakers from one amplifier.
• 2-Ohm Stereo Stability: Delivers 75 watts RMS per channel at 2 ohms.
• Bridged Capability: Produces 150 watts RMS per bridged channel pair.
• Variable Crossovers: Helps match amplifier output to speaker applications.
• High- And Low-Level Inputs: Supports aftermarket and many factory source units.
• LED Accent Strip: Adds visible illumination to a custom installation.

Design & Installation

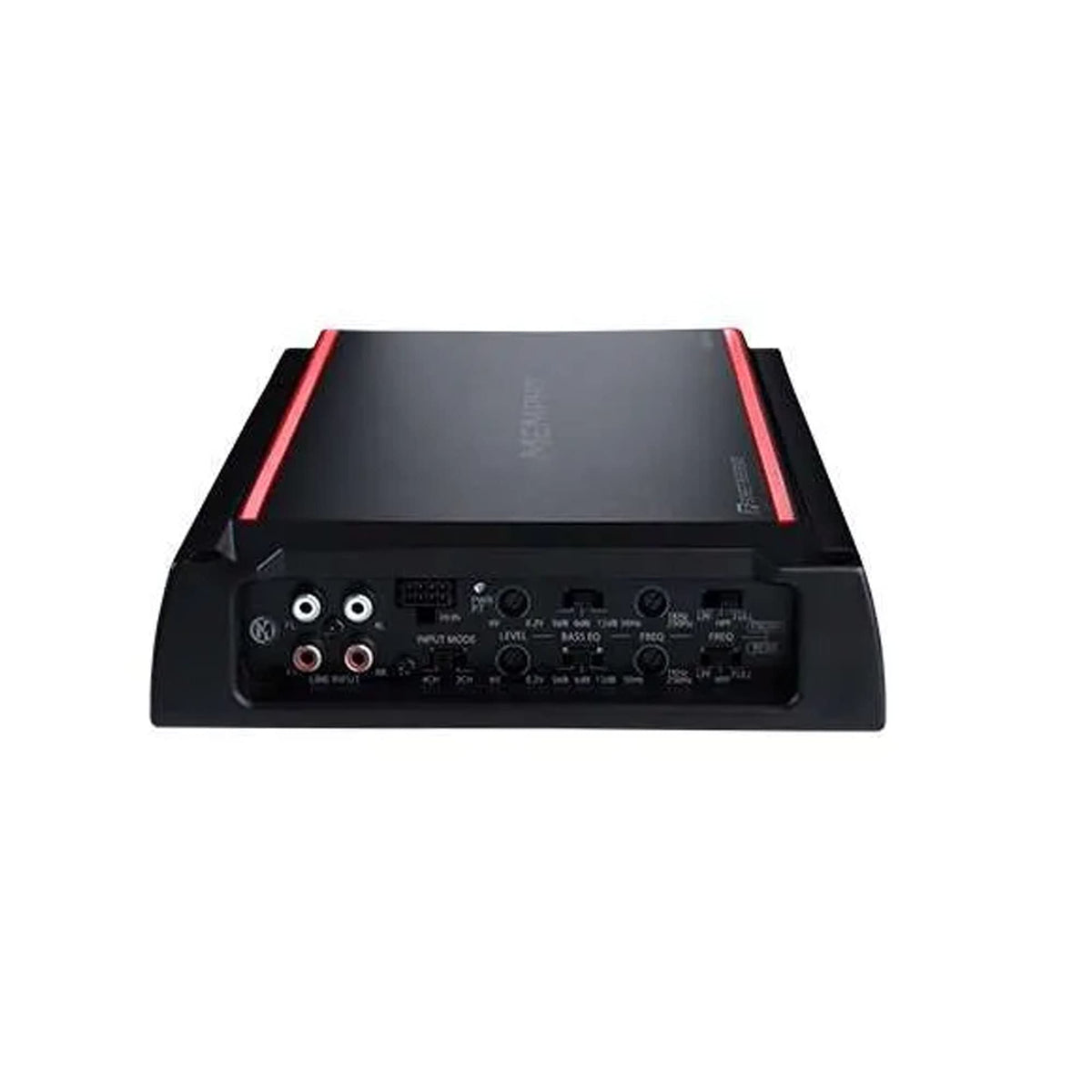

The SRX300.4V uses a textured aluminum heatsink with a black finish and integrated LED accent lighting. Its controls, inputs, and status indicator are located on the input side, while internal ATO fuses protect the amplifier. The Power/Protect indicator illuminates blue during normal operation and red when the amplifier enters protection.

Install the amplifier in a dry, ventilated location with clearance for wiring and heat dissipation. Use RCA inputs with an aftermarket source unit or the included speaker-level input harness when connecting to compatible factory speaker wiring. Match connected loads to the amplifier's 2-ohm stereo minimum or 4-ohm bridged minimum, and use the crossover and gain controls during final system setup.
