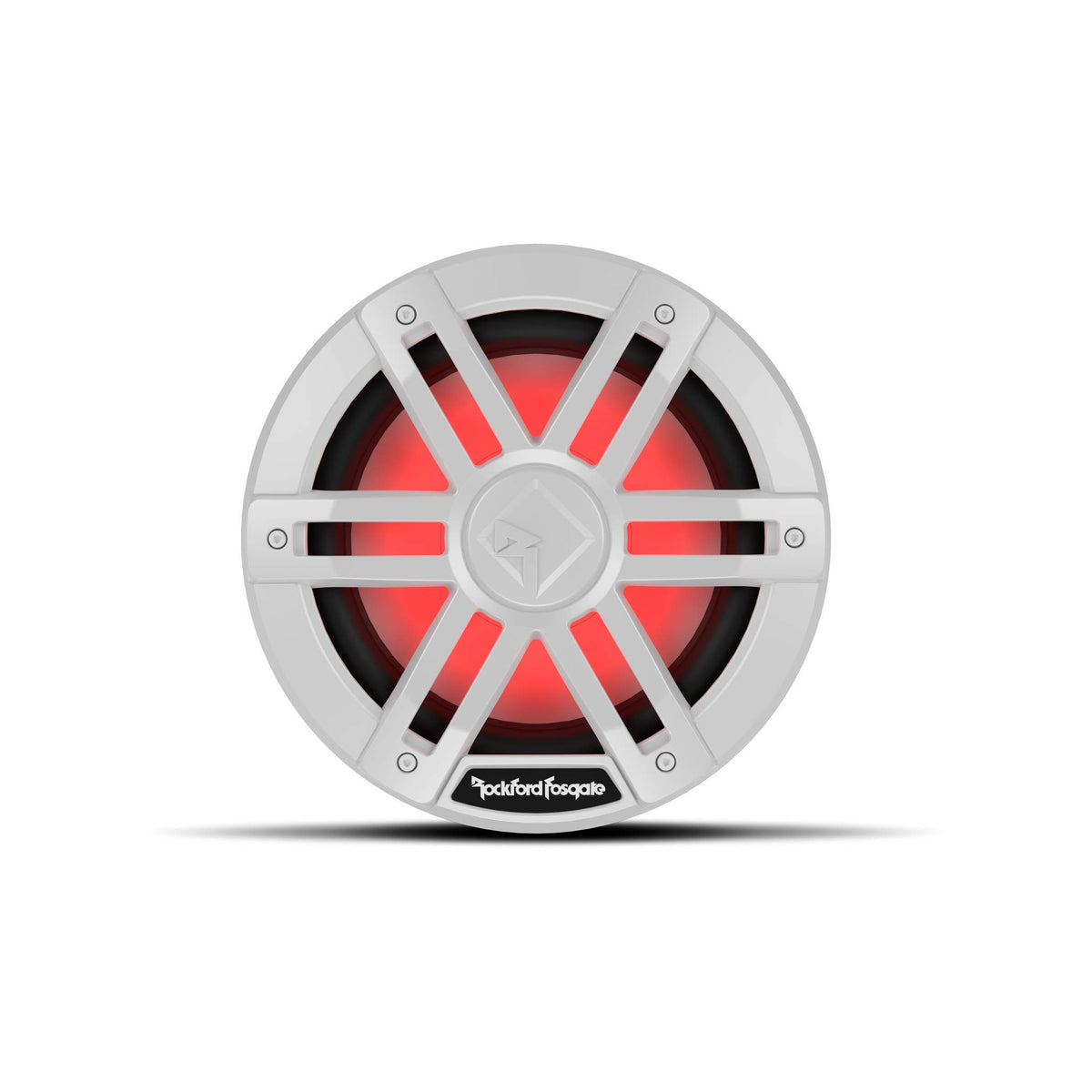

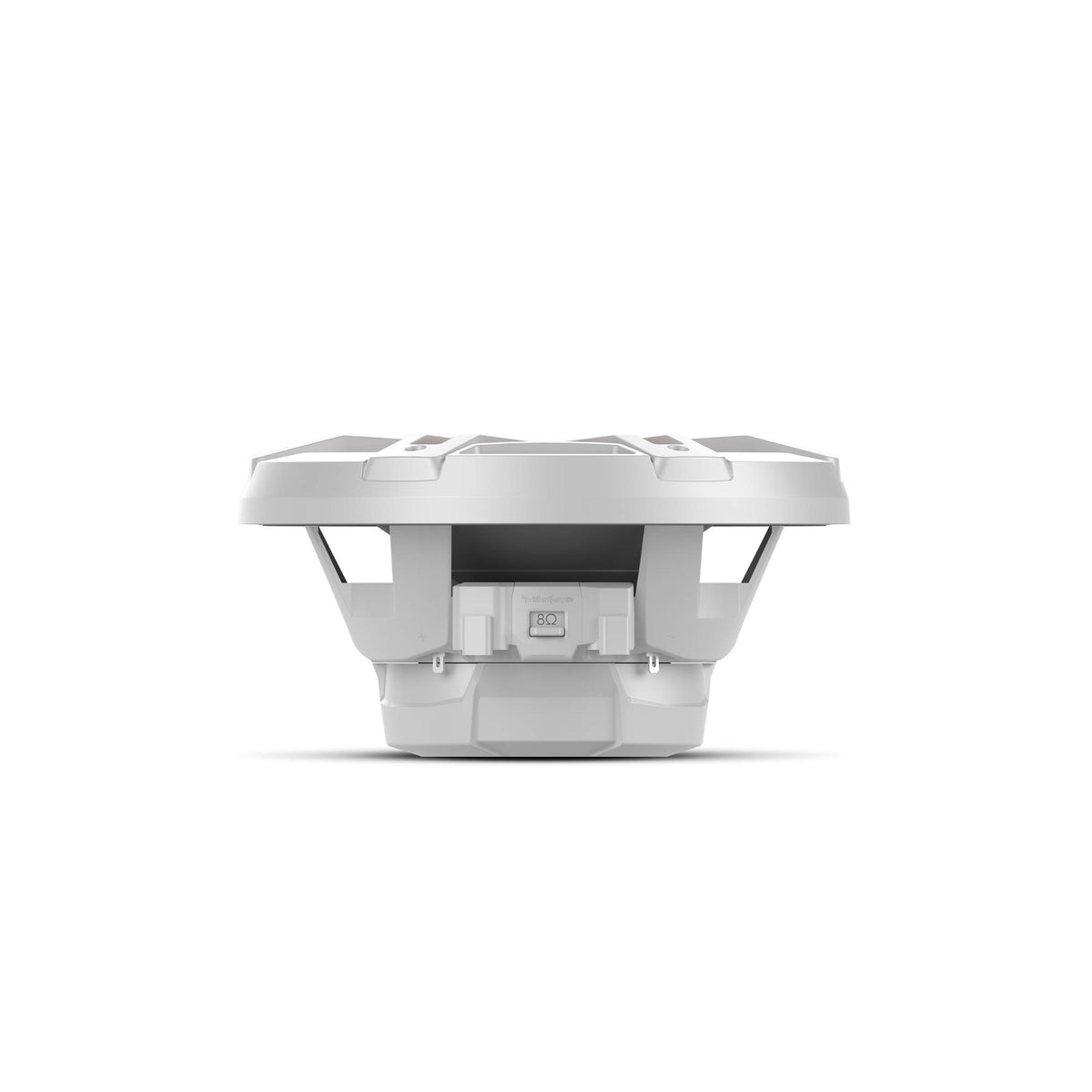

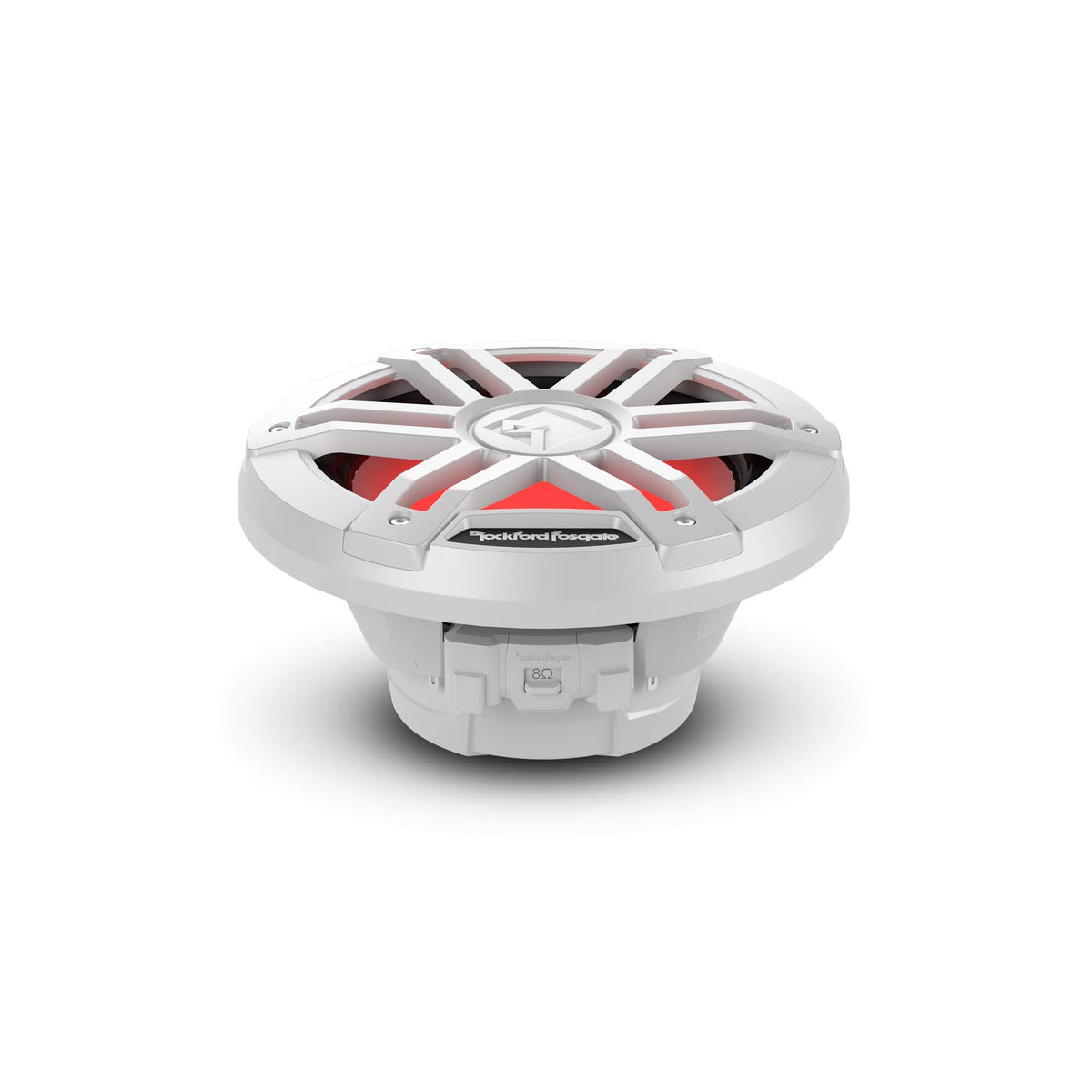

Rockford Fosgate M1D4-8 8" Marine RGB LED Subwoofer

The Rockford Fosgate M1D4-8 is an 8-inch marine subwoofer designed to add controlled low-frequency output to boats and outdoor audio systems. Its dual 4-ohm voice-coil design uses an integrated VersaSwitch to select a 2-ohm or 8-ohm final impedance. The white grille, frame, and integrated RGB lighting suit installations where the subwoofer remains visible.

This model is intended for marine and motorsports systems that need bass while facing sun, moisture, vibration, and water exposure. It handles 150 watts RMS and 600 watts peak, making it appropriate for use with a properly matched external amplifier. The 8-inch format provides a compact option for smaller compartments, panels, and custom enclosures.

The M1D4-8 uses a mineral-filled polypropylene cone with a Santoprene VAST surround. Its vented motor includes a water-repelling nano-coated mesh screen, while insulated silicone tinsel leads support movement in demanding installations. The result is a purpose-built woofer intended to reproduce bass from 20 Hz to 750 Hz.

Color Optix RGB illumination is integrated into the subwoofer for coordinated lighting across a compatible Rockford Fosgate marine system. The lighting connects through integrated Deutsch/Amphenol connectors and is designed to work with a separately sold Rockford Fosgate Color Optix controller. With the compatible controller, lighting patterns can be adjusted through the RF Connect app.

For system planning, the M1D4-8 can be used in either sealed or ported enclosures. A 0.55 cubic-foot sealed enclosure is listed as the optimum sealed volume, while a 1.10 cubic-foot ported enclosure is listed as the optimum ported volume. Its selectable 2- or 8-ohm configuration gives installers flexibility when matching the subwoofer to an amplifier and additional speakers.

Key Features

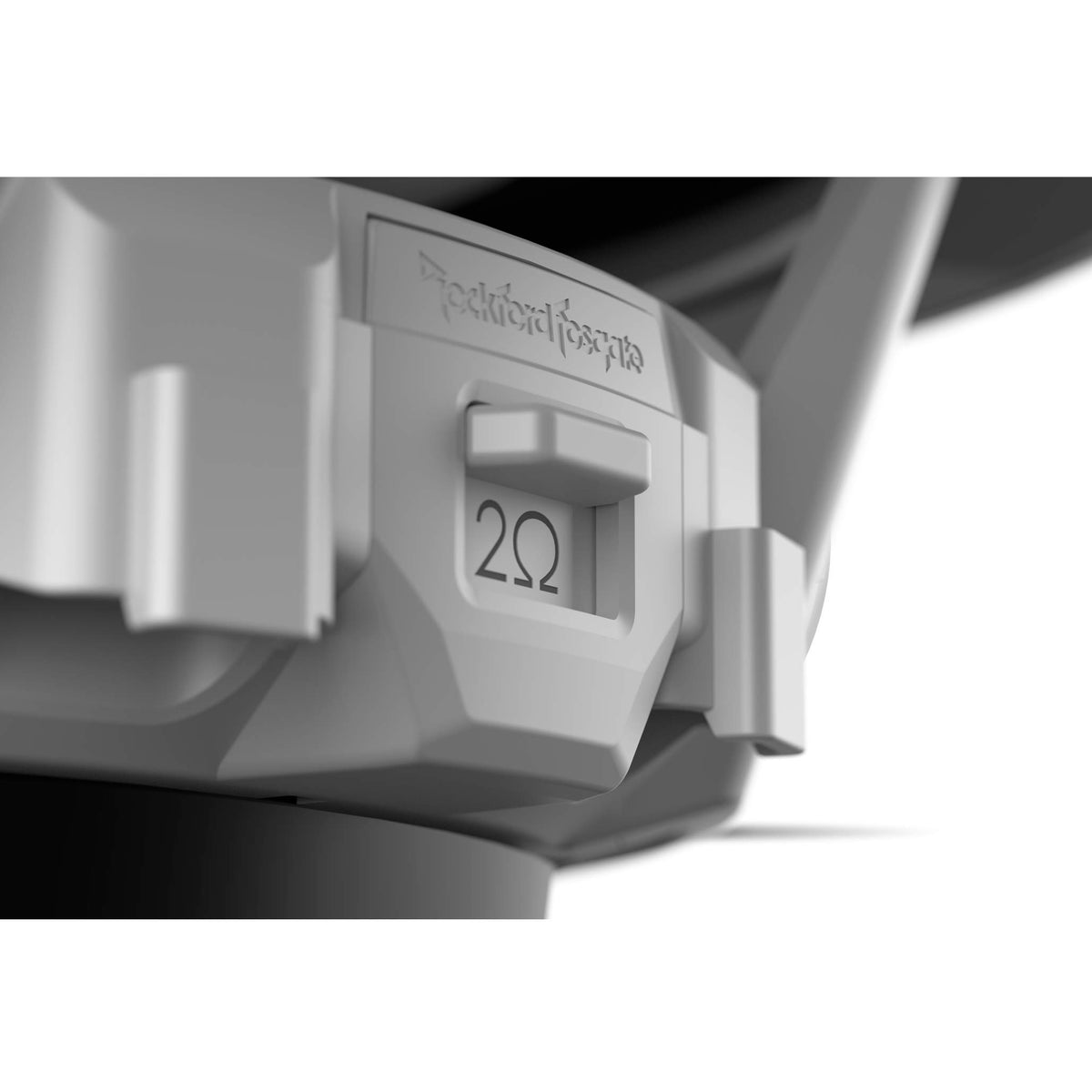

• VersaSwitch Impedance: Selects a 2-ohm or 8-ohm final load without external series or parallel coil wiring.
• Color Optix RGB Lighting: Built-in wide-angle RGB LEDs support coordinated accent lighting in compatible systems.
• Element Ready Construction: IP67-rated design helps support marine and motorsports installation environments.
• 150-Watt RMS Handling: Supports amplifier matching for sustained bass performance.
• Mineral-Filled Polypropylene Cone: Provides a durable cone material for outdoor audio use.

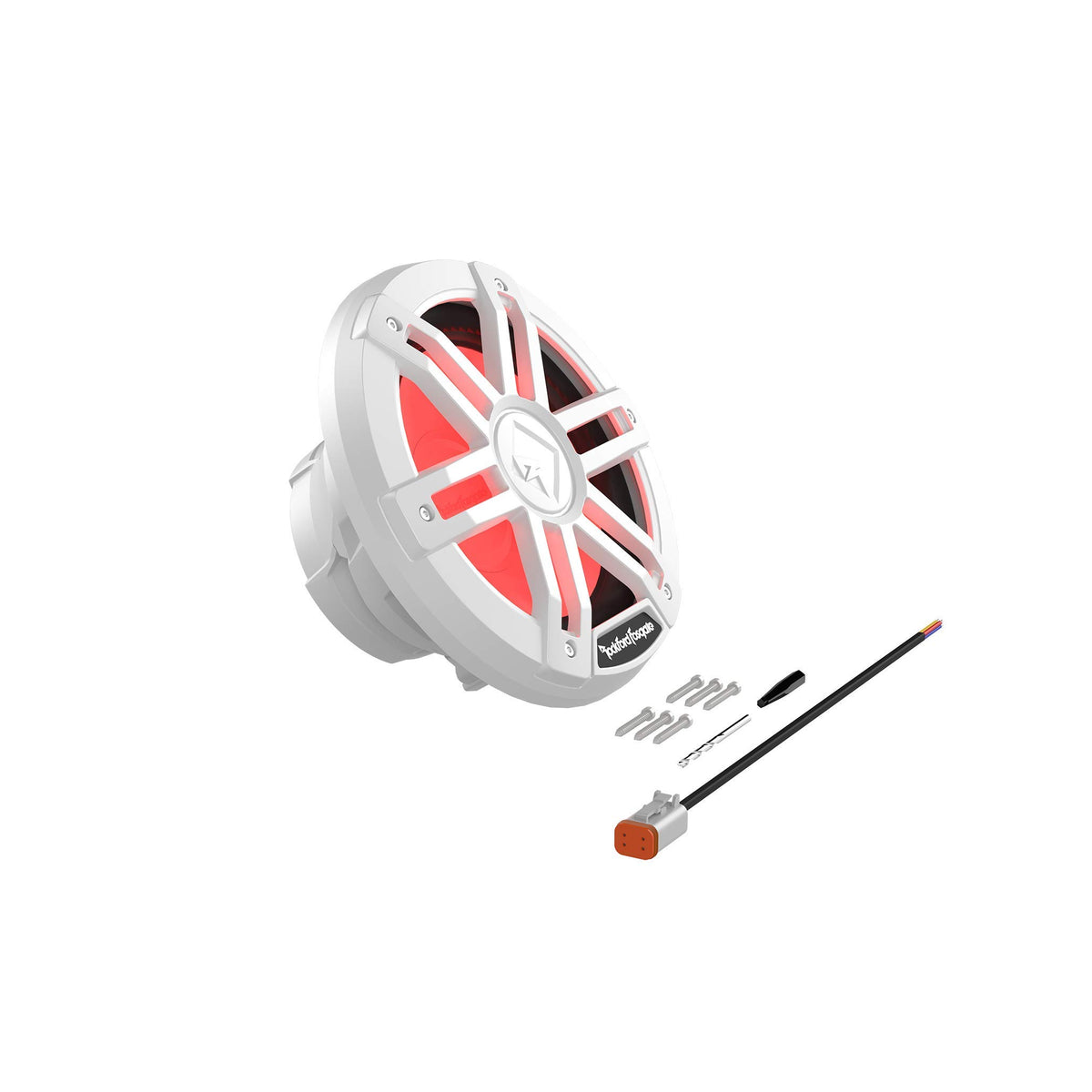

• Integrated Connectors: Deutsch/Amphenol lighting connectors simplify compatible Color Optix wiring.

Design & Installation

The M1D4-8 combines a UV-stable ASA plastic frame and grille with a white mineral-filled polypropylene cone, Santoprene VAST surround, and marine-grade brass terminals with zinc-nickel plating. Its motor is vented and protected by a water-repelling nano-coated mesh screen. The subwoofer is IP67 certified and includes an illuminated protective grille.

Confirm a 7.10-inch cutout and at least 3.43 inches of mounting depth before installation. Use a properly sized sealed or ported enclosure, select the 2-ohm or 8-ohm VersaSwitch setting before connecting the amplifier, and match the amplifier to the 150-watt RMS rating. RGB lighting requires a compatible Rockford Fosgate Color Optix controller and associated wiring accessories, sold separately.
