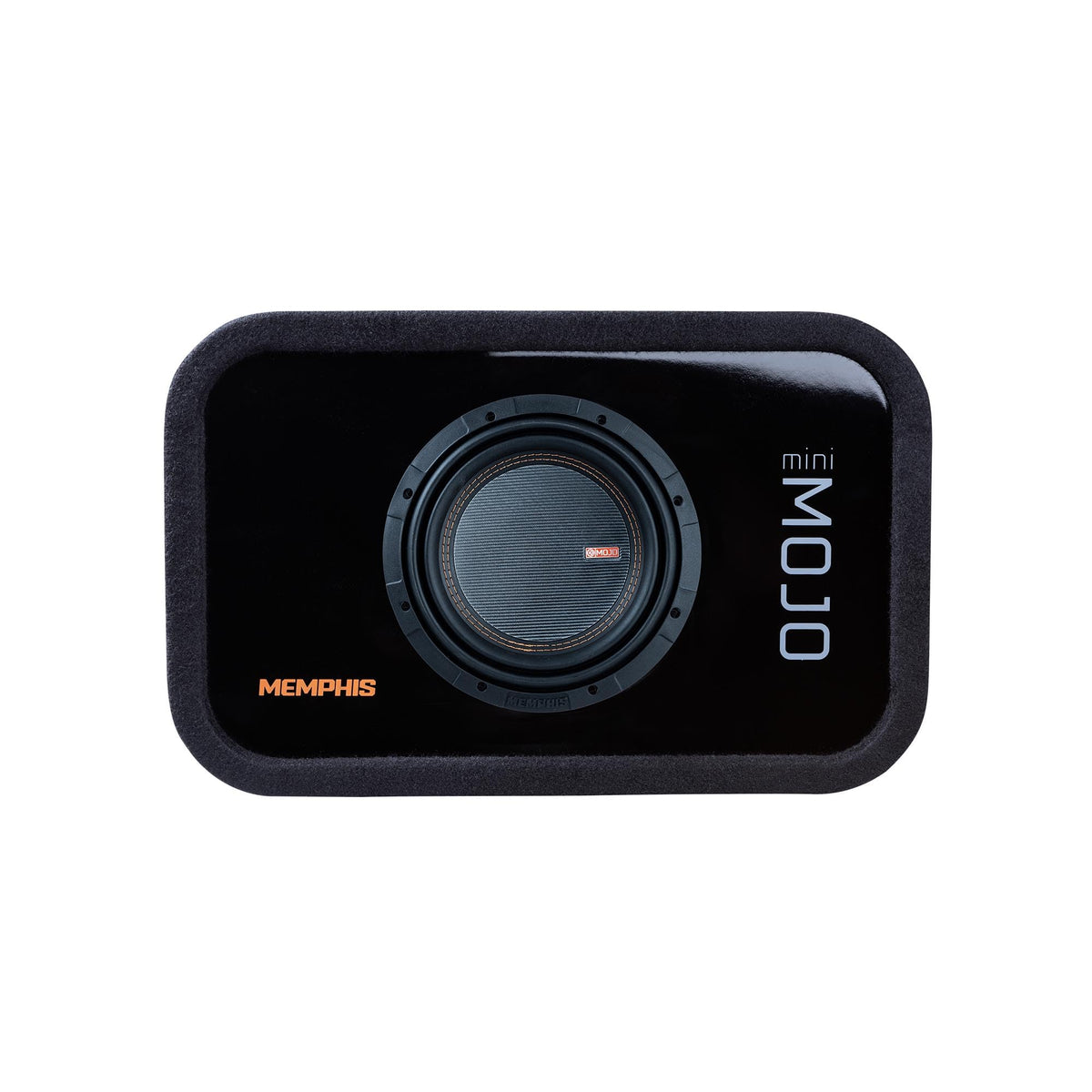

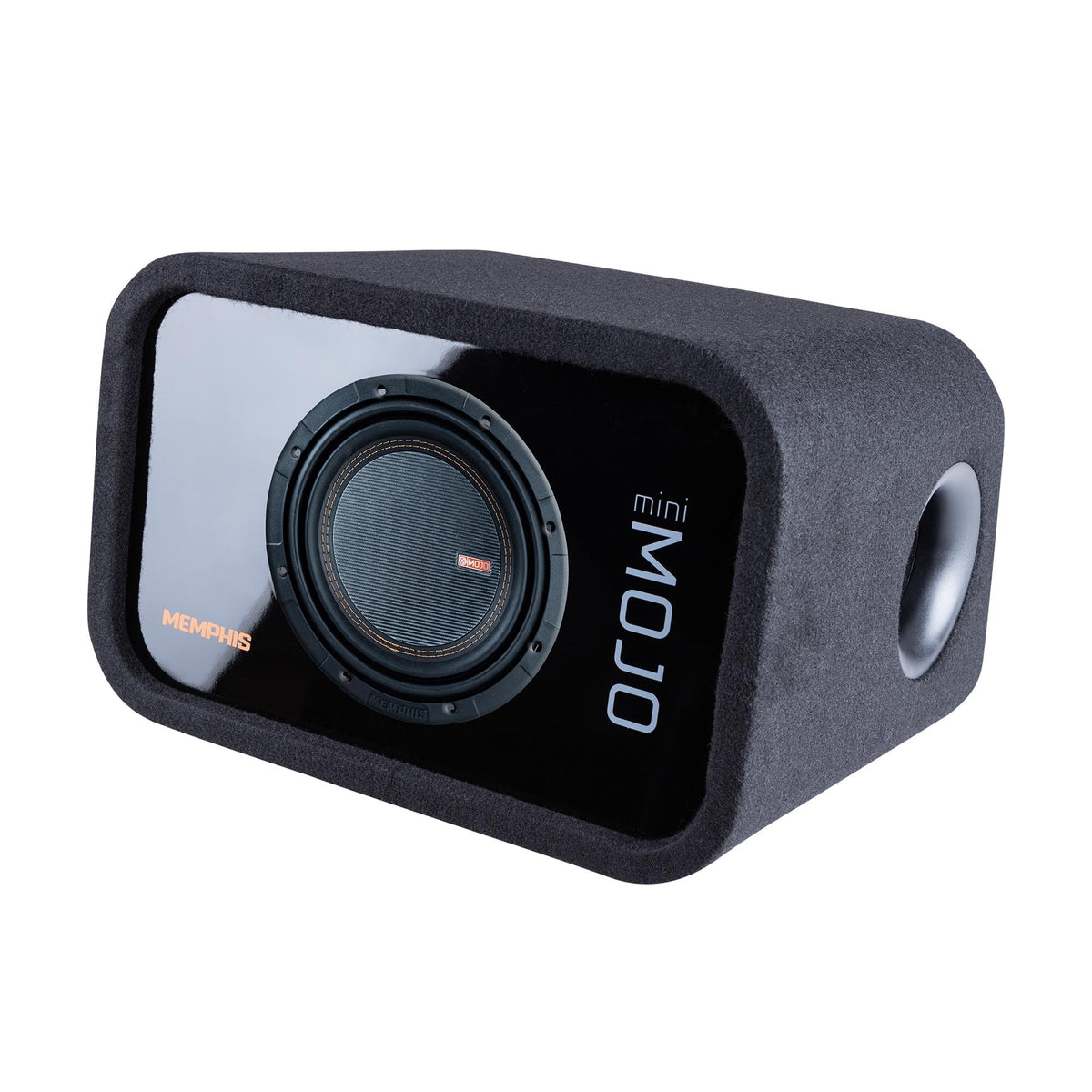

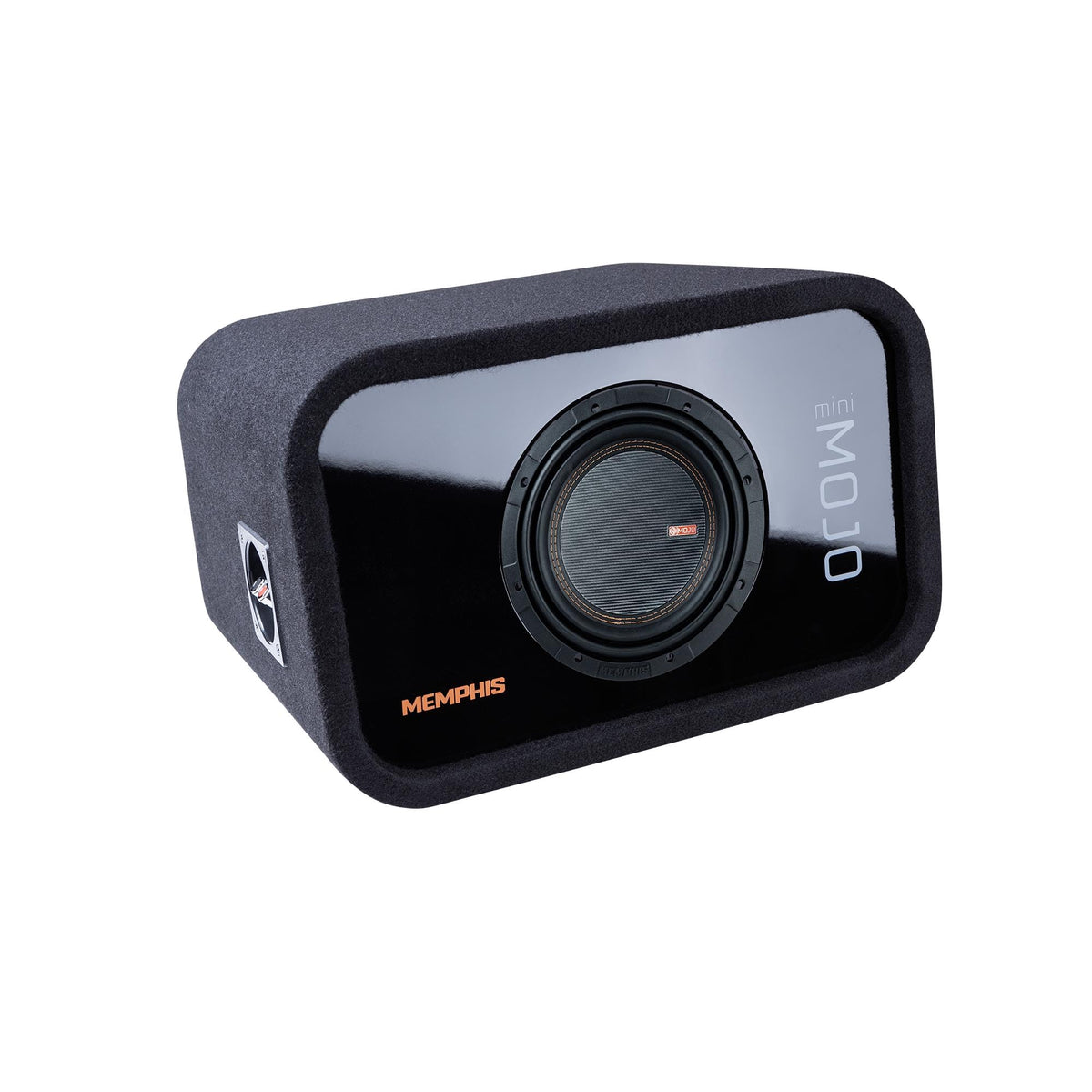

Memphis MJME8S1V2 8" Loaded Ported Subwoofer Enclosure

The Memphis MJME8S1V2 is a loaded ported enclosure built around one 8-inch MOJO Mini subwoofer. It provides a ready-to-install bass solution for vehicles where adding low-frequency output without designing a custom enclosure is the goal. Its 1-ohm final impedance is intended for use with a compatible external amplifier.

This enclosure is suited to listeners who want a compact single-subwoofer upgrade for a car or truck audio system. The ported cabinet is designed to support strong low-frequency output, with a confirmed frequency response of 38-150 Hz. It handles 900 watts RMS and 1,800 watts peak power.

The installed MOJO Mini subwoofer uses a vented cast-aluminum basket, a fiberglass-reinforced dust cap, and a VGroove rubber surround. A 4-layer copper 2-inch voice coil and heat-dissipating aluminum heat sink help manage heat during demanding playback. Memphis also specifies DVVC Direct Vent Voice Coil Cooling for additional voice-coil ventilation.

The MJME8S1V2 combines its bass system with a finished enclosure that is practical for visible cargo-area installations. Its carpet-wrapped cabinet and piano-black gloss front panel provide a clean appearance while the ported design supports the subwoofer's output range. The enclosure has one 8-inch woofer and a single 1-ohm final load.

Use this loaded enclosure as the bass section of a system with an external amplifier that is stable at 1 ohm and appropriately power matched. Confirm the available cargo or behind-seat space before purchase, especially the enclosure's 20.7-inch width and 16.2-inch bottom depth. A properly selected amplifier, wiring kit, and secure mounting arrangement are required for installation.

Key Features

• Single 8-Inch MOJO Mini Subwoofer: Provides a complete bass enclosure with one installed subwoofer.
• 900W RMS Power Handling: Supports substantial continuous power with suitable amplification.
• 1-Ohm Final Impedance: Designed for an amplifier rated to operate at 1 ohm.

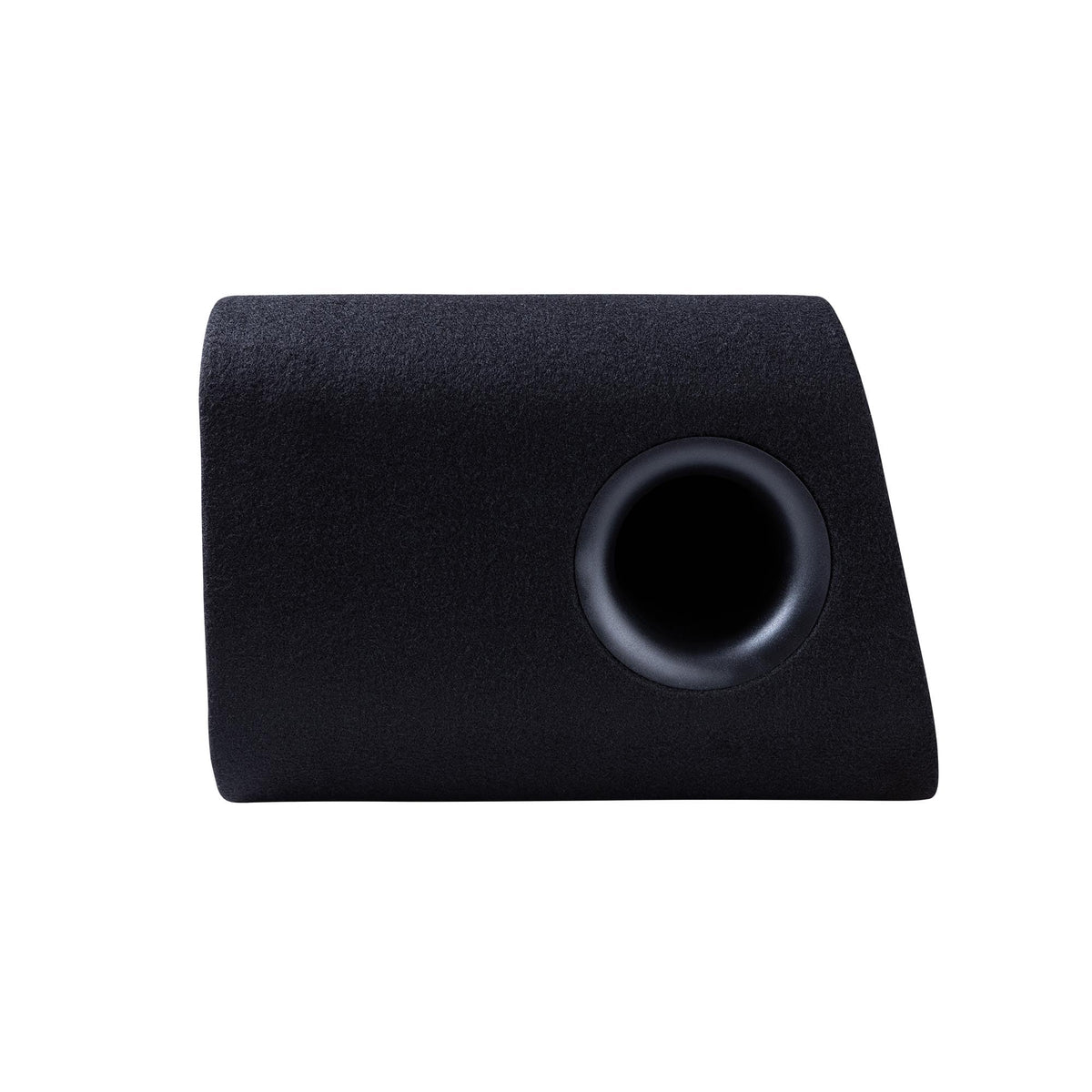

• Ported Enclosure: Supports bass output across its specified operating range.
• 4-Layer Copper Voice Coil: Uses a 2-inch coil built for heat management.
• Piano-Black Front Panel: Adds a gloss-finished visual detail to the enclosure.

Design & Installation

The MJME8S1V2 uses a carpet-wrapped, ported enclosure with a piano-black gloss finished front panel. The cabinet is listed with 3/4-inch medium-density fiberboard construction, while the subwoofer uses a vented cast-aluminum basket, fiberglass-reinforced dust cap, VGroove rubber surround, and aluminum heat sink.

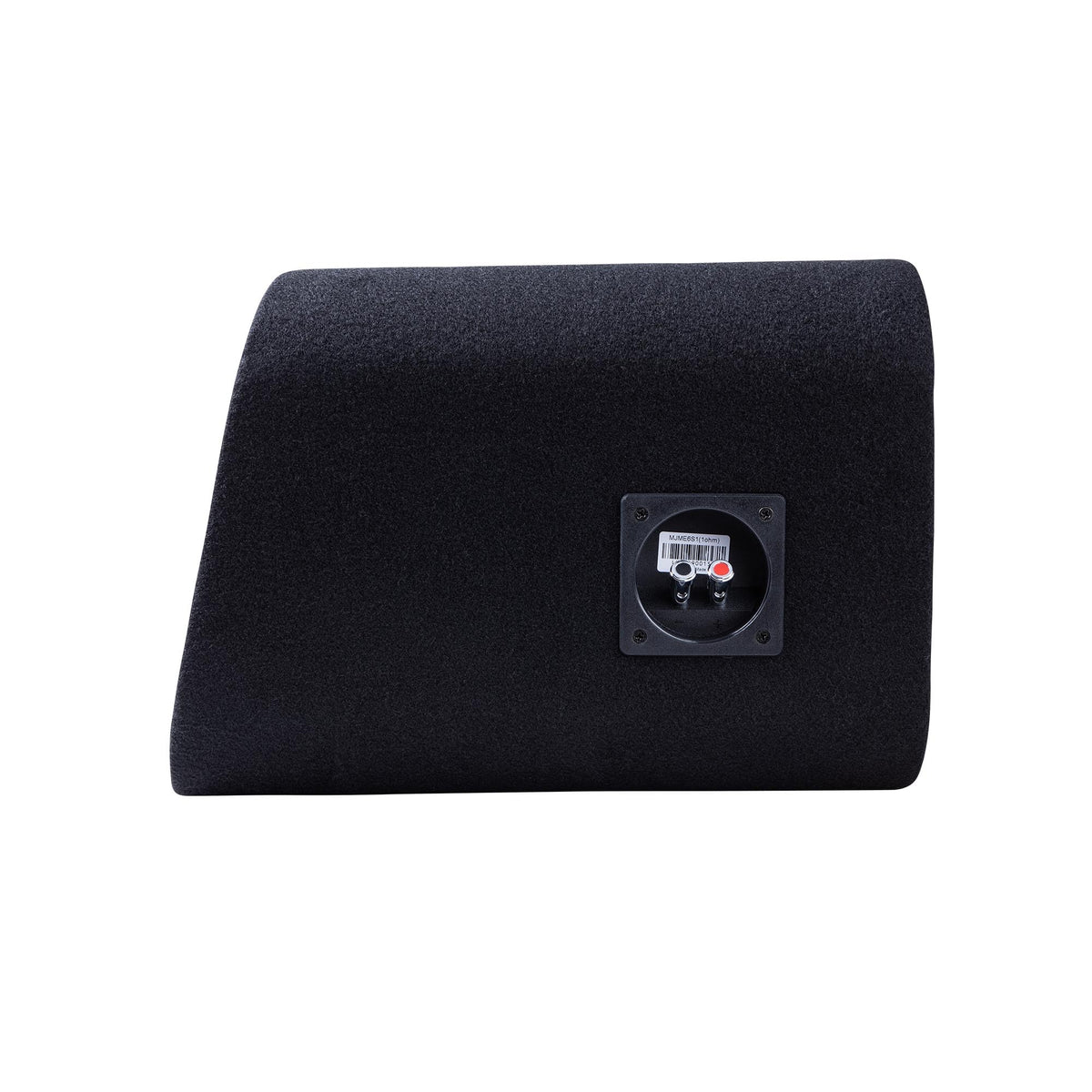

Measure the intended installation area before ordering: the enclosure is 20.7 inches wide, 12.7 inches high, 13.7 inches deep at the top, and 16.2 inches deep at the bottom. Wire the spring-post input to an external amplifier that is stable at the enclosure's 1-ohm load; the terminals accept up to 10-gauge speaker wire. Secure the enclosure to prevent movement during driving and keep the port unobstructed.
