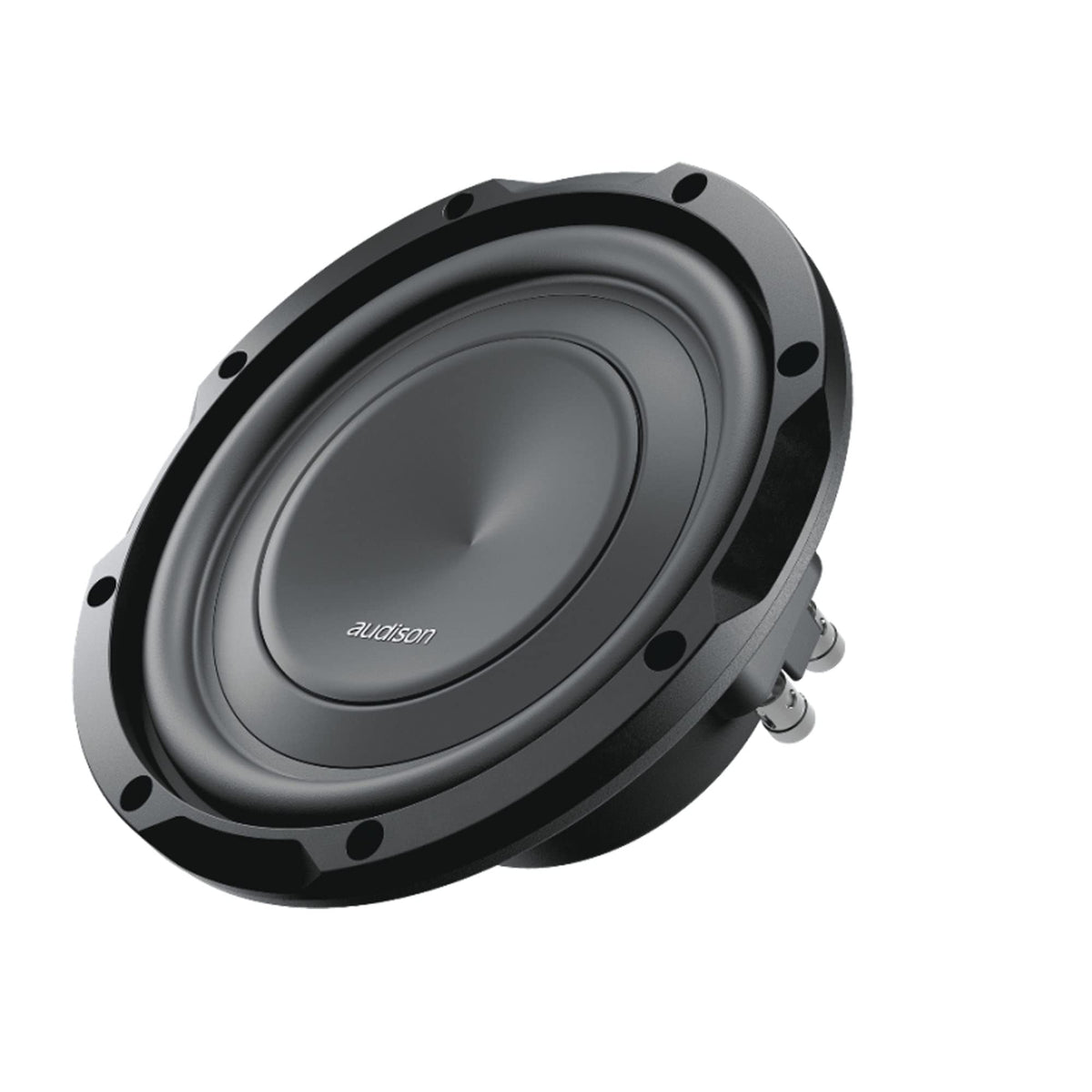

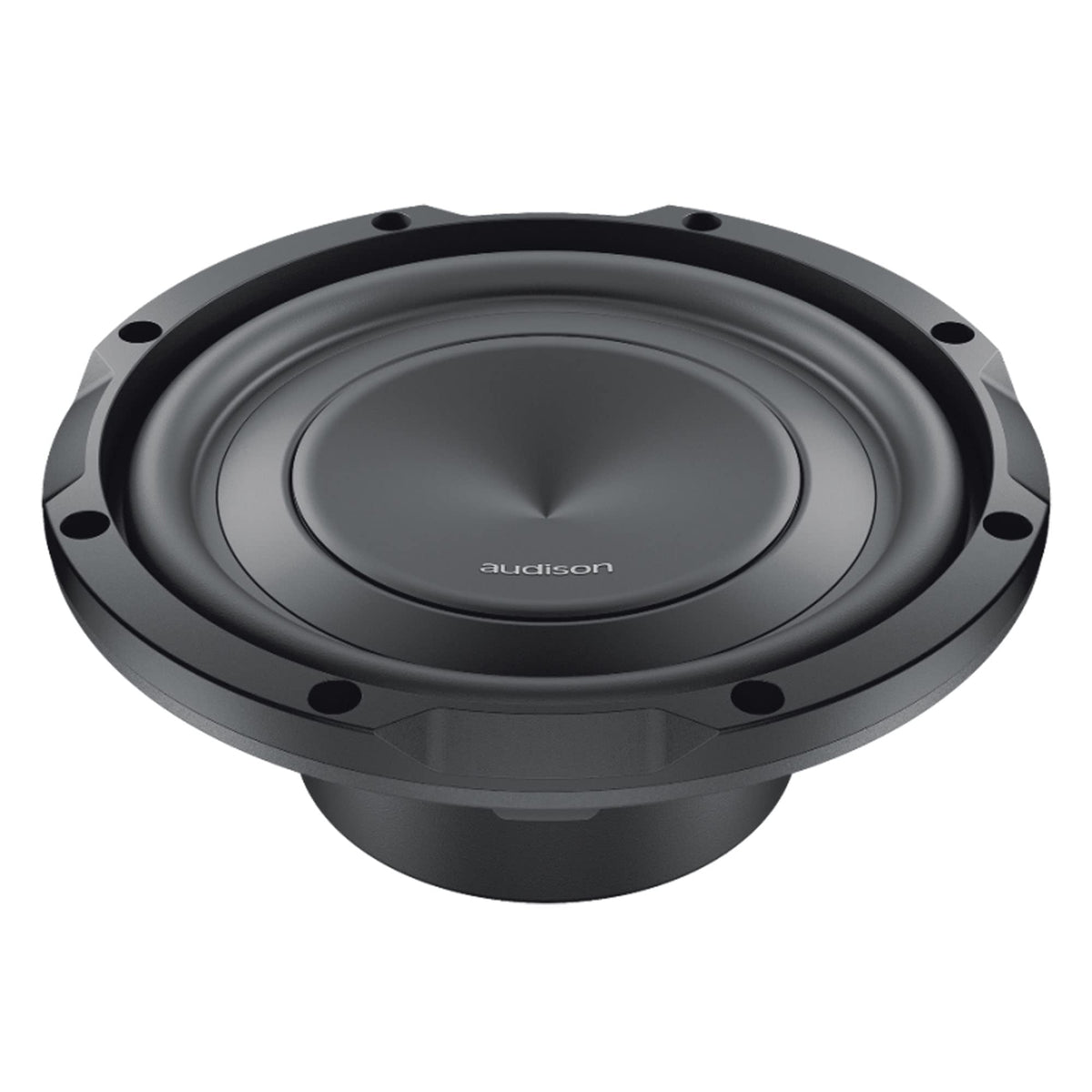

Audison APS 8 R 8" 4 Ohm Subwoofer

The Audison APS 8 R is an 8-inch, 4-ohm subwoofer driver designed for vehicle audio systems where available enclosure depth is limited. It provides a 250-watt continuous power rating and is intended to add controlled low-frequency output without requiring a large driver. Its compact installation profile makes it a practical option for custom trunk, side-panel, or space-conscious enclosure projects.

This subwoofer is designed for a reflex, or ported, enclosure with a minimum internal volume of 8.5 liters. Audison specifies a recommended tuning range between 30 and 40 Hz for this application. That design focus makes the APS 8 R suitable for systems seeking bass extension from a compact ported enclosure.

The APS 8 R uses a water-repellent pressed-paper cone and a 40 mm voice coil. Its 8.8 mm Xmax supports substantial linear cone travel for its shallow form factor. The 84 dB sensitivity and 4-ohm impedance should be considered when selecting a compatible amplifier and system tuning.

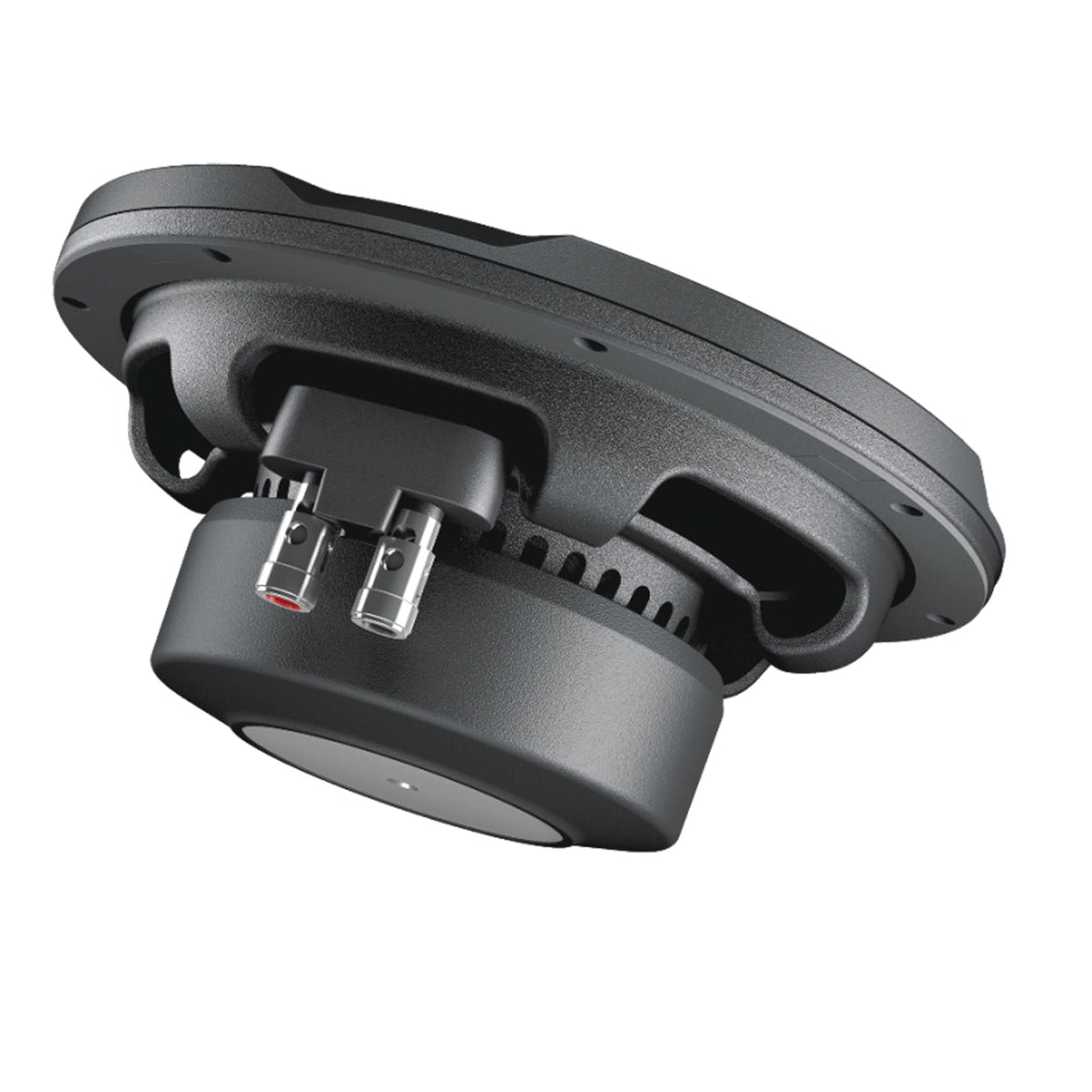

Audison uses a cone, dustcap, and basket geometry intended to preserve excursion while keeping mounting depth low. Basket vents located beneath the spider provide cooling without a central pole vent. This layout allows the driver to be mounted closer to the rear wall of an enclosure than designs requiring rear pole ventilation.

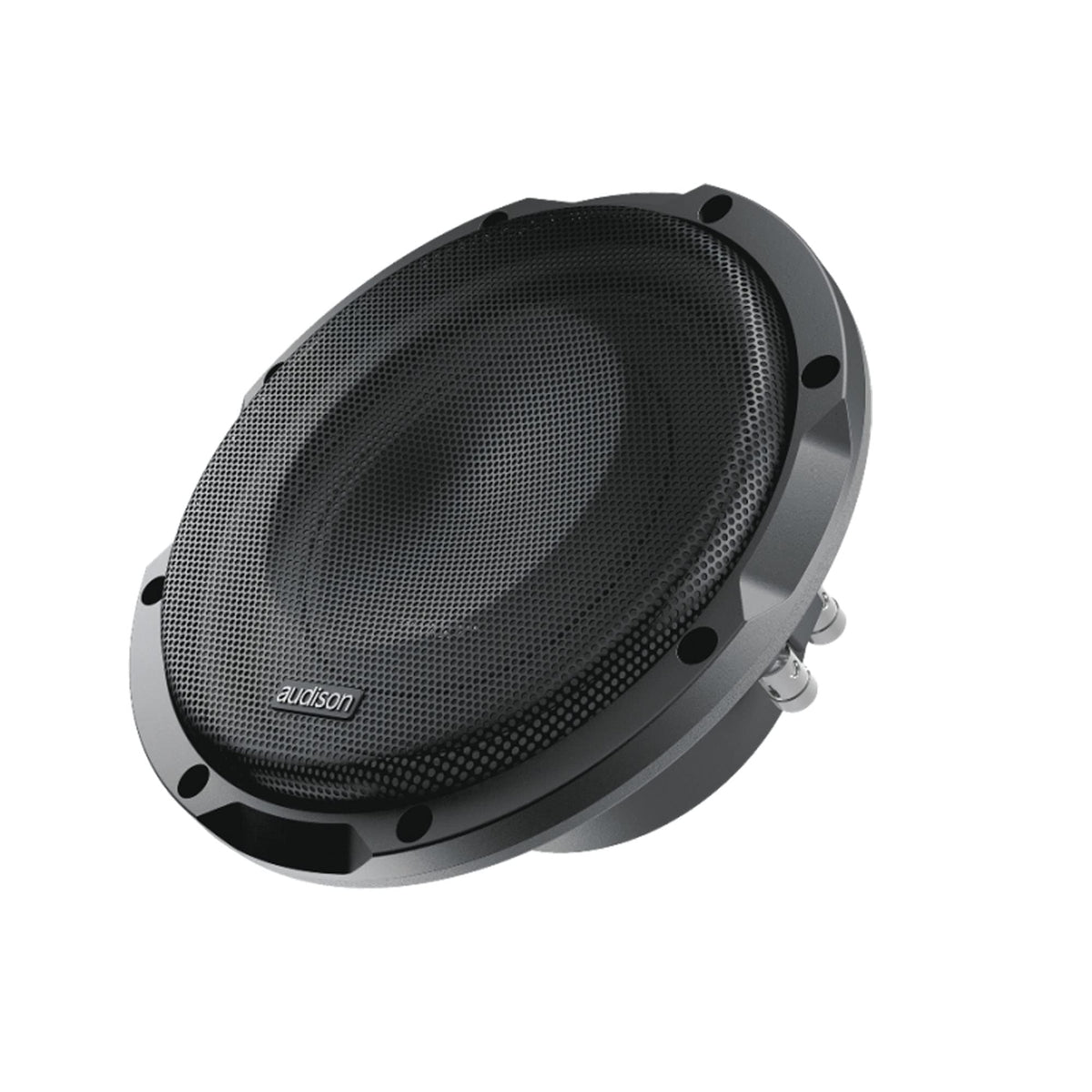

The APS 8 R fits naturally into an Audison Prima-based upgrade or a custom compact subwoofer system. It can be paired with an appropriately configured external amplifier and a properly designed ported enclosure. A steel mesh grille and plastic gasket are included to support installation and driver protection.

Key Features

• 8-Inch Subwoofer Driver: Adds bass capability in a compact speaker format.
• 250W Continuous Power: Supports amplifier matching for sustained playback.
• 4-Ohm Impedance: Works with compatible 4-ohm amplifier channels.
• Shallow 79 mm Mounting Depth: Helps fit restricted installation locations.
• Ported-Enclosure Design: Optimized for reflex enclosures from 8.5 liters.
• Basket Venting: Supports cooling while allowing close rear-wall mounting.

Design & Installation

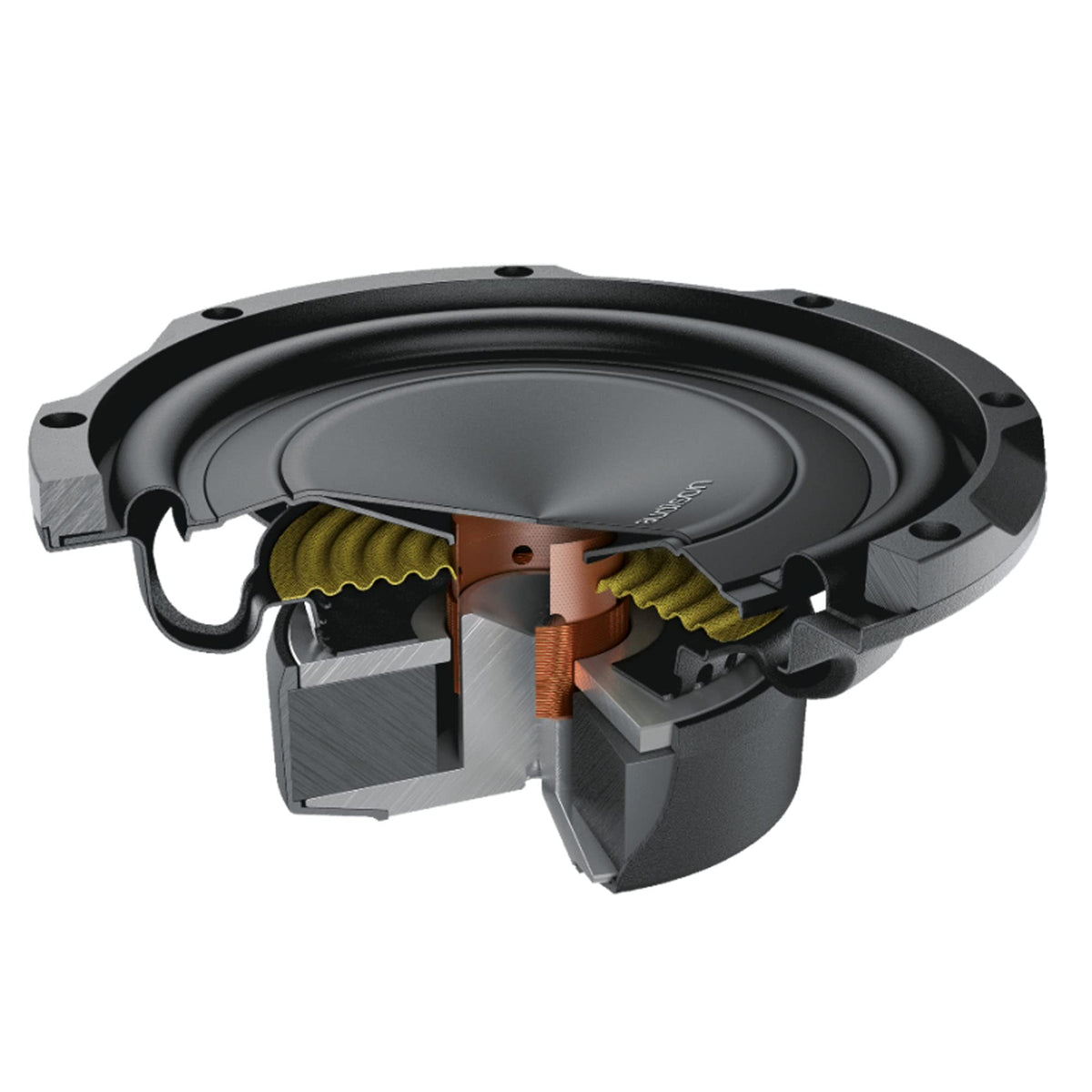

The APS 8 R combines a water-repellent pressed-paper cone with a high-density flux ferrite motor assembly. Its motor is optimized using finite element modeling, while the surround and spider are designed to help control rocking-mode behavior. The supplied steel mesh grille and plastic gasket complement the driver for a finished installation.

Use this subwoofer in a properly built reflex enclosure with at least 8.5 liters of internal volume and a 30-40 Hz tuning target. Confirm the 187 mm installation opening and 79 mm mounting depth against the available mounting location before cutting. Select an external amplifier compatible with a 4-ohm load, then set crossover, gain, and enclosure tuning carefully for the system.
