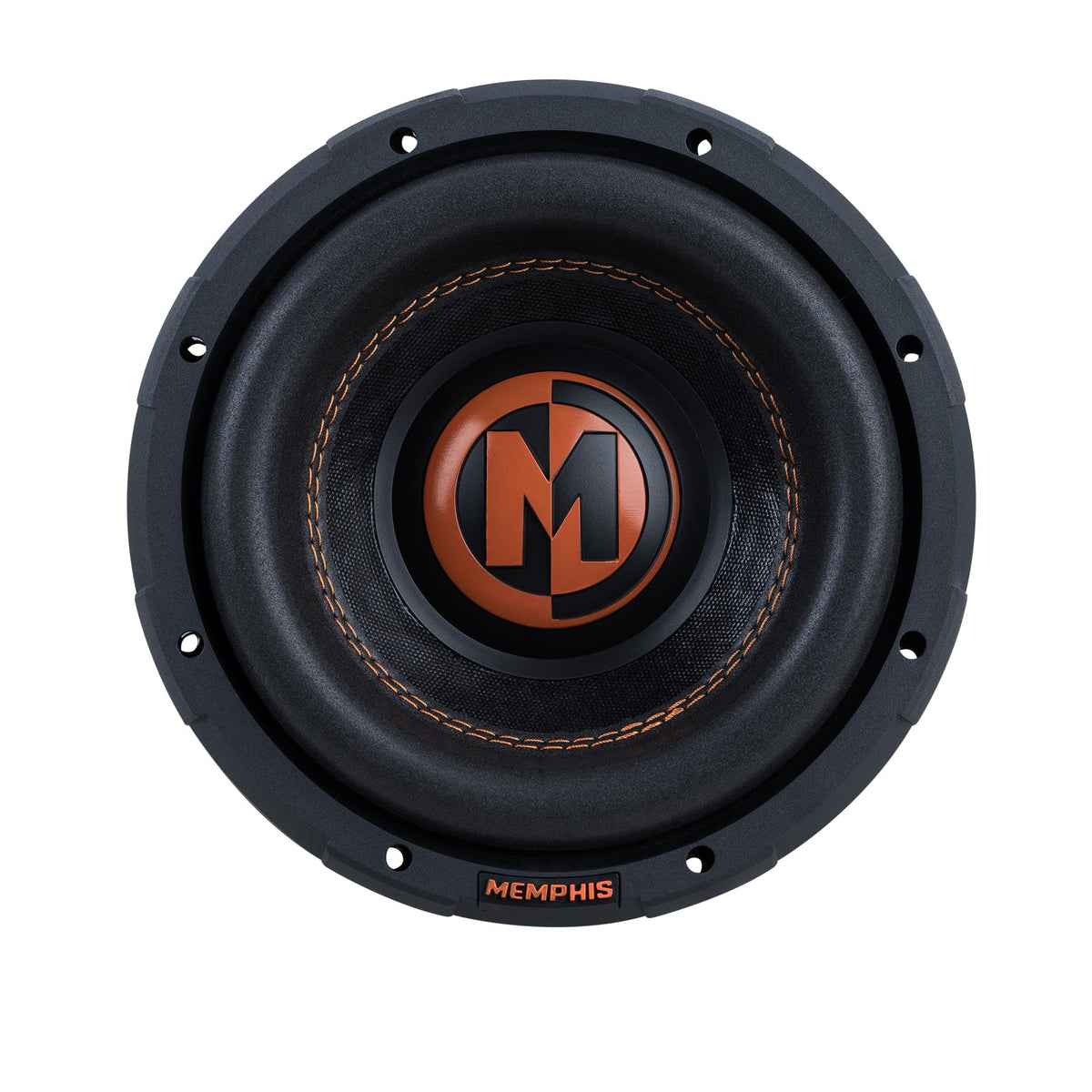

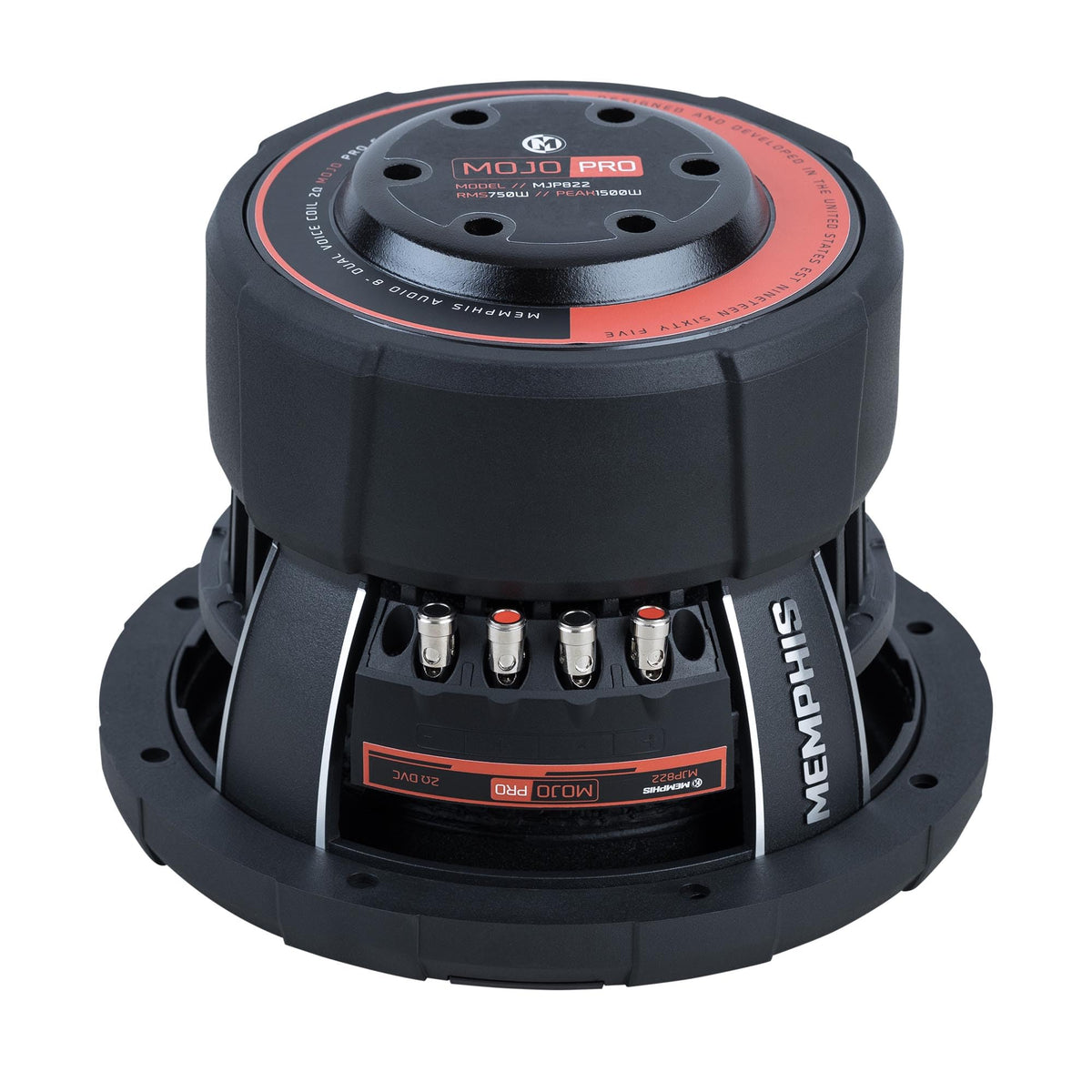

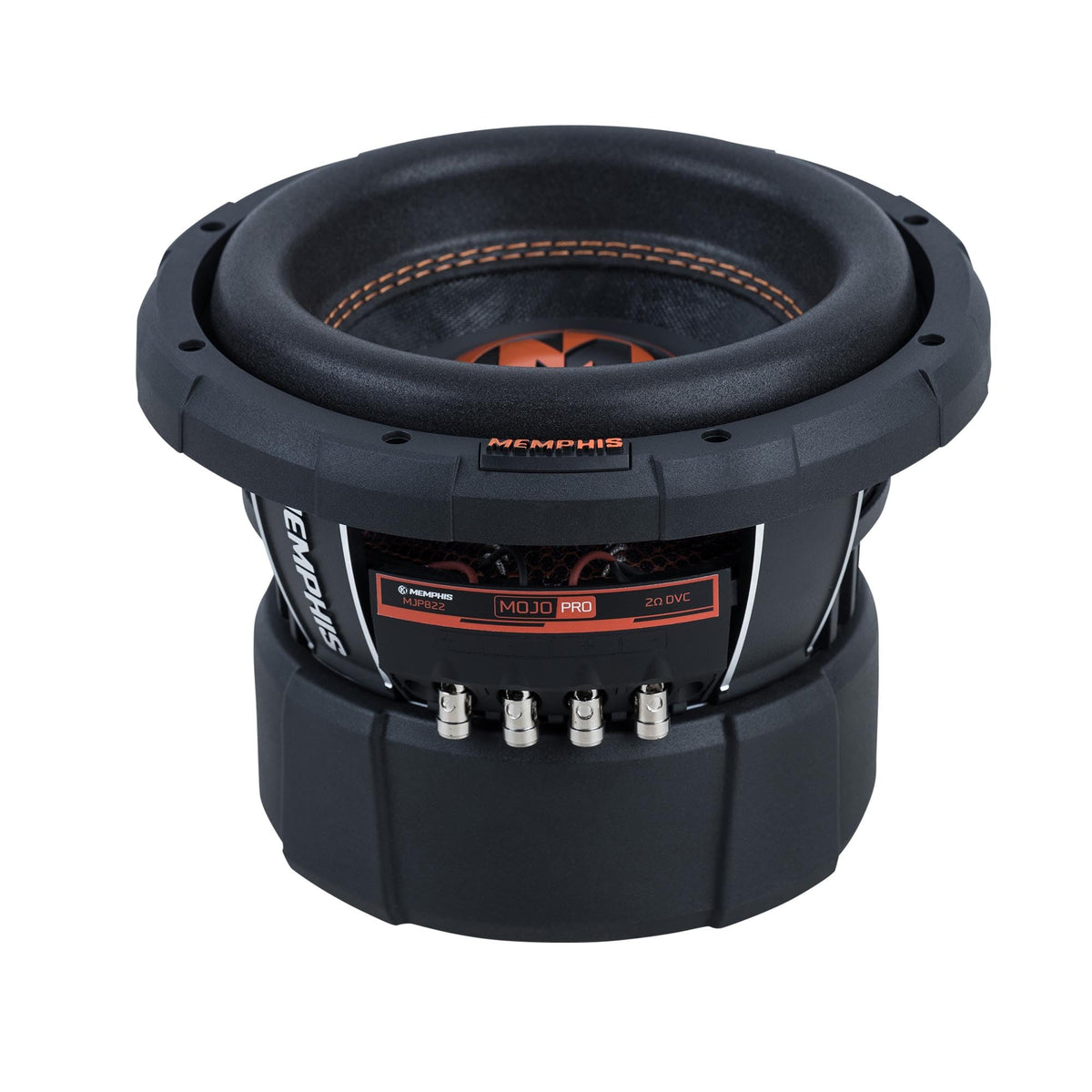

Memphis MJP822 MOJO Pro 8" Dual 2 Ohm Subwoofer

The Memphis MJP822 is an 8-inch MOJO Pro subwoofer built for car audio systems that need substantial bass output in a more traditional-size enclosure. Its dual 2-ohm voice-coil configuration gives installers useful wiring flexibility when matching a mono amplifier. It is intended as a component subwoofer and requires a separate enclosure and amplifier.

With 750 watts RMS and 1,500 watts peak power handling, the MJP822 is designed for systems centered on high sound-pressure-level performance. Its compact 8-inch format can suit vehicles where larger subwoofers are impractical or where multiple smaller drivers are preferred. The rigid paper cone and double-stitched foam surround support controlled cone movement under demanding use.

Memphis uses DVVC Direct Vent Voice Coil Cooling and cross-drilled front-plate venting to help manage heat around the motor and voice coil. A 2.5-inch voice coil gives the driver substantial thermal capacity for its size. An aluminum shorting ring is used to reduce inductance in the motor assembly.

The MJP822 uses a progressive spider, diecast basket, and double-stacked ferrite magnet motor structure. These elements provide a rigid foundation for the cone assembly and help maintain alignment during operation. The subwoofer has a listed sensitivity of 82 dB and a resonant frequency of 42 Hz.

This model can be used in sealed or ported custom enclosures, depending on system goals and available space. Memphis lists 0.6 cubic feet for a recommended sealed enclosure and 1.0 cubic foot for a recommended ported enclosure. Its 5.6-inch mounting depth and 7.3-inch cutout diameter should be confirmed against the planned enclosure before installation.

Key Features

• 750W RMS Power Handling: Supports amplifier matching for demanding bass systems.
• Dual 2-Ohm Voice Coils: Allows 1-ohm parallel or 4-ohm series wiring.
• DVVC Cooling: Direct venting helps dissipate voice-coil heat.
• 2.5-Inch Copper Voice Coil: Provides thermal capacity for sustained power handling.
• Rigid Paper Cone: Supports stable bass reproduction under high output.
• Diecast Basket: Provides a rigid mounting structure for the driver.

Design & Installation

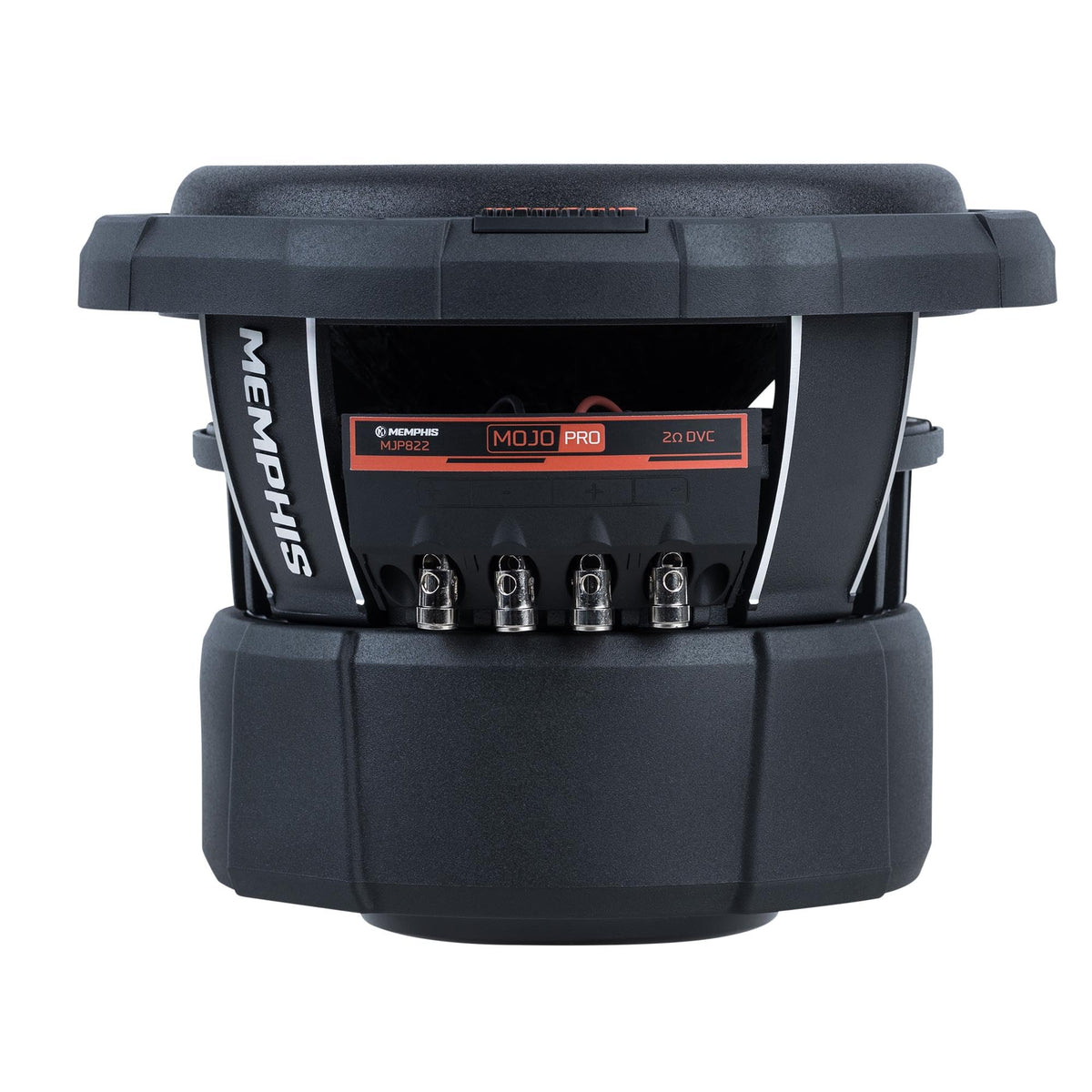

The MJP822 combines a rigid paper cone, double-stitched foam surround, progressive spider, and diecast basket. Its 105-ounce double-stacked ferrite motor includes cross-drilled front-plate venting and an aluminum shorting ring. Single-sided compression terminals provide the speaker-wire connection point.

Plan for a 7.3-inch cutout and at least 5.6 inches of mounting depth. A sealed enclosure of 0.6 cubic feet or a ported enclosure of 1.0 cubic foot is listed for this model. Wire the two 2-ohm coils in parallel for a 1-ohm final load or in series for a 4-ohm final load, only when the connected amplifier is rated for that impedance.
