Rockford Fosgate M1D2-8 8" Marine RGB LED Subwoofer

The Rockford Fosgate M1D2-8 is an 8-inch marine subwoofer designed to add low-frequency output to boats and powersports audio systems while providing integrated RGB lighting. Its dual 2-ohm voice coil design and built-in VersaSwitch allow the final load to be selected as 1 ohm or 4 ohms without extra series or parallel wiring. The white finish, grille, and lighting system are made for installations where the speaker remains visible.

This subwoofer is intended for boat owners and powersports enthusiasts building a marine-capable sound system with a separate amplifier. It handles 150 watts RMS and 600 watts peak, with a 20 Hz to 750 Hz frequency-response specification. Its 87.5 dB sensitivity and 7 mm Xmax support bass reinforcement in compact custom installations.

Color Optix RGB lighting gives the M1D2-8 a coordinated appearance when used with compatible Rockford Fosgate lighting equipment. A separately sold PMX-RGB Color Optix controller and the RF Connect app are required to control lighting patterns. Integrated Deutsch and Amphenol connections help simplify the lighting connection within a compatible Color Optix setup.

The M1D2-8 uses a mineral-filled polypropylene cone with a Santoprene VAST surround and a 1.5-inch Kapton voice coil former. Its vented motor includes a water-repelling nano-coated mesh screen, while fully insulated silicone tinsel leads are designed for demanding outdoor use. The VAST surround design increases effective cone area without enlarging the speaker frame.

Element Ready construction and an IP67 rating suit this subwoofer for marine environments exposed to water, salt, and UV light. The 7.10-inch cutout and 3.43-inch mounting depth make it appropriate for custom panels and enclosures with adequate clearance. It can be paired with a compatible marine amplifier and other Color Optix-equipped Rockford Fosgate components for a unified audio and lighting system.

Key Features

• 150-Watt RMS Handling: Supports amplifier matching up to 150 watts RMS.

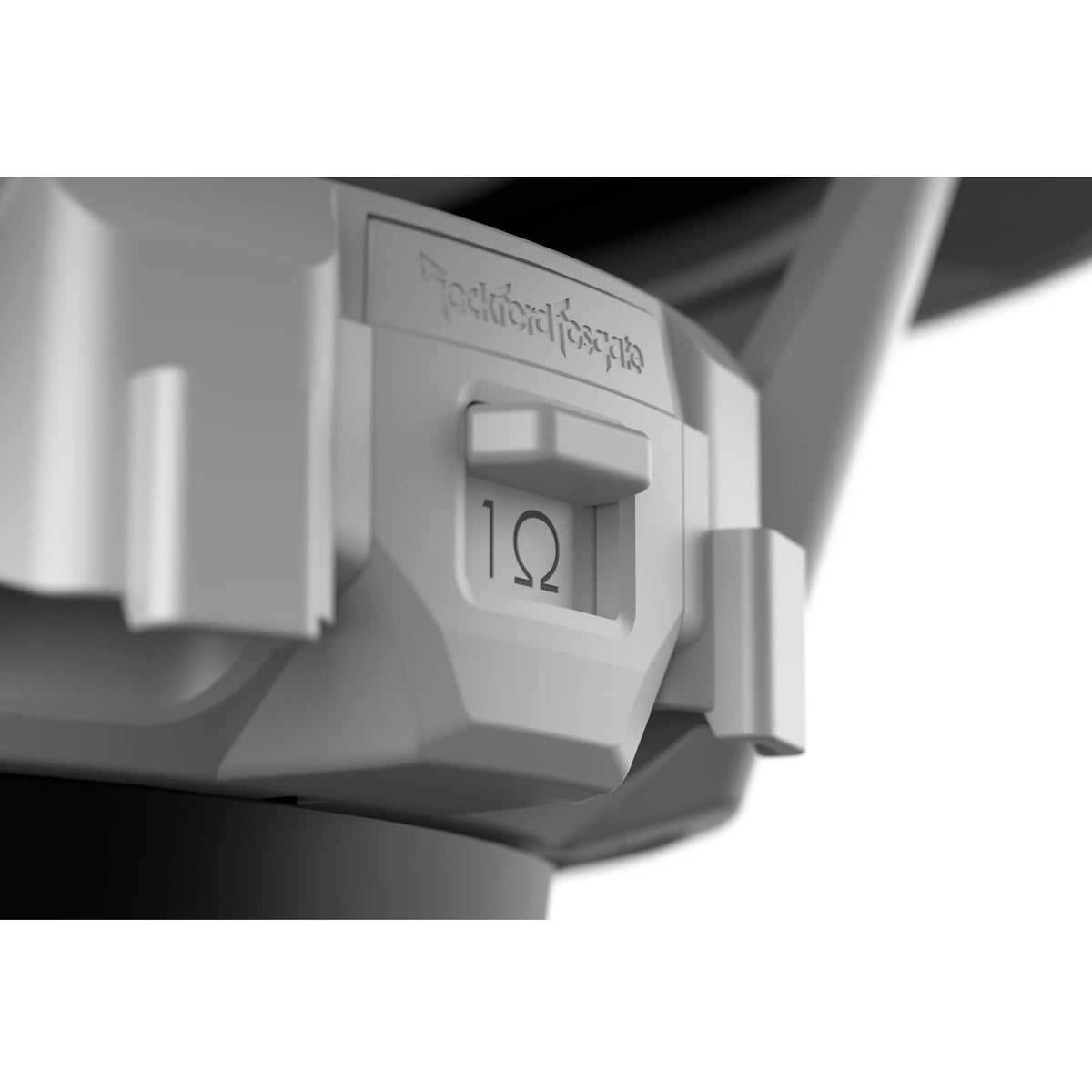

• VersaSwitch Impedance: Selects a 1-ohm or 4-ohm final load.
• Color Optix RGB LEDs: Adds controllable multicolor accent lighting to the installation.
• IP67 Element Ready Design: Provides marine-focused protection from water and environmental exposure.
• Deutsch Speaker Connector: Supports integrated plug-and-play Color Optix connectivity.
• VAST Santoprene Surround: Increases effective cone area while maintaining durability.

Design & Installation

The M1D2-8 combines a UV-stable ASA plastic frame and grille with a mineral-filled polypropylene cone, Santoprene surround, synthetic-fiber-blend spiders, and marine-grade brass terminals with zinc-nickel plating. Its motor is vented and protected by a water-repelling nano-coated mesh screen. The optically clear RGB lighting encapsulation is designed to remain suitable for exposed marine installations.

Plan for a 7.10-inch mounting cutout, 3.43 inches of mounting depth, and a 9-inch overall diameter. Use the VersaSwitch to choose the 1-ohm or 4-ohm configuration appropriate for the connected amplifier, following the amplifier manufacturer's minimum-impedance guidance. For RGB lighting control, add the separately sold PMX-RGB controller and connect it within a compatible Rockford Fosgate Color Optix system.
