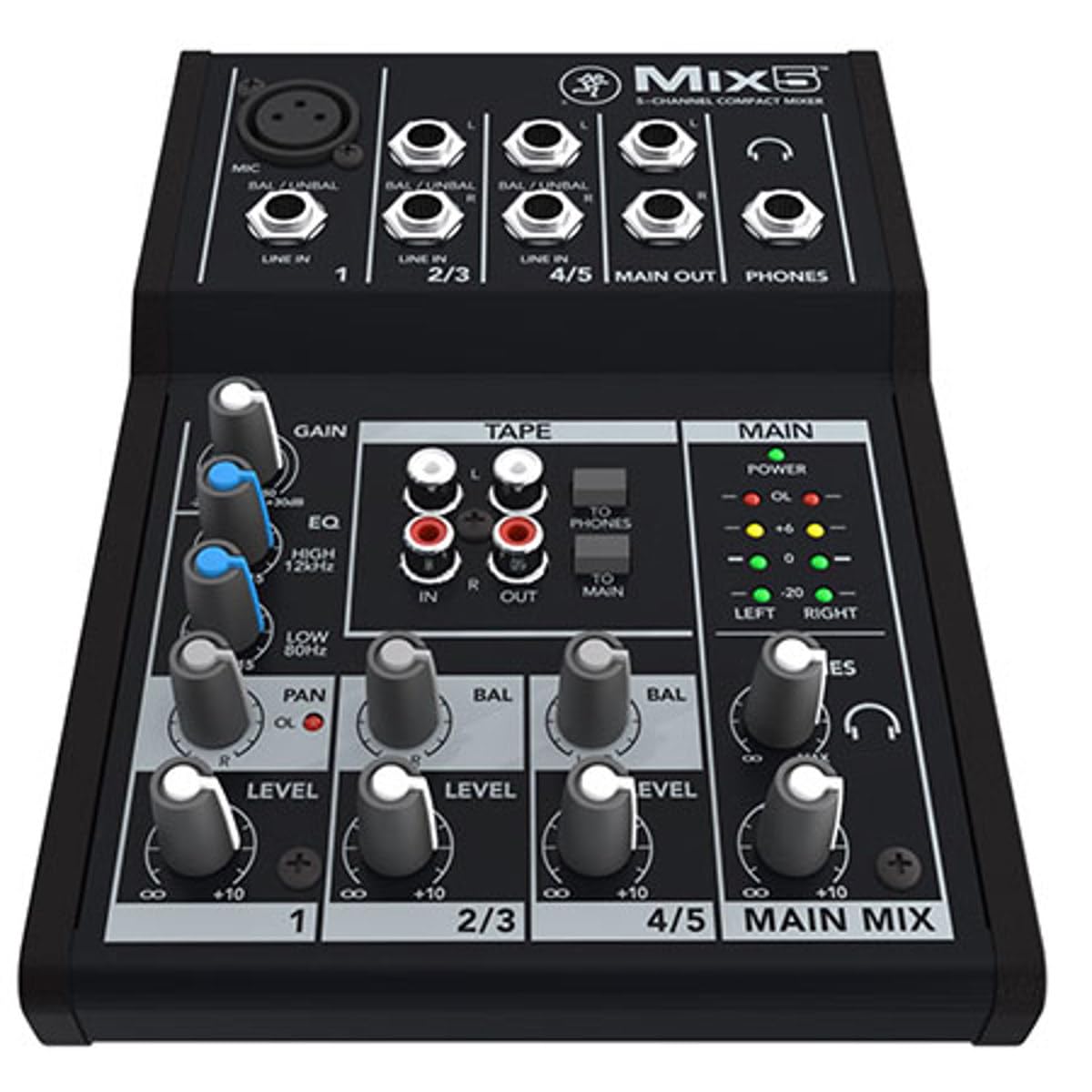

Mackie Mix5 5-Channel Compact Mixer

The Mackie Mix5 is a compact analog mixer designed to combine microphones, instruments, playback devices, and other line-level sources into a single stereo mix. Its five-channel format includes one mic/line channel and two stereo line-input channels, making it suited to small recording setups, podcasting, streaming, rehearsal spaces, and simple live sound systems. Dedicated main outputs, RCA tape connections, and a headphone output provide practical routing for monitoring, playback, and recording.

This mixer is a sensible choice for users who need hands-on level control without a computer-based interface or digital menu system. The channel layout supports one XLR microphone source alongside stereo sources such as keyboards, media players, audio interfaces, or other line-level equipment. It is an analog-only mixer, so a separate audio interface is needed when USB computer audio connectivity is required.

The Mix5 is built around Mackie's high-headroom, low-noise mixer design and a single mic/line preamp. Its mic input has a specified equivalent input noise rating of -125 dBu, while the mic-input-to-output frequency response is rated from 20 Hz to 30 kHz within +0/-1 dB at unity gain. These specifications support clean signal handling for compact desktop and portable audio systems.

Channel 1 provides a two-band EQ with high shelving at 12 kHz and low shelving at 80 Hz, each offering up to 15 dB of boost or cut. This gives users straightforward tonal adjustment for a microphone or mono line source without adding outboard processing. Individual channel level controls, pan/balance control, main mix level control, and output metering help manage gain structure during use.

For system expansion, the Mix5 can feed powered speakers, amplifiers, recorders, or another audio device from its main and tape outputs. Stereo RCA tape inputs allow playback from compatible devices, while the 1/4-inch headphone output has its own CR/Phones level control. The Mix5 provides constant +15V phantom power on its XLR input, so microphone compatibility should be checked carefully before connection.

Key Features

• Five-Channel Layout: Mix one mic/line source and two stereo line sources.
• Constant +15V Phantom Power: Supports compatible condenser microphones on the XLR input.
• Two-Band EQ: Adjust high and low frequencies on channel 1.
• Stereo RCA Tape I/O: Connect playback devices or stereo recording equipment.
• Main L/R Outputs: Feed powered speakers, amplifiers, or external equipment.
• Headphone Output: Monitor through a dedicated level-controlled 1/4-inch jack.

Design & Installation

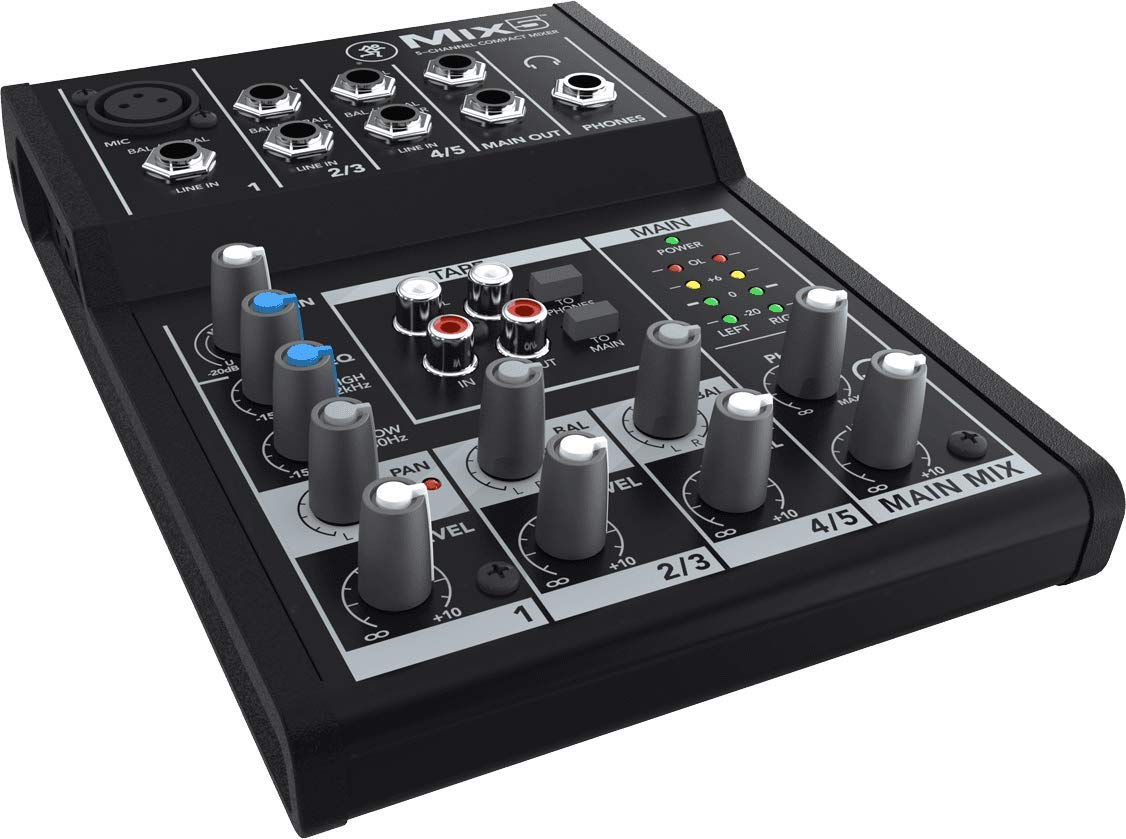

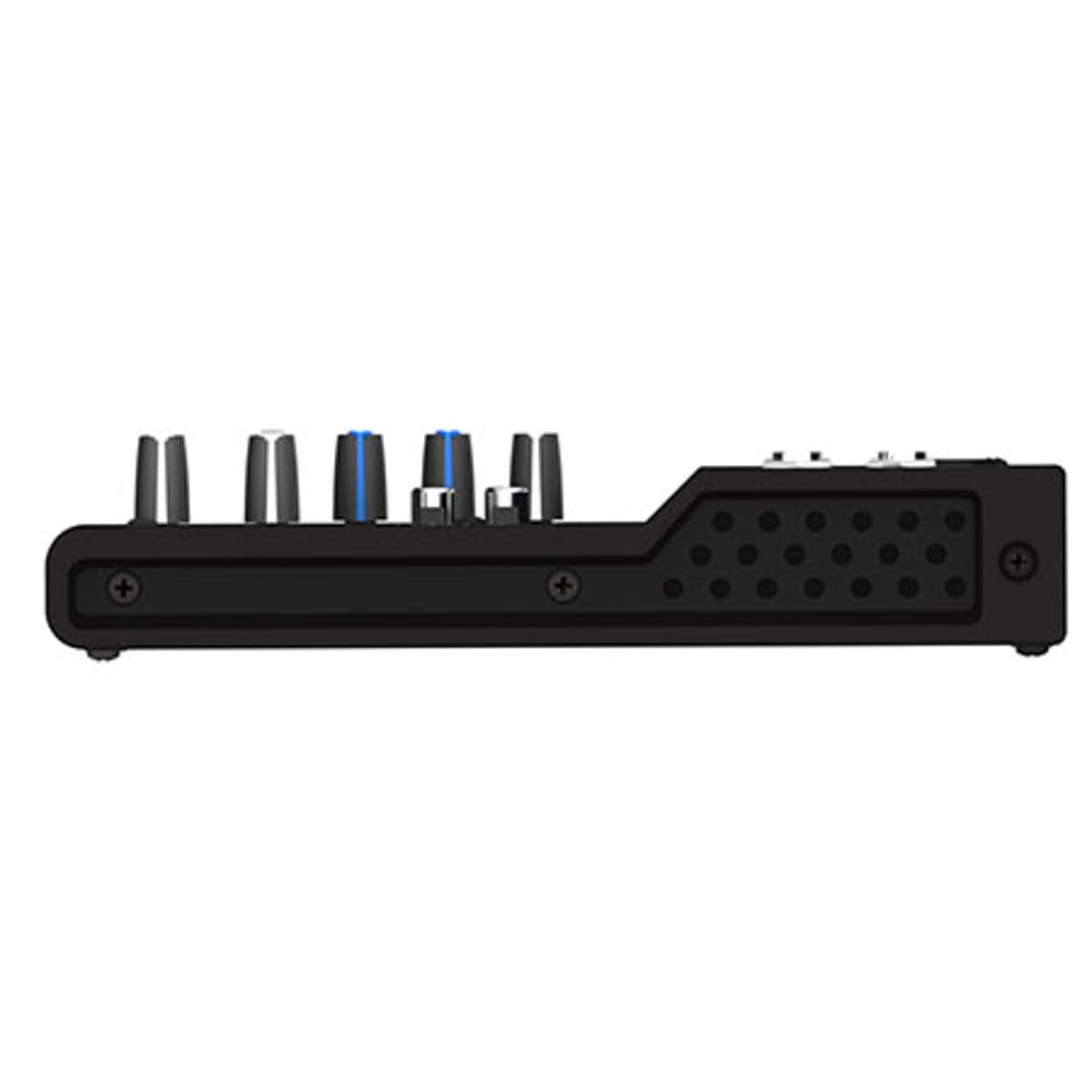

The Mix5 uses a rugged, portable compact-mixer design intended for desktop, home-studio, rehearsal, and mobile applications. Its control surface places input connections, gain controls, EQ, level controls, output controls, and metering within a small footprint. Mackie specifies dimensions of 5.5 inches wide by 7.7 inches deep by 1.7 inches high, with a weight of 1.4 pounds.

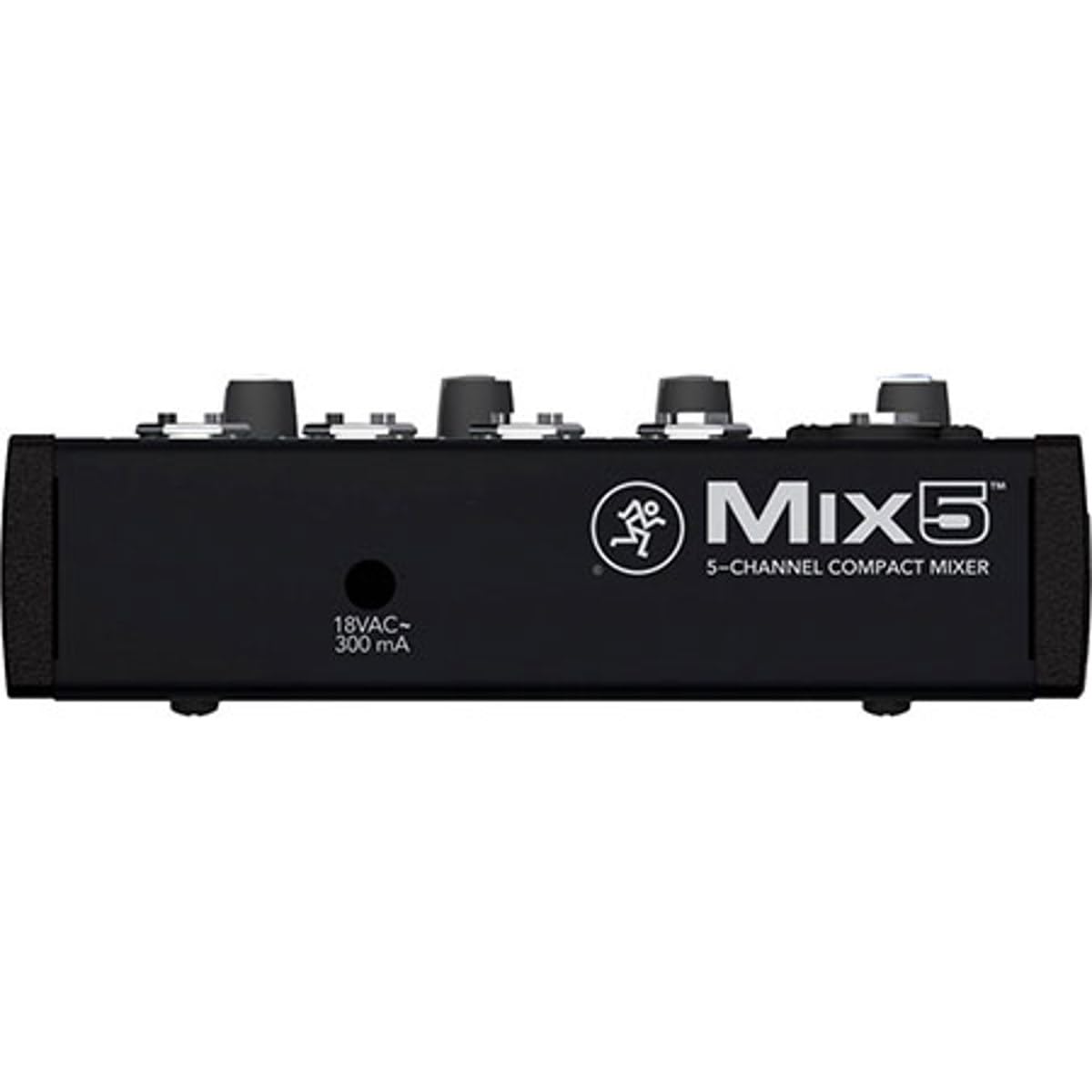

Connect a balanced XLR microphone or line source to channel 1, then connect stereo line-level devices to the two 1/4-inch stereo input pairs. Use the main L/R outputs for a speaker system or external audio equipment, and use the RCA tape output for compatible recording inputs. The supplied external AC power supply connects to the mixer first; because phantom power is always active on the Mix5 XLR input, do not connect ribbon microphones or single-ended unbalanced microphones to that input.
