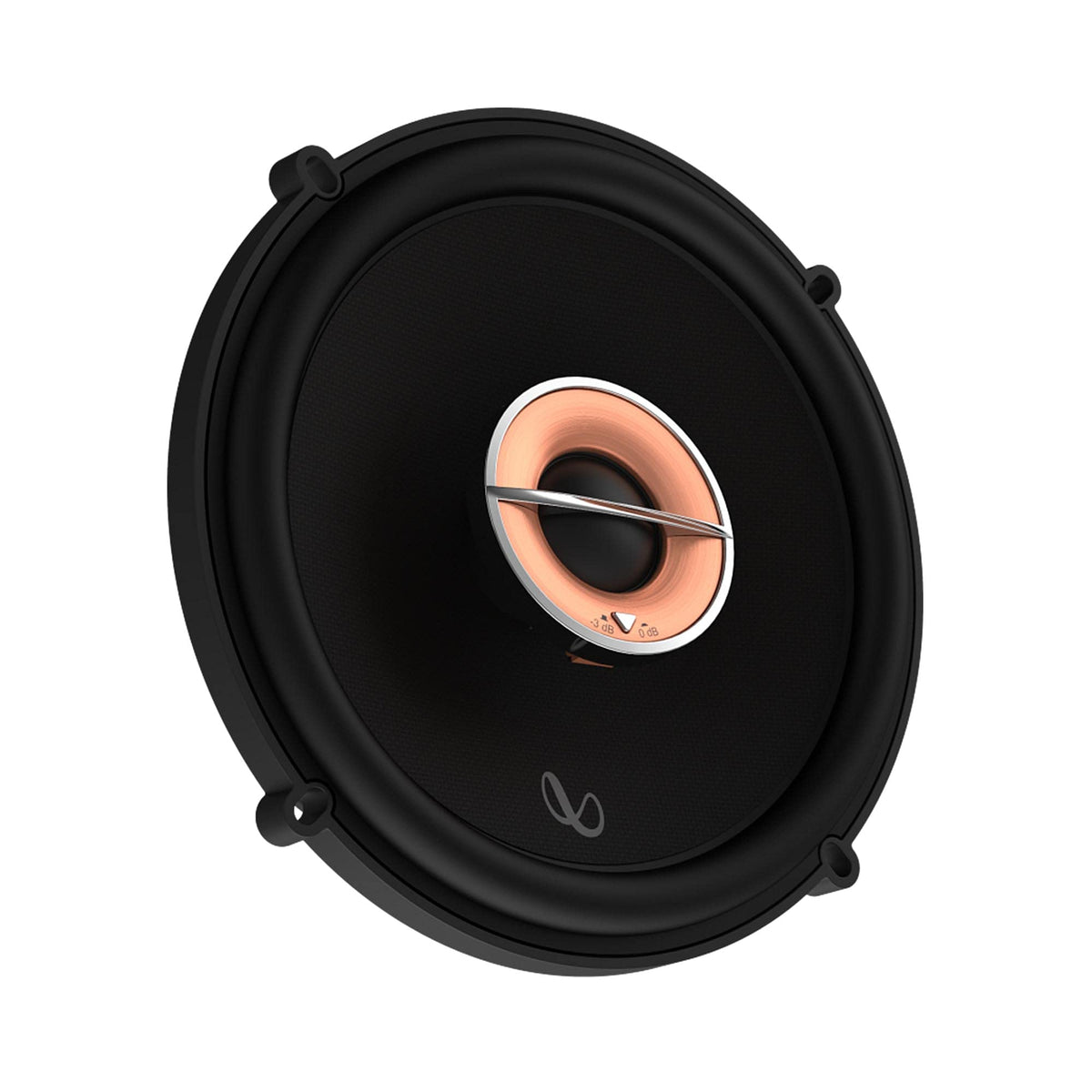

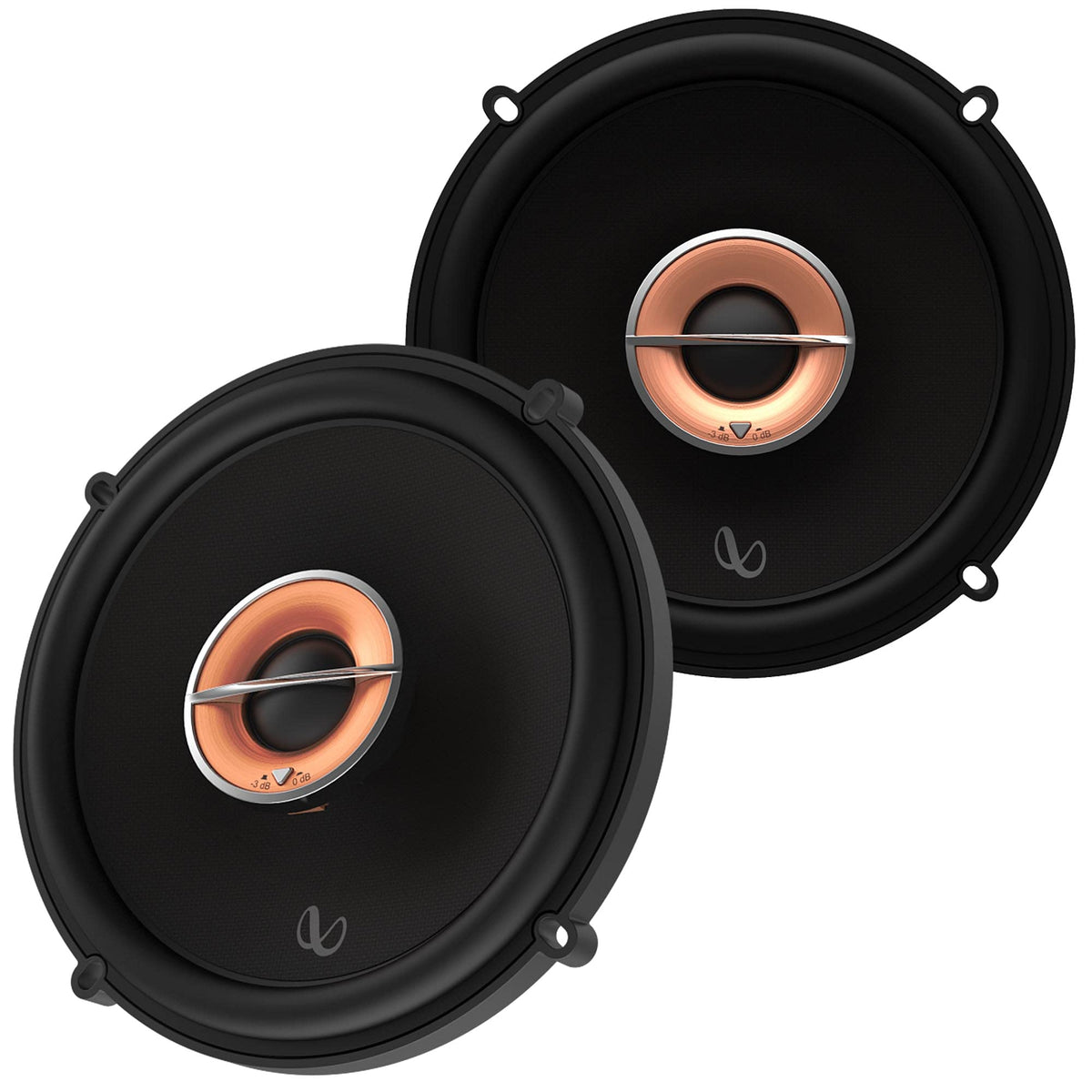

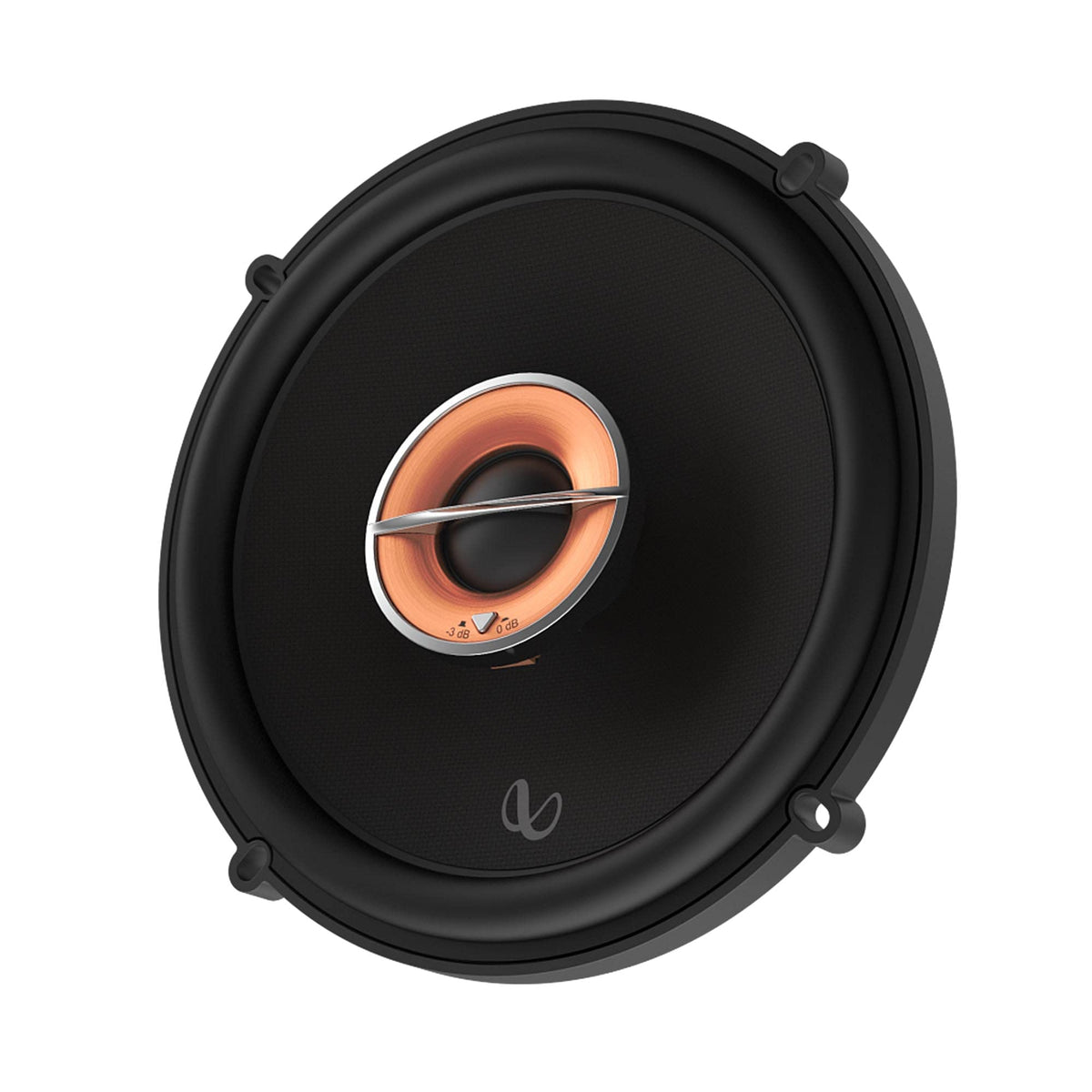

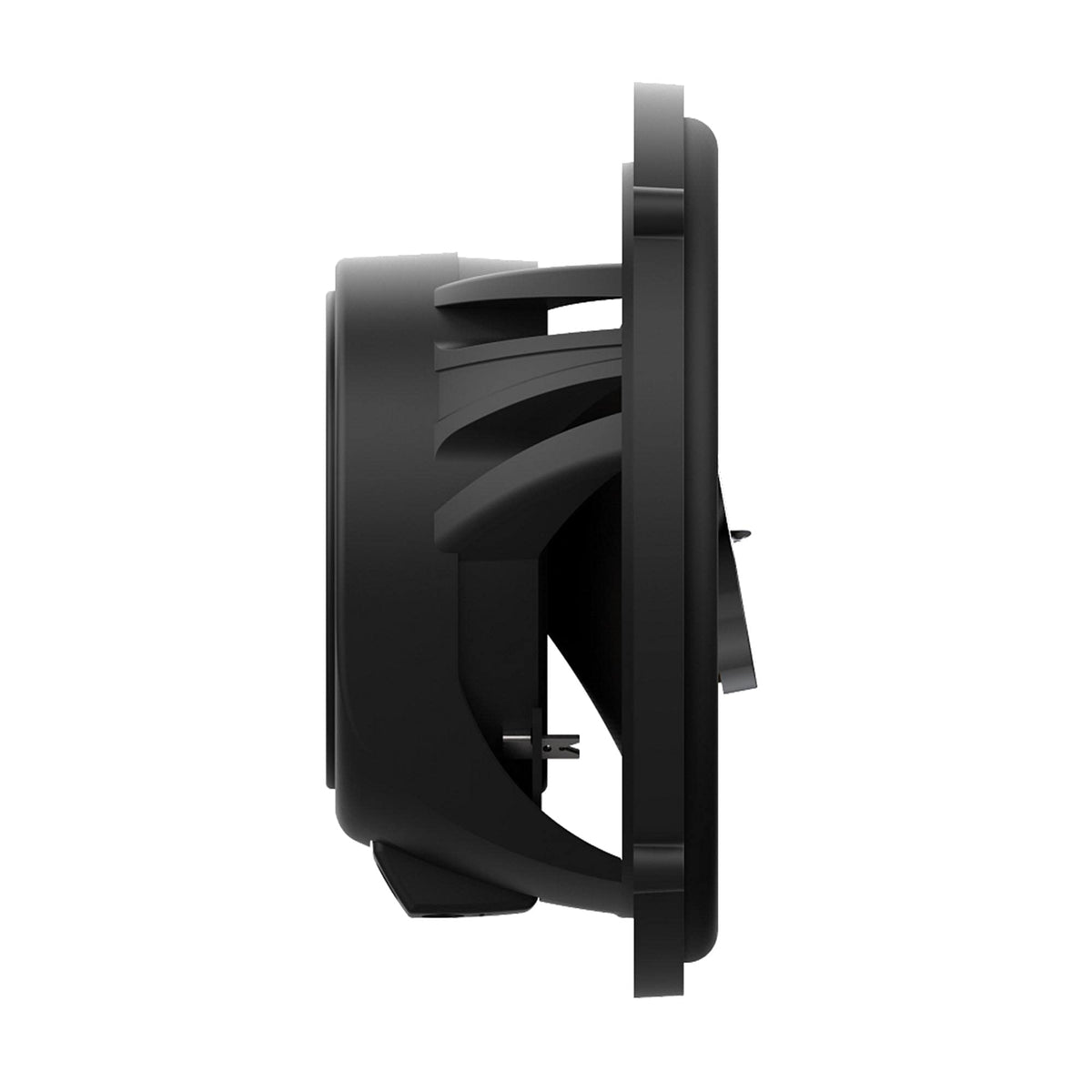

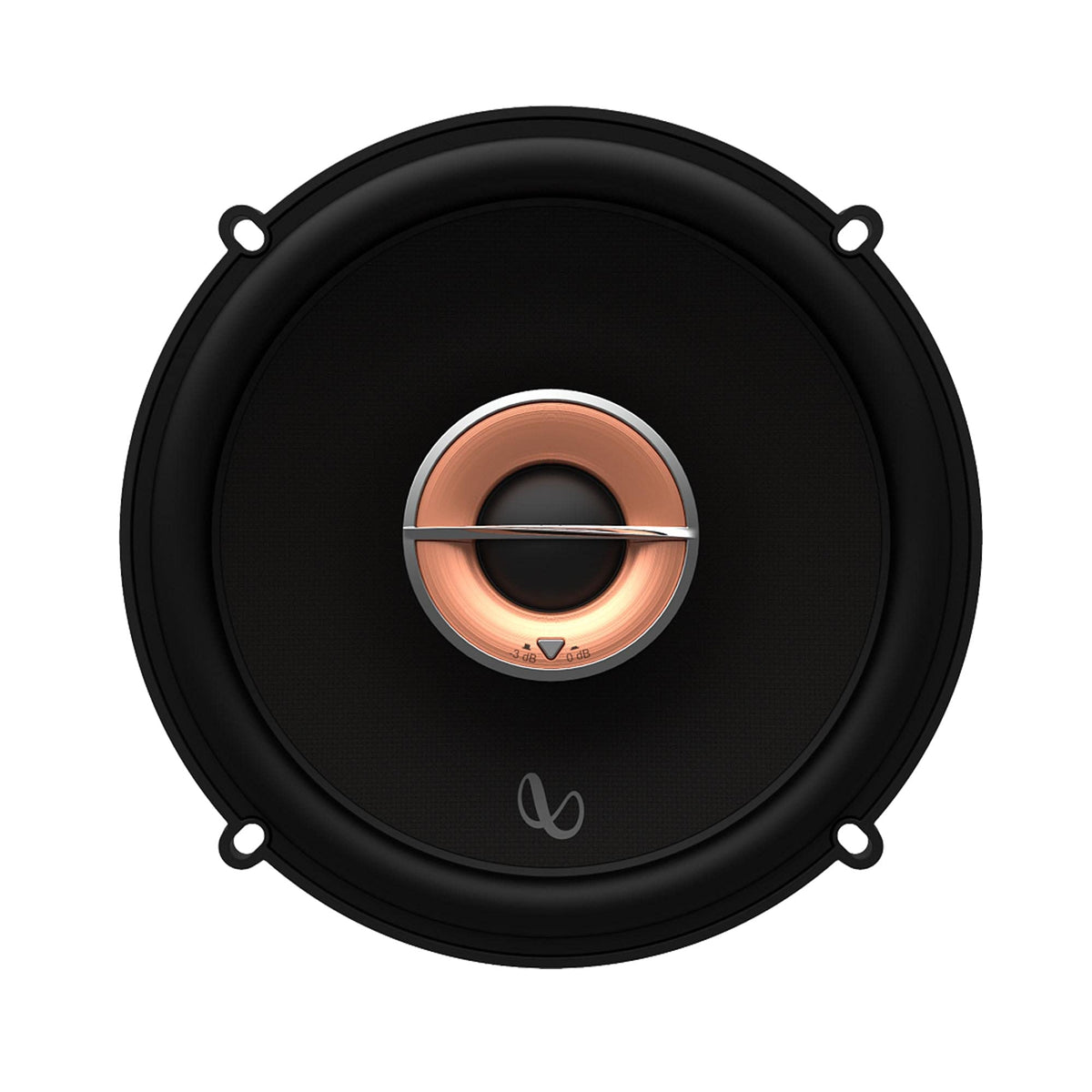

Infinity Kappa 63XF 6.5" Two-Way Car Speakers

The Infinity Kappa 63XF is a pair of 6-1/2-inch two-way car speakers designed for upgrading factory speaker locations. It combines a glass-fiber woofer with an edge-driven silk dome tweeter in a compact full-range speaker format. The set is intended for listeners who want a clearer, more capable replacement speaker while retaining a conventional door or rear-deck installation approach.

With 85 watts RMS and 255 watts peak power handling, the Kappa 63XF is suited to systems using either an aftermarket receiver or compatible external amplification. Its 3-ohm impedance and 93dB sensitivity support efficient output in a properly matched system. The stated 45Hz to 40kHz frequency response covers bass, midrange, and extended high-frequency reproduction from each speaker.

Infinity uses patented Plus One glass-fiber woofer cones for a light, rigid diaphragm with increased cone area. This construction is designed to support low-frequency output while maintaining controlled cone movement. A rubber surround complements the woofer assembly for long-term movement and damping.

The 3/4-inch edge-driven silk dome tweeter is equipped with an oversized voice coil and is rated for response up to 40kHz. Its angled UniPivot design can rotate up to 270 degrees after installation on most applications, allowing the installer to aim high-frequency output toward the listening area. A built-in push-button selector provides 0dB or -3dB tweeter output adjustment for better balance based on speaker location.

The Kappa 63XF is a practical choice for replacing compatible 6-1/2-inch factory speakers in front doors, rear doors, or rear-deck positions. Multi-hole adapter rings and foam gaskets are included to assist with installation, although vehicle-specific fitment should be confirmed before purchase. For best results, verify mounting depth, cutout dimensions, wiring polarity, and amplifier or receiver compatibility with the 3-ohm load.

Key Features

• 85W RMS Handling: Supports properly matched aftermarket receiver or amplifier power.
• 3-Ohm Impedance: Works with audio equipment rated for 3-ohm speaker loads.
• Plus One Glass-Fiber Woofer: Uses a light, rigid cone with increased cone area.
• Silk Dome Tweeter: Provides extended high-frequency response up to 40kHz.
• Adjustable Tweeter Level: Select 0dB or -3dB high-frequency output.
• Rotatable UniPivot Tweeter: Allows up to 270 degrees of post-installation aiming.

Design & Installation

The Kappa 63XF uses a glass-fiber woofer cone, rubber surround, and 3/4-inch edge-driven silk dome tweeter. Its angled tweeter assembly incorporates a push-button level control and UniPivot aiming capability. The speakers are supplied as a pair and include Infinity logo badges and brand stickers in addition to the installation hardware.

Confirm that the vehicle provides a suitable 130mm (5-1/8-inch) cutout and at least 52.9mm (2-3/32-inch) mounting depth before installation. Use the included multi-hole adapter rings and foam gaskets where appropriate, and secure the speakers with the supplied screws and speed clips. Connect each speaker with correct polarity and use an amplifier or receiver that is compatible with 3-ohm speakers.
