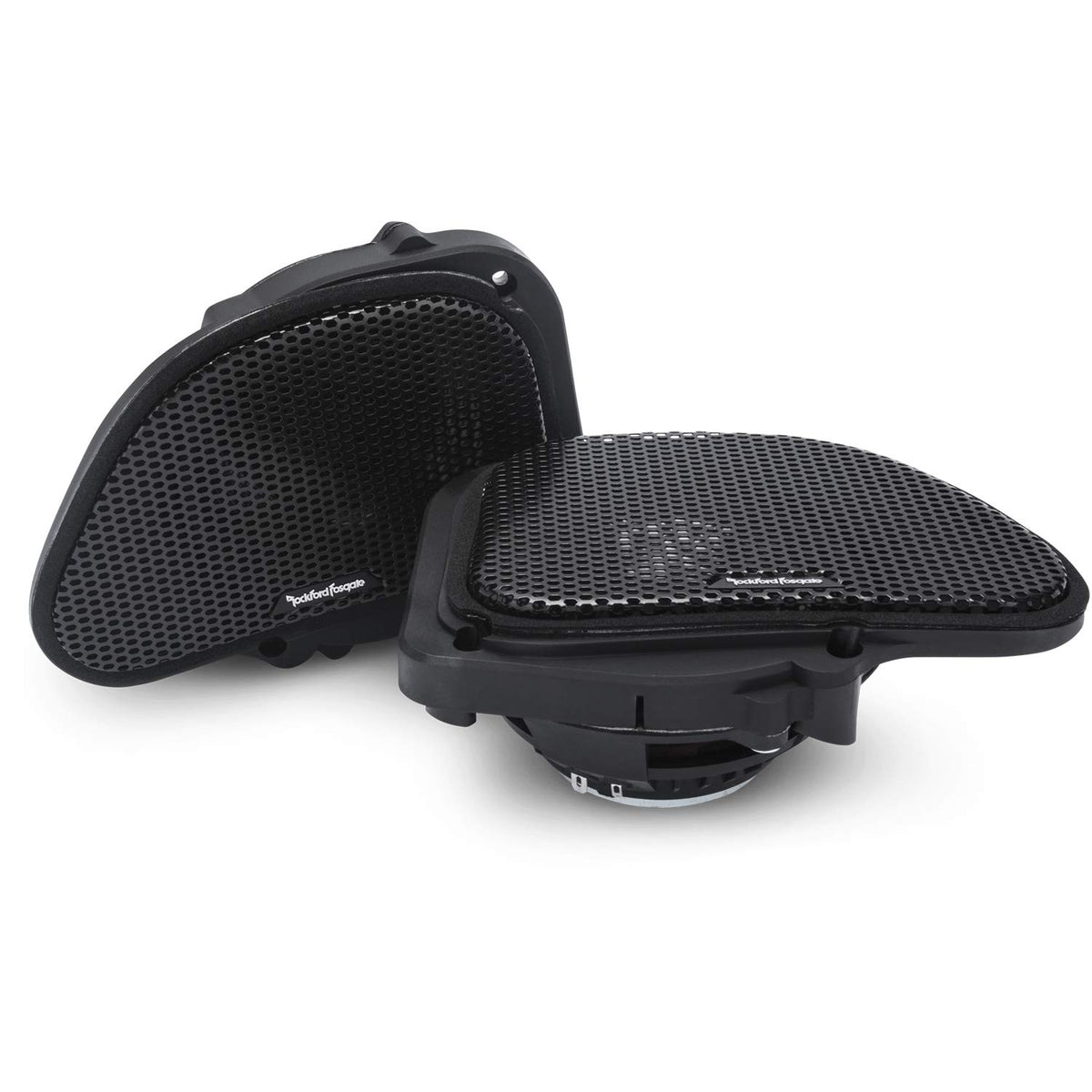

Rockford Fosgate TMS6RG 6.5" Road Glide Fairing Speakers

The Rockford Fosgate TMS6RG is a pair of 6.5-inch, 2-way coaxial speakers engineered as a direct fairing-speaker upgrade for select 1998–2013 Harley-Davidson Road Glide motorcycles. It replaces the factory fairing speakers to provide a purpose-built audio solution for riders who want clearer, more capable sound from the original speaker locations. New grille assemblies are supplied for a finished factory-style installation.

These speakers are designed for Road Glide riders who want to retain the motorcycle's intended fairing layout while upgrading the front-stage audio system. The TMS6RG uses a full-range coaxial layout, combining a woofer and tweeter in each speaker to cover bass, midrange, and high-frequency information from one location. Its 4-ohm design and 75-watt RMS rating make it suitable for use with appropriately matched motorcycle audio amplification.

A carbon-fiber-reinforced polypropylene cone and Santoprene VAST surround support controlled cone movement and durability in an exposed motorcycle environment. The low-profile coaxial tweeter uses a 25 mm proprietary film dome design with an integrated phase plug. This arrangement is intended to preserve high-frequency detail while fitting within the available fairing space.

The TMS6RG is Element Ready, with weather- and water-resistant construction intended for motorcycle use. Its Santoprene front isolation spider connects the tweeter housing and cone assembly, while the glass-reinforced polymer frame, poly-cotton spider, and neodymium motor structure support the speaker's overall construction. These details address the vibration, temperature changes, UV exposure, and moisture encountered during normal riding.

For a complete Road Glide audio upgrade, the TMS6RG can serve as the front-speaker component in a system using the factory radio or an added amplifier. It mounts in the designated Road Glide fairing speaker locations and uses integrated spade terminals for speaker connections. Confirm the motorcycle's exact fitment and match amplifier power appropriately before installation.

Key Features

• Road Glide Fitment: Designed for select 1998–2013 Harley-Davidson Road Glide fairing locations.
• 2-Way Coaxial Design: Combines woofer and dome tweeter in each speaker.
• 75-Watt RMS Handling: Supports appropriately matched amplified motorcycle audio systems.
• Element Ready Construction: Weather- and water-resistant design for motorcycle environments.
• Film Dome Tweeter: A 25 mm tweeter helps reproduce detailed high frequencies.
• New Grille Assemblies: Includes grilles for a finished fairing-speaker replacement.

Design & Installation

The TMS6RG combines a carbon-fiber-reinforced polypropylene cone, co-molded Santoprene VAST surround, poly-cotton spider, and high-temperature glass-reinforced polymer frame. Its neodymium ring magnet motor and 35 mm voice coil are paired with an integrated 6 dB crossover and high-power polyester capacitor. The low-profile coaxial tweeter layout includes a neodymium tweeter, integrated phase plug, ASA grille, and concealed tweeter wire.

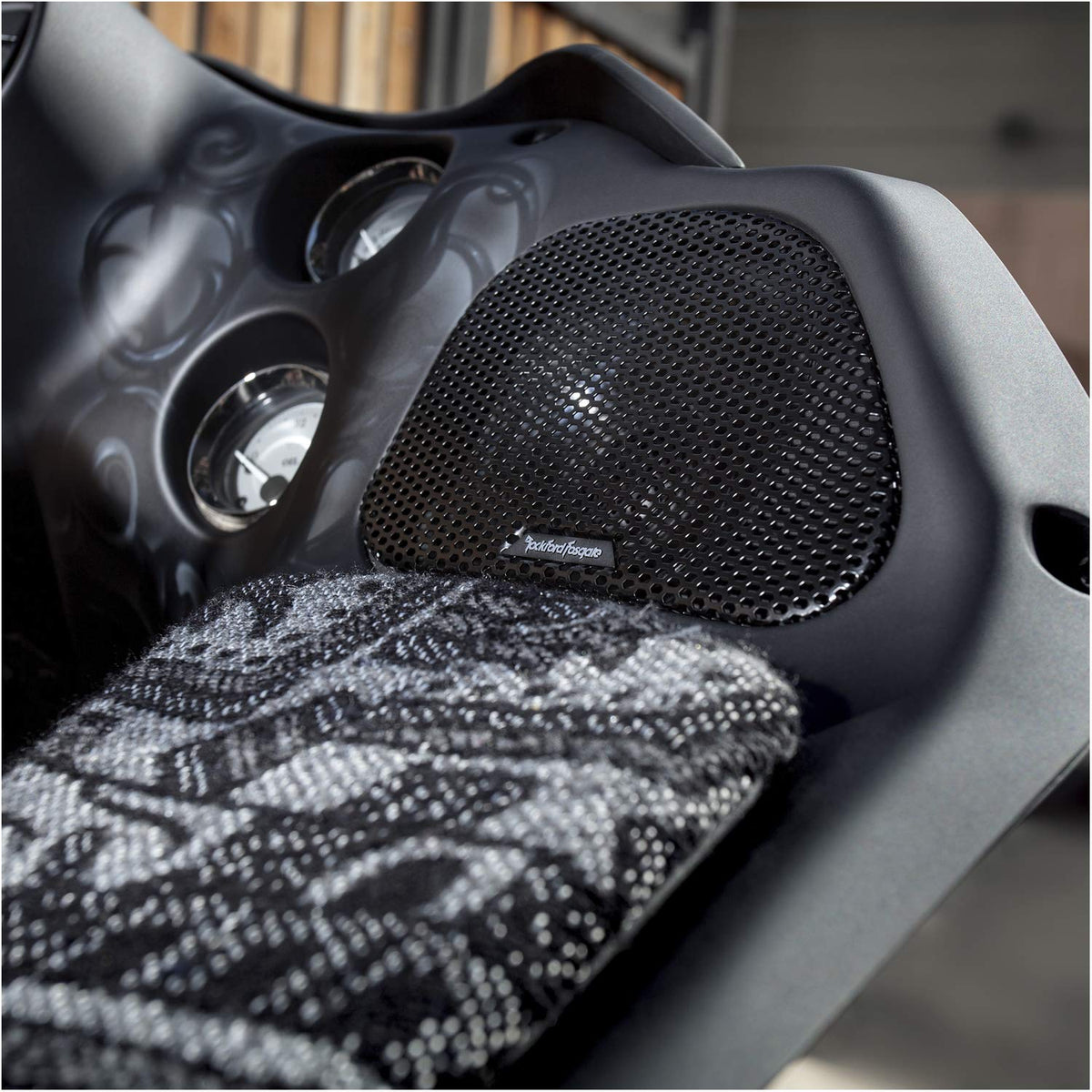

These speakers are intended for the factory fairing locations on compatible 1998–2013 Road Glide models. Use the supplied grille assemblies and mounting hardware, and connect the factory speaker wiring to the integrated spade terminals with correct polarity. Verify available mounting space, motorcycle trim level, and amplifier compatibility before beginning the installation.
