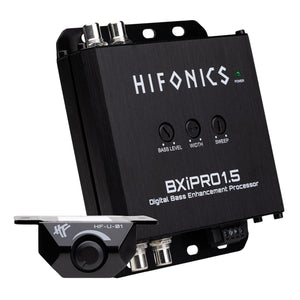

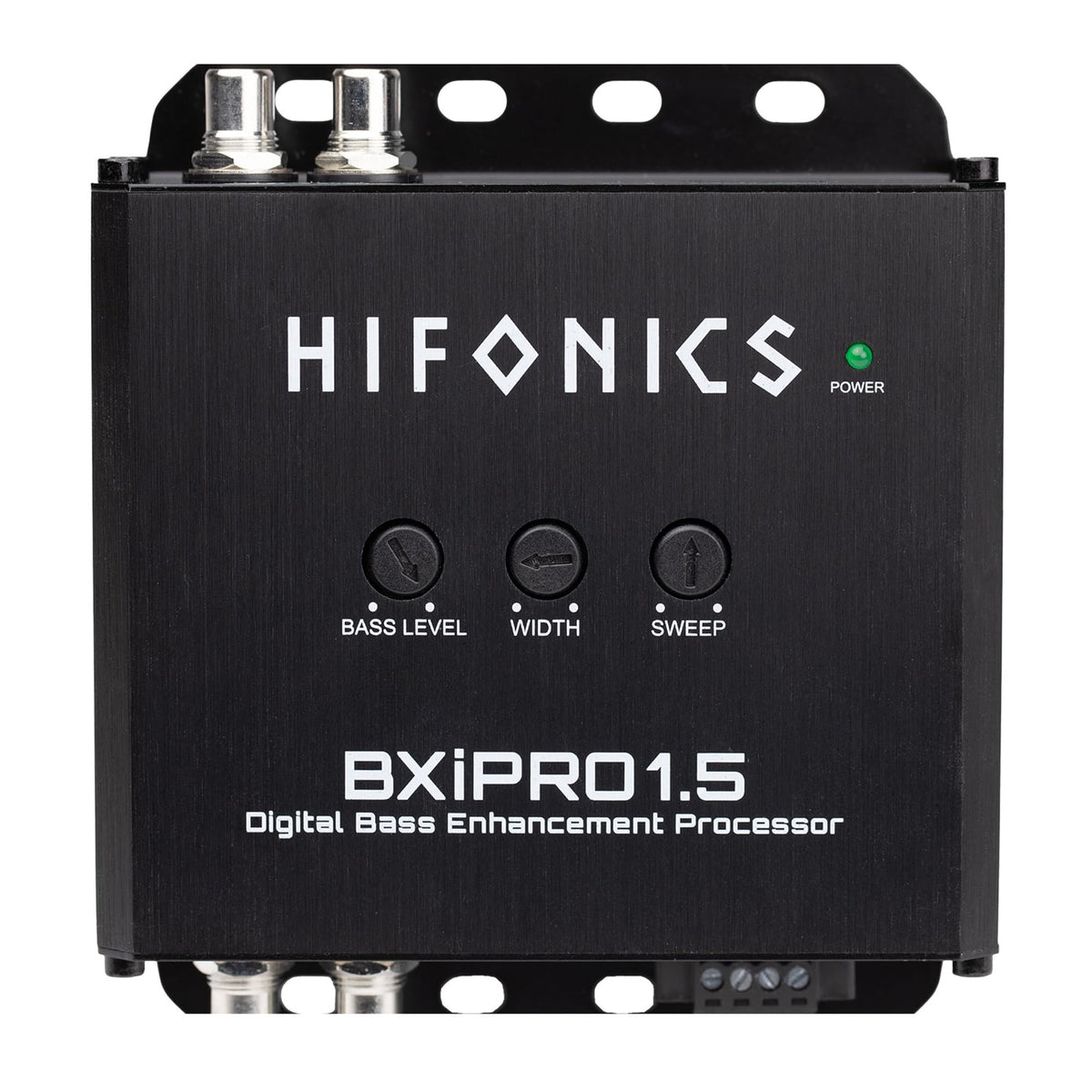

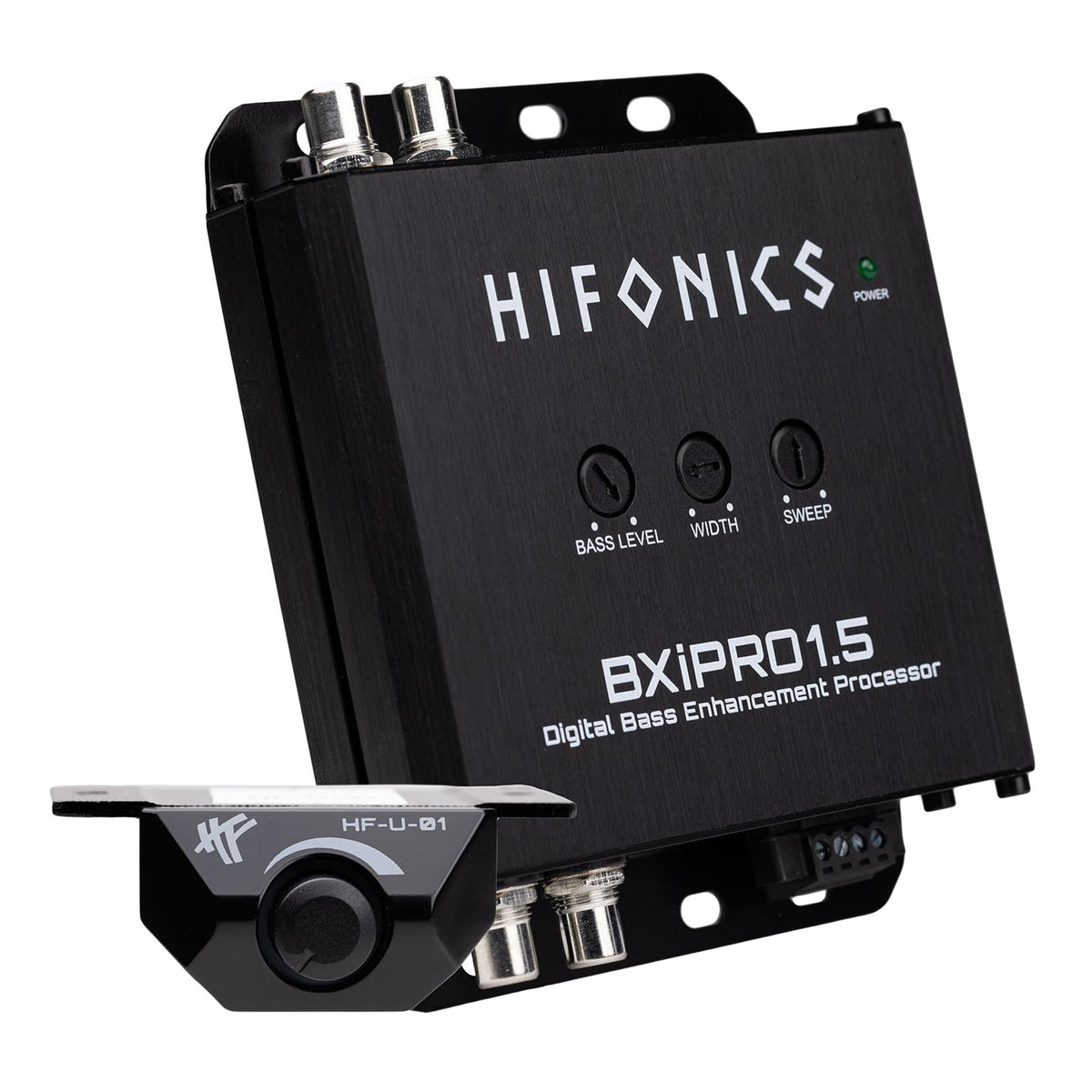

Hifonics BXiPRO1.5 Digital Bass Enhancement Processor

The Hifonics BXiPRO1.5 is a digital bass enhancement processor designed for vehicles with an upgraded subwoofer system. It restores and adjusts bass content through a dedicated low-level signal path before the subwoofer amplifier. The compact processor gives drivers a focused way to tailor low-frequency output without replacing the source unit.

This processor is intended for car-audio listeners who want more control over the bass character of an existing system. Its included dash-mount bass remote provides convenient adjustment of the bass-level output from the driver’s seat. That makes it useful when different recordings, listening levels, or driving conditions call for a different bass balance.

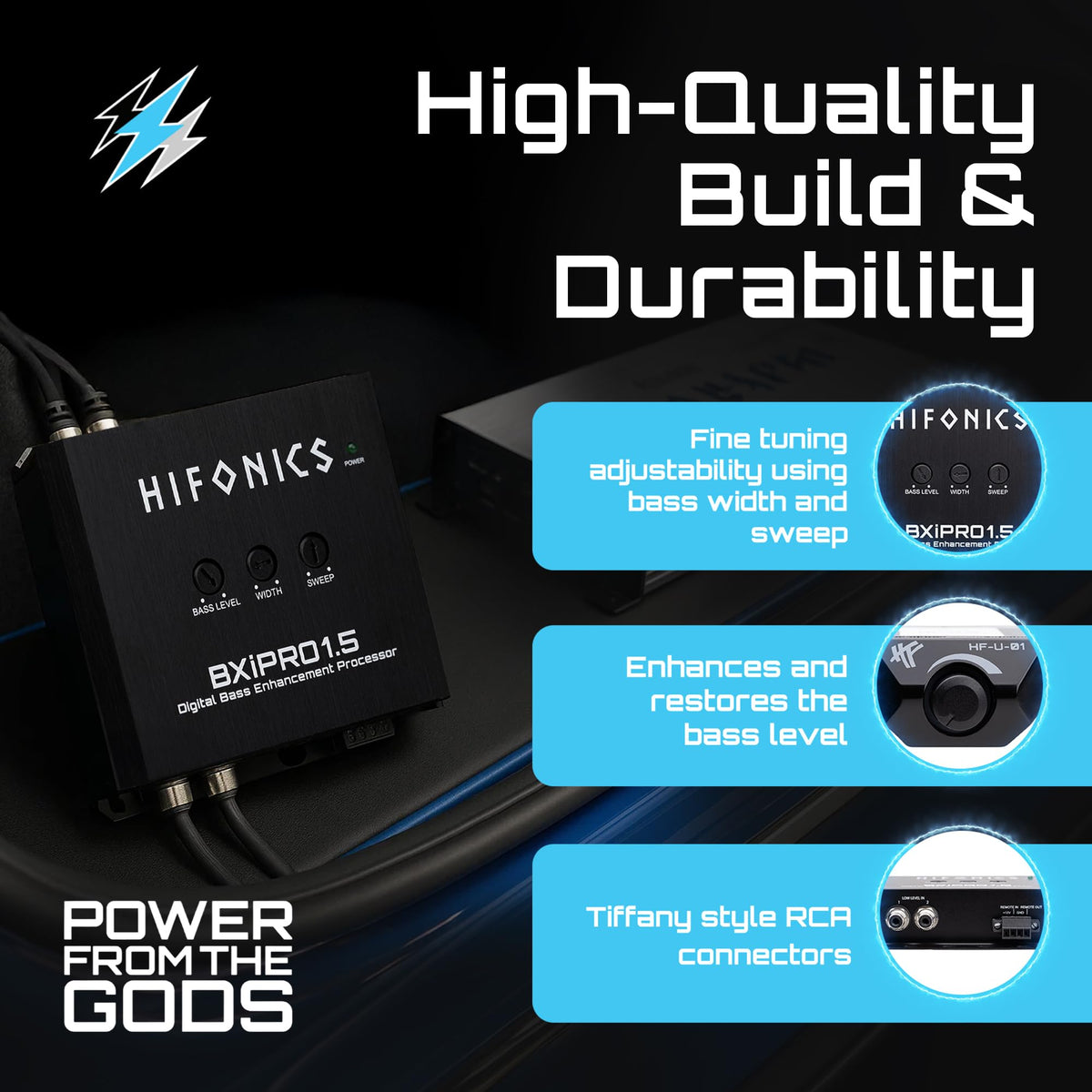

The BXiPRO1.5 provides adjustable bass width and sweep controls for fine-tuning its enhancement effect. Sweep selects the center frequency being processed, while width changes the range around that selected frequency. The result is an adjustable bass contour rather than a fixed boost setting.

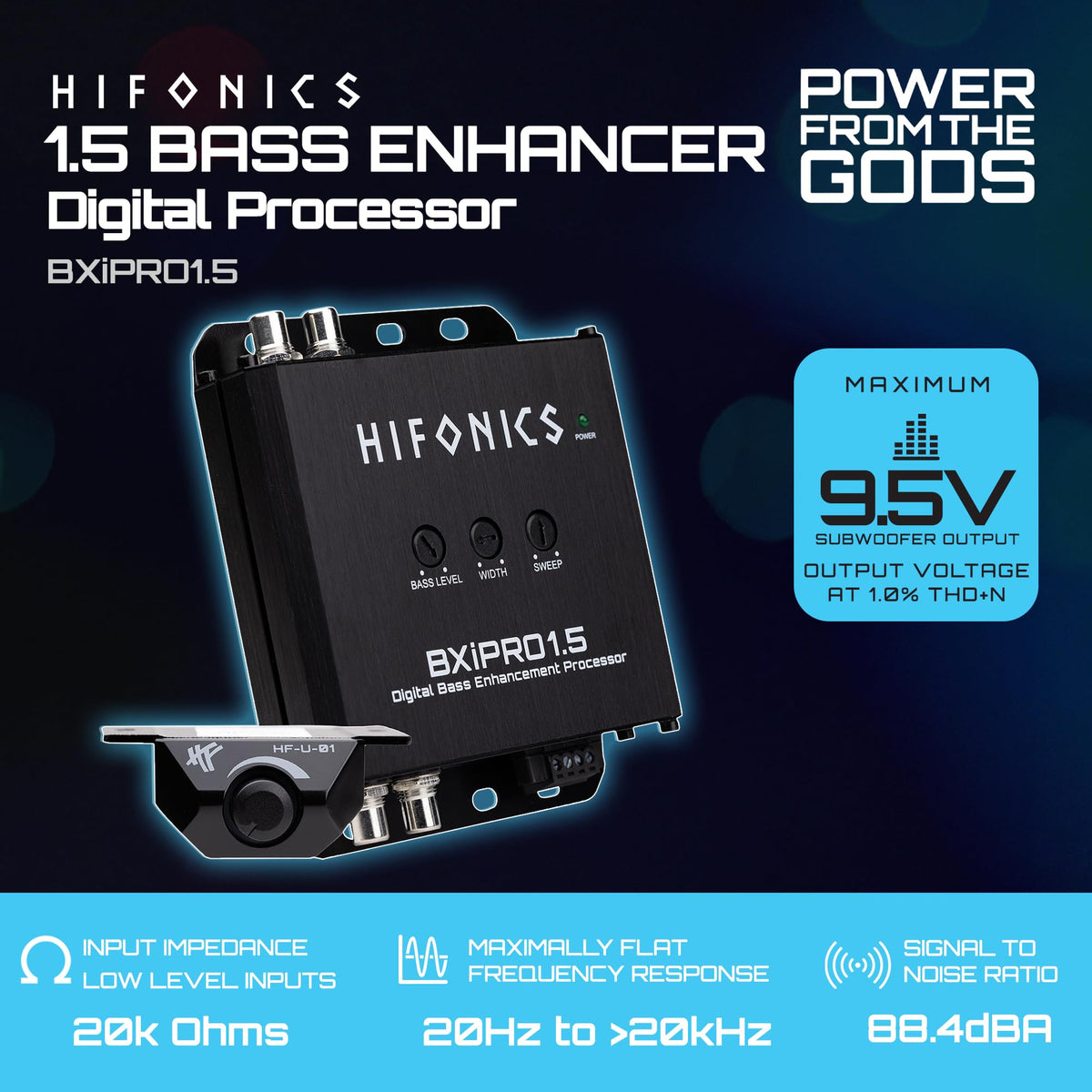

Hifonics specifies balanced differential inputs to help reduce noise in a vehicle audio environment. The processor uses low-level RCA inputs and Tiffany-style RCA connectors, with a mono adjustable preamp output for the bass signal. Its maximum subwoofer-output voltage is rated at 9.5V at 1.0% THD+N.

With its small-profile format, attached mounting brackets, and included mounting hardware, the BXiPRO1.5 can be integrated into a range of vehicle layouts. It is compatible with universal vehicle applications and is intended to work alongside an upgraded subwoofer system. The processor replaces the earlier Hifonics BXiPRO1.0 model.

Key Features

• Digital Bass Enhancement: Restores and adjusts bass content for an upgraded subwoofer signal path.
• Dash-Mount Remote: Lets the driver adjust bass-level output from the listening position.
• Sweep Control: Selects the center frequency for the bass-enhancement effect.
• Width Control: Adjusts the frequency range around the selected sweep point.
• Differential Inputs: Balanced input design helps reduce unwanted system noise.
• Mono Preamp Output: Provides an adjustable mono output for the subwoofer system.

Design & Installation

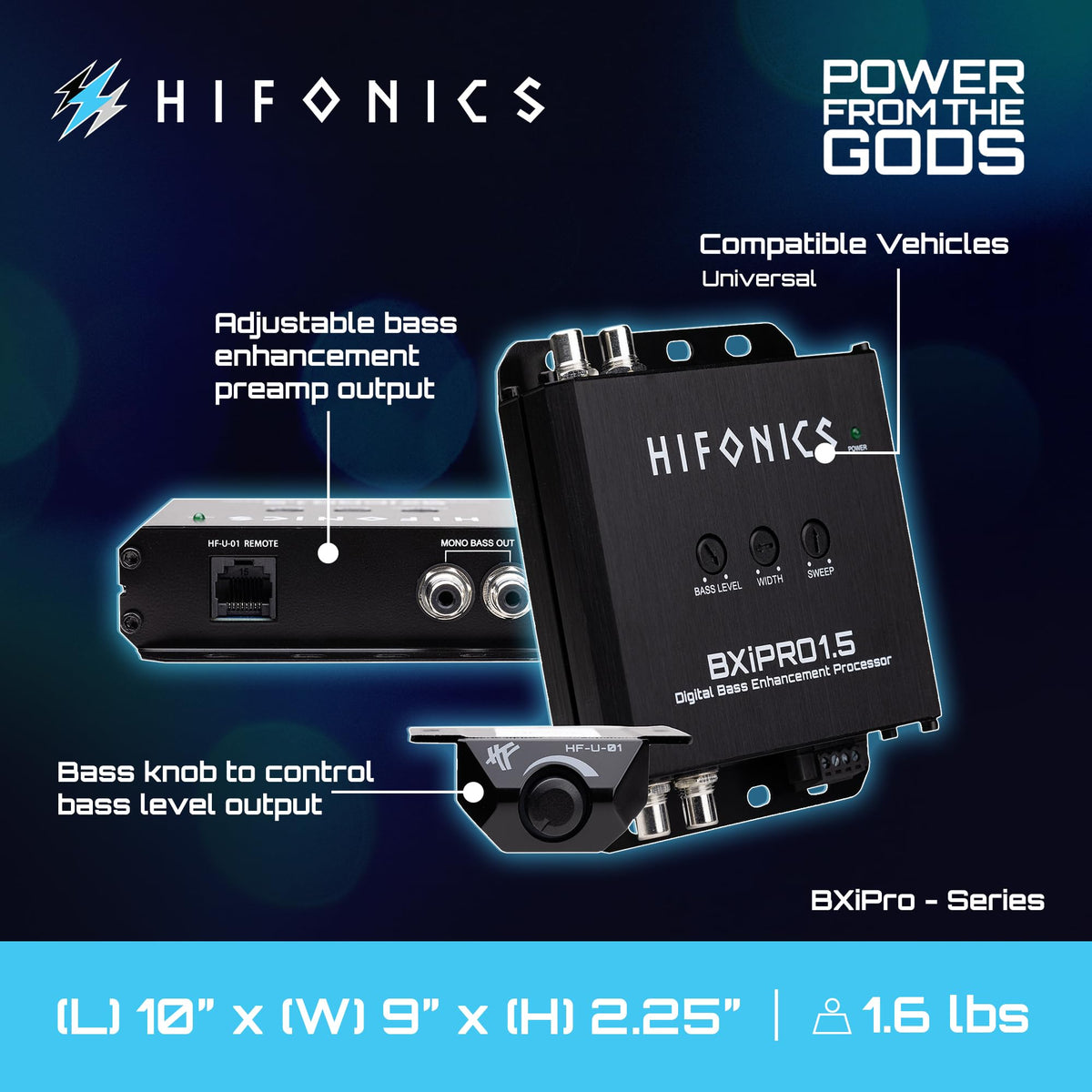

The BXiPRO1.5 has a compact, small-profile design with attached mounting brackets for installation on a flat surface. It uses screw-in chassis connections intended to keep power and connection wiring secure. Tiffany-style RCA connectors and a black finish support a clean, integrated installation appearance.

Before permanently mounting the processor, Hifonics instructs installers to connect the wiring and verify operation. The unit requires a 9.5V to 15V supply, a clean chassis ground, a remote turn-on connection, low-level RCA input connections, and a 1A fused power connection. Mount it where connectors have clearance, keep wiring away from moving parts and excessive heat, and use the included mounting hardware.
