Cerwin-Vega H69C 6×9" 2-Way Component Speaker Set

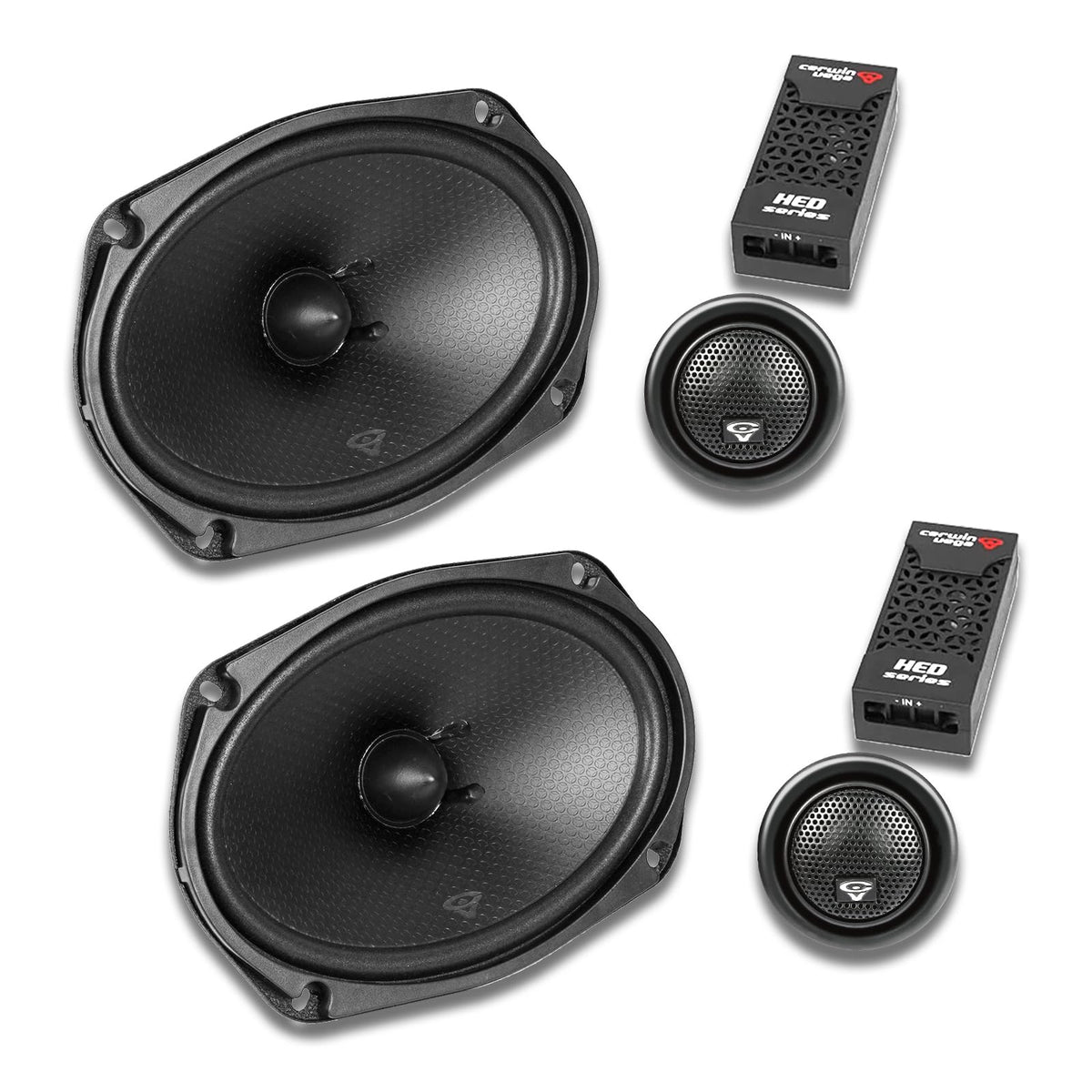

The Cerwin-Vega H69C is a 6×9-inch, 2-way component speaker set designed for vehicle audio upgrades that need separate woofer and tweeter placement. It combines a pair of 6×9-inch woofers, separate 1-inch tweeters, and passive crossover networks. This layout helps replace limited factory speaker performance while allowing more intentional high-frequency placement.

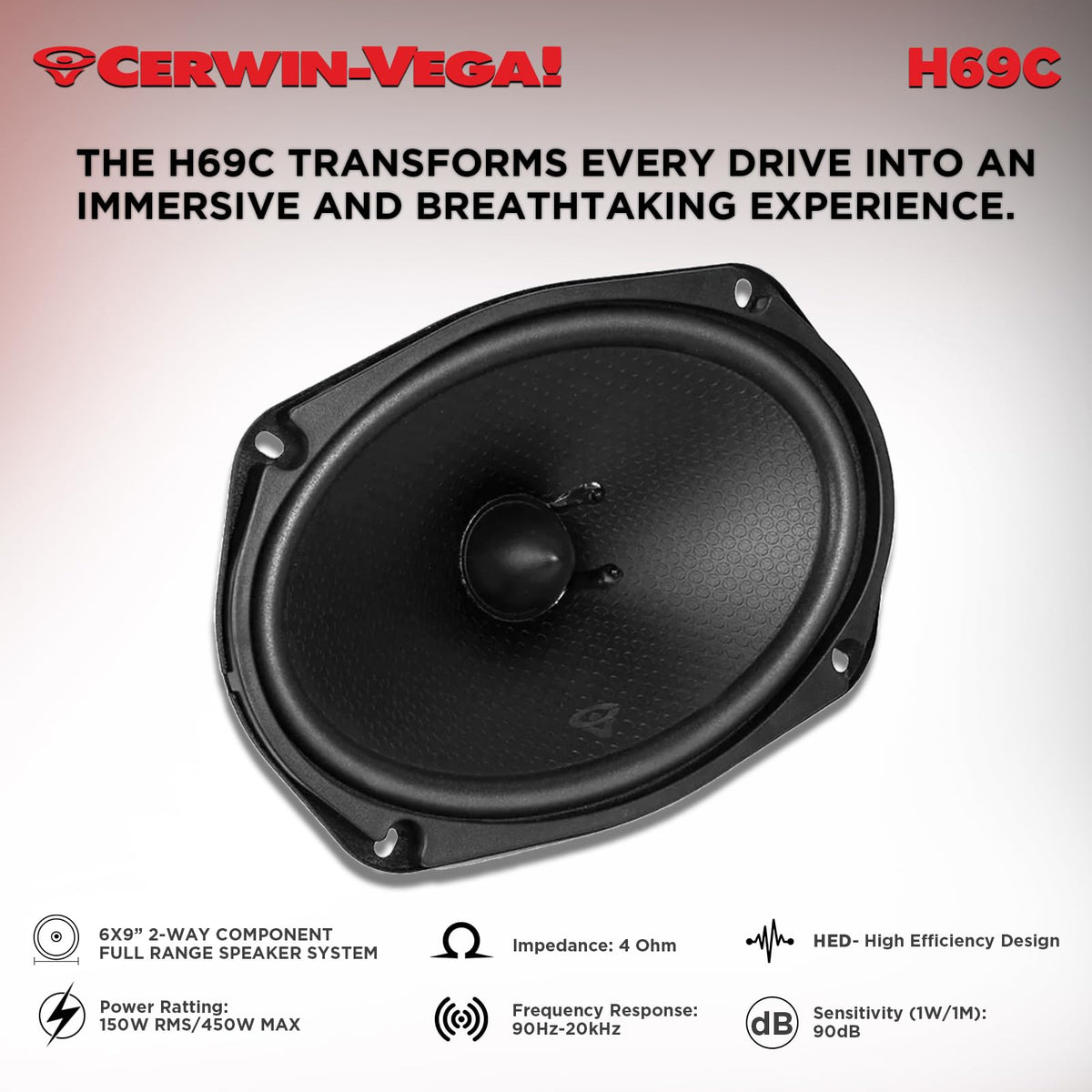

The H69C is rated for 150 watts RMS and 450 watts maximum power per side at 4 ohms. With a 90 dB sensitivity rating and a 90 Hz to 20 kHz frequency response, it is suited to full-range front-stage or rear-deck applications. Its sound profile is built around solid midbass output, clear midrange reproduction, and dedicated high-frequency detail.

Each woofer uses a responsive polypropylene cone with a UV-treated foam surround. The cone material is intended to maintain controlled bass and midrange response, while the surround supports long-term movement and durability. A strontium ferrite woofer magnet and rigid stamped-steel basket complete the main driver structure.

Separate 1-inch PEI balanced-dome tweeters handle the upper frequencies. The tweeters use neodymium magnets and connect through the included passive crossovers. Integrated tweeter protection is designed to help manage high-frequency delivery when the system is played at elevated levels.

The H69C is a component set rather than a drop-in coaxial speaker, so installation requires space for the woofers, tweeters, and crossover networks. It can be used with a compatible factory or aftermarket radio, but an amplifier matched appropriately to its 4-ohm load and RMS rating can provide additional headroom. It is a practical choice for systems where speaker placement and separation are part of the upgrade plan.

Key Features

• 6×9-Inch Component System: Separate woofers and tweeters support flexible speaker placement.
• 150W RMS Handling: Supports amplifier matching up to 150 watts RMS per side.
• Polypropylene Woofer Cones: Provide controlled bass and balanced midrange response.
• 1-Inch PEI Tweeters: Handle high frequencies with a balanced-dome design.
• Passive Crossovers: Direct appropriate frequencies to each speaker driver.
• Tweeter Protection: Adds protection within the integrated crossover network.

Design & Installation

The H69C uses polypropylene woofer cones, UV-treated foam surrounds, strontium ferrite woofer magnets, and powder-coated rigid stamped-steel baskets. The separate tweeters use PEI balanced domes with neodymium magnets. Mesh grilles are included for installations where the speakers require added physical protection.

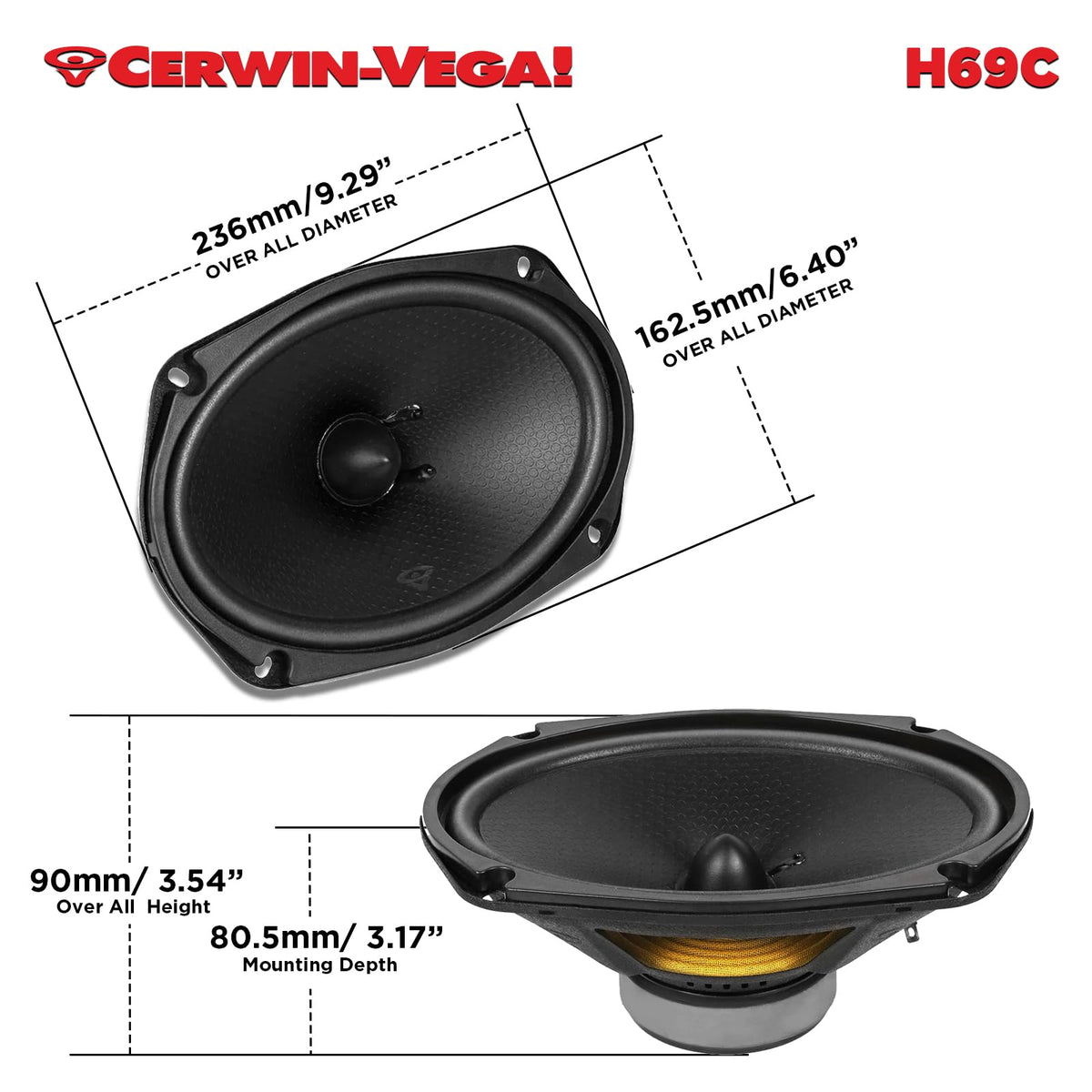

Verify the vehicle's available mounting space before installation: each woofer requires a 5.93×8.68-inch cutout and 3.17 inches of mounting depth. Mount the passive crossovers in a protected, ventilated location away from moisture, then connect the amplifier or radio output to the crossover input, the woofer to the MID output, and the tweeter to the TWT output while observing polarity. For tweeter flush mounting, the installation guide specifies a 1.85-inch opening and at least 1 inch of panel clearance behind the mounting location.
