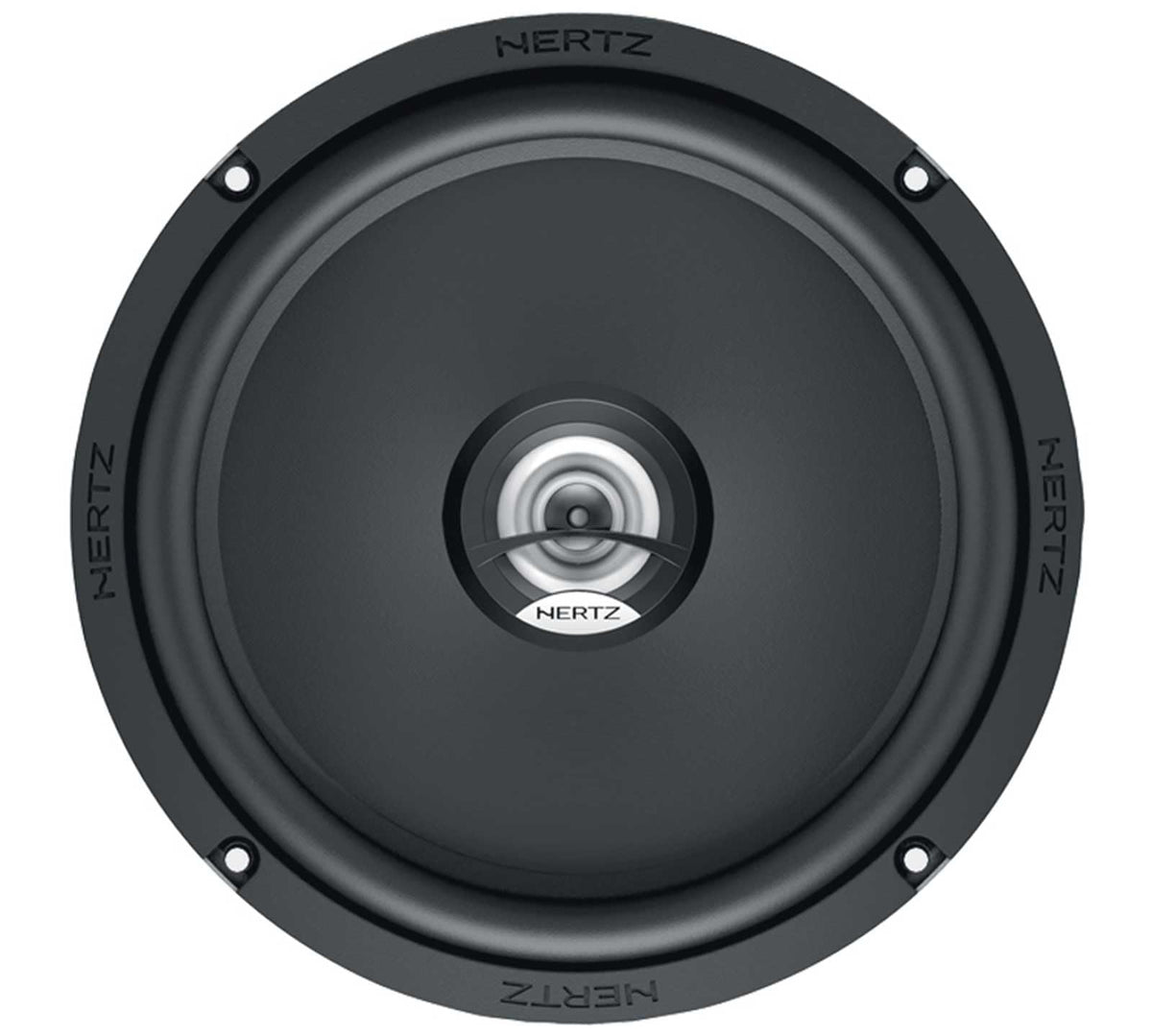

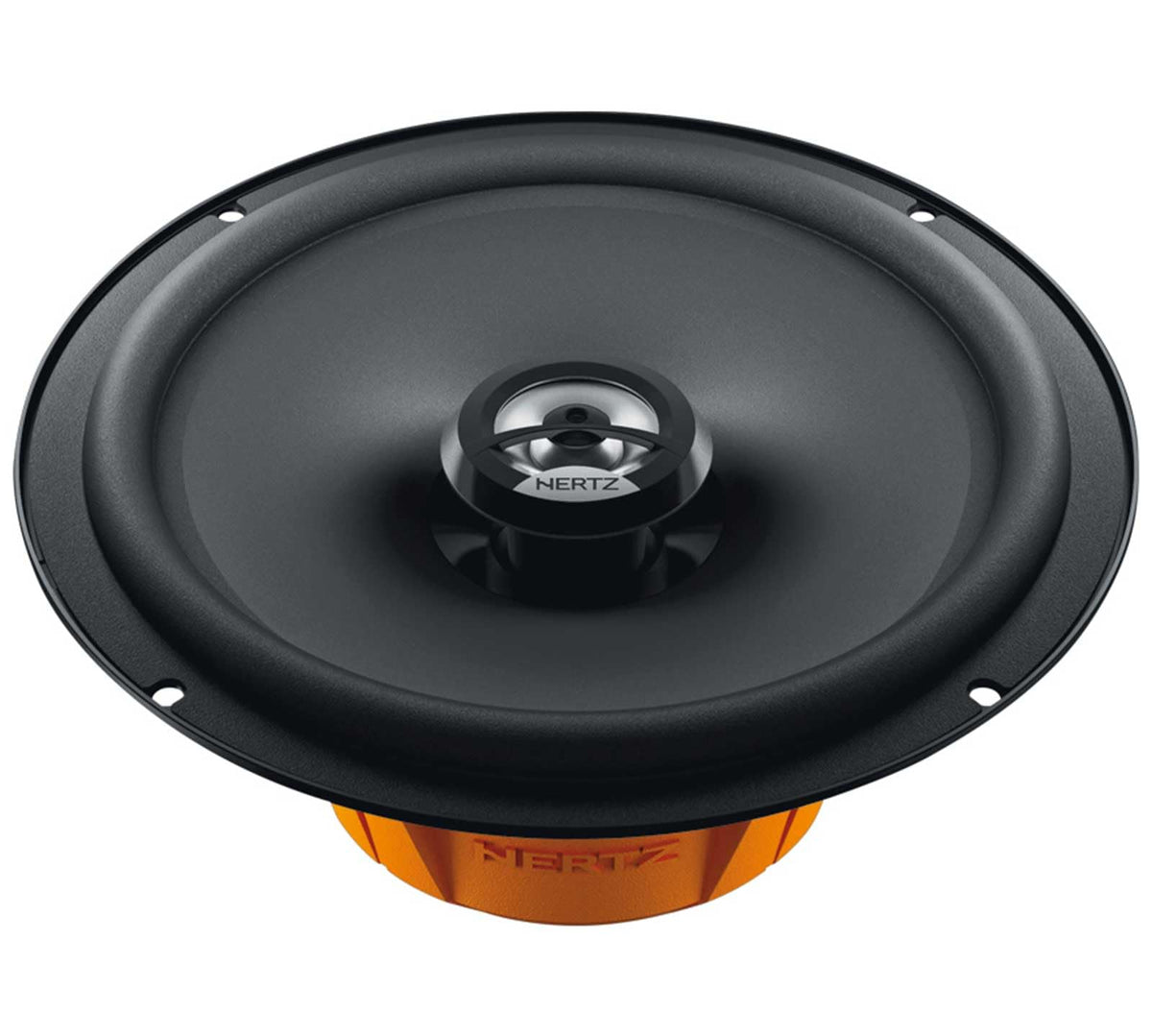

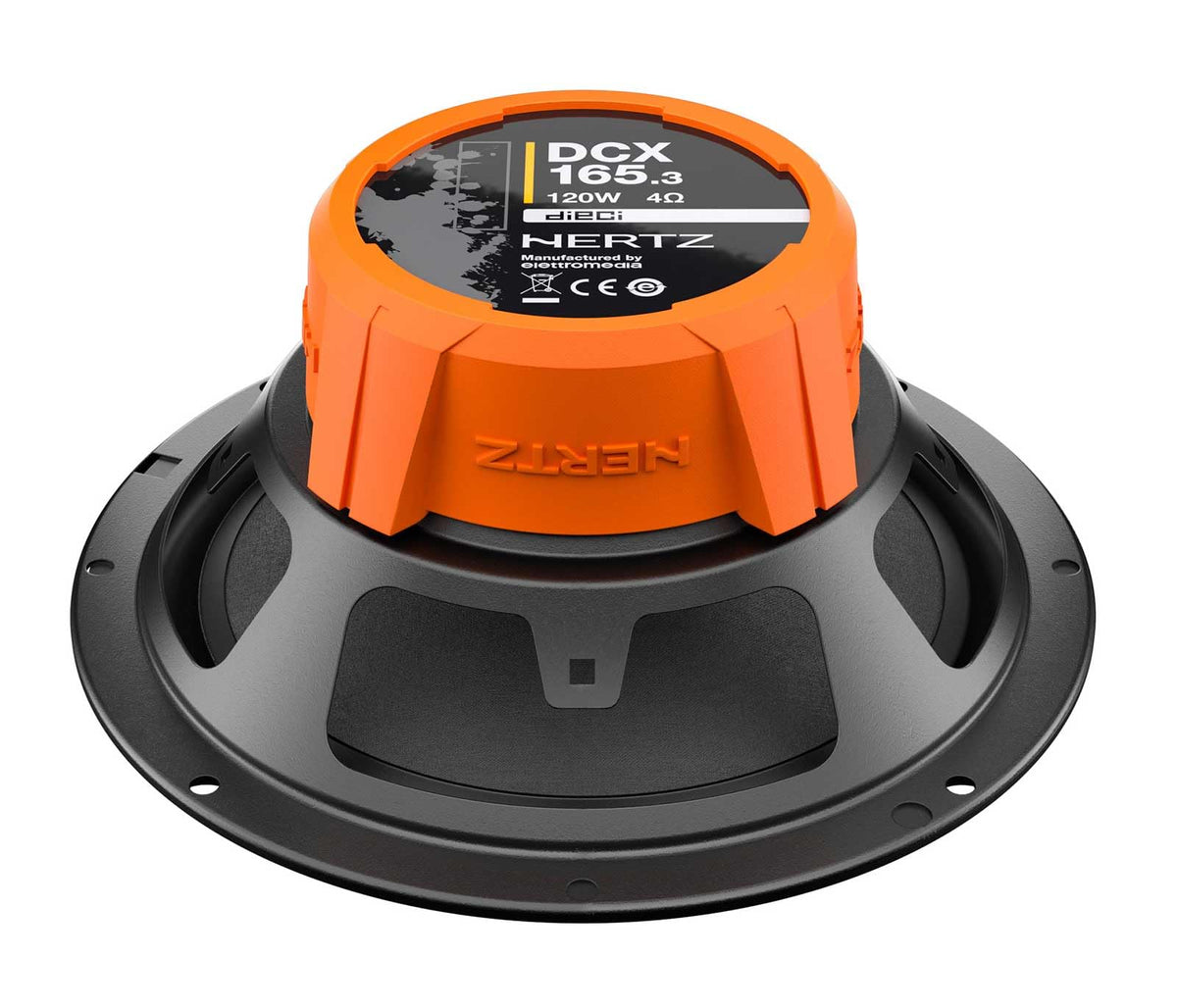

Hertz DCX 165.3 6.5" 2-Way Coaxial Speakers

The Hertz Dieci DCX 165.3 is a pair of 6.5-inch, 2-way coaxial car speakers designed to replace worn or limited factory door speakers. Each speaker combines a woofer and tweeter in one assembly, making it a practical option where a separate component-speaker installation is not needed. With 4-ohm impedance and 60 watts RMS power handling, these speakers can be used with many factory radios or appropriately matched aftermarket amplification.

This coaxial design is aimed at drivers who want a straightforward upgrade with fuller midrange and clearer high-frequency detail than aging original speakers may provide. The water-repellent pressed-paper woofer cone is paired with a TPU surround for controlled movement and everyday automotive use. A PEI dome tweeter handles high frequencies, while the integrated crossover directs the appropriate frequency range to each driver.

The DCX 165.3 has a specified frequency response of 60 Hz to 21 kHz and a 93 dB sensitivity rating. Its performance profile supports broad, usable coverage for front or rear speaker locations, although it is not intended to replace a dedicated subwoofer for deep bass. The 120-watt peak rating provides additional headroom above its 60-watt continuous rating.

Hertz uses a high-density-flux ferrite woofer magnet and a neodymium tweeter magnet in this model. The 25 mm woofer voice coil and 135 mm effective diaphragm diameter are part of the speaker's documented electro-acoustic design. These details support a compact coaxial format without requiring an external passive crossover box.

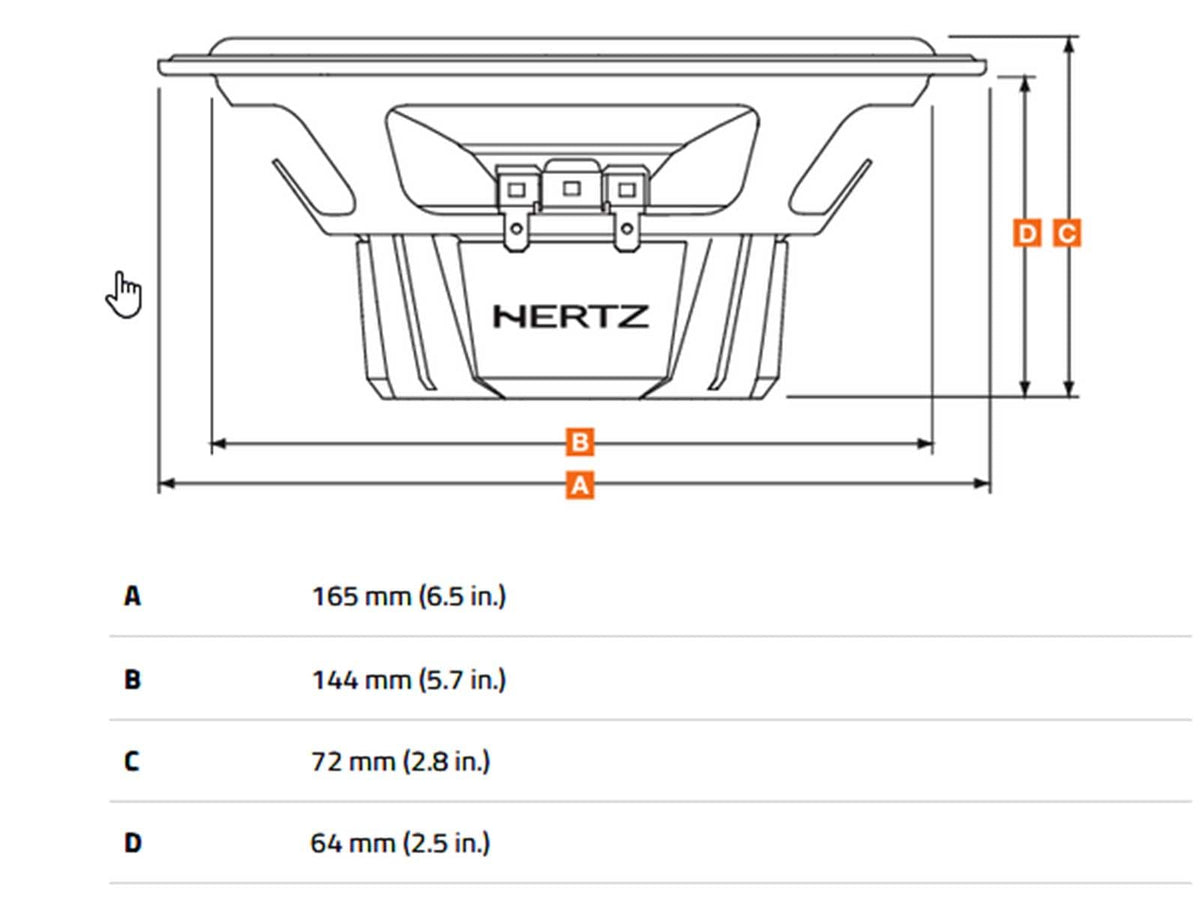

The DCX 165.3 is suited to vehicles that accept a 165 mm-class speaker, but fitment should always be checked against the specific vehicle's mounting opening, depth, and adapter requirements. Its 72 mm mounting depth and 144 mm physical B dimension should be considered before purchase. Optional Hertz DG 165.3 grilles are available separately for installations where speaker protection or a finished appearance is needed.

Key Features

• Two-Way Coaxial Design: Combines woofer and tweeter in each speaker.
• 60W RMS Handling: Supports properly matched factory or aftermarket power.
• PEI Dome Tweeter: Reproduces the upper-frequency range through an integrated tweeter.
• Pressed-Paper Cone: Water-repellent cone material supports everyday vehicle use.
• Built-In Crossover: Routes appropriate frequencies to the woofer and tweeter.
• 4-Ohm Impedance: Compatible with common car-audio speaker wiring systems.

Design & Installation

The DCX 165.3 uses a water-repellent pressed-paper cone, TPU surround, high-density-flux ferrite woofer magnet, and neodymium tweeter magnet. Its 25 mm woofer voice coil and integrated PEI dome tweeter are contained in a round 165 mm coaxial speaker format. Each speaker weighs 0.77 kg.

Confirm vehicle-specific fitment before installation, including mounting-hole diameter, available mounting depth, factory speaker bracket shape, and connector type. The speakers use 4-ohm impedance and should be connected with correct polarity to a compatible radio or amplifier channel. Grilles are not included; the optional Hertz DG 165.3 grille may be used where appropriate.
