Hertz DSK130-3 5.25" 2-Way Component Speaker Kit

The Hertz DSK130-3 is a 2-way component speaker kit built around separate 130 mm woofers, 24 mm tweeters, and passive crossover networks. It is intended for vehicle audio upgrades where a separate tweeter location can improve front-stage placement over a conventional coaxial speaker. The system uses a 4-ohm design and is rated for 60 watts continuous power handling.

This kit suits listeners replacing factory front speakers with a component arrangement that separates midrange and high-frequency drivers. The supplied high-pass crossover directs high frequencies to the tweeter at 3.5 kHz. Its 93 dB SPL sensitivity rating supports use in a range of appropriately matched vehicle audio systems.

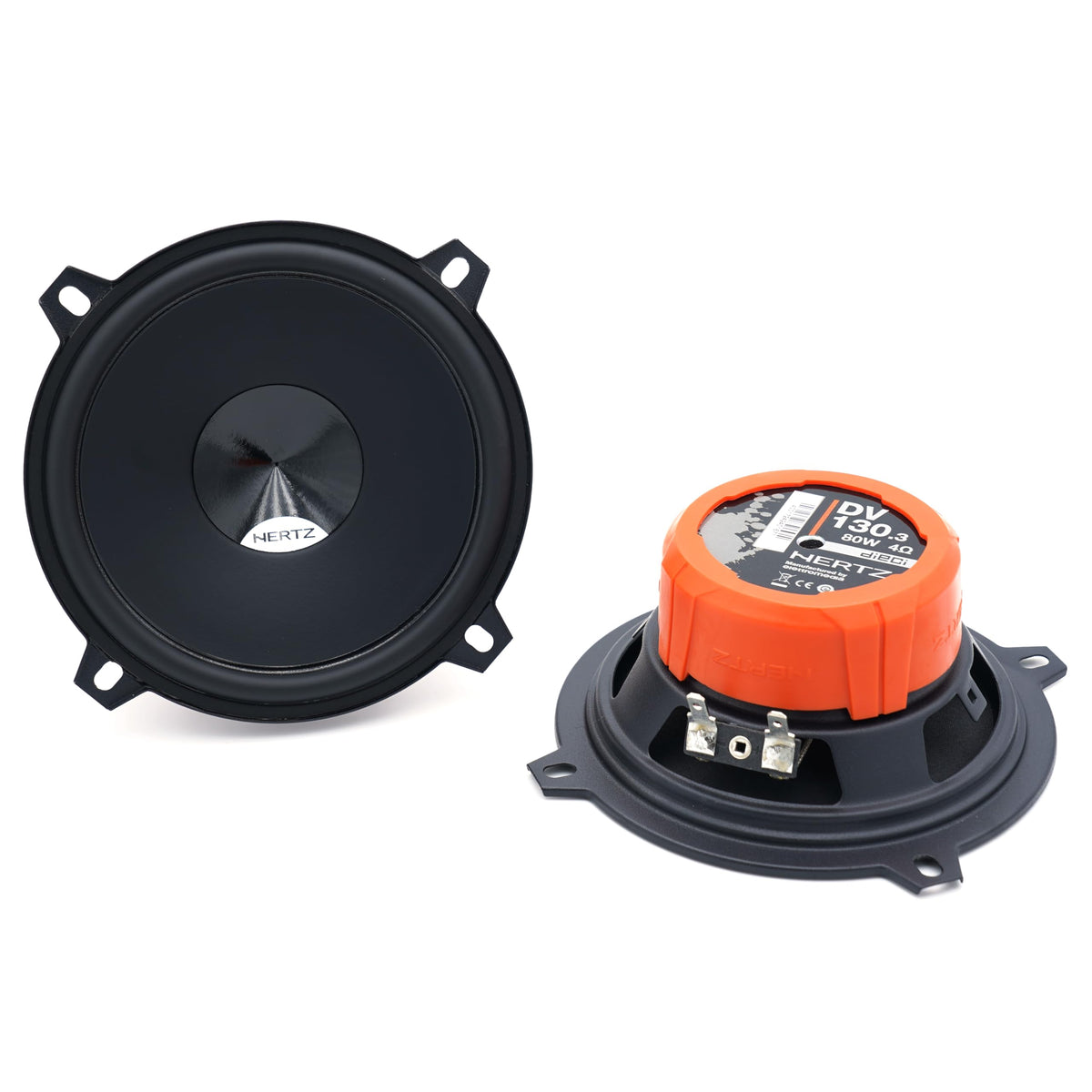

The DV 130.3 woofer uses a water-repellent pressed-paper V-cone and a TPU surround. This combination is designed to support controlled excursion while keeping the cone suitable for door-speaker installations. A high-density ferrite magnet and 25 mm copper voice coil support the woofer assembly.

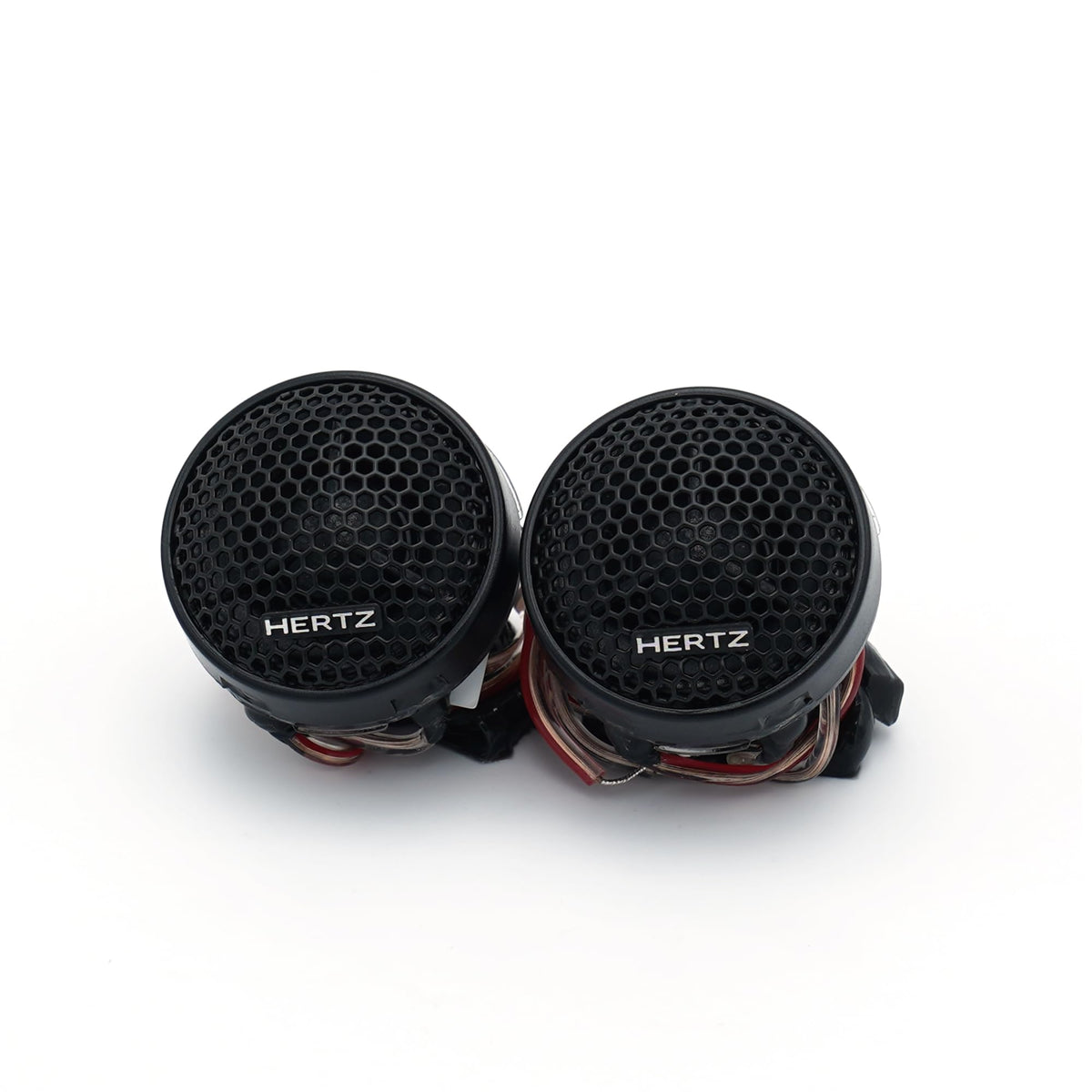

The DT 24.3 tweeter uses a 24 mm PEI dome-cone diaphragm with a neodymium magnet and annular acoustic lens. Its compact format allows separate placement in factory sail panels, dashboard locations, or compatible custom mounts. The rated system frequency response is 60 Hz to 23 kHz.

For a complete front-stage upgrade, the DSK130-3 can be paired with a compatible 4-ohm head unit or amplifier and installed with its included crossover networks. The separate-driver format gives installers flexibility to position the tweeters toward the listening area. Verify vehicle mounting space, wiring paths, and tweeter locations before installation.

Key Features

• Two-Way Component Layout: Separates woofer and tweeter duties for flexible driver placement in the vehicle.
• V-Cone Woofer: The pressed-paper cone profile is designed to support off-axis midrange response.
• 24 mm PEI Tweeter: A compact PEI dome-cone tweeter handles the system's high-frequency range.
• Neodymium Tweeter Motor: The tweeter uses a neodymium magnet in a small mounting format.

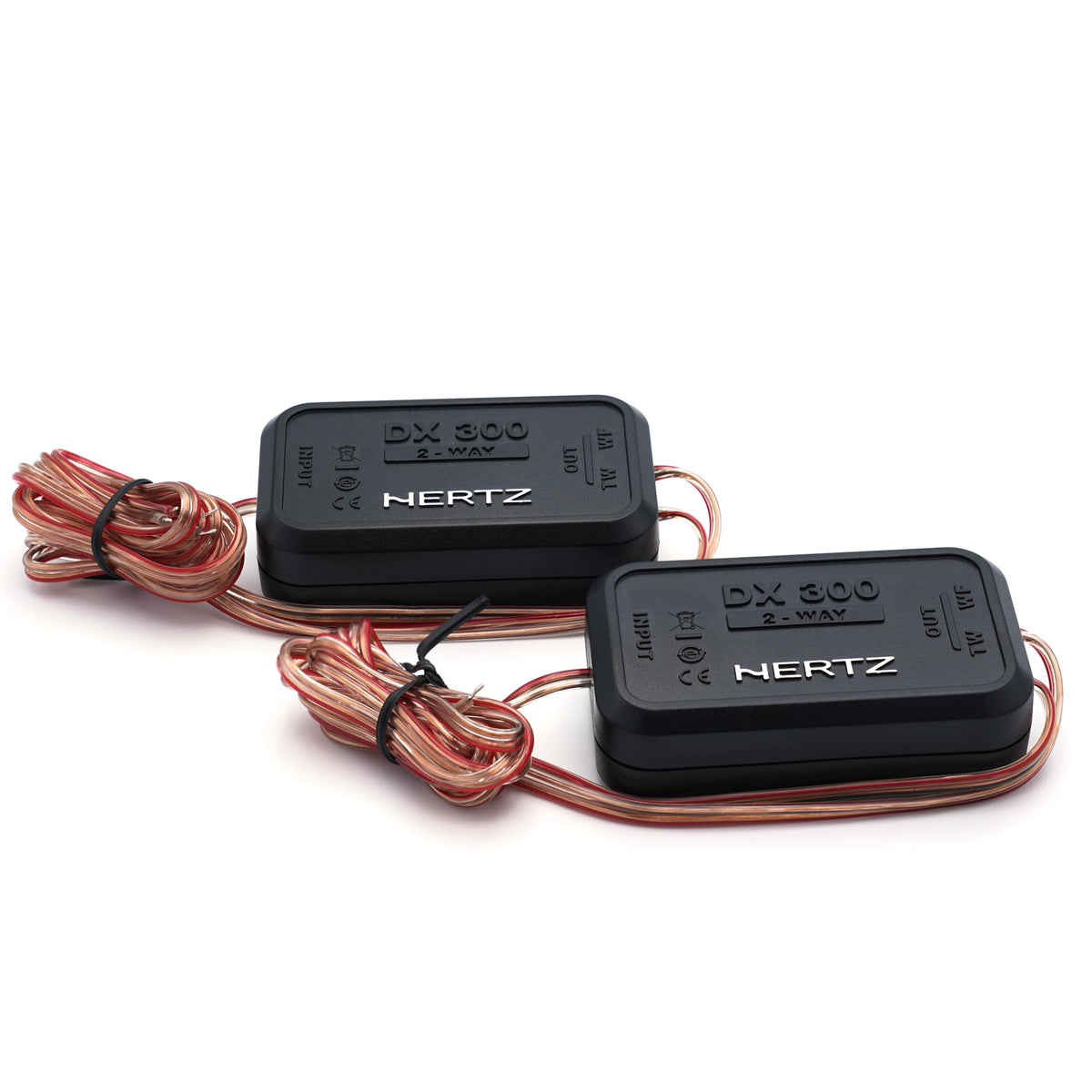

• High-Pass Crossover: Included DX 300 crossover networks use a 3.5 kHz, 12 dB/octave high-pass filter.
• Water-Repellent Woofer Cone: The pressed-paper woofer cone is treated for improved resistance to moisture exposure.

Design & Installation

The woofer uses a high-density ferrite magnet, 25 mm pure-copper voice coil on a Conex former, TPU surround, and DIN-size basket with abrasion-resistant dust paint. Tin-plated high-current terminals and silver-plated lead wires are used on the woofer assembly. The tweeter combines a PEI dome-cone diaphragm, neodymium magnet, and annular acoustic lens.

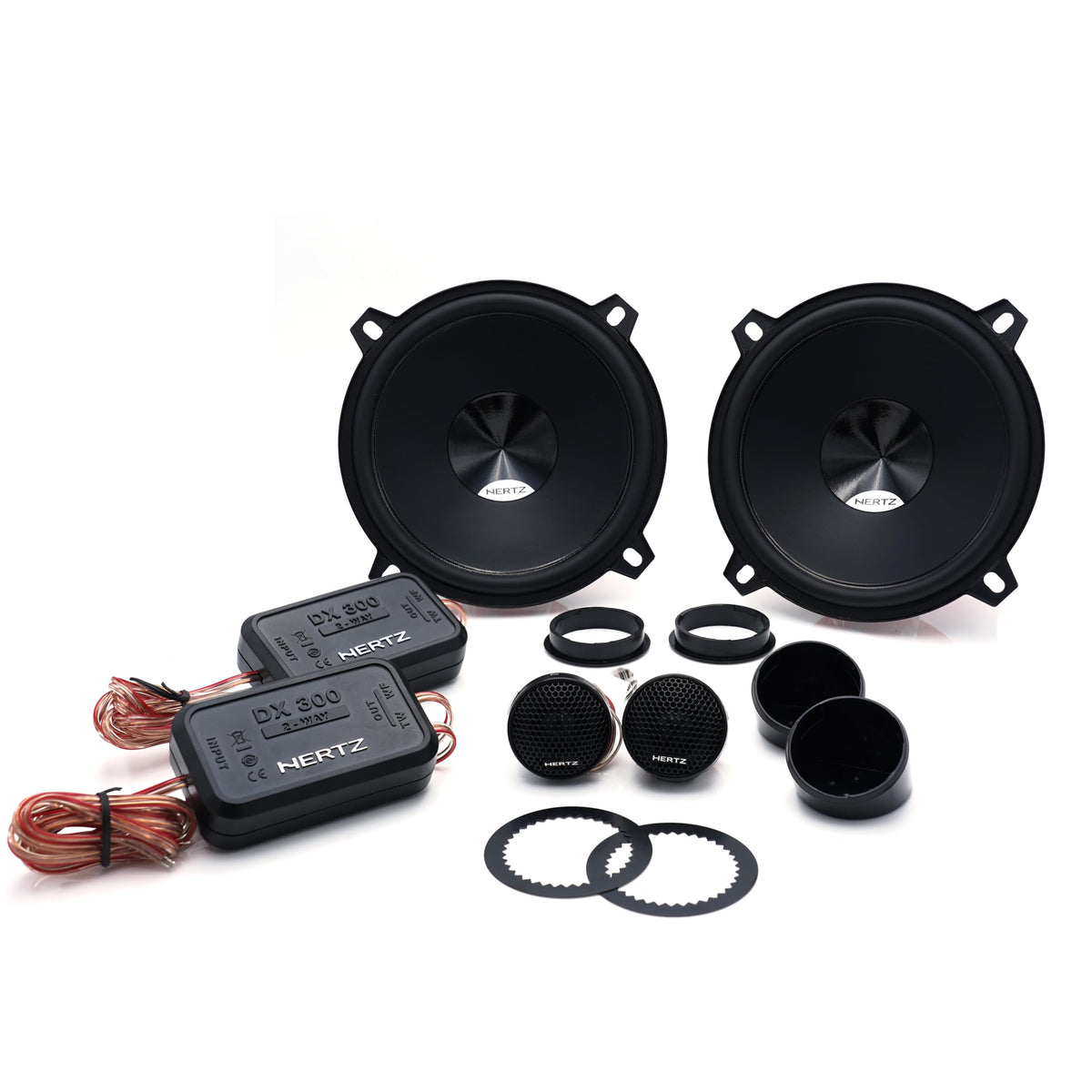

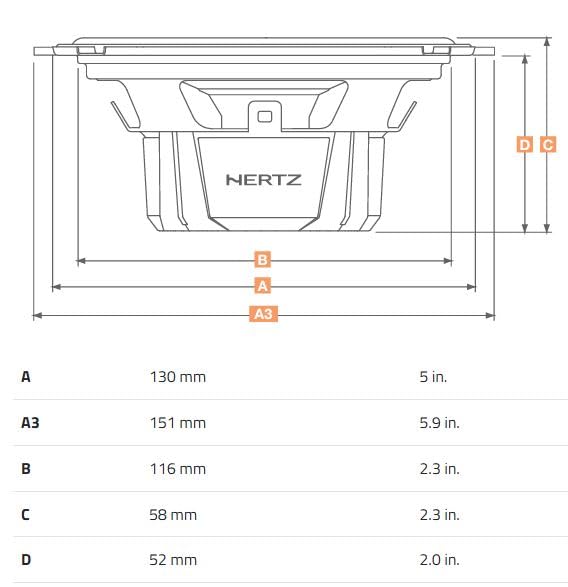

Install the 130 mm woofers in locations with adequate basket and rear-depth clearance, then mount the separate tweeters using the supplied flush or angled mounting accessories as appropriate. Route the crossover networks between the amplifier or head-unit speaker outputs and the individual woofer and tweeter drivers. Confirm correct polarity, secure all components to the vehicle structure, and check fitment before permanently modifying panels.
