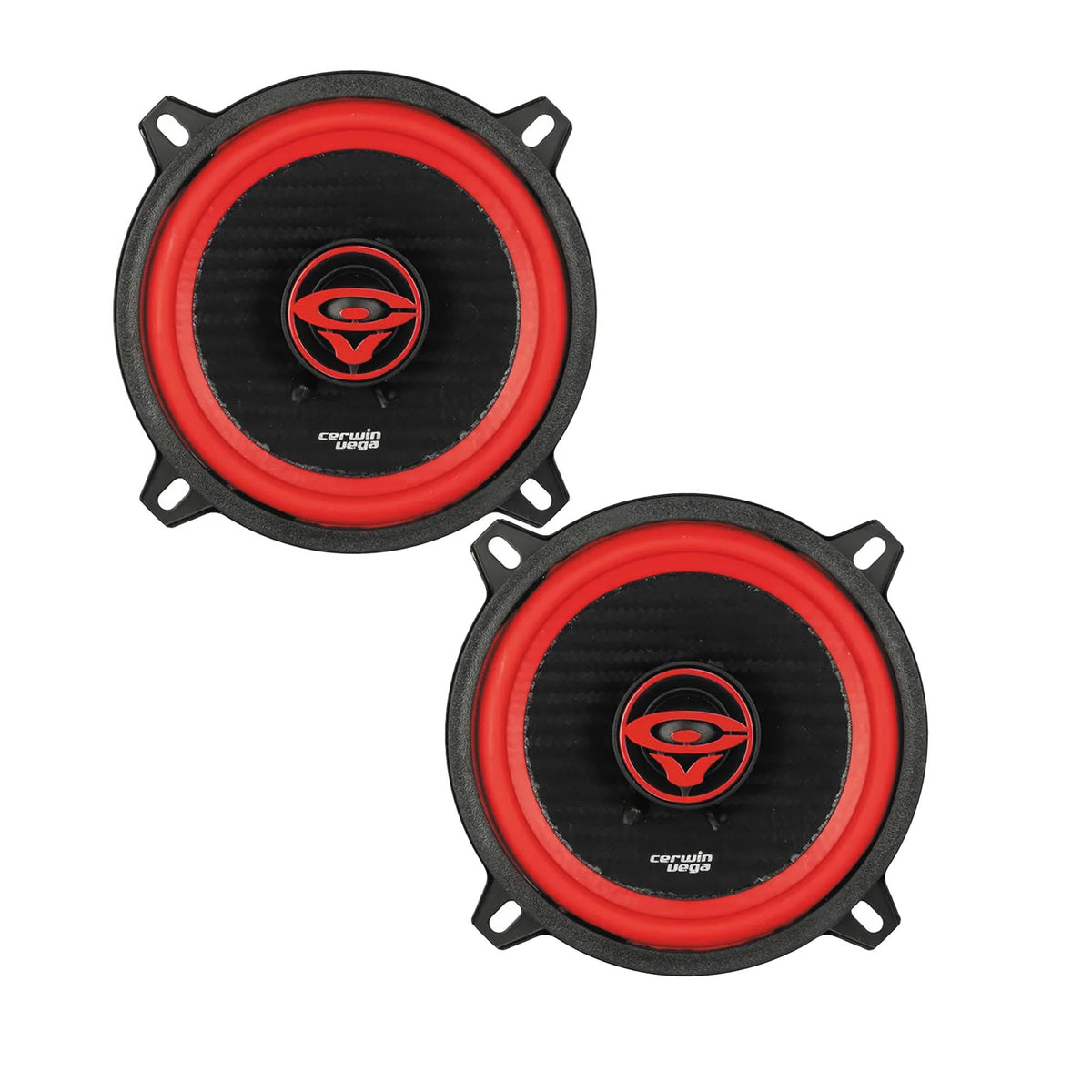

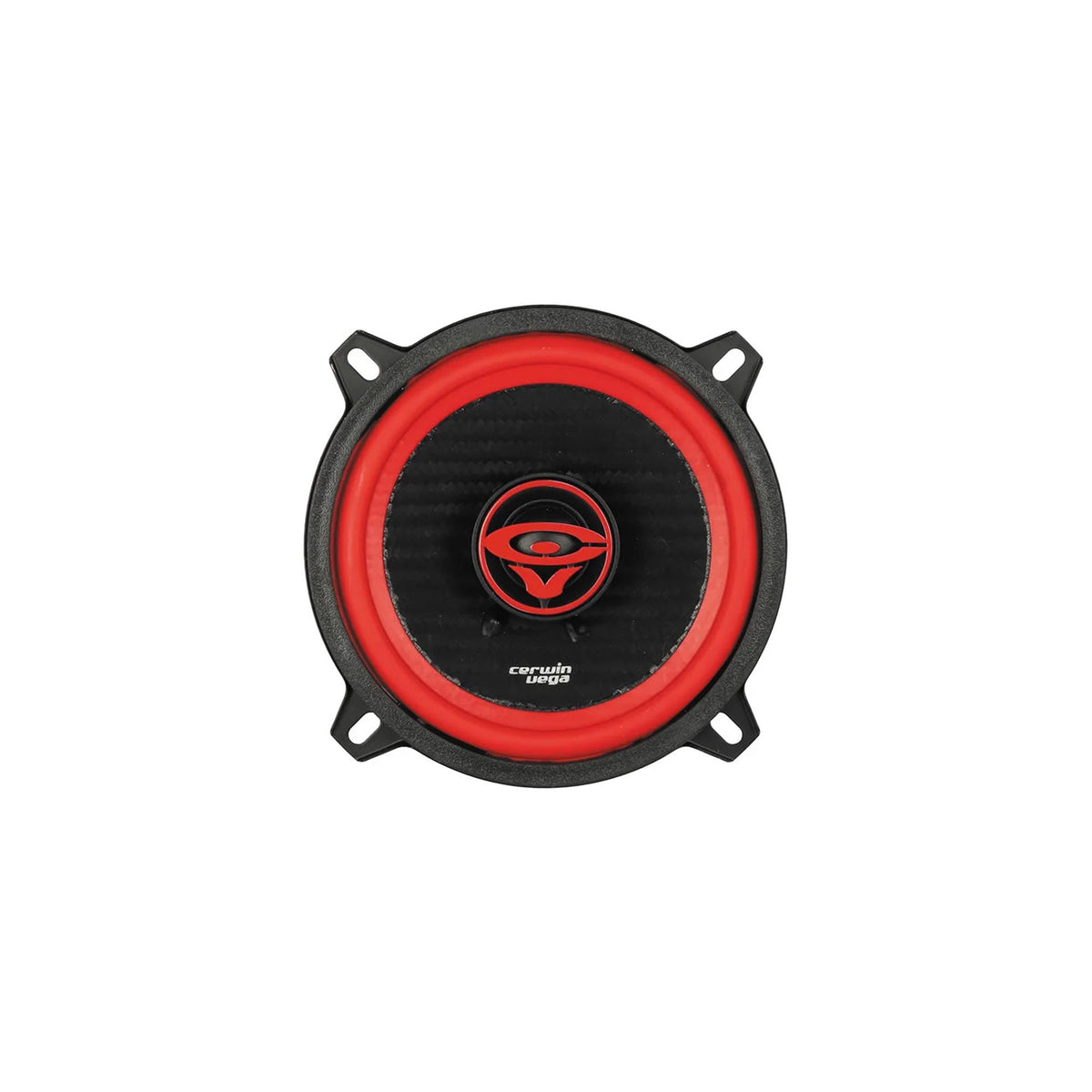

Cerwin-Vega V525 5.25" 2-Way Coaxial Speakers

The Cerwin-Vega V525 is a pair of 5.25-inch, 2-way coaxial car speakers designed for replacing compatible factory speakers or building a compact full-range upgrade. Each speaker combines a woofer and tweeter in one assembly, helping simplify installation where separate component-speaker placement is not desired. The pair is rated at 100 watts RMS per speaker and uses a 4-ohm nominal impedance.

These speakers are intended for listeners seeking clearer high frequencies and more defined midrange detail from a compact speaker location. Their specified frequency response is 87 Hz to 20 kHz, covering the main vocal and instrumental range while extending into the upper treble. Because low bass below that range is limited by the speaker size and frequency response, a subwoofer can be added separately when deeper bass is a system goal.

The V525 uses a hybrid carbon fiber and polypropylene woofer cone with a Santoprene rubber surround. This material combination is designed to support controlled cone movement and durability in an automotive environment. A powder-coated stamped-steel basket provides the structural foundation for the speaker assembly.

For high frequencies, the V525 uses a 0.75-inch dynamically balanced silk dome tweeter with a neodymium magnet. An integrated crossover directs appropriate frequencies to the woofer and tweeter, while built-in tweeter protection is included. The woofer uses a strontium ferrite magnet motor structure.

The V525 is sold as a stereo pair and suits compatible 5.25-inch door, dash, or rear-location speaker upgrades after fitment is verified. Check both the 4.45-inch cutout requirement and the 1.79-inch mounting depth before installation. Pair the speakers with a compatible 4-ohm head-unit channel or amplifier, and use vehicle-specific adapters or wiring harnesses when required by the vehicle.

Key Features

• 2-Way Coaxial Design: Integrates the woofer and tweeter in each speaker for compact full-range playback.
• 100W RMS Handling: Supports up to 100 watts RMS per speaker for properly matched amplification.
• Hybrid Woofer Cone: Carbon fiber and polypropylene construction supports responsive sound reproduction.
• Santoprene Rubber Surround: Provides a durable surround designed to support woofer excursion.
• Silk Dome Tweeter: A 0.75-inch silk dome tweeter handles high-frequency detail.
• Integrated Crossover: Directs frequencies between drivers and includes tweeter protection.

Design & Installation

The V525 uses a hybrid carbon fiber/polypropylene cone, Santoprene rubber surround, strontium ferrite woofer magnet, neodymium tweeter magnet, and powder-coated rigid stamped-steel basket. Its 5.08-inch overall diameter and 2.09-inch overall height should be considered alongside the vehicle's available mounting space. The speakers are supplied as a pair, while grilles are not included.

Confirm that the intended location accepts a 5.25-inch nominal speaker with a 4.45-inch cutout diameter and at least 1.79 inches of mounting-depth clearance. Verify mounting-hole alignment, window or panel clearance, connector compatibility, and polarity before final installation. Optional Cerwin-Vega GRL5VH mesh grilles are available separately for installations that require grilles.
