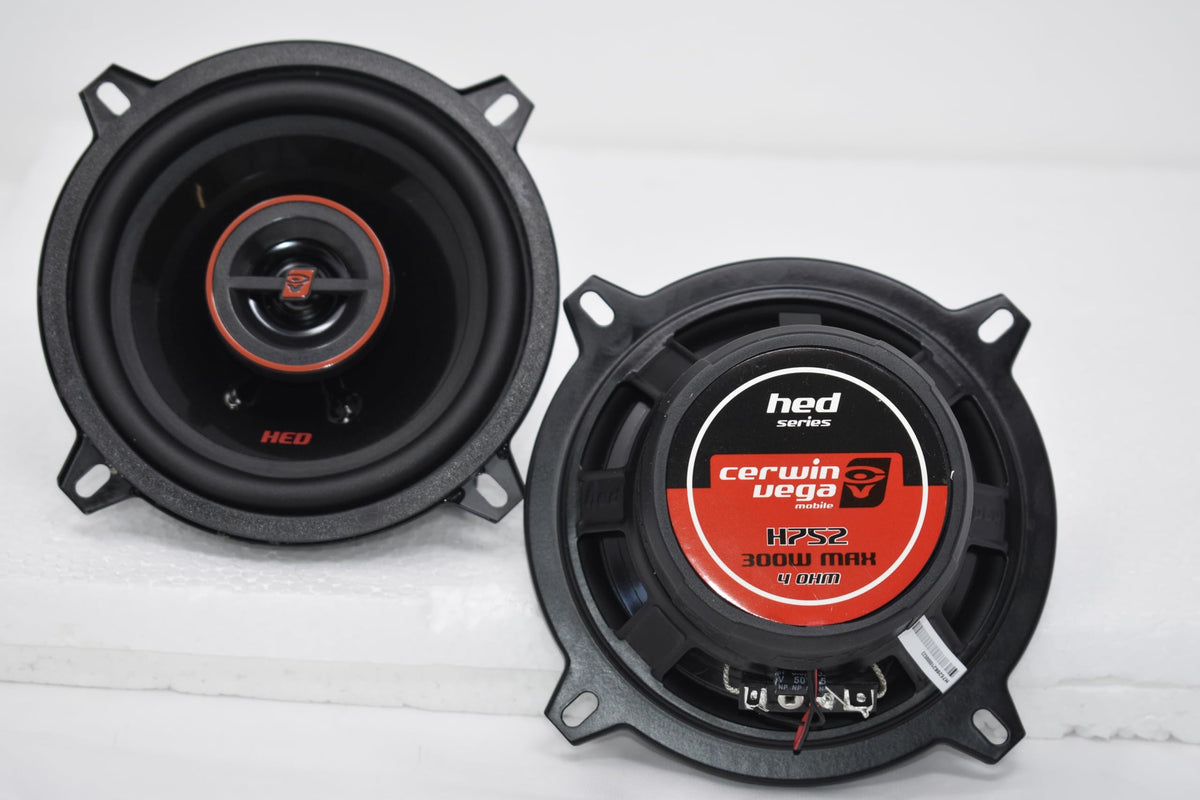

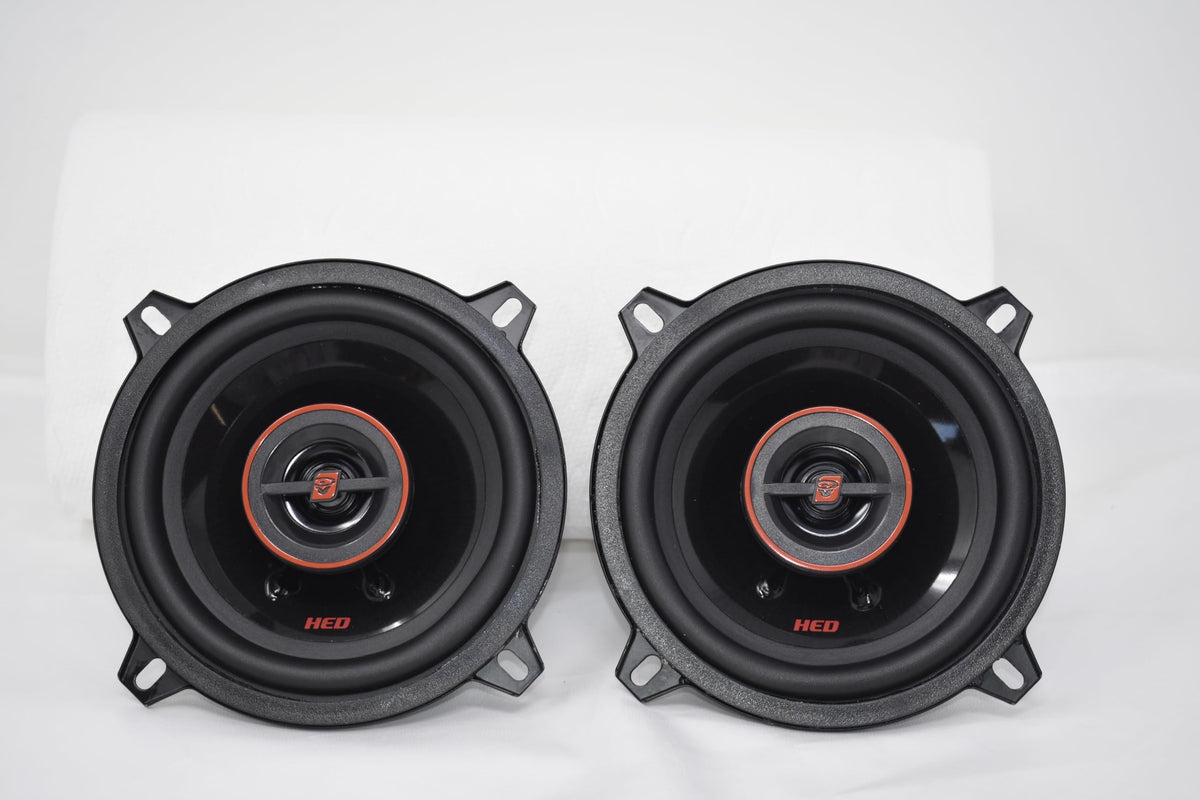

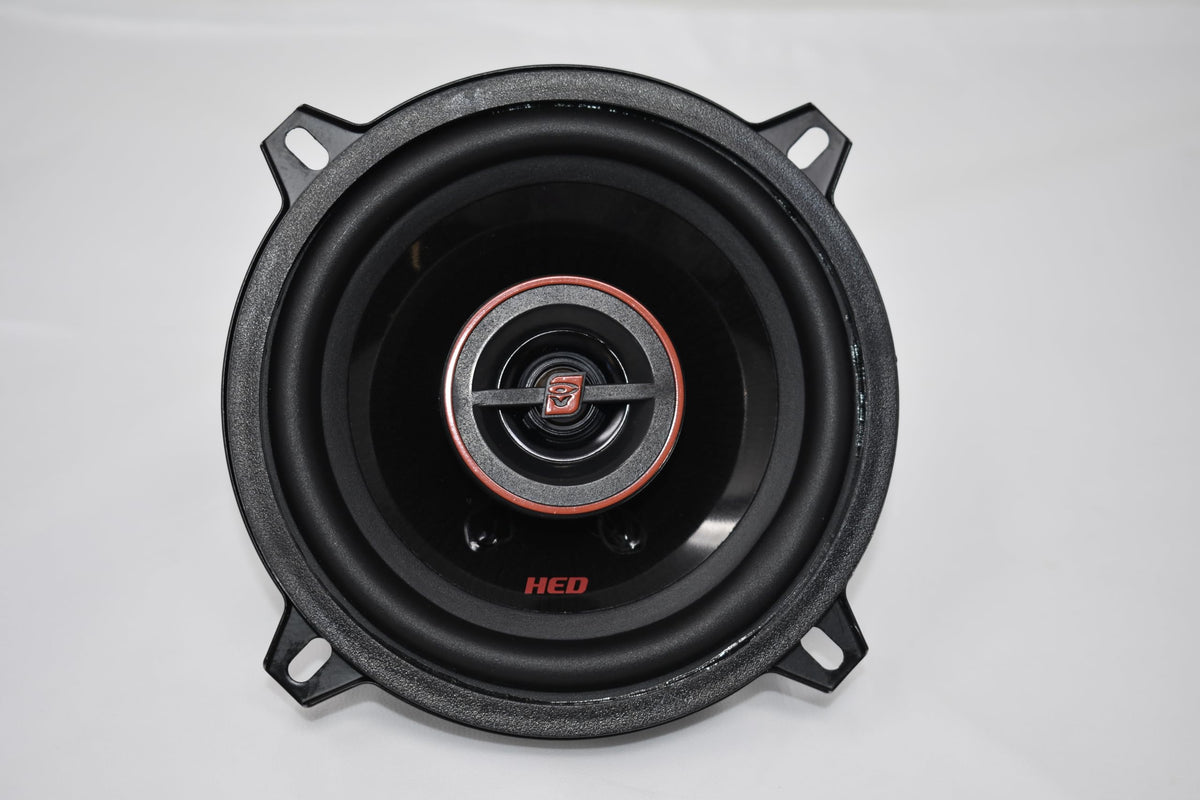

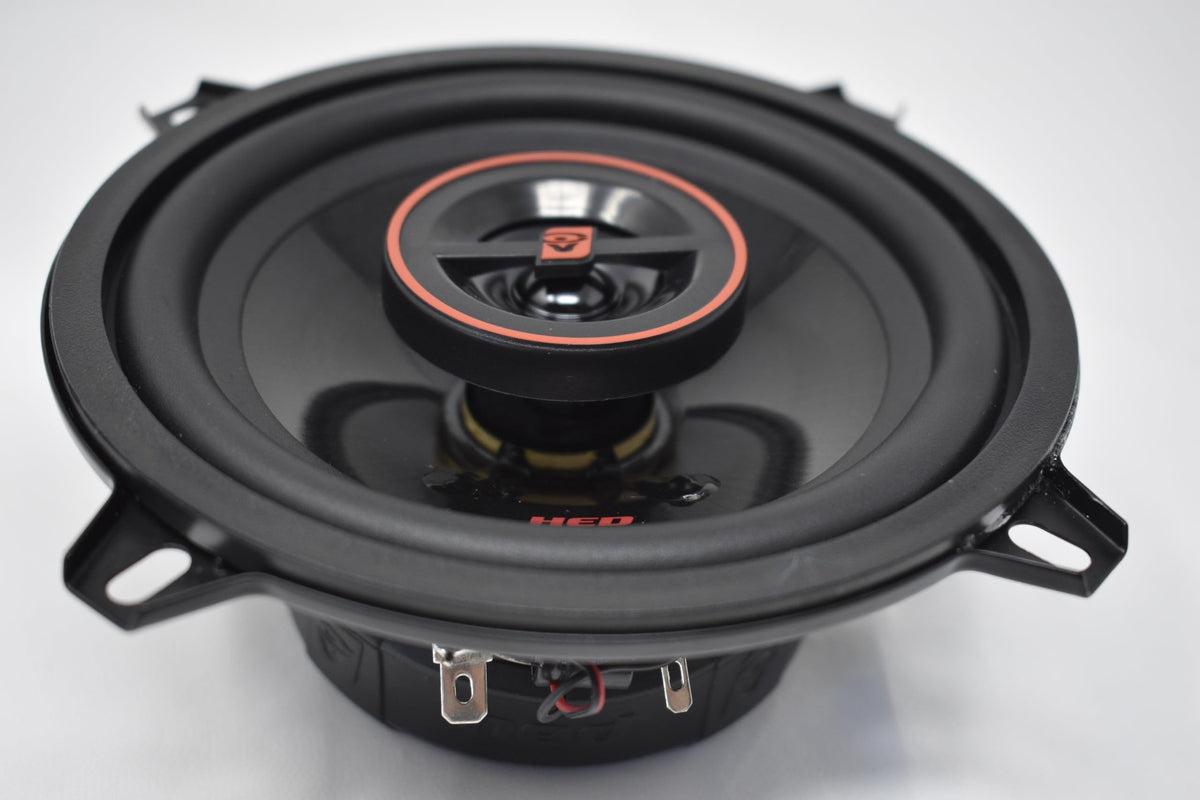

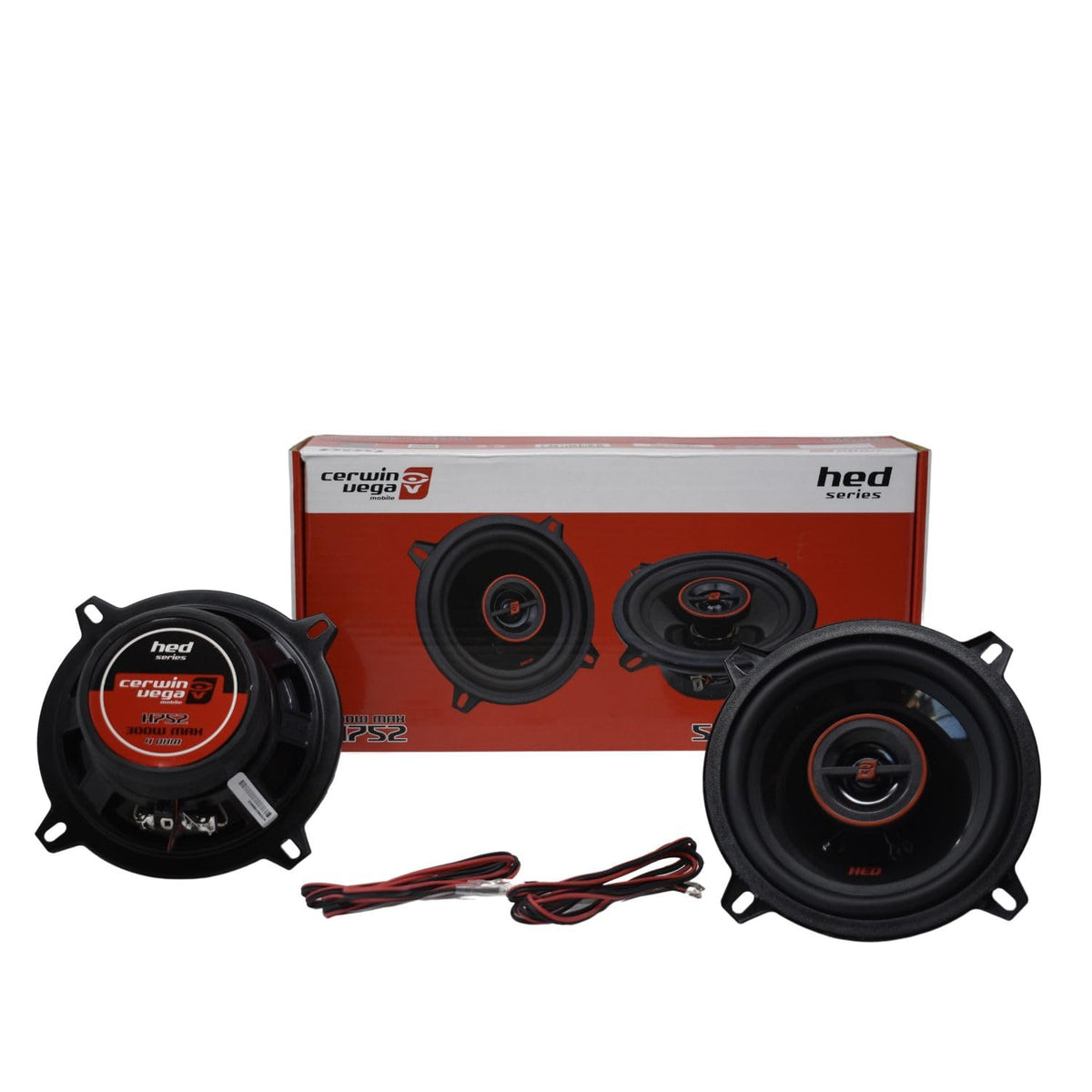

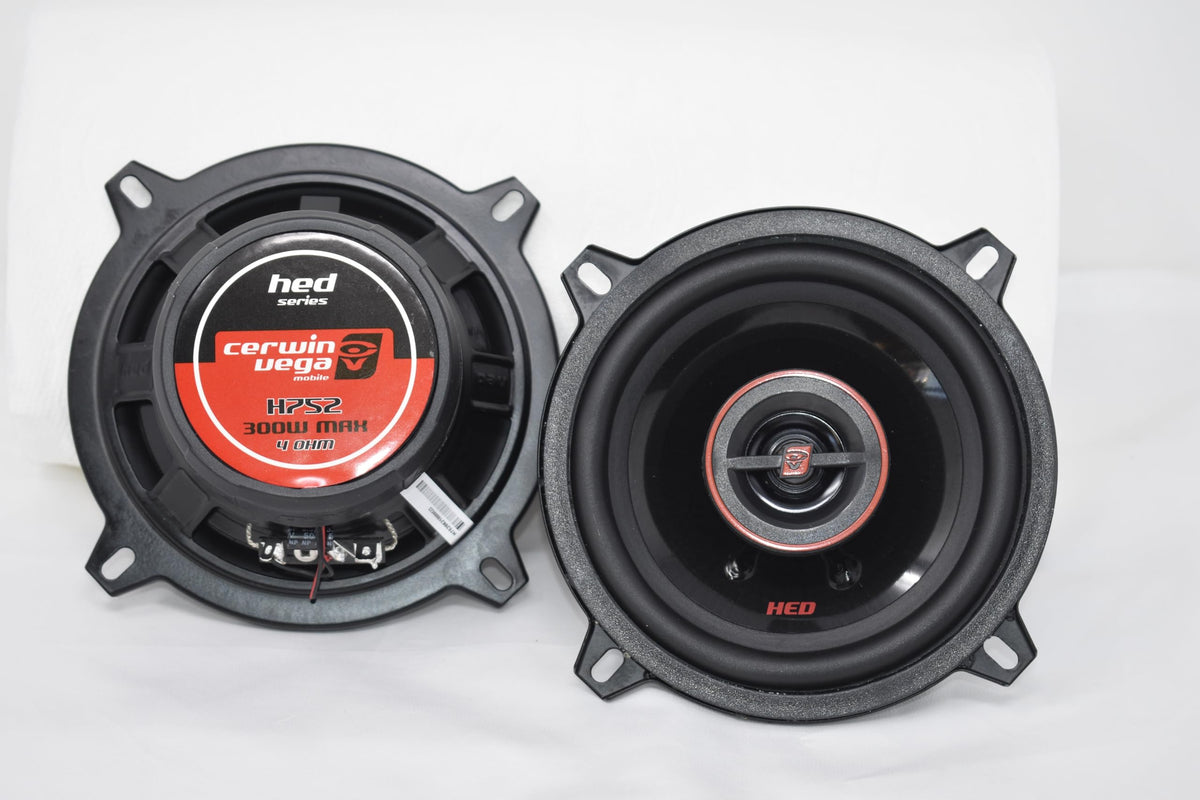

Cerwin-Vega H752 5.25" 2-Way Coaxial Car Speakers

The Cerwin-Vega H752 is a 5.25-inch, 2-way coaxial speaker set designed to replace factory car speakers in compatible door, dash, or rear-deck locations. It combines a woofer and tweeter in each speaker, helping simplify an audio upgrade where separate component speakers are not required. With a 4-ohm nominal impedance, the set is suited to common car-audio speaker applications.

This HED Series model is intended for listeners who want clearer everyday playback from a compact speaker size. Its 60 Hz to 20 kHz frequency response covers bass and midrange fundamentals along with high-frequency detail. The 1-inch balanced dome tweeter is integrated into the coaxial design to reproduce upper-frequency content from the same mounting location.

The H752 is rated for 40 watts RMS and 275 watts maximum power handling per speaker. That rating makes it appropriate for use with a compatible factory head unit or an aftermarket amplifier matched to its continuous power capability. For amplifier installations, proper gain setting is important to avoid clipping and speaker damage.

Its polypropylene cone, treated foam surround, and ferrite magnet motor are paired with a stamped-steel basket. These materials support a practical replacement-speaker design while the internal crossover directs frequencies within the coaxial assembly. The speaker also uses a 1-inch voice coil and a Mylar diaphragm material.

With a 1.85-inch mounting depth and 4.4-inch mounting diameter, the H752 can fit many 5.25-inch speaker locations when vehicle-specific clearance is confirmed. It is supplied as a pair, allowing both speakers in a matched location to be upgraded together. Verify the factory opening, mounting depth, adapter requirements, and connector style before installation.

Key Features

• 5.25-Inch Coaxial Design: Combines woofer and tweeter functions in each speaker.
• 2-Way Configuration: Supports full-range playback from a compact speaker location.
• 40W RMS Rating: Provides a continuous-power reference for amplifier matching.
• Polypropylene Cone: Forms the woofer’s main sound-producing surface.
• Internal Crossover: Integrates frequency division within the speaker assembly.
• Stamped-Steel Basket: Provides a rigid mounting structure for installation.

Design & Installation

The H752 uses a polypropylene cone with a treated foam surround, Mylar diaphragm material, ferrite magnet, and stamped-steel basket. A 1-inch balanced PEI dome tweeter is mounted within the coaxial assembly. The speaker is specified with a single voice coil and an internal crossover.

Confirm that the vehicle accepts a 5.25-inch speaker with a 4.4-inch mounting diameter and 1.85-inch mounting depth before purchase. Use appropriate vehicle-specific speaker adapters or wiring harnesses when the factory mounting pattern or connector differs. The speakers are 4-ohm units and should be connected with correct polarity to a compatible head unit or amplifier.
