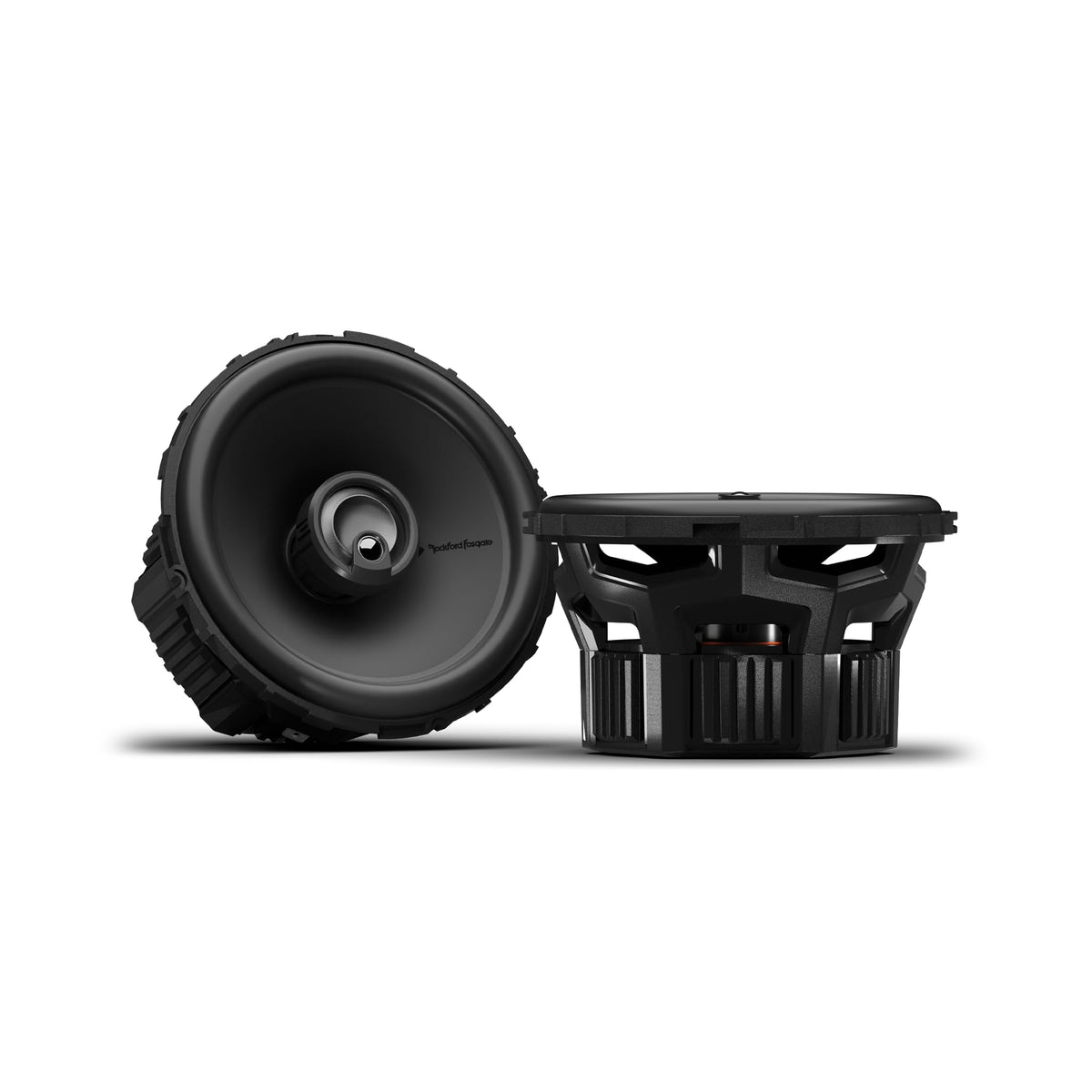

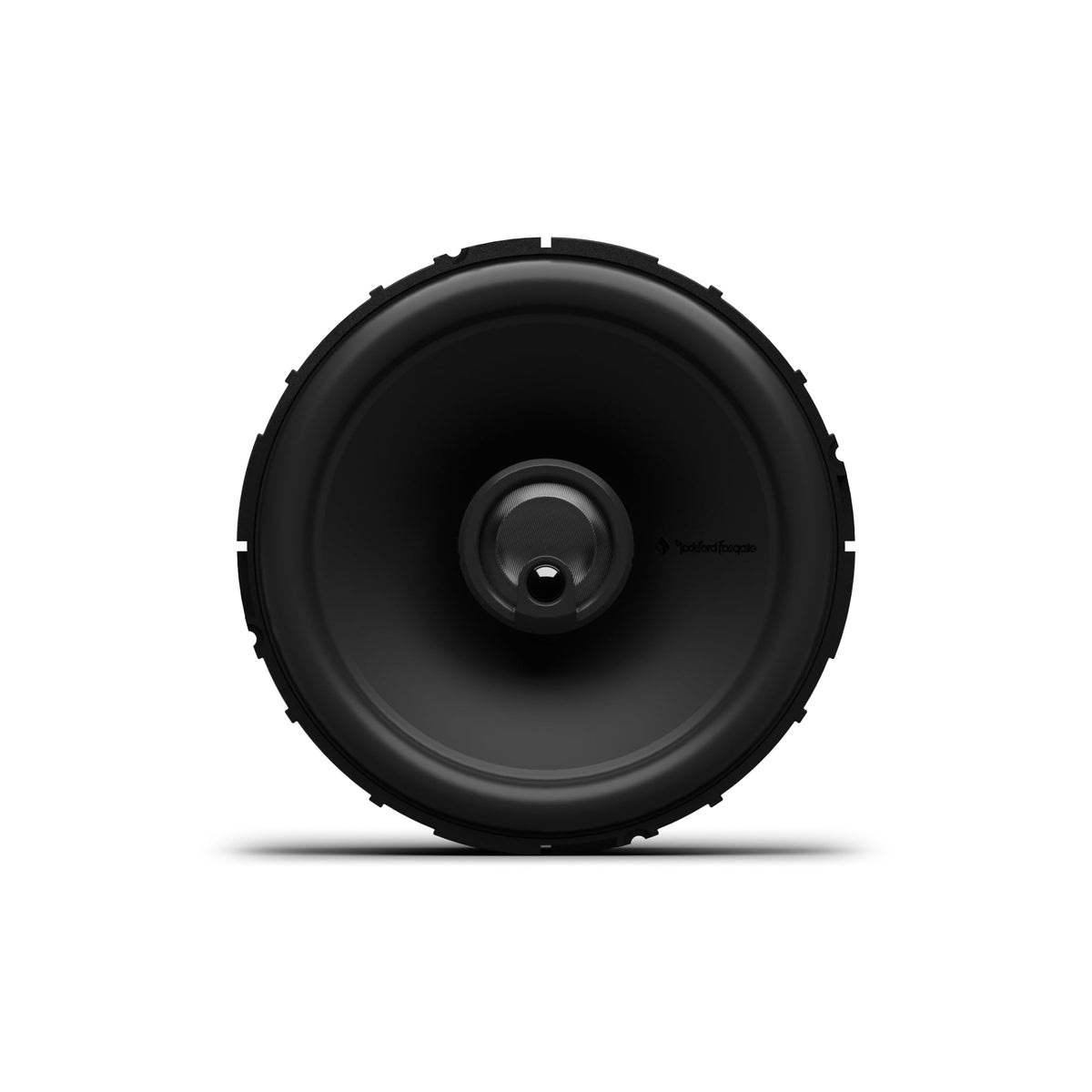

Rockford Fosgate P1V2-5 5.25" 3-Way Coaxial Speakers

The Rockford Fosgate P1V2-5 is a pair of 5.25-inch, 4-ohm, 3-way coaxial car speakers designed to replace factory full-range speakers in compatible door or rear-deck locations. It combines a midrange driver with an inverted-dome tweeter and a compact piezo high-frequency driver in each speaker. This makes it a practical upgrade for vehicles whose original speakers lack dedicated high-frequency drivers.

Each P1V2-5 speaker is rated for 75 watts RMS and 150 watts peak power handling. Its 56 Hz to 25 kHz frequency response and 86 dB sensitivity support clear everyday listening from a factory radio or a properly matched aftermarket amplifier. The 4-ohm nominal impedance is common in car-audio speaker systems.

The 3-way coaxial arrangement places the high-frequency drivers at the center of the midrange cone, helping consolidate multiple drivers into one factory-style speaker location. Rockford Fosgate specifies a 3/4-inch inverted-dome tweeter plus a lower one-third co-witnessed 9 mm convex piezo driver. This layout is intended to add upper-frequency detail without requiring separate tweeter mounting locations.

VAST 2.0 technology increases usable cone area by using an updated surround-to-frame attachment design. The P1V2-5 also uses Rockford Fosgate Tru-Sight tweeter alignment technology to coordinate its two high-frequency drivers. Together, these design elements focus on preserving useful midbass output and controlled high-frequency presentation in a compact coaxial format.

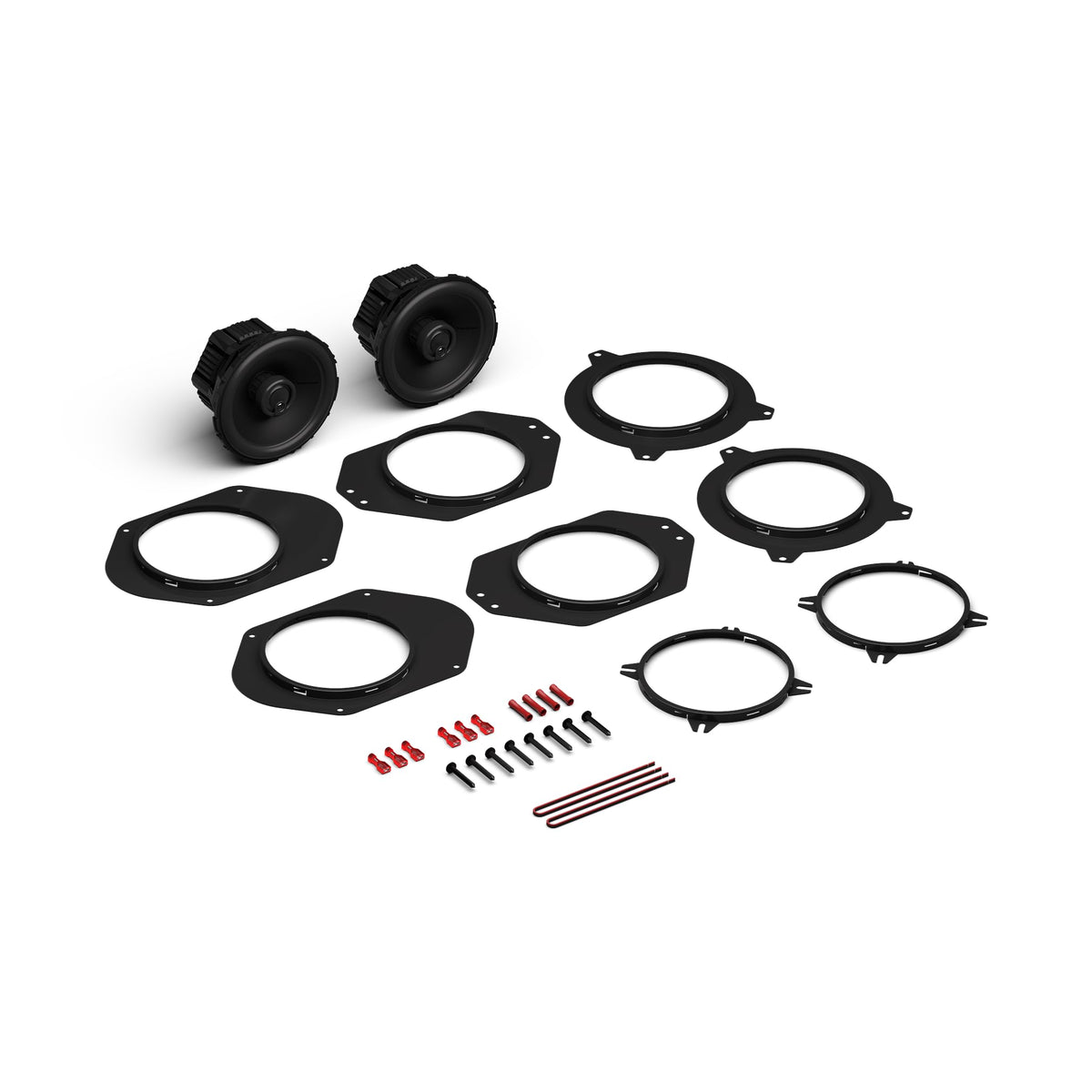

Installation flexibility is a central part of the P1V2-5 design. The package includes Twist-Lock adapters, 5.25-inch-to-4x6-inch adapters, and wide three-tab adapters to accommodate a range of factory mounting patterns. It is suited to an OEM-speaker replacement project, while the removable motor cover and measured mounting dimensions should be checked against the vehicle before installation.

Key Features

• 3-Way Coaxial Design Combines midrange, tweeter, and piezo drivers in each speaker.
• 75W RMS Handling Supports properly matched factory-radio or amplifier power.
• 4-Ohm Impedance Works with common car-audio speaker circuits.
• VAST 2.0 Increases cone area through an updated surround design.
• Tru-Sight Tweeter Layout Aligns the two high-frequency drivers in the coaxial assembly.
• Factory-Fit Adapters Includes multiple adapters for varied OEM mounting locations.

Design & Installation

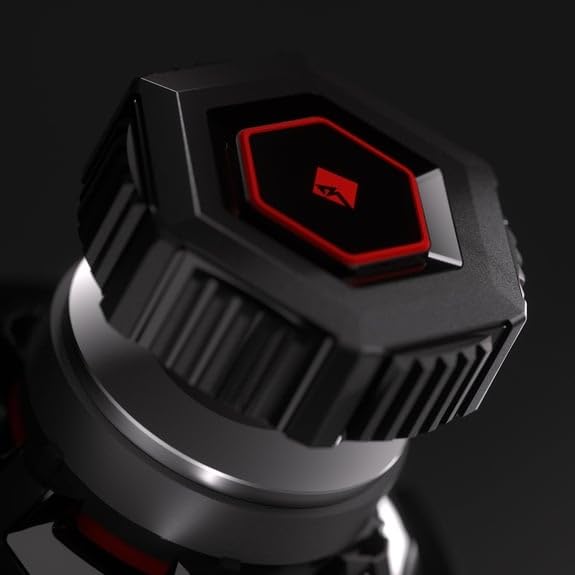

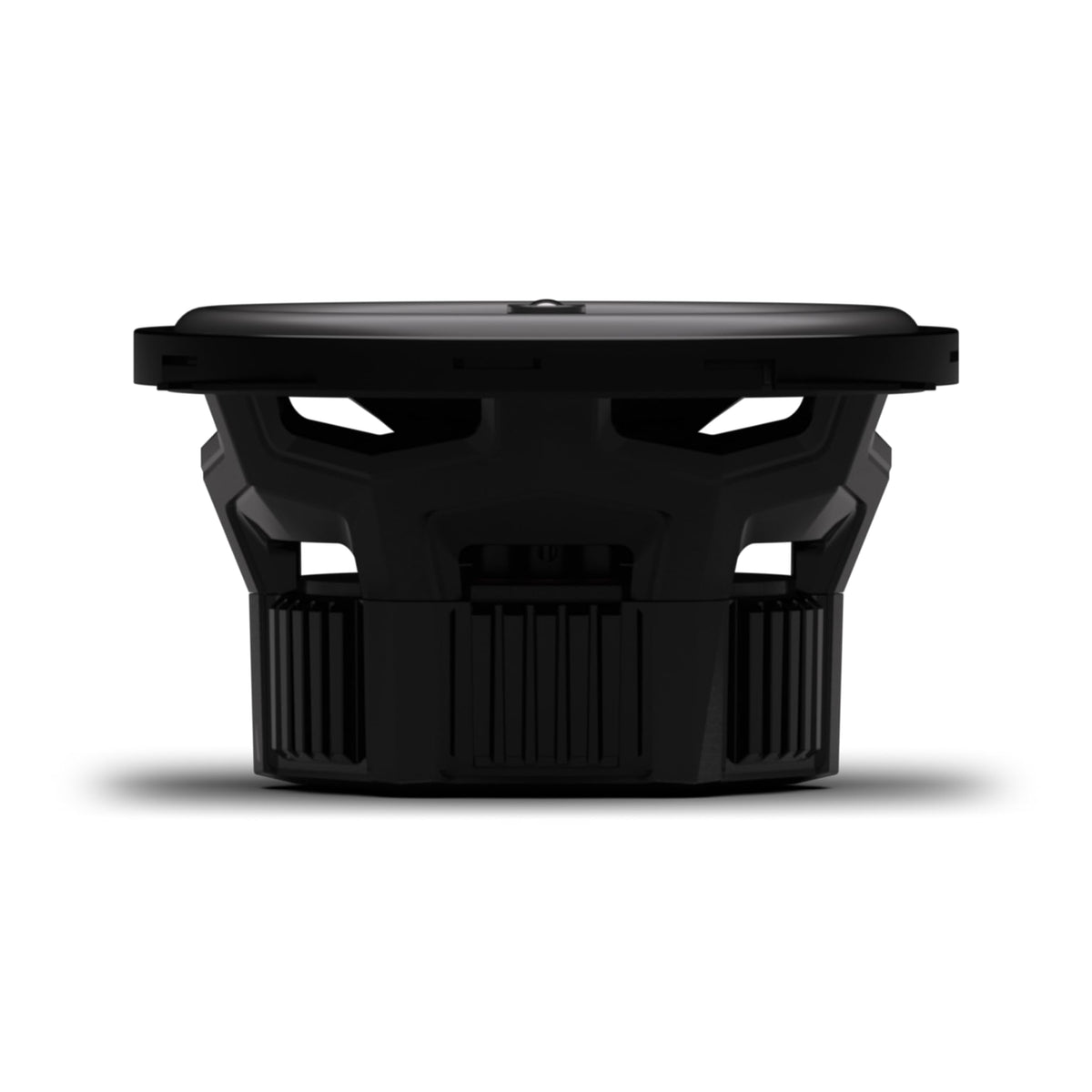

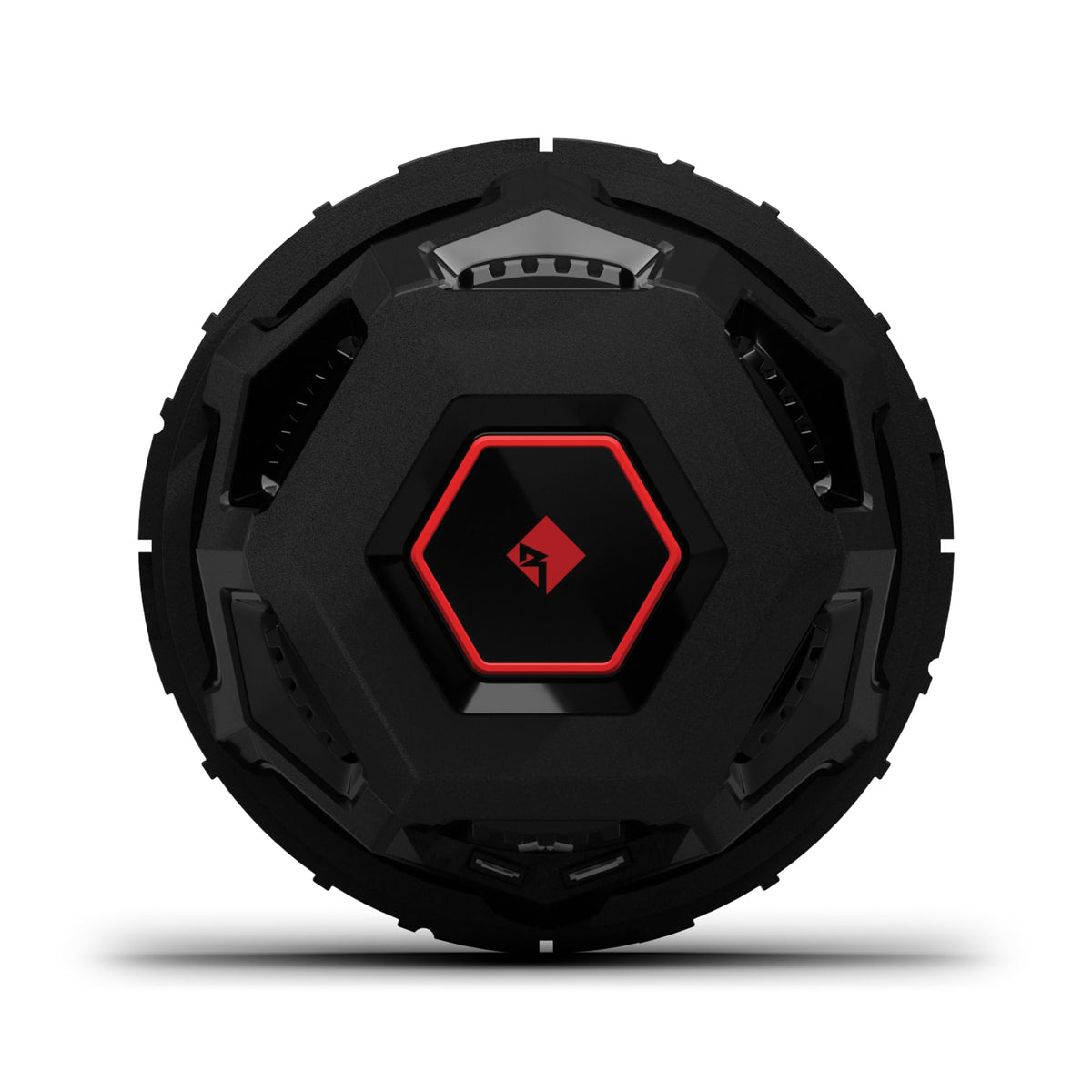

The P1V2-5 uses a compact full-range coaxial layout with a 5.25-inch midrange, 3/4-inch inverted-dome tweeter, and 9 mm convex piezo driver. Its frame geometry, mounting points, Twist-Lock adapter system, and removable motor cover are designed to help it fit tighter factory speaker locations. Optional surface-mount and flush-mount grilles are available separately; grilles are not included.

Confirm the 4.37-inch cutout requirement, mounting depth, and front-side clearance before ordering. The included adapters and hardware can simplify many installations, but vehicle-specific wiring harnesses may still be needed to avoid modifying factory wiring. Observe polarity at the marked positive terminal, route wiring before final mounting, and verify door-window clearance where applicable.
