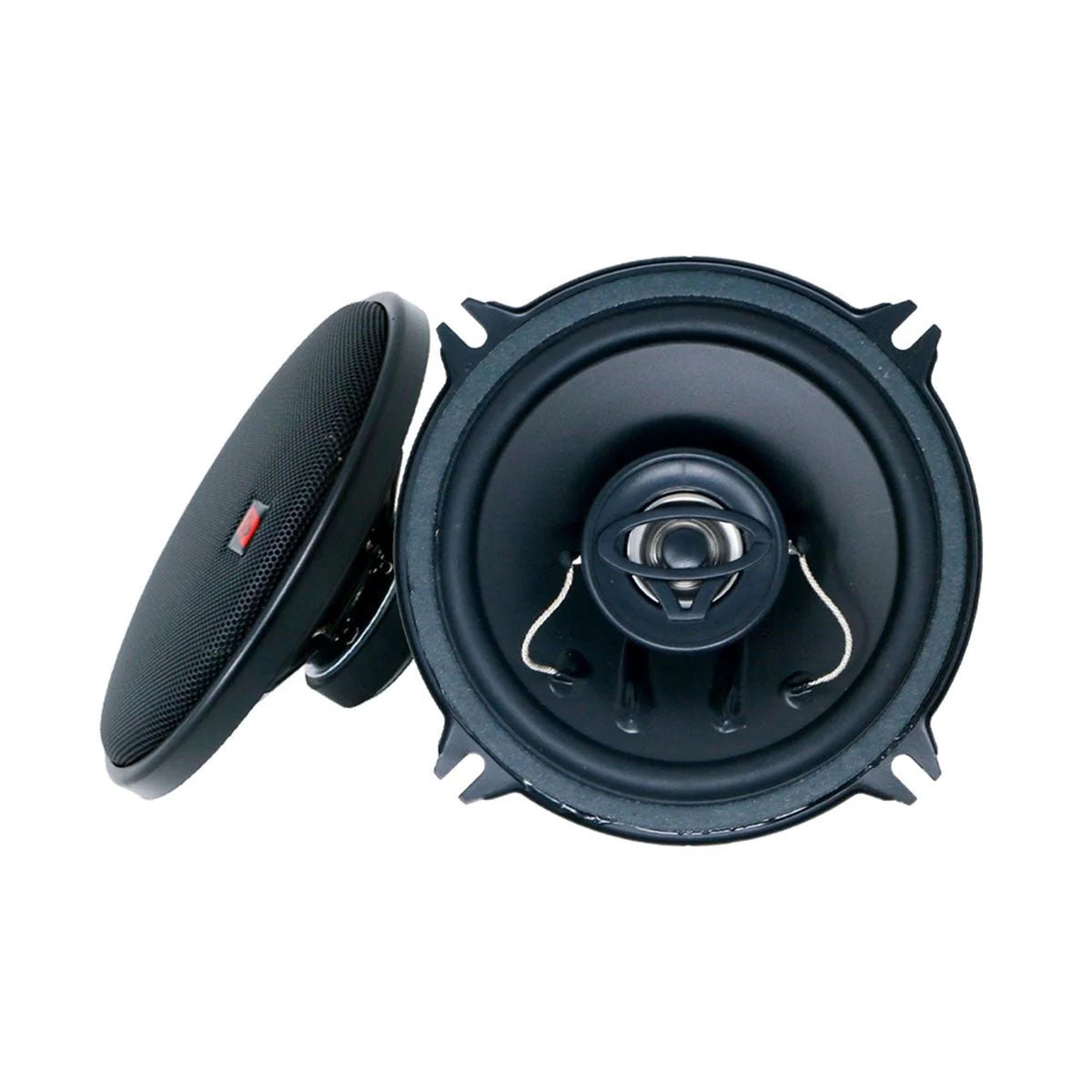

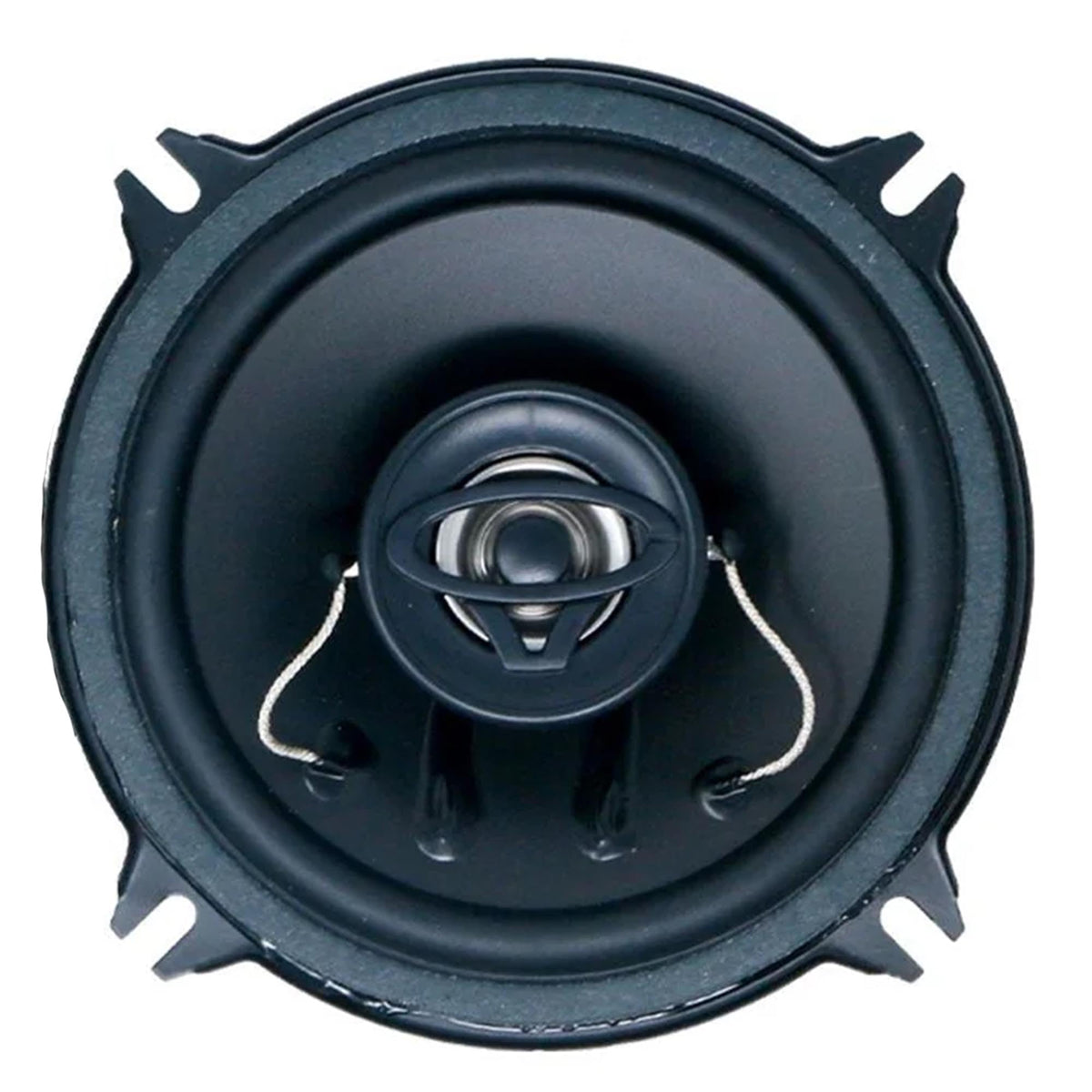

Cerwin-Vega XED52 5.25" 2-Way Coaxial Speakers

The Cerwin-Vega XED52 is a pair of 5.25-inch, 2-way coaxial car speakers designed as a practical replacement for worn or limited factory speakers. Each speaker combines a woofer and tweeter in one assembly, helping simplify an audio upgrade in compatible door, dash, or rear-deck locations. They are intended for vehicle audio systems using 4-ohm speakers.

This XED Series set is suited to drivers who want clearer everyday music playback without moving to a separate-component speaker system. Its coaxial layout keeps the high-frequency driver integrated with the woofer, reducing the number of separate parts to mount and wire. The pair can be used with a compatible factory radio or an aftermarket amplifier.

A curvilinear polypropylene cone handles the main midrange and midbass duties, while the butyl-rubber surround supports the cone during operation. The speakers use balanced piezo metal-dome CV tweeters for high-frequency reproduction. Together, these materials are selected for use in an automotive speaker installation.

The XED52 is rated for 30 watts RMS per speaker and 275 watts maximum per speaker, with 4-ohm impedance. Its specified frequency response is 60 Hz to 20 kHz, and its listed sensitivity is 94 dB. These figures make proper amplifier matching and clean signal setup important when planning an upgrade.

With included grilles and mounting hardware, the XED52 provides a straightforward foundation for a compact speaker replacement project. Verify the vehicle's factory opening, mounting diameter, depth clearance, and connector requirements before purchase. Where factory locations do not match, application-specific adapters or wiring accessories may be required.

Key Features

• 5.25-Inch Coaxial Design: Combines woofer and tweeter in each speaker for a compact installation.
• 2-Way Speaker System: Separates main speaker and treble duties for full-range playback.
• Curvilinear Poly Cone: Provides the woofer's primary midrange and midbass diaphragm.
• Butyl Rubber Surround: Supports cone movement in an automotive installation.
• Balanced Piezo Metal-Dome Tweeter: Handles high-frequency reproduction from the integrated tweeter assembly.

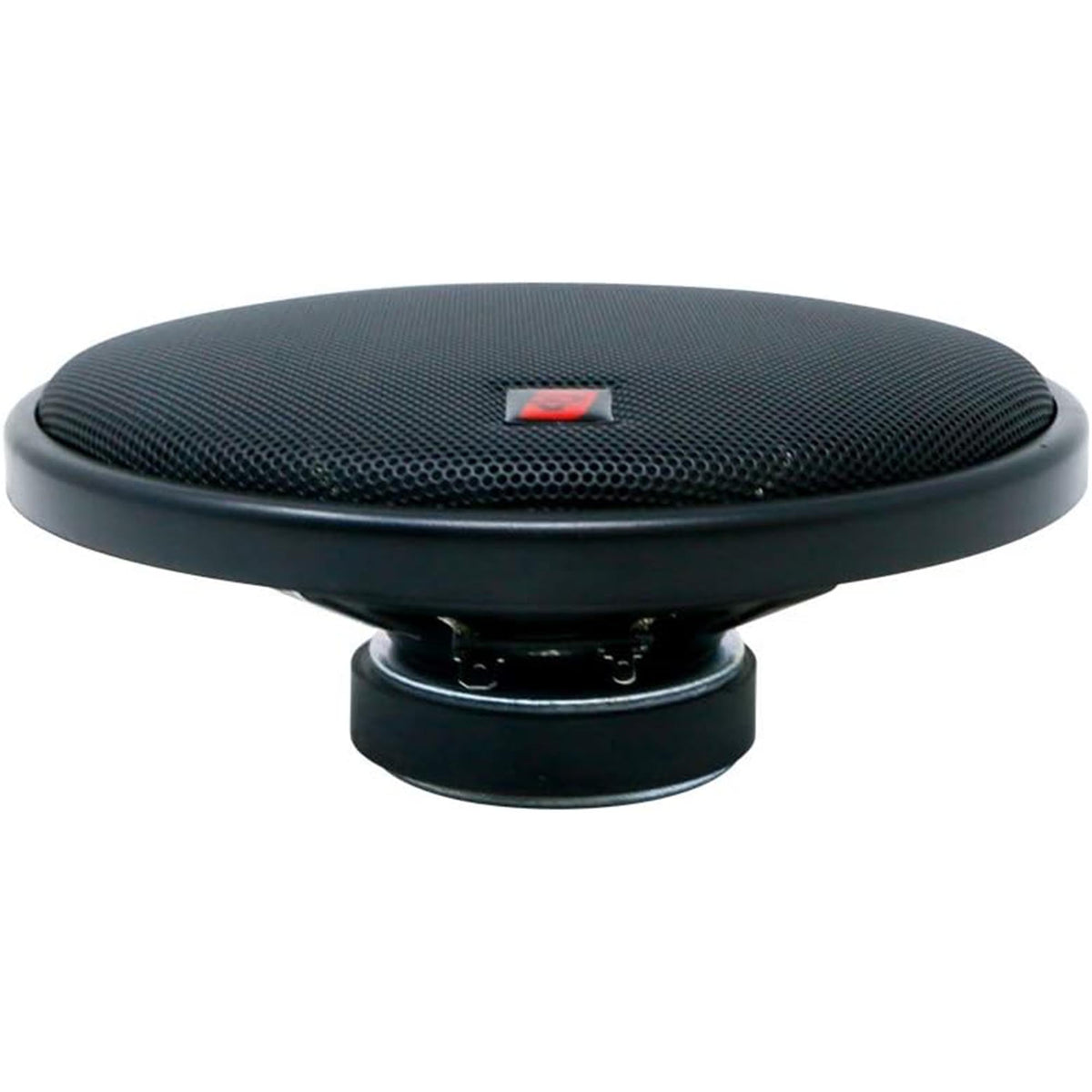

• Included Grilles And Hardware: Supplies speaker protection grilles and basic mounting hardware.

Design & Installation

The XED52 uses a curvilinear polypropylene cone, butyl-rubber surround, balanced piezo metal-dome tweeter, and black-coated stamped-steel basket. This is a 5.25-inch, 2-way coaxial speaker pair with a single voice coil per speaker. Grilles are included for installations where they are needed.

Confirm that the intended mounting location accepts a 5.03-inch mounting diameter and provides at least 2.18 inches of mounting-depth clearance. Wire each speaker with correct polarity to a compatible 4-ohm factory radio or amplifier channel. Check vehicle-specific fitment, mounting adapters, and wiring connections before installation.
