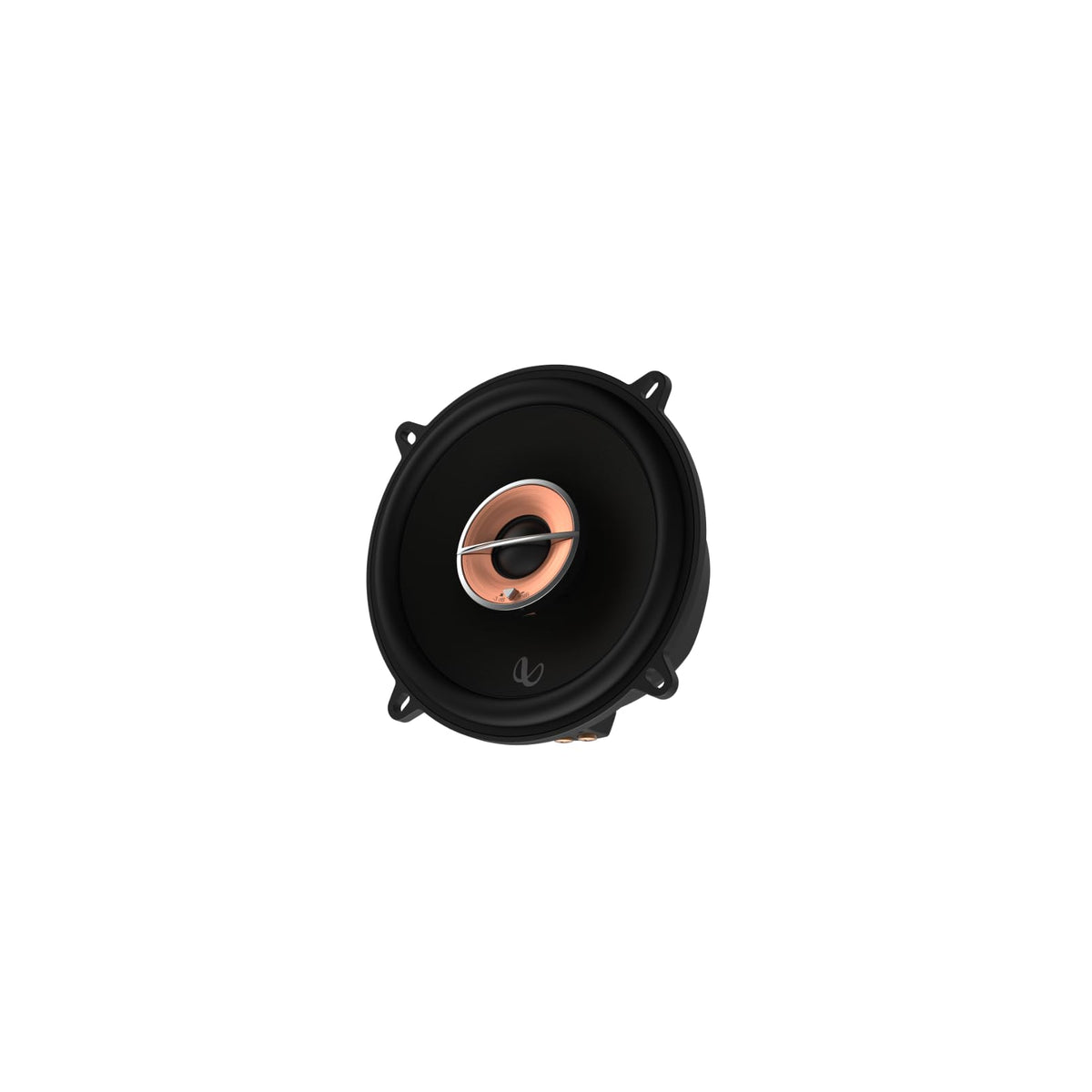

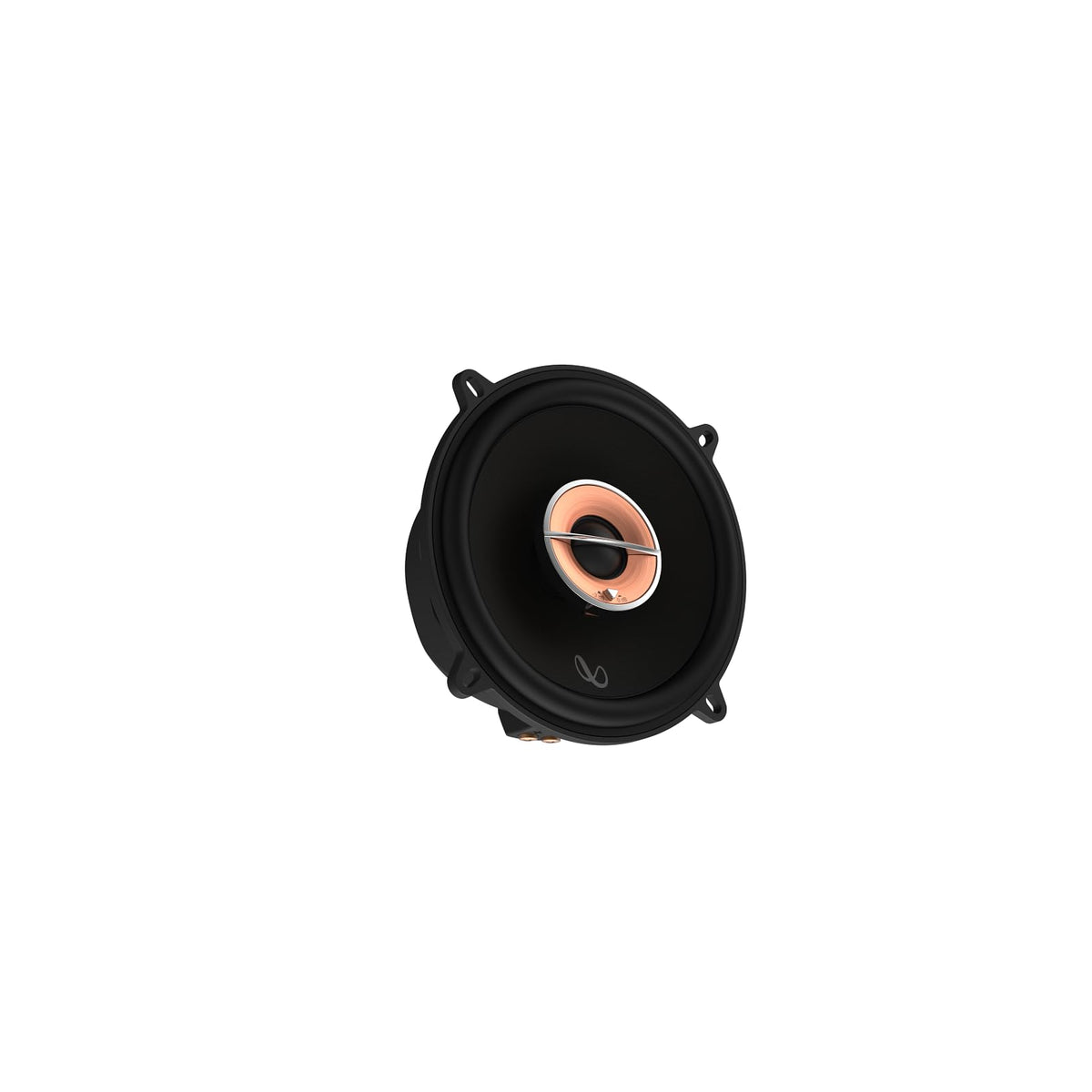

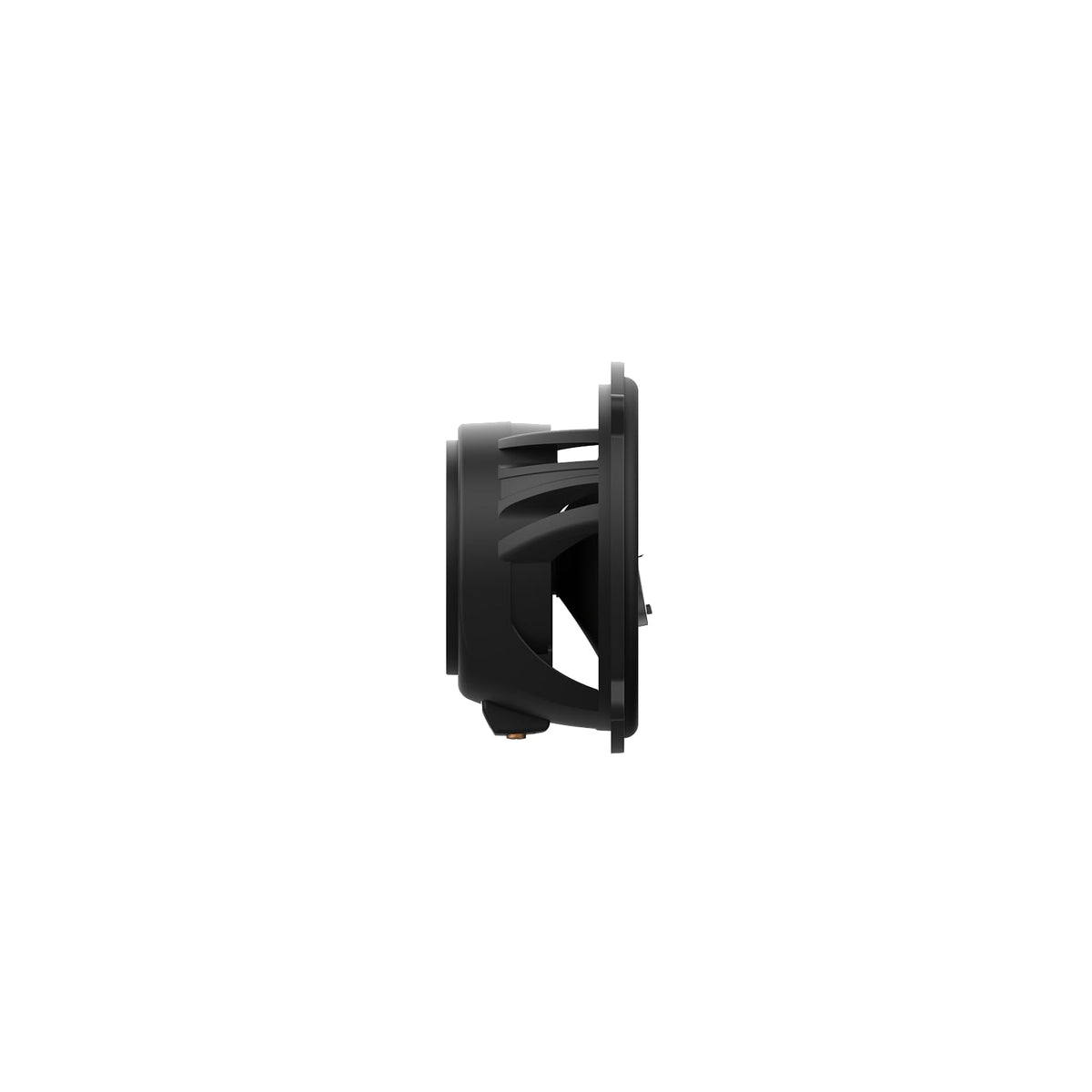

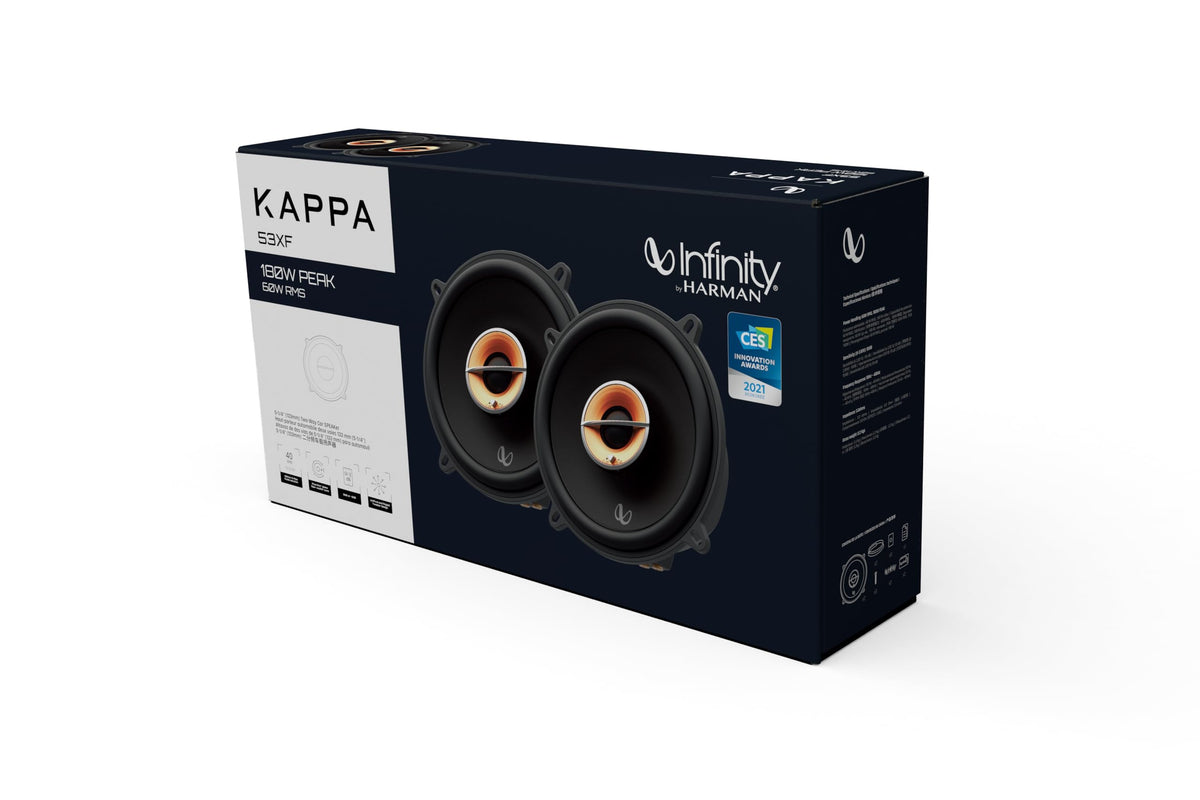

Infinity KAPPA53XF 5.25" Two-Way Car Speakers

The Infinity KAPPA53XF is a pair of 5-1/4-inch two-way car speakers designed for replacing factory speakers in compatible vehicle locations. They provide a compact upgrade path for systems that need clearer high frequencies and more capable midbass performance than worn or basic original-equipment speakers. With 60 watts RMS power handling and a 3-ohm nominal impedance, they are suited to a properly matched factory radio or aftermarket amplifier.

This coaxial speaker design places a 3/4-inch edge-driven dome tweeter over the woofer, allowing both drivers to install through one speaker opening. The 55 Hz to 40 kHz frequency-response specification supports low-midbass, vocal, and high-frequency reproduction from a compact 5-1/4-inch format. A 93 dB sensitivity rating at 2.83V helps these speakers produce useful output with moderate amplifier power.

Infinity uses a Plus One glass-fiber woofer cone to increase effective cone area within the speaker frame. The glass-fiber construction is designed to maintain cone rigidity while keeping moving mass controlled. A rubber surround supports the woofer's movement and is appropriate for typical automotive speaker installations.

The KAPPA53XF uses an angled UniPivot tweeter that can rotate up to 270 degrees after installation. This adjustment lets the installer aim high-frequency output toward the listening area when speakers are mounted low in doors or kick panels. A selectable 0 dB or -3 dB tweeter level setting provides an additional way to tailor treble output for the speaker location.

These speakers are intended for vehicle-specific front or rear speaker upgrades where the mounting opening, cutout, and depth are compatible. Their 3-ohm design can draw more power than a conventional 4-ohm speaker, so the connected radio or amplifier should be rated to operate safely with a 3-ohm load. The package includes the primary mounting hardware and foam gaskets, but vehicle-specific brackets, adapters, or wiring harnesses may still be required.

Key Features

• Two-Way Coaxial Design: Combines woofer and tweeter in one speaker assembly.
• Plus One Glass-Fiber Woofer: Provides increased effective cone area in the frame.
• 3/4-Inch Edge-Driven Tweeter: Extends high-frequency response to 40 kHz.
• Adjustable Tweeter Level: Select 0 dB or -3 dB output.
• Rotatable UniPivot Tweeter: Rotates up to 270 degrees after installation.
• 3-Ohm Nominal Impedance: Designed for compatible factory or aftermarket systems.

Design & Installation

The KAPPA53XF combines a Plus One glass-fiber woofer cone, rubber surround, and edge-driven textile dome tweeter in a compact coaxial layout. Its angled tweeter assembly is adjustable after installation, helping accommodate different mounting positions. The speakers are supplied without grilles, which is useful when reusing factory grilles but should be considered for exposed custom installations.

Confirm the vehicle's mounting opening, clearance, and available depth before ordering. The published cutout diameter is 118 mm (4-21/32 inches), while top-mount depth is 57 mm (2-1/4 inches). Use the included foam gaskets, screws, and speed clips as appropriate, and add vehicle-specific mounting adapters or wiring harnesses when the factory location requires them.
