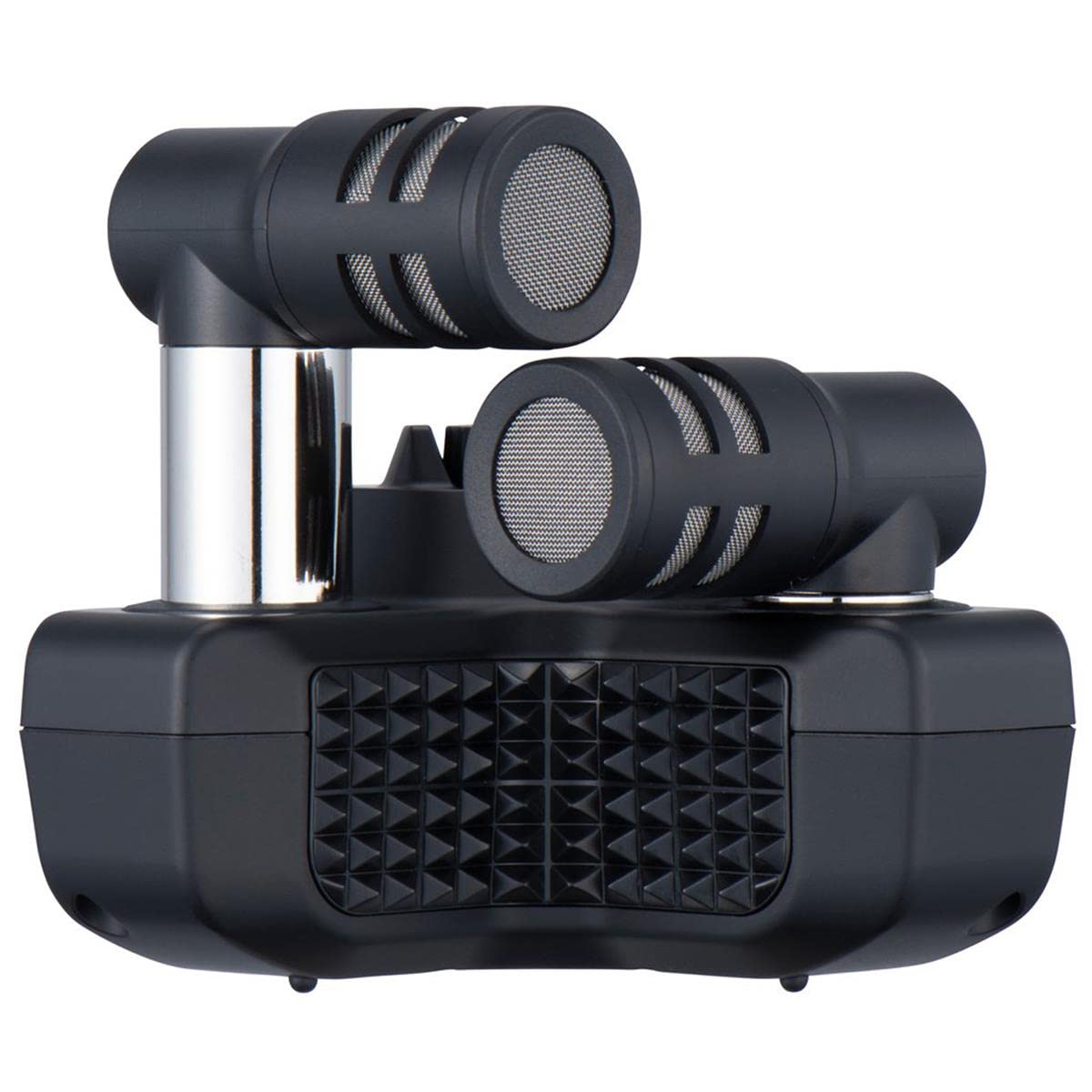

Zoom XAH-8 XY/AB Stereo Mic Capsule

The Zoom XAH-8 is an interchangeable stereo microphone capsule designed for compatible Zoom recorders. It gives creators two selectable stereo recording approaches in one compact accessory: focused X/Y and wider A/B. This makes it useful when a single fixed stereo pattern does not suit every recording environment.

The X/Y arrangement is intended for recording specific sources from near to medium distances while maintaining natural stereo depth and width. It is well suited to solo performances, chamber music, rehearsals, and field-recording work. The A/B arrangement captures more ambient sound around the subject for a broader stereo presentation.

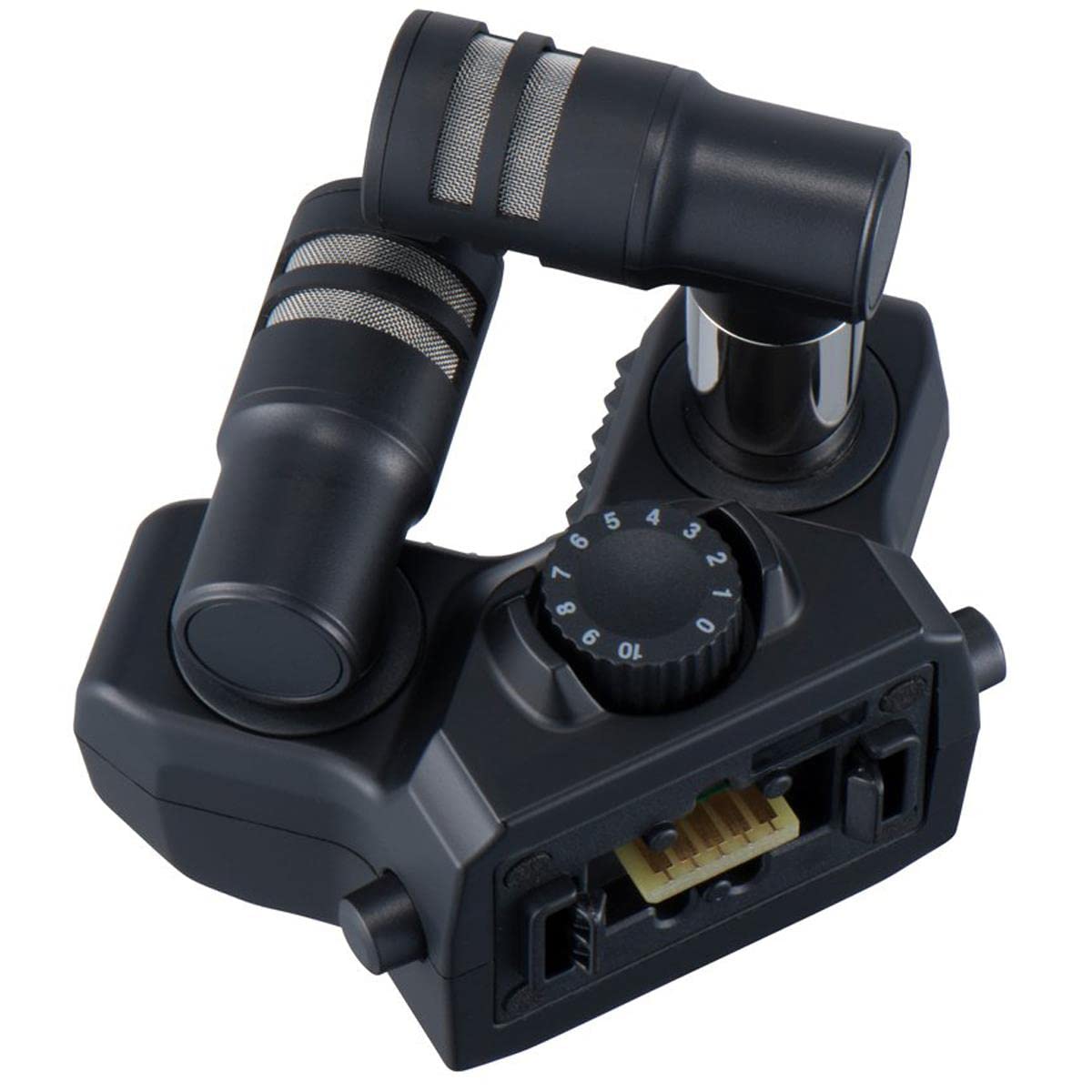

Each microphone can be rotated individually, allowing the capsule to change from an inward-facing X/Y position to an outward-facing A/B position. The microphones lock into their selected positions to support repeatable setup. A dedicated mic input volume control allows level adjustment from the connected recorder.

The XAH-8 is built around Zoom's Capsule System 2.0 connection, making it an upgrade path for users who need more stereo-placement flexibility than a fixed capsule provides. Rather than adding cables or an external stereo microphone assembly, it connects as a replaceable capsule on a compatible recorder. This keeps the recording setup compact for location, music, video, and spoken-word work.

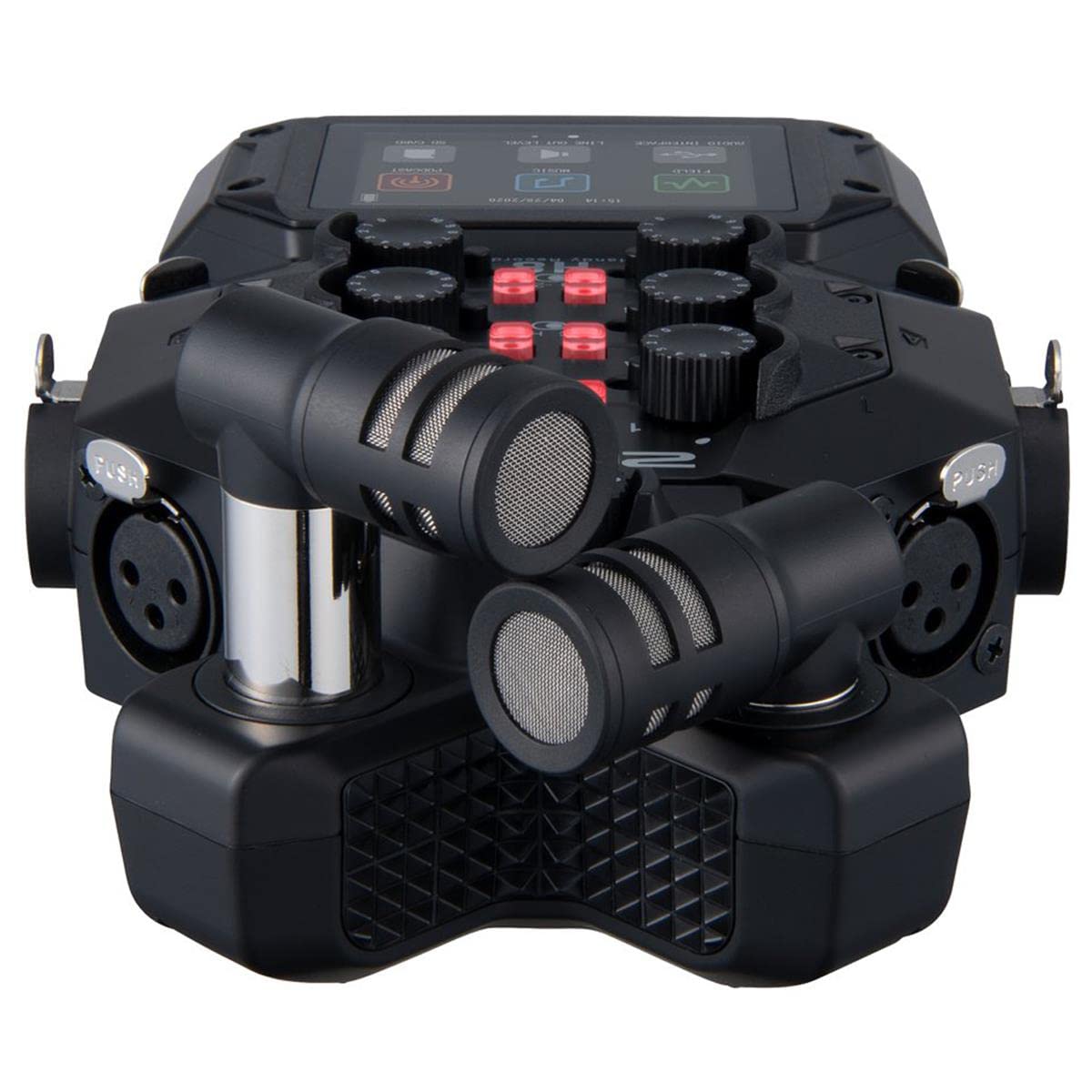

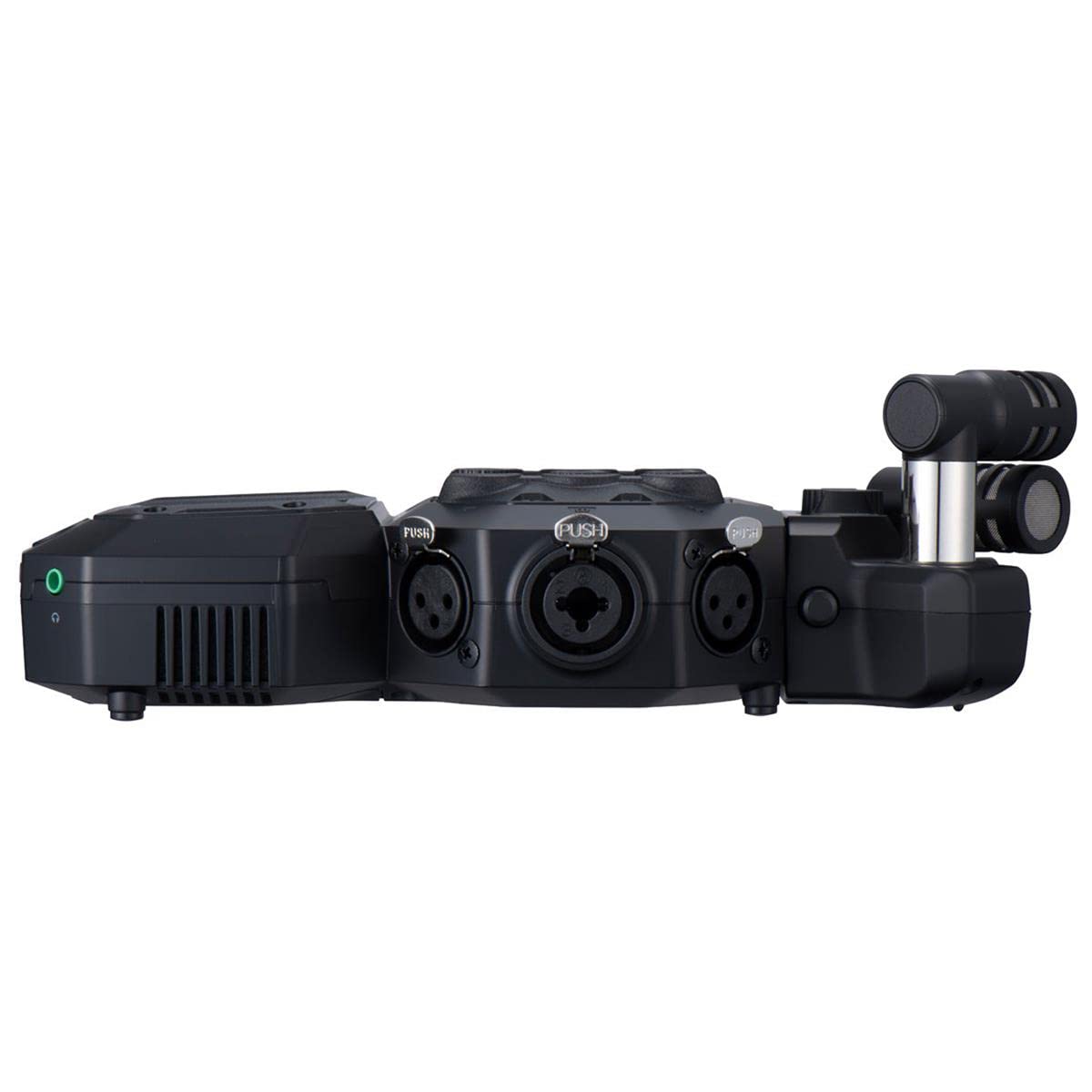

For Zoom H8 owners, the XAH-8 adds a choice between tighter source focus and wider ambient pickup without changing the main recorder. It is also compatible with the Zoom Q8n-4K handy video camera. Check the firmware version of the compatible recorder before use and update it when necessary.

Key Features

• Dual Stereo Formats: Switch between X/Y and A/B stereo recording approaches.
• Rotatable Microphones: Individually rotate each mic to change stereo configuration.
• X/Y Recording: Supports focused recordings with natural depth and width.
• A/B Recording: Captures more ambient sound for a wider stereo image.
• Mic Input Volume Control: Provides direct adjustment of the capsule input level.
• Capsule System 2.0: Connects through Zoom's second-generation capsule system.

Design & Installation

The XAH-8 uses a compact interchangeable-capsule design with two onboard condenser microphone capsules. Its rotating microphone sections are designed to lock into the inward X/Y or outward A/B positions. The layout keeps stereo-format selection physical and straightforward without requiring a separate microphone pair.

Attach the XAH-8 directly to a compatible Zoom H8 or Q8n-4K capsule connection before recording. Turn both microphones inward until they click for X/Y recording, or turn them outward until they click for A/B recording. Set the input level with the mic input volume control and verify the recorder firmware is current if needed.
