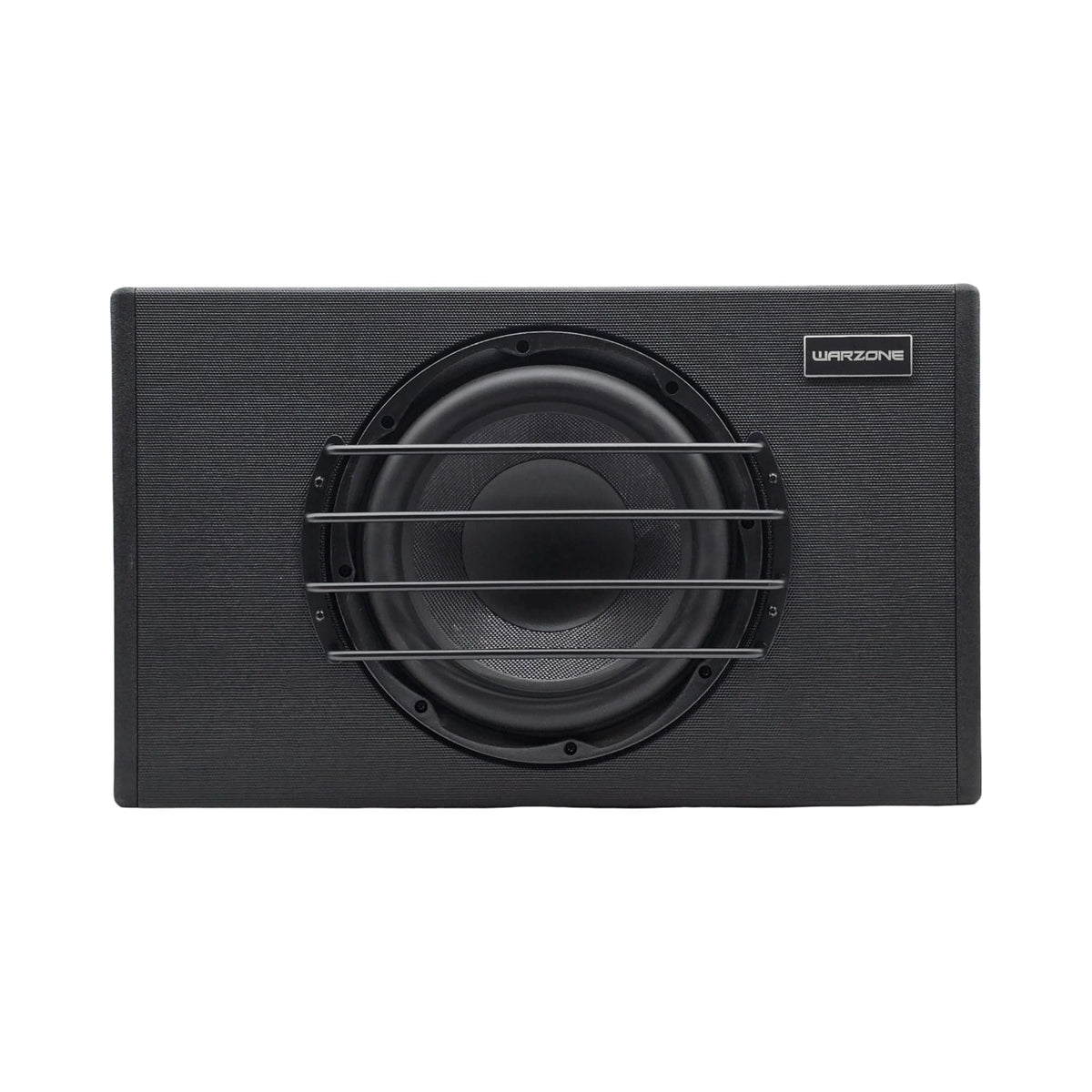

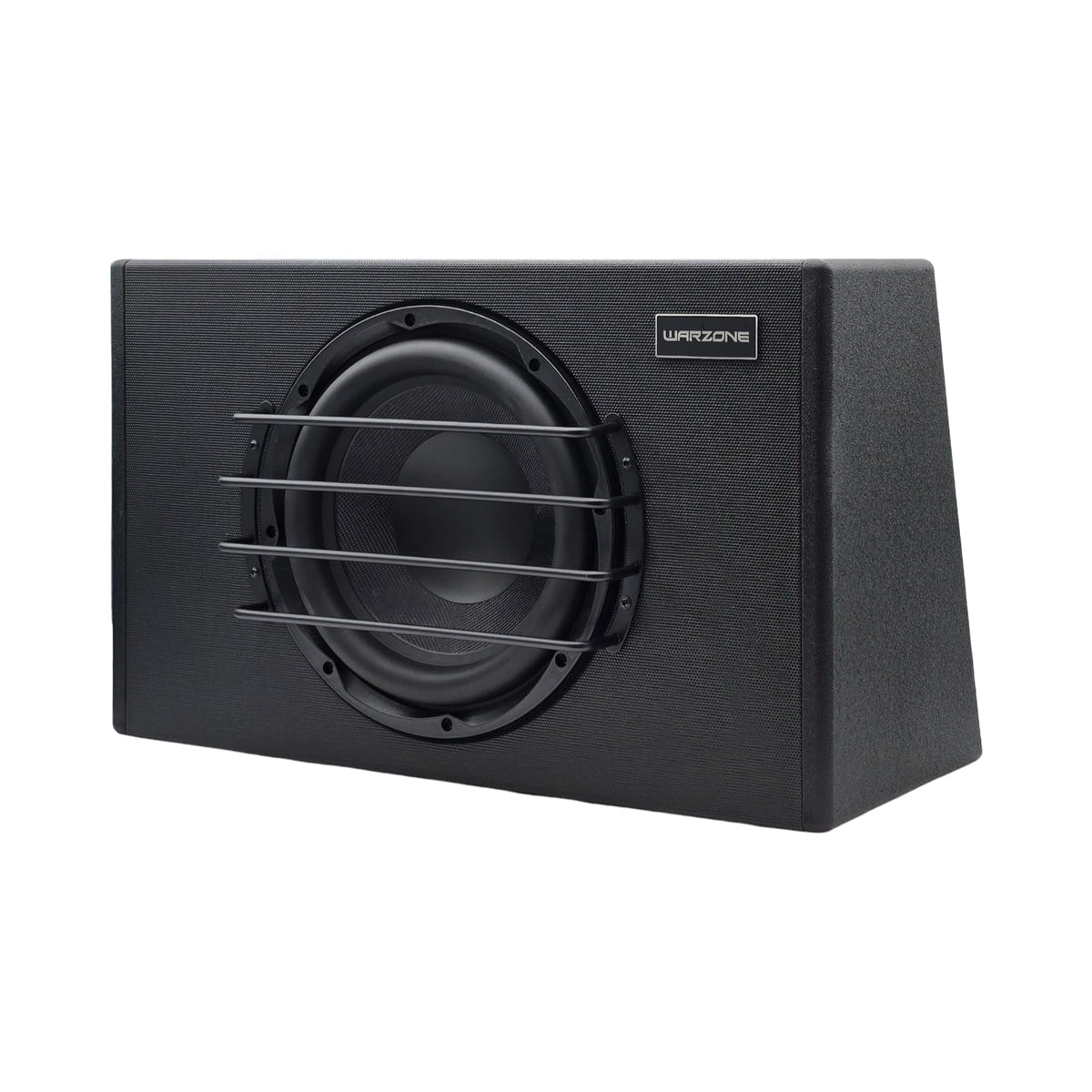

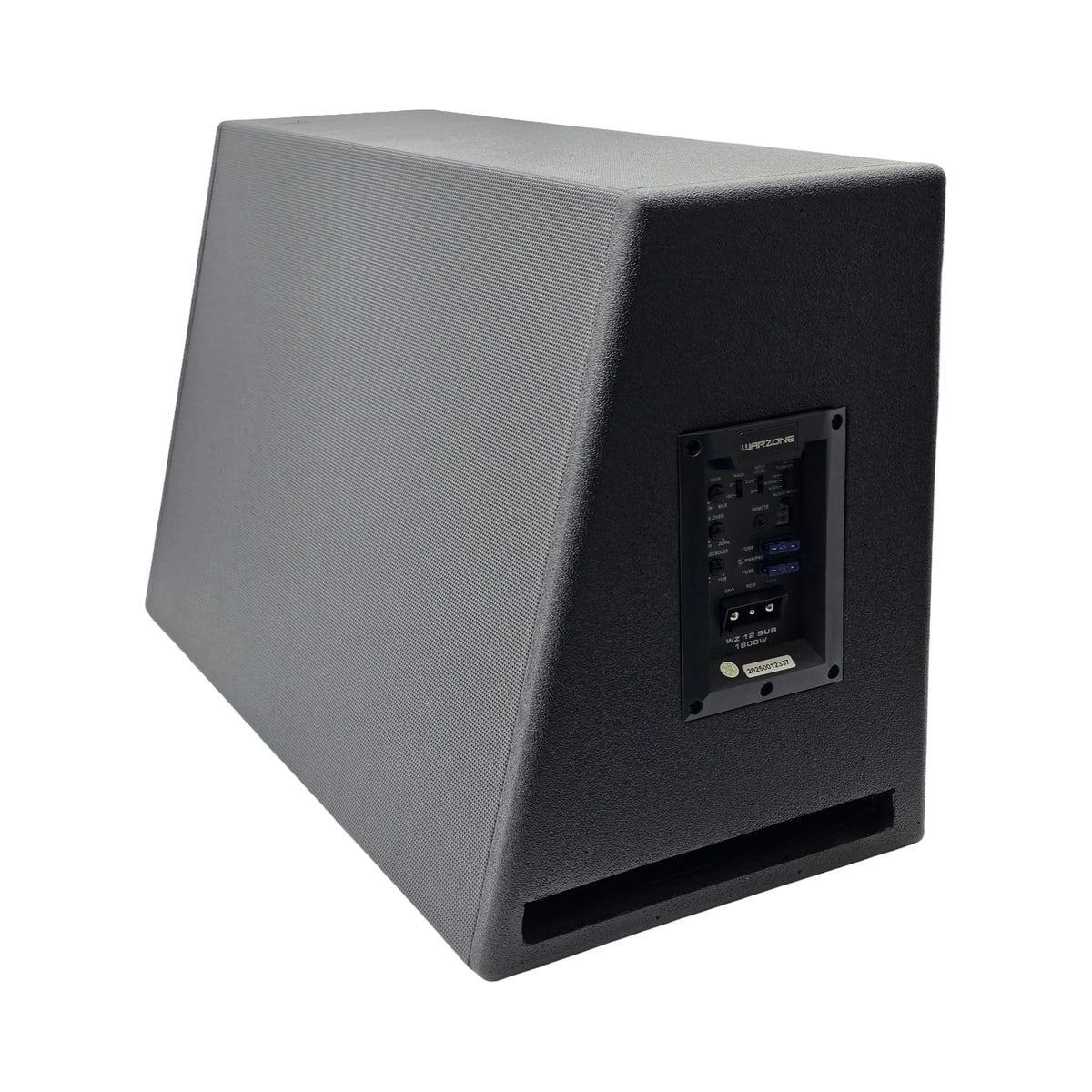

Warzone WZ12SUB 12-Inch Powered Subwoofer

The Warzone WZ12SUB is a 12-inch powered car subwoofer system designed to add dedicated low-frequency output without pairing a separate amplifier with the enclosure. Its built-in amplifier is rated at 600 watts RMS and 1800 watts maximum. This makes it a practical option for listeners looking to add more bass presence to a factory or aftermarket vehicle audio system.

The subwoofer is housed in a vented wooden enclosure, a design intended to support strong low-frequency output. The enclosure combines the driver and amplification in one assembled unit, simplifying the component selection process. Its 25.00-inch-wide cabinet is suited to installations with adequate cargo-area space.

Onboard adjustment controls help the WZ12SUB blend with the speakers already in the vehicle. Its variable crossover covers 50Hz to 200Hz, allowing the bass range to be tailored to the main system. Adjustable bass boost and phase control offer further setup flexibility when matching the enclosure to different vehicles and speaker layouts.

The WZ12SUB includes a wired remote level control for changing bass output from the driver's seat. This is useful when moving between different music styles, listening levels, or recordings with varying bass content. The integrated amplifier also supports automatic turn-on through a +12V remote lead, DC offset, or audio-signal detection.

With both high- and low-level input options, the WZ12SUB can be integrated into a range of vehicle audio systems. It is intended for drivers who want a self-contained powered bass enclosure rather than sourcing an external amplifier and separate subwoofer box. Careful placement, secure mounting, and adjustment of the crossover, phase, and level controls help achieve an appropriate balance with the rest of the system.

Key Features

• 600W RMS Power: Built-in amplification provides substantial continuous power for the included 12-inch subwoofer system.
• Vented Wooden Enclosure: The ported cabinet is designed to support efficient, high-output low-frequency performance.
• Variable Crossover: Adjustable 50Hz–200Hz filtering helps match bass output to the vehicle's main speakers.
• Bass And Phase Controls: A 0 to +12dB bass boost and 0°–180° phase adjustment support system tuning.
• Automatic Turn-On: The amplifier can activate through remote, DC-offset, or audio-signal sensing methods.

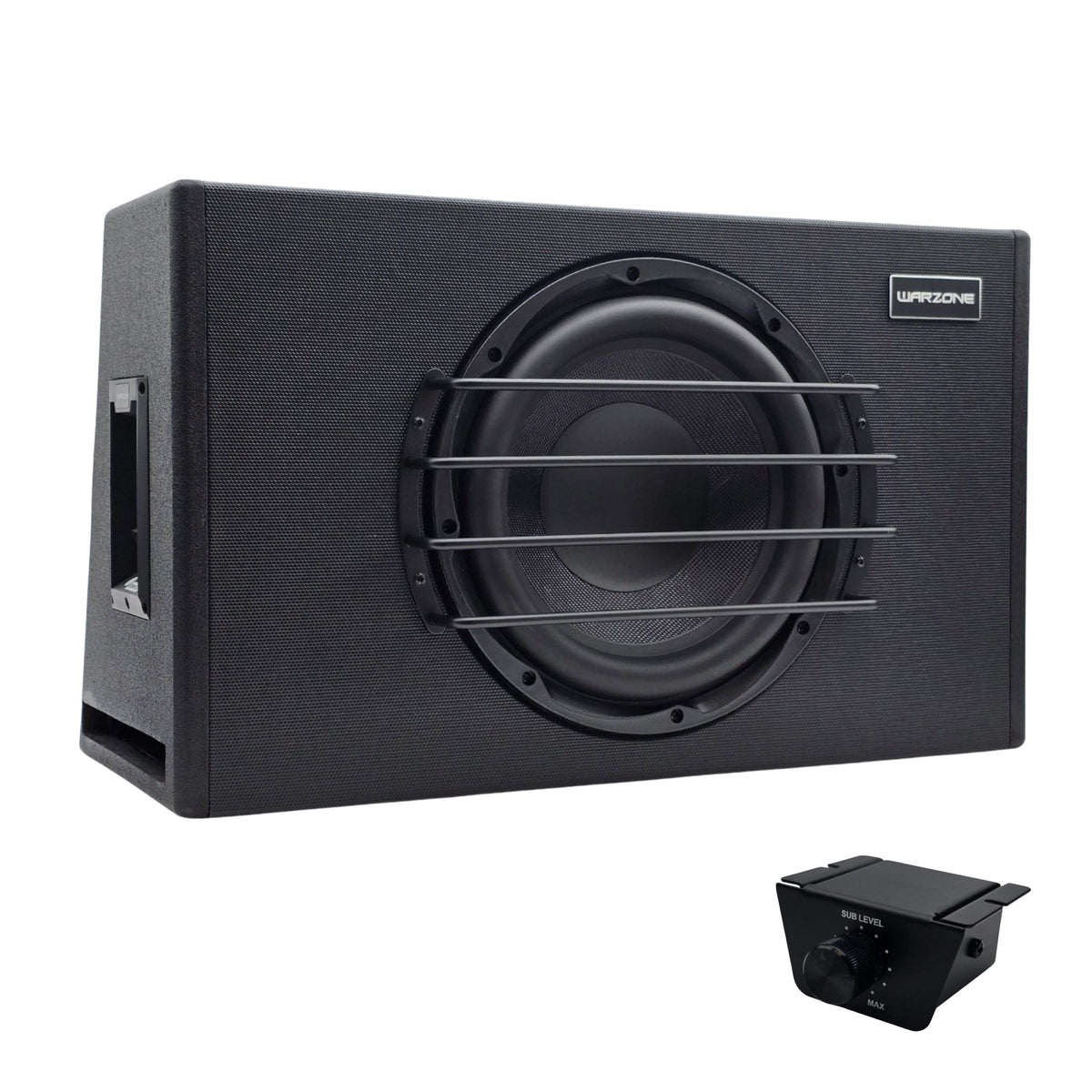

• Wired Remote Level Control: The included remote allows convenient bass-level adjustment from the front seat.

Design & Installation

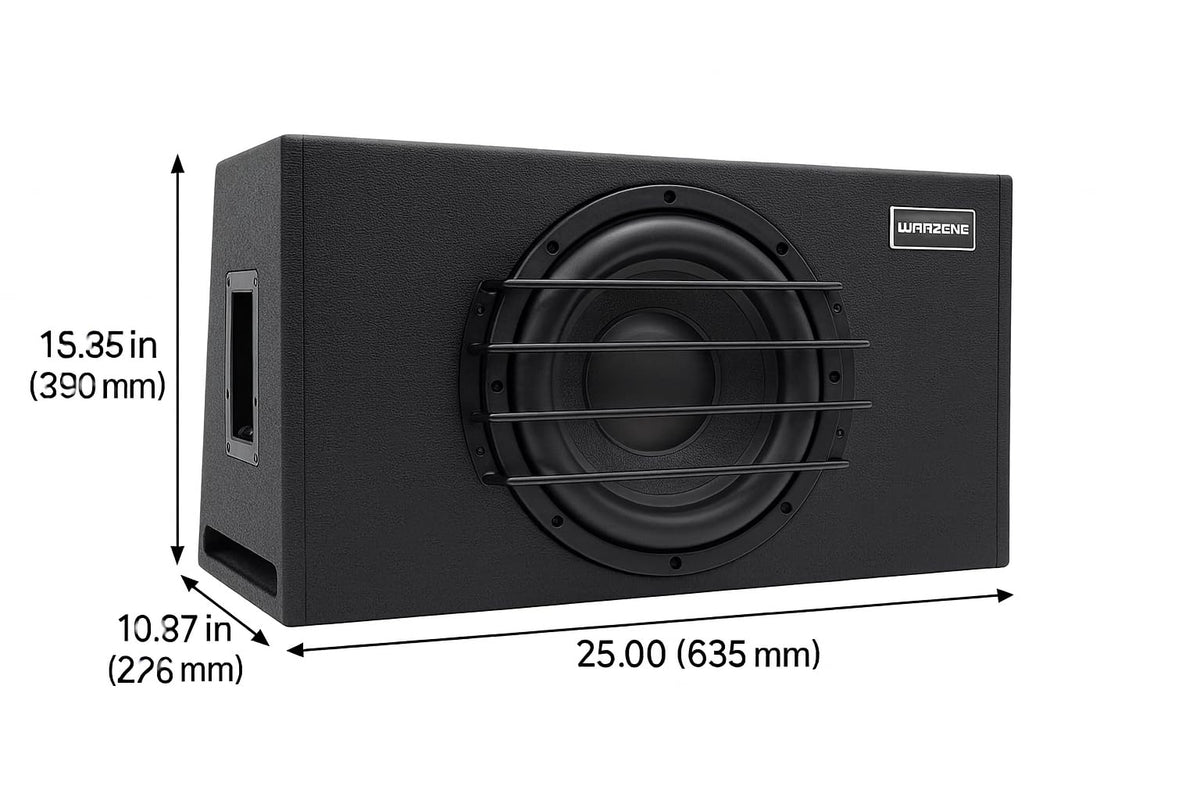

The WZ12SUB uses a wooden vented enclosure and integrates its amplifier into the complete powered-subwoofer assembly. The cabinet measures 25.00 × 10.87 × 15.35 inches and weighs 44.53 pounds. Its enclosed format keeps the subwoofer, amplifier, and cabinet together in one product.

Install the enclosure in a secure location with sufficient clearance for its cabinet dimensions and connections. Use the appropriate input method for the vehicle system: high-level or low-level signal input, along with the supported automatic turn-on method where applicable. After installation, set the crossover, phase, bass boost, and remote level control to complement the vehicle's existing speakers.
