Rockford Fosgate X317-STG6 Can-Am X3 Stage 6 Audio Kit

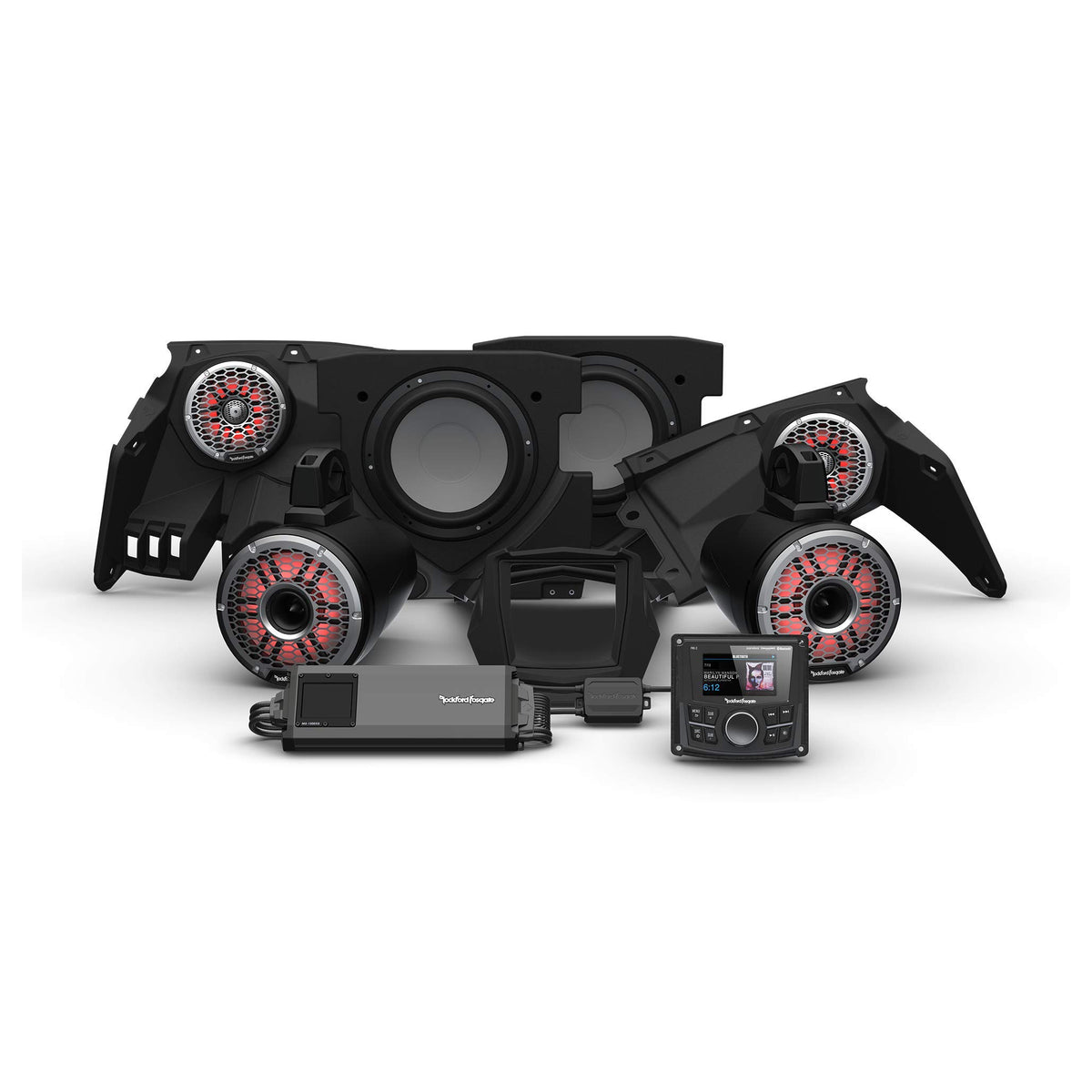

The Rockford Fosgate X317-STG6 is a vehicle-specific Stage 6 audio system for select 2017–2021 Can-Am Maverick X3 models. It combines a compact digital media receiver, front speakers, rear horn-loaded tower speakers, two under-seat subwoofer enclosures, an RGB lighting controller, and a five-channel amplifier. The package is designed to provide a complete upgrade path without assembling a system from unrelated components.

This kit is intended for Maverick X3 owners who want stronger music output and deeper bass than a basic receiver-and-speaker setup can deliver. The front 6.5-inch M2 speakers handle cabin-focused full-range sound, while the rear 8-inch horn speakers are positioned for broader projection in an open UTV environment. Two 10-inch sealed under-seat enclosures add low-frequency output while retaining the vehicle-specific layout.

The included PMX-3 digital media receiver provides AM/FM/weather-band listening plus Bluetooth, USB, and AUX playback. Its 2.7-inch color TFT display, rear/subwoofer RCA output configuration, and wired-remote compatibility support a dedicated powersports audio system. SiriusXM readiness and a composite-camera input allow compatible accessories to be added separately.

Power is supplied by the included M5-1500X5 Element Ready five-channel amplifier. Its four full-range channels and dedicated mono subwoofer channel allow the system to drive the front and rear speakers while supporting the pair of loaded 10-inch enclosures. Adjustable crossover controls, Punch EQ, C.L.E.A.N. gain setup indicators, and a Stage-kit preset mode support system tuning and installation.

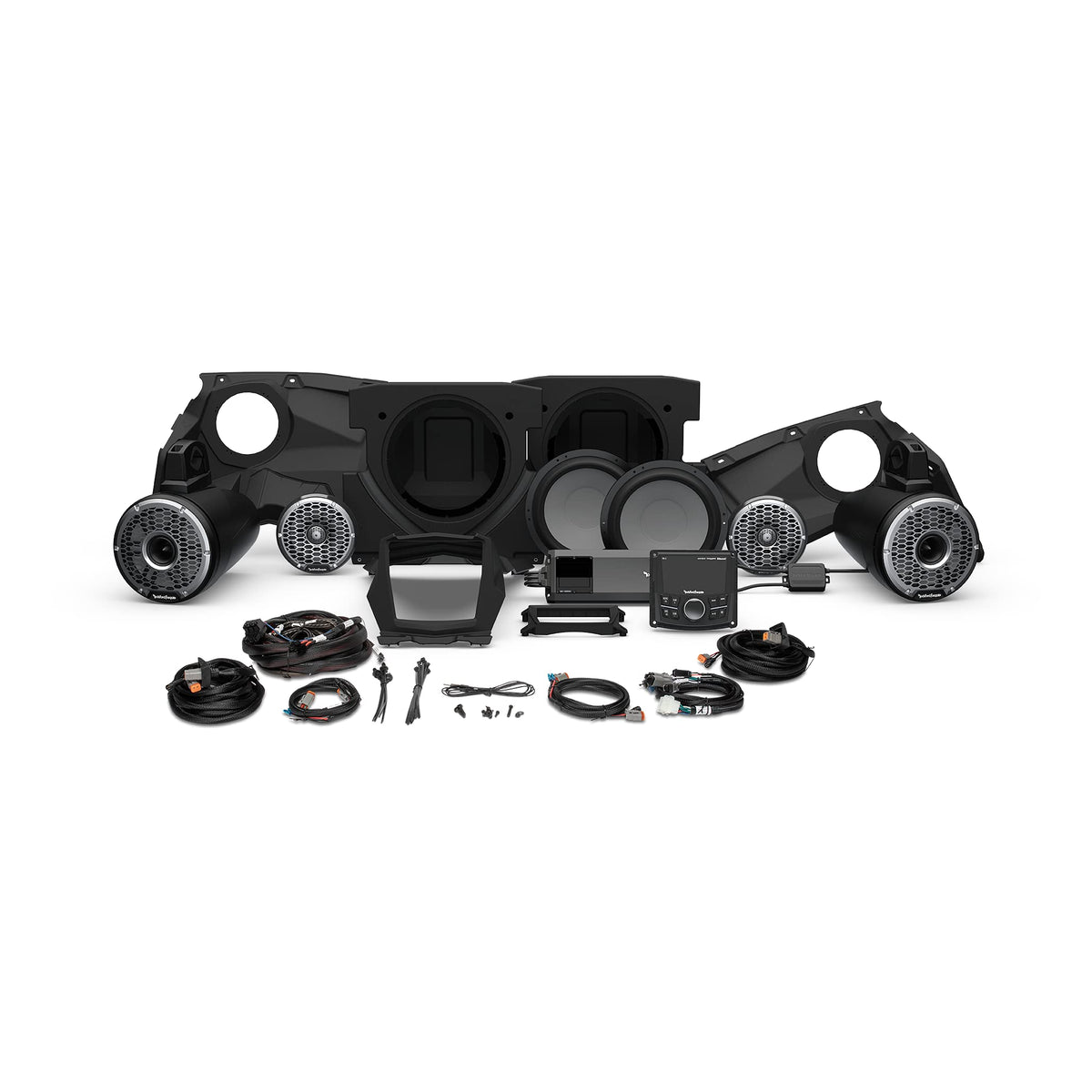

Vehicle-specific components include the X317-DK dash kit, X317-FSE front speaker enclosures, X317-K4 amplifier wiring kit, rear speaker harnesses, and two X317-M2FWE loaded subwoofer enclosures. The speaker enclosures and subwoofer boxes use direct-fit mounting provisions intended for select Maverick X3 models. Color Optix lighting for the included M2 front and rear speakers is managed by the included PMX-RGB controller.

Key Features

• Complete Stage 6 System: Includes receiver, amplifier, speakers, subwoofers, enclosures, wiring, and lighting control.
• PMX-3 Digital Media Receiver: Adds Bluetooth, USB, AUX, AM/FM, and weather-band playback.
• M2 Color Optix Speakers: Combines 6.5-inch front speakers with 8-inch rear horn-loaded speakers.
• Dual 10-Inch Bass System: Two sealed under-seat enclosures provide dedicated low-frequency output.
• M5-1500X5 Amplifier: Five channels power full-range speakers and the subwoofer system.
• Vehicle-Specific Hardware: Dash, speaker, amplifier, and subwoofer components are tailored for select X3 models.

Design & Installation

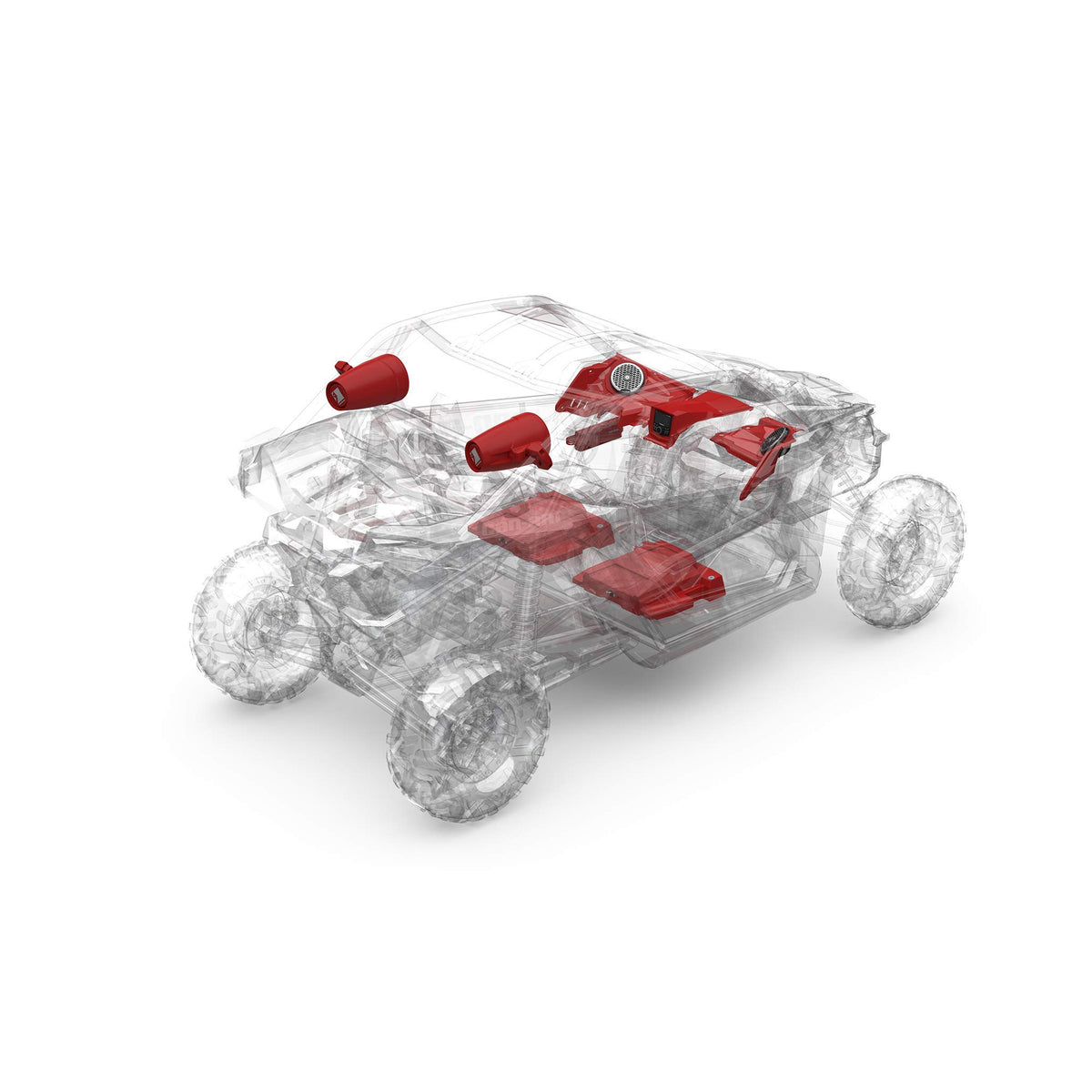

The X317-STG6 uses Element Ready components intended for demanding powersports environments. The M5 amplifier carries an IPX6 water-intrusion rating, while the M2 speakers use Color Optix LED illumination and marine-oriented construction. The front panels, dash housing, and under-seat enclosures are shaped for the Maverick X3 interior and mounting locations.

Verify exact Maverick X3 trim and model-year compatibility before ordering. Installation uses the included dash kit, front speaker enclosures, amplifier wiring kit, rear speaker harnesses, and loaded subwoofer enclosures; the two subwoofer enclosures mount beneath the front driver and passenger seats. For proper power delivery, wiring, fuse protection, and tuning, follow the Rockford Fosgate installation instructions or use a qualified powersports audio installer.
