Rockford Fosgate X317-STG5 Can-Am X3 Stage 5 Audio Kit

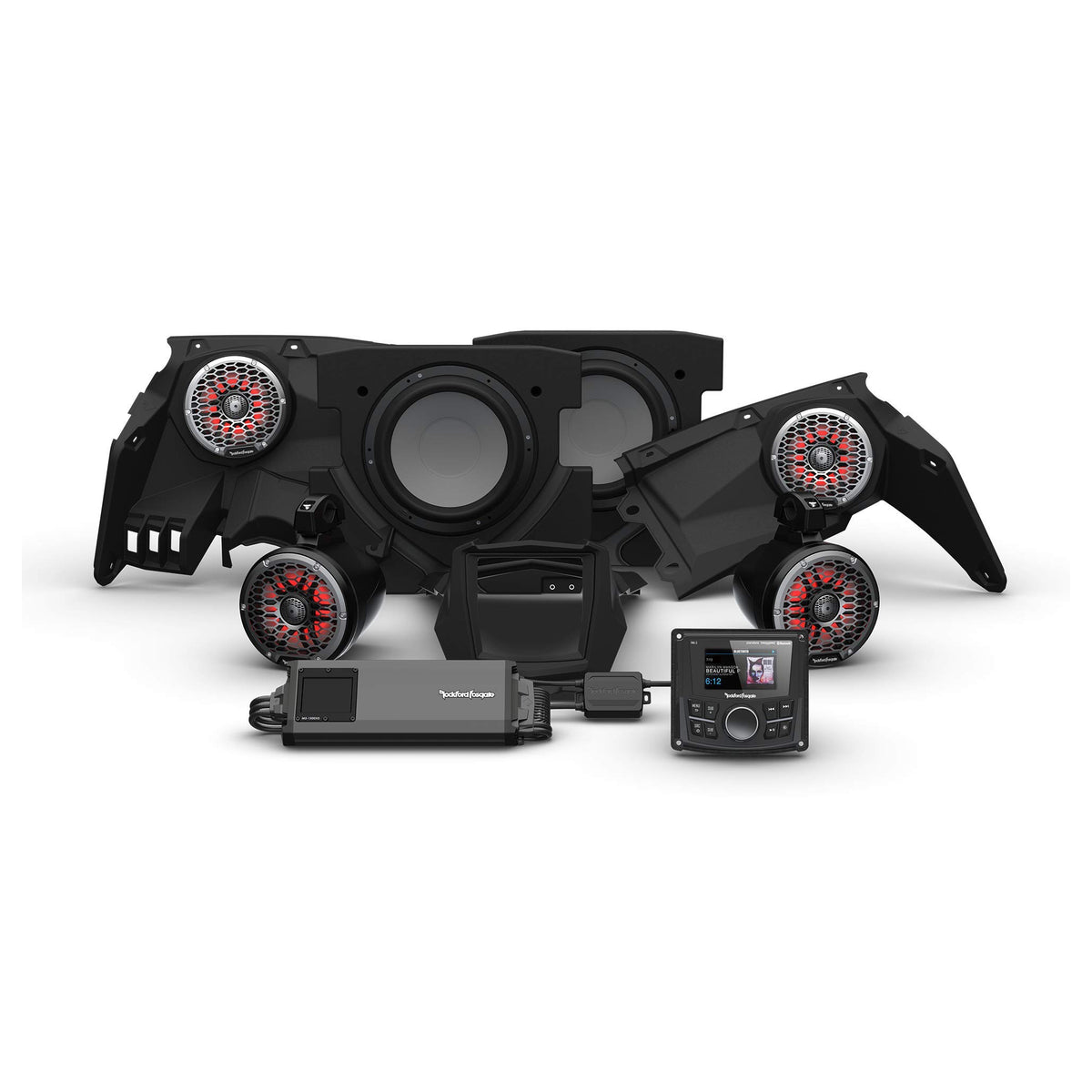

The Rockford Fosgate X317-STG5 is a vehicle-specific Stage 5 audio system for select Can-Am Maverick X3 models. It combines a compact digital media receiver, four full-range speakers, two under-seat 10-inch subwoofer enclosures, a five-channel amplifier, lighting control, and installation hardware. The package is intended for owners who want a coordinated upgrade rather than sourcing individual audio components.

The PMX-3 receiver provides AM/FM/weather-band tuning along with Bluetooth audio streaming, rear AUX, rear USB, and Pandora control. Its 2.7-inch color TFT display mounts through the included X317-DK dash kit for an integrated dash appearance. The receiver also provides a backup-camera input and SiriusXM readiness when compatible optional equipment is added.

For full-range sound, the system uses M2-65B 6.5-inch front speakers in X317-FSE front speaker panels and M2WL-65MB 6.5-inch rear Moto-Can speakers. Both speaker types use coaxial designs with RGB Color Optix illumination. The front panels use Smart-Lok mounting, while the rear speaker pods are designed for roll-cage mounting.

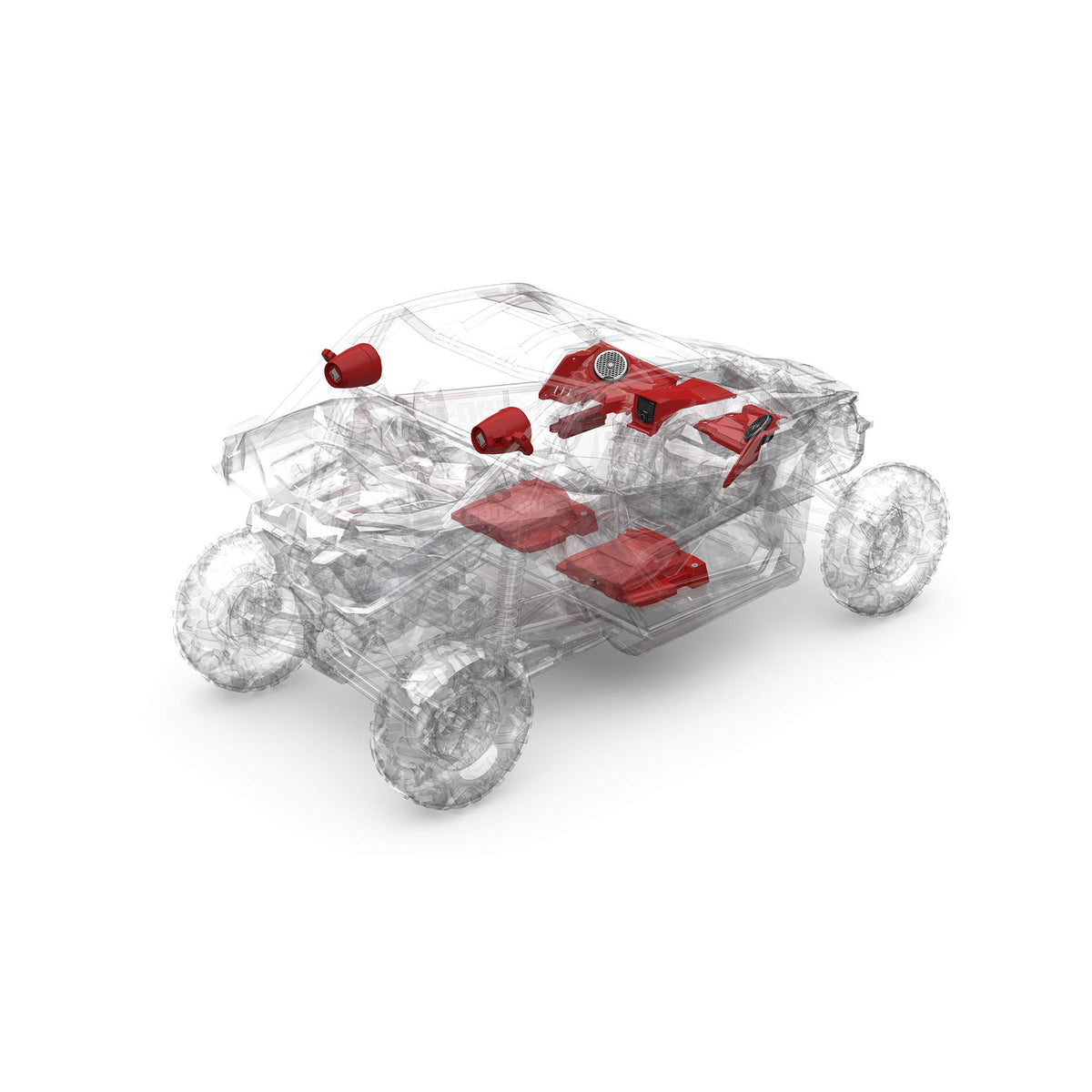

Low-frequency output comes from two X317-M2FWE sealed, down-firing enclosures, each loaded with a 10-inch M2-series subwoofer. One enclosure mounts beneath the front driver seat and the other beneath the front passenger seat, preserving the cockpit layout while adding dedicated bass reinforcement. The M5-1500X5 amplifier supplies the system's full-range and subwoofer channels from one Element Ready amplifier chassis.

The included PMX-RGB controller manages compatible Color Optix lighting through the RF Connect app. This makes the kit a practical foundation for a matched Maverick X3 audio and lighting installation, with purpose-built mounting components and harnessing included. Verify the exact Maverick X3 year, trim, seating configuration, and factory equipment before purchase.

Key Features

• Vehicle-Specific Stage 5 Kit: Combines source unit, speakers, amplifier, subwoofers, wiring, and mounting parts.
• PMX-3 Digital Media Receiver: Adds Bluetooth, AM/FM/WB tuning, USB, AUX, and camera-input capability.
• Four 6.5-Inch M2 Speakers: Supplies front and rear full-range sound with Color Optix RGB lighting.
• Dual 10-Inch Under-Seat Subwoofers: Adds bass through two sealed, down-firing X317-M2FWE enclosures.
• M5-1500X5 Five-Channel Amplifier: Powers four speaker channels plus a dedicated subwoofer channel.
• PMX-RGB Lighting Controller: Enables compatible Color Optix lighting control through the RF Connect app.

Design & Installation

The kit uses Element Ready audio components intended for powersports environments. The M2 speakers use mineral-filled polypropylene cones, UV-resistant surrounds, corrosion-resistant connection hardware, and sealed crossover arrangements. The M5-1500X5 amplifier is IPX6 rated, while the M2WL-65MB rear speaker pods use UV-stable ASA enclosures and stainless-steel mounting hardware.

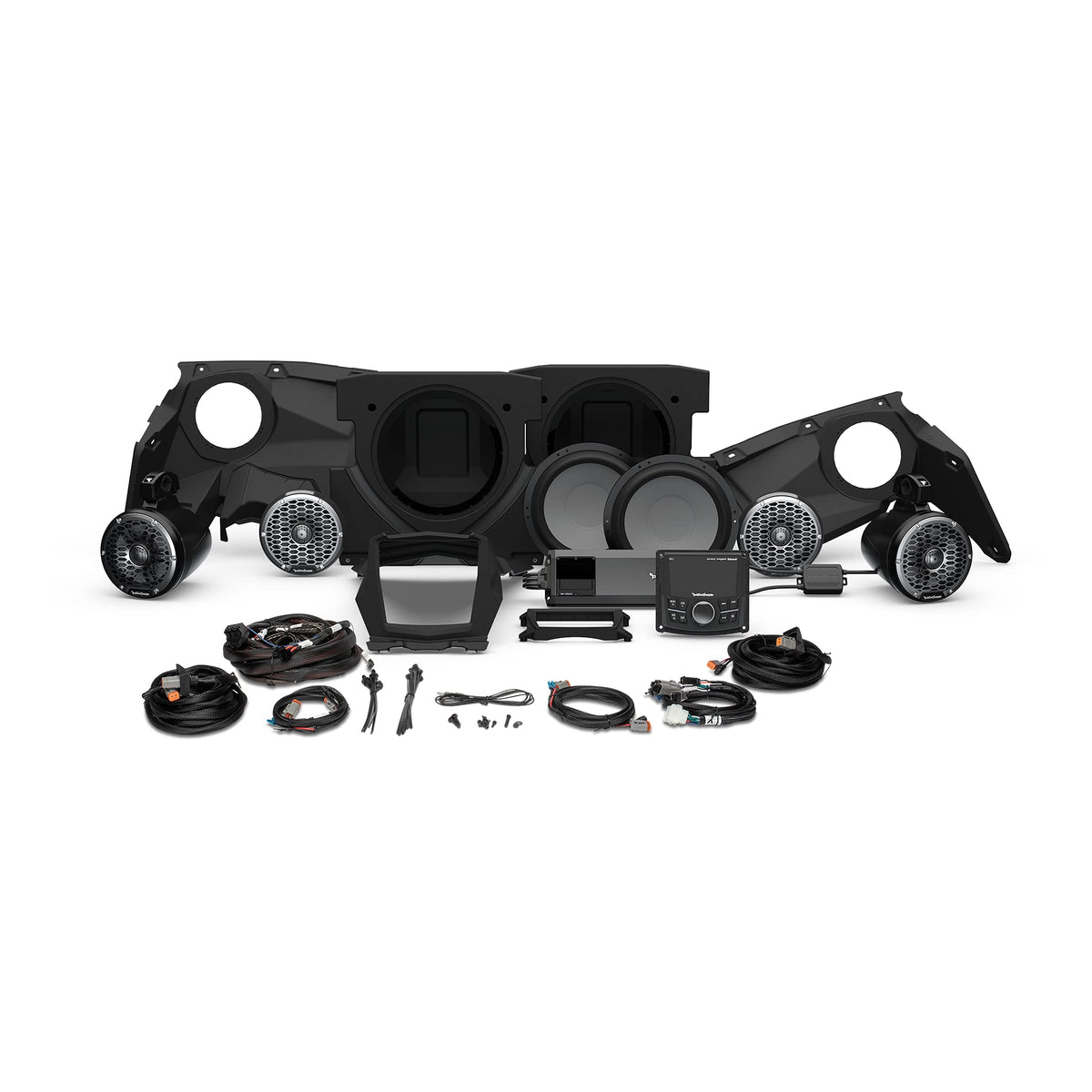

Installation is designed around select Can-Am Maverick X3 platforms and uses the X317-DK dash kit, X317-FSE front speaker panels, X317-K4 amplifier installation kit, wiring harnesses, and vehicle-specific subwoofer enclosures. Mount the two X317-M2FWE enclosures beneath the front seats as directed, route power wiring with proper battery protection, and confirm seat travel and trim-specific fitment before final assembly. Professional installation is advisable when working with high-current power wiring, vehicle panels, and accessory lighting connections.
