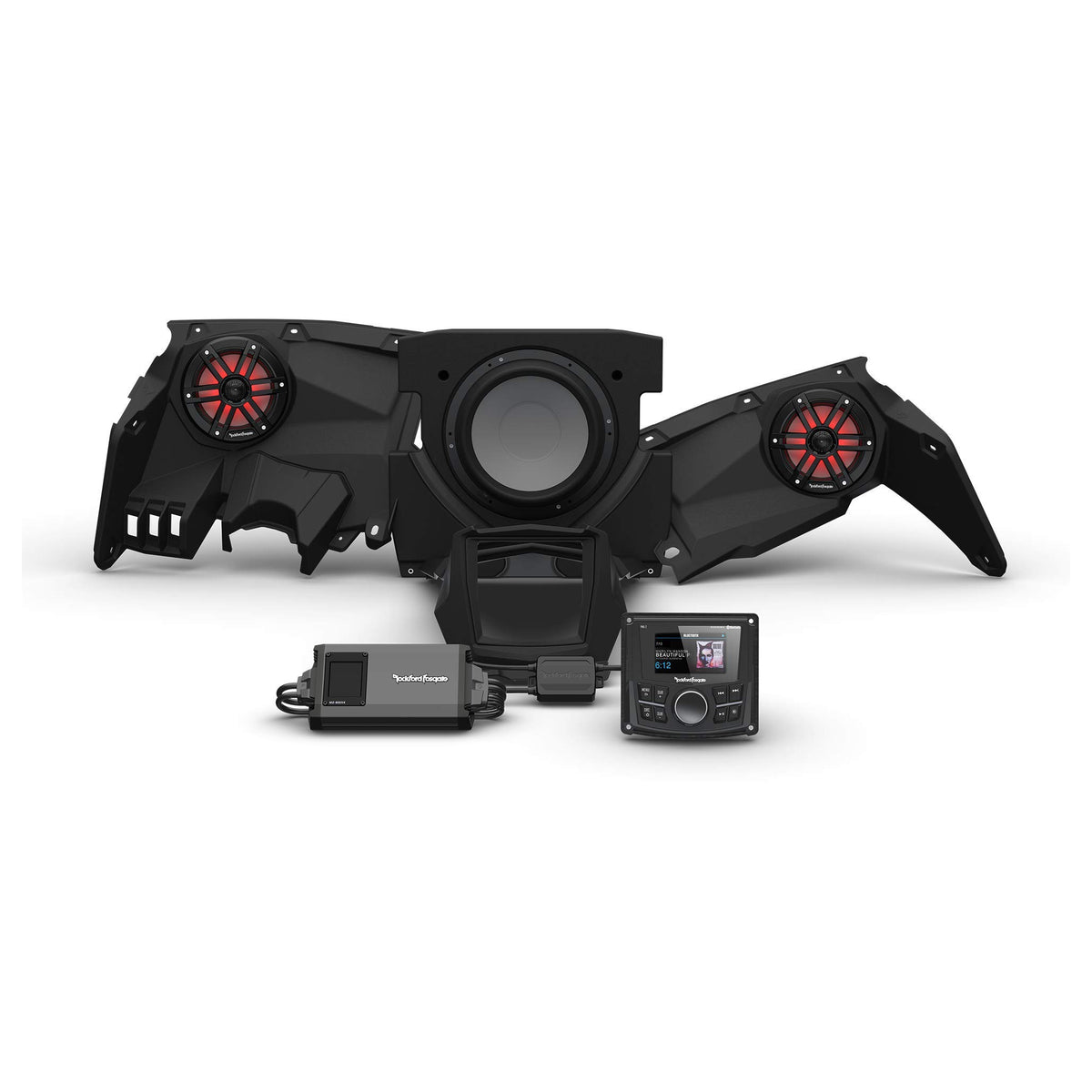

Rockford Fosgate X317-STG3 6.5"/10" Maverick X3 Audio Kit

The Rockford Fosgate X317-STG3 is a vehicle-specific Stage 3 audio kit for select Can-Am Maverick X3 models. It combines a dash-integrated digital media receiver, front speaker panels, an external amplifier, and an under-seat subwoofer enclosure in one matched package. The system is intended for riders who want a complete audio upgrade without selecting separate major components.

Its PMX-2 digital media receiver supplies AM, FM, and weather-band radio alongside Bluetooth audio streaming, USB, and auxiliary inputs. The compact 2.7-inch color display is installed through the included X317-DK dash kit for an integrated appearance. Built-in tuning features, including a 7-band graphic EQ and adjustable crossovers, help tailor playback for an open-cab powersports environment.

Front sound is handled by a pair of M1-65B 6.5-inch two-way Color Optix speakers mounted in X317-FSE Smart-Lok front speaker panels. These 4-ohm speakers use mineral-filled polypropylene cones, Santoprene surrounds, integrated 1-inch LCP balanced-dome tweeters, and sealed crossover networks. Their Color Optix RGB illumination is managed by the included PMX-RGB controller.

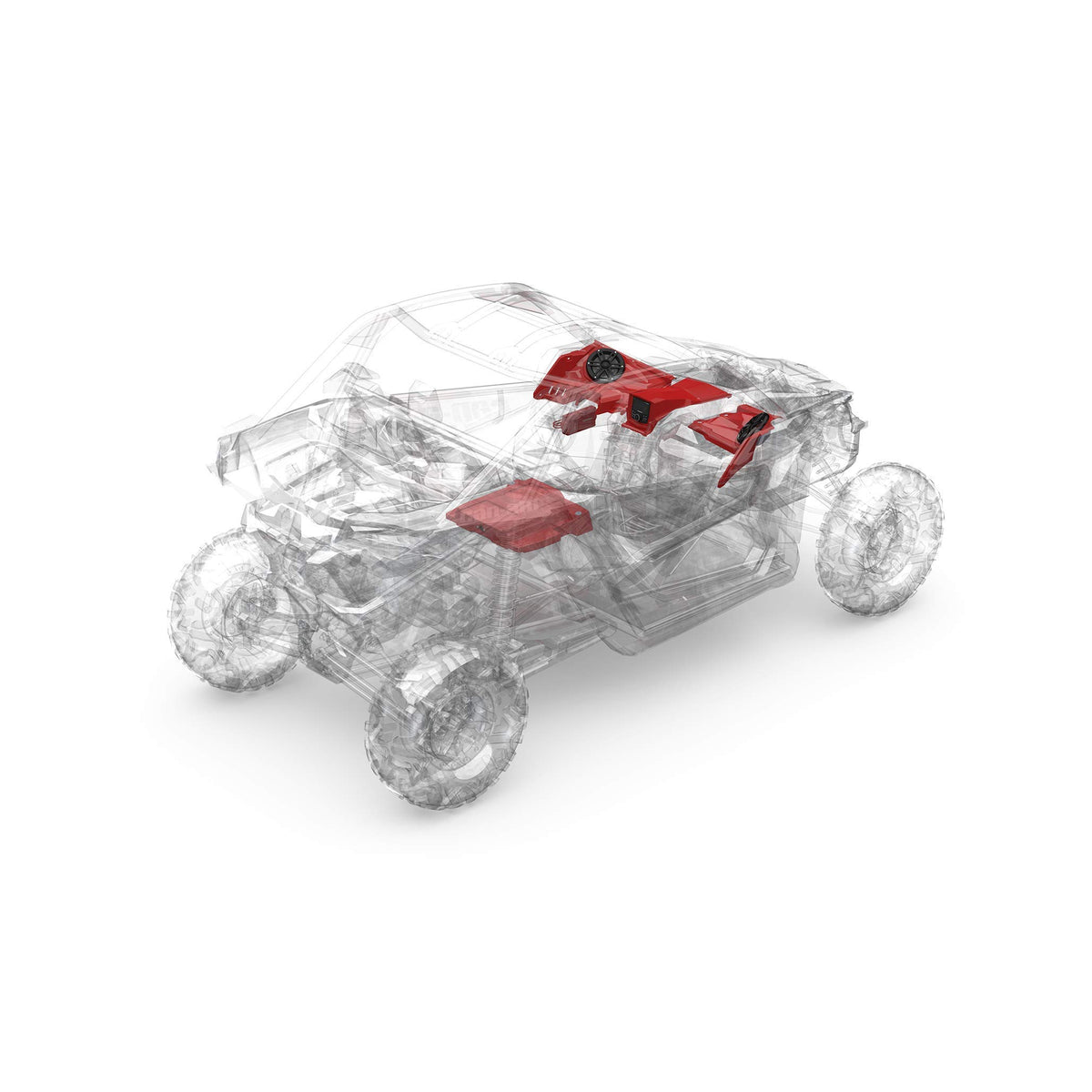

For low-frequency support, the kit includes the X317-M1FWE sealed under-seat enclosure with a preloaded 10-inch Element Ready subwoofer. Its suspended, down-firing design fits below the front driver or passenger seat while allowing seat adjustment travel. The enclosure is molded and textured to complement the Maverick X3 interior and uses OEM mounting locations.

Amplification comes from the M5-800X4 four-channel Element Ready amplifier and the included X317-K8 8-gauge installation kit. The amplifier's PRESET function is designed for Rockford Fosgate UTV audio packages, reducing setup work when the supplied system components are used together. This kit is a front-stage-and-subwoofer foundation; compatible rear speaker additions can be considered separately where vehicle fitment permits.

Key Features

• Vehicle-Specific Stage 3 Kit: Combines source unit, speakers, amplifier, subwoofer enclosure, wiring, and mounting parts.
• PMX-2 Digital Media Receiver: Provides Bluetooth, AM/FM/weather-band radio, USB, and auxiliary playback options.
• Color Optix Front Speakers: Includes two illuminated 6.5-inch M1-65B two-way speakers in front panels.
• Under-Seat 10-Inch Bass: Sealed X317-M1FWE enclosure adds concealed down-firing low-frequency output.
• M5-800X4 Amplification: Four-channel Class-AD amplifier provides matched power and adjustable crossovers.
• RF Connect Lighting Control: PMX-RGB controller manages compatible Color Optix RGB speaker lighting.

Design & Installation

The X317-STG3 uses Element Ready components intended for outdoor powersports use. The amplifier has sealed harness connections and an extruded-aluminum heat sink, while the M1-65B speakers use UV- and salt-fog-resistant Santoprene surrounds. The subwoofer enclosure uses a lightweight, seamless roto-molded construction with texture and color matched to the vehicle interior.

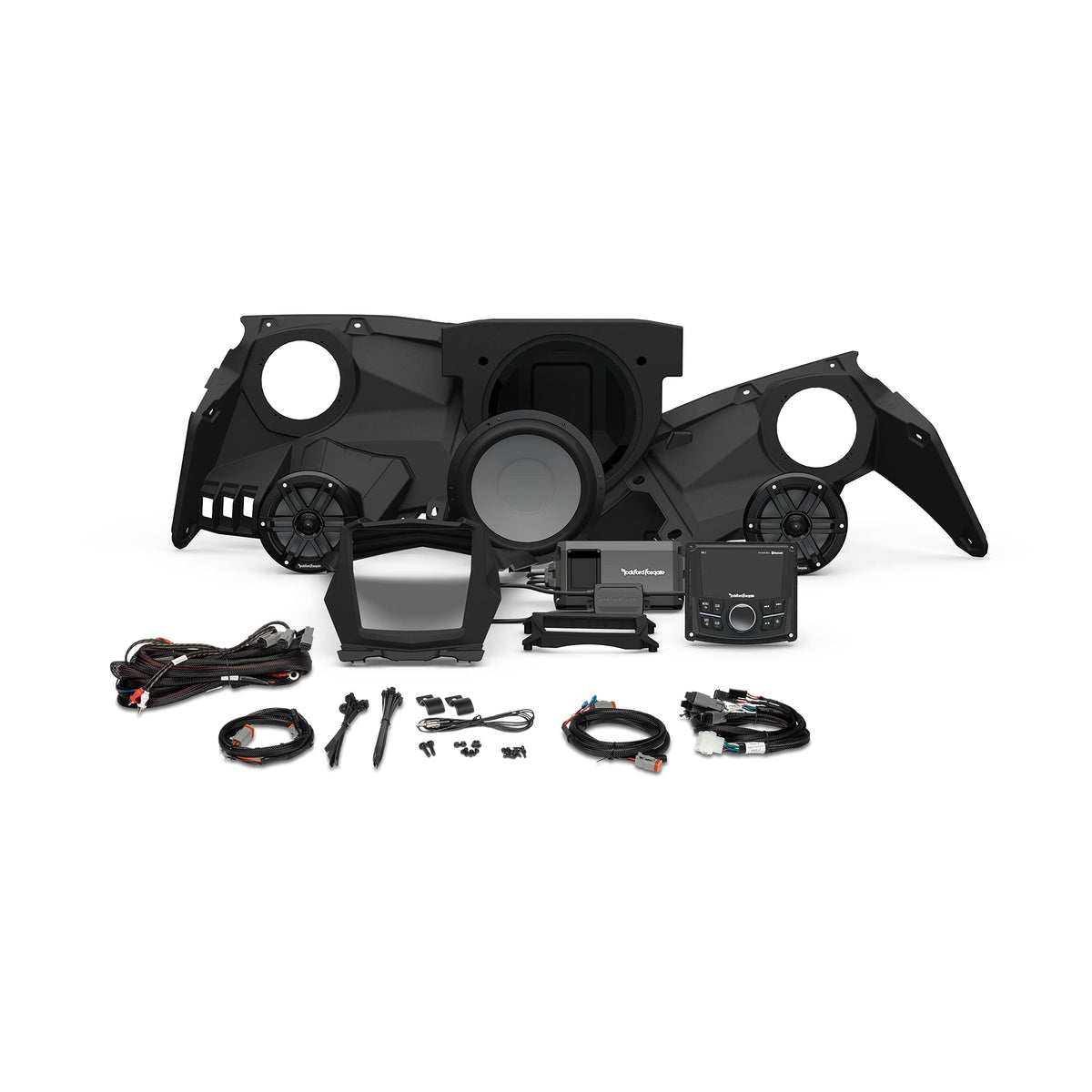

Confirm exact Maverick X3 year, trim, and factory configuration before ordering, as fitment is model-specific. The package includes the X317-DK dash kit, X317-FSE front speaker panels, X317-K8 amp installation kit, PMX-RGB controller, and associated core audio components. Install the enclosure at the approved under-seat position, follow supplied harness routing and fuse guidance, and use the amplifier PRESET setting when installing this matched Rockford Fosgate package.
