Rockford Fosgate X317-STG1 Can-Am X3 6.5" Audio Kit

The Rockford Fosgate X317-STG1 is a vehicle-specific Stage 1 audio package for select Can-Am Maverick X3 models. It combines a compact PMX-1 digital media receiver with a pair of 6.5-inch M0-65B marine-grade speakers and dedicated front speaker panels. The package is intended to add a properly integrated music system to an X3 without selecting individual audio components separately.

The PMX-1 receiver provides Bluetooth music streaming, USB playback and charging, a rear RCA auxiliary input, plus AM, FM, and weather-band radio reception. Its built-in four-channel amplifier is rated at 25 watts RMS per channel at 4 ohms, providing direct power for the included front speakers. Front and rear/sub RCA outputs also allow the system to be expanded with external amplification.

The included M0-65B speakers use a 2-way design with grille-integrated balanced-dome tweeters. Their mineral-filled polypropylene cones, Santoprene surrounds, sealed motors, and marine-grade connection terminals are designed for exposed outdoor and off-road environments. The speakers are rated for 65 watts RMS each and cover a 40 Hz to 25 kHz frequency range.

For sound adjustment, the PMX-1 includes a 7-band graphic equalizer, parametric EQ functions, source-gain adjustment, selectable crossover settings, and independent subwoofer-level control. These tools help balance the system for different music sources and provide a foundation for adding amplified speakers or a subwoofer later. The receiver also includes a voltage gauge with a low-voltage warning.

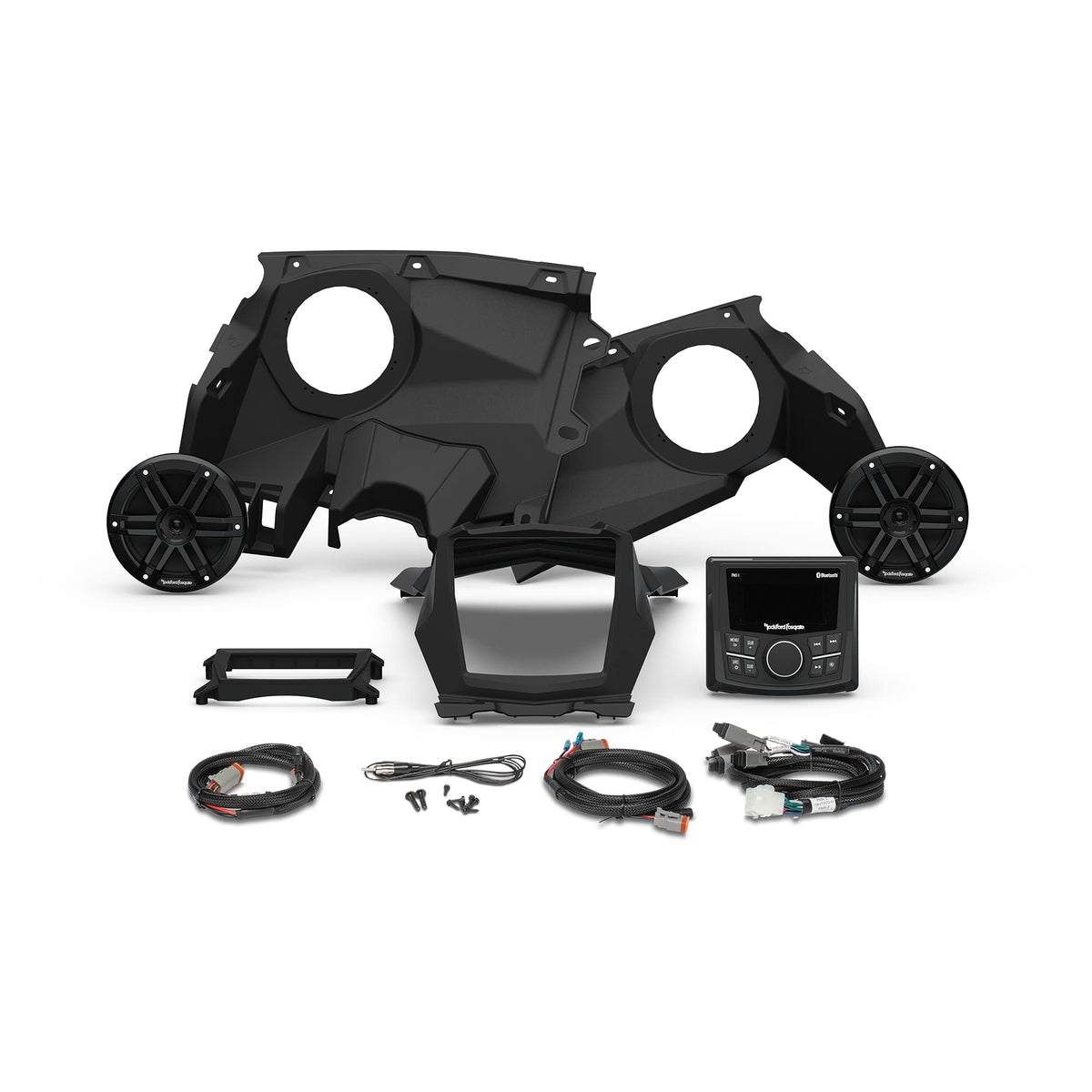

The X317-STG1 package includes the dash integration components, front speaker panels, wiring harnesses, antenna, and mounting hardware specified for the kit. The X317-FSE front speaker panels use Smart-Lok mounting and hold the included speakers in the front locations. Verify the vehicle's exact Maverick X3 model and year against the applicable compatibility chart before ordering or installation.

Key Features

• Vehicle-Specific Stage 1 Kit: Combines a receiver, speakers, enclosures, wiring, and mounting parts for select Maverick X3 applications.
• PMX-1 Digital Media Receiver: Plays Bluetooth, USB, auxiliary, AM, FM, and weather-band sources without a CD mechanism.
• Built-In Four-Channel Amplifier: Supplies 25 watts RMS per channel at 4 ohms for direct speaker operation.
• M0-65B 6.5-Inch Speakers: Two-way marine-grade speakers provide dedicated front-channel playback in the included panels.
• Element-Ready Construction: Receiver and speakers use weather-conscious materials and protection suited to off-road exposure.
• System Expansion Controls: RCA outputs, EQ, crossovers, and subwoofer-level control support later amplifier and subwoofer additions.

Design & Installation

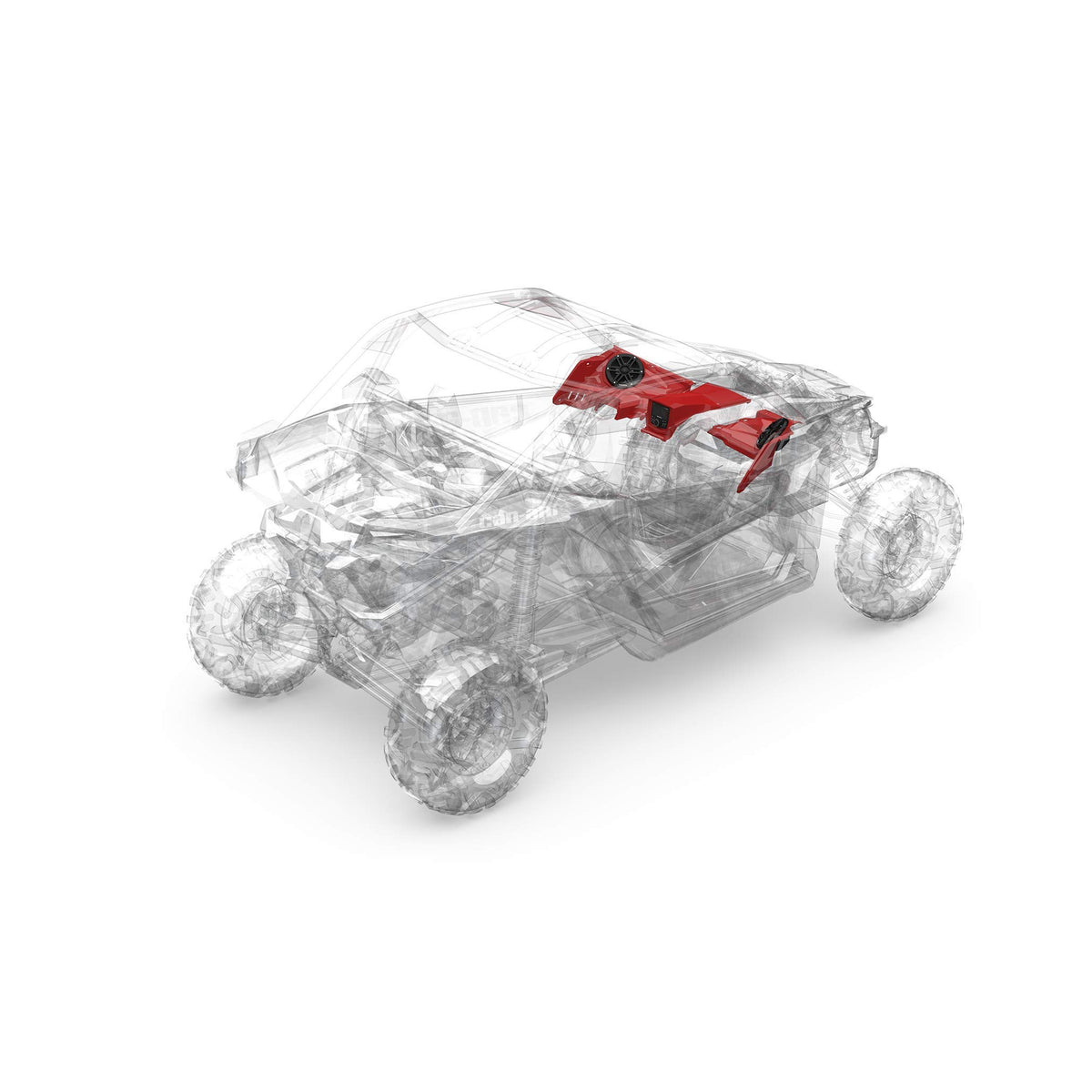

The PMX-1 uses a wet-bonded 2.3-inch full-dot-matrix LCD behind 9H tempered glass, with an IPX6-rated marine-grade front panel. The M0-65B speakers use UV-stable ASA frames and grilles, UV- and salt-fog-resistant Santoprene surrounds, sealed motor assemblies, and zinc-nickel-plated marine-grade brass terminals. The included X317-FSE panels provide a dedicated mounting location for the front speakers.

Install the receiver with the supplied X317 dash components and connect the supplied speaker harnesses to the front panels and PMX-1. The kit includes a passive antenna, receiver wiring harness, speaker wiring, mounting hardware, and wire ties; disconnect the vehicle battery before installation. Confirm fitment for the exact Maverick X3 configuration and follow the included instructions, especially when routing wiring away from moving parts, sharp edges, and heat sources.
