Rockford Fosgate RNGR18-STG5 6.5"/10" Ranger Audio Kit

The Rockford Fosgate RNGR18-STG5 is a complete Stage 5 audio upgrade designed for select 2018-2022 Polaris Ranger XP 1000 full-size three-seat and Crew six-seat models. It brings together a dash-integrated digital media receiver, amplified front speakers, a loaded under-seat subwoofer enclosure, RGB lighting control, and vehicle-specific installation hardware. The system is intended for Ranger owners who want a factory-matched installation with substantially expanded music playback and bass capability.

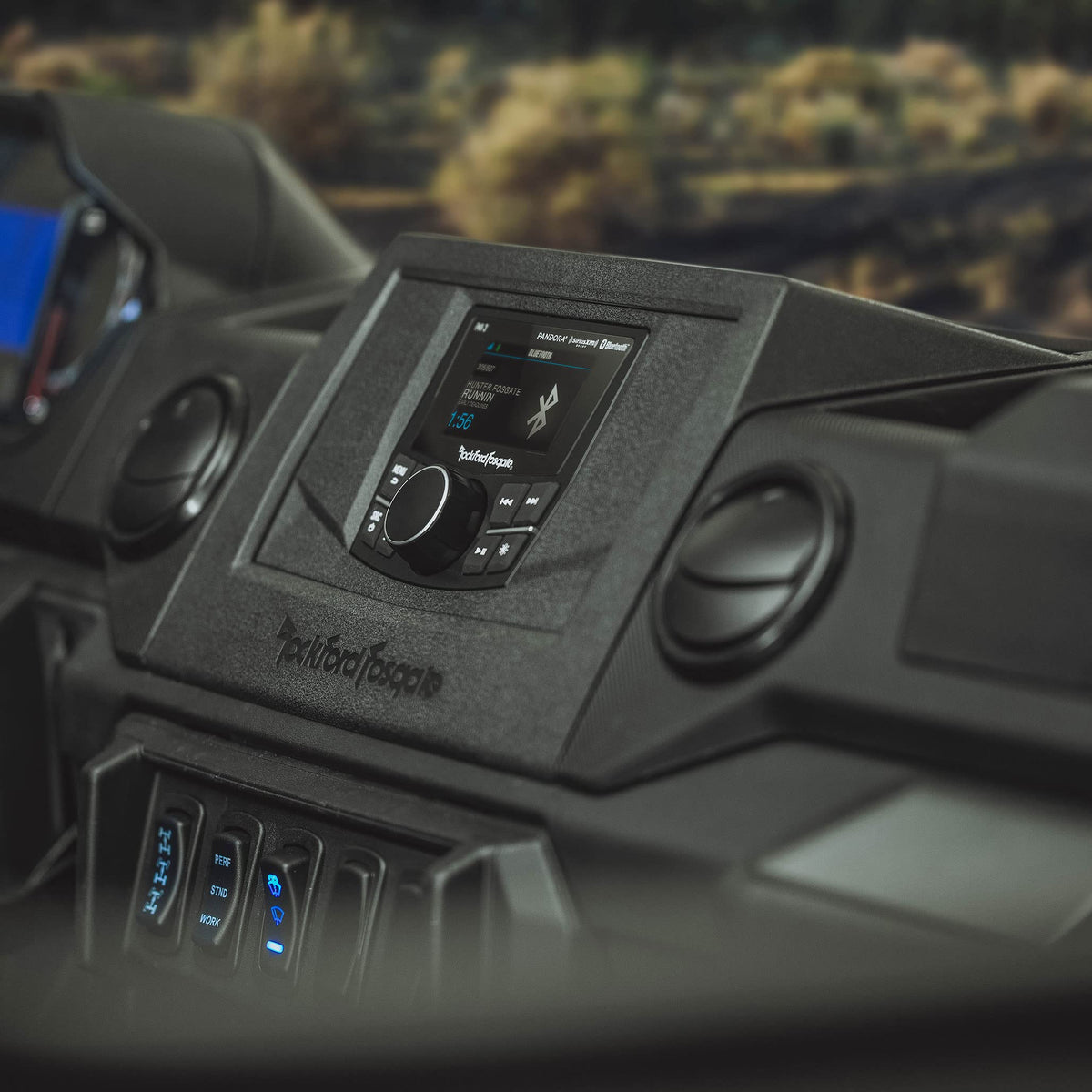

At the center of the system is the PMX-3 compact digital media receiver, integrated through the included RNGR18-DK dash kit. It provides AM/FM/weather-band reception, Bluetooth audio streaming, USB, auxiliary input, SiriusXM readiness, and a backup-camera input. Its 2.7-inch color TFT display and physical rotary control are practical for use in an off-road cabin.

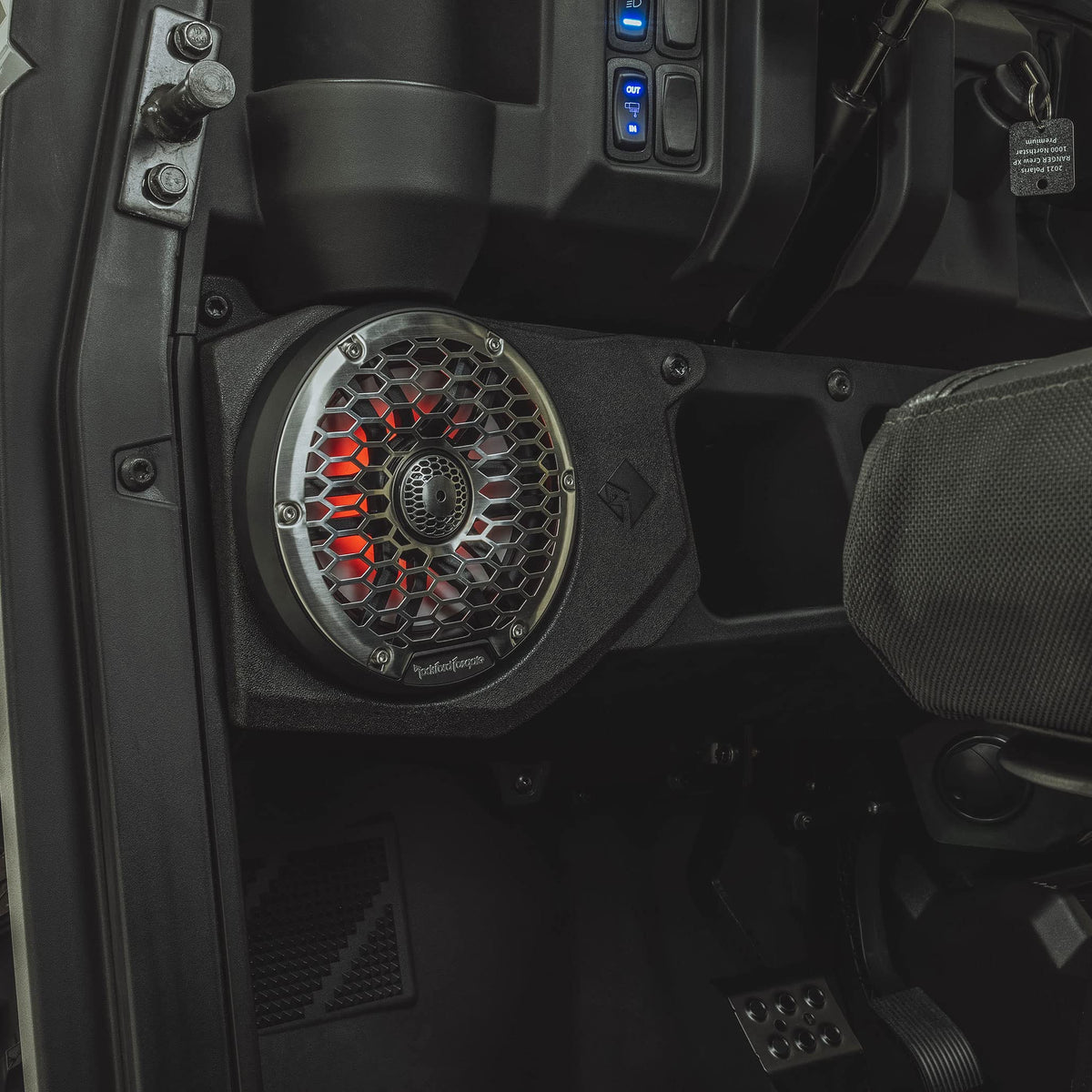

Front sound comes from a pair of M2-65B 6.5-inch two-way Color Optix speakers installed in RNGR18-FSE lower speaker enclosures. Each speaker is rated for 150 watts RMS and uses an integrated 1-inch tweeter for full-range reproduction. The included PMX-RGB controller supports multicolor illumination for the system's Color Optix lighting components.

Low-frequency output is handled by the M2D4-10IB 10-inch dual-voice-coil Color Optix subwoofer in the RNGR18-FWE front under-seat ported enclosure. The subwoofer is powered by the M5-1500X5 five-channel amplifier, whose front channels power the speakers and whose subwoofer channel handles bass duty. This arrangement provides a purpose-matched signal, amplification, speaker, and enclosure package rather than requiring the buyer to select those major components separately.

The RNGR18-STG5 is built around Rockford Fosgate's Ranger-specific mounting, wiring, and trim parts. Its enclosure components are designed to use OEM mounting locations with minimal drilling where required, while the amplifier installation kit organizes the electrical and audio connections. It is a focused upgrade path for compatible full-size Rangers and should be matched to the specific vehicle year, seating configuration, and factory equipment before purchase.

Key Features

• Ranger-Specific Stage 5 Kit: Combines audio components and vehicle-fit installation parts for select full-size Ranger models.
• PMX-3 Digital Media Receiver: Adds Bluetooth, AM/FM/weather-band radio, USB, auxiliary input, and camera readiness.
• M2-65B 6.5-Inch Speakers: Delivers amplified full-range sound from dedicated front lower enclosures.
• M2D4-10IB 10-Inch Subwoofer: Adds dedicated low-frequency output from a direct-fit under-seat ported enclosure.
• M5-1500X5 Amplifier: Provides five channels for front speakers and the included subwoofer.
• Color Optix Lighting Control: PMX-RGB controller enables multicolor lighting adjustment for compatible included components.

Design & Installation

The kit uses molded, texture- and color-matched Ranger-specific trim pieces and enclosures to support an integrated appearance. The M5 amplifier has an IPX6-rated Element Ready design, while the front speaker enclosures use injection-molded Centrex plastic with UV inhibitors. The Color Optix speakers and subwoofer incorporate RGB illumination and materials intended for harsh powersports environments.

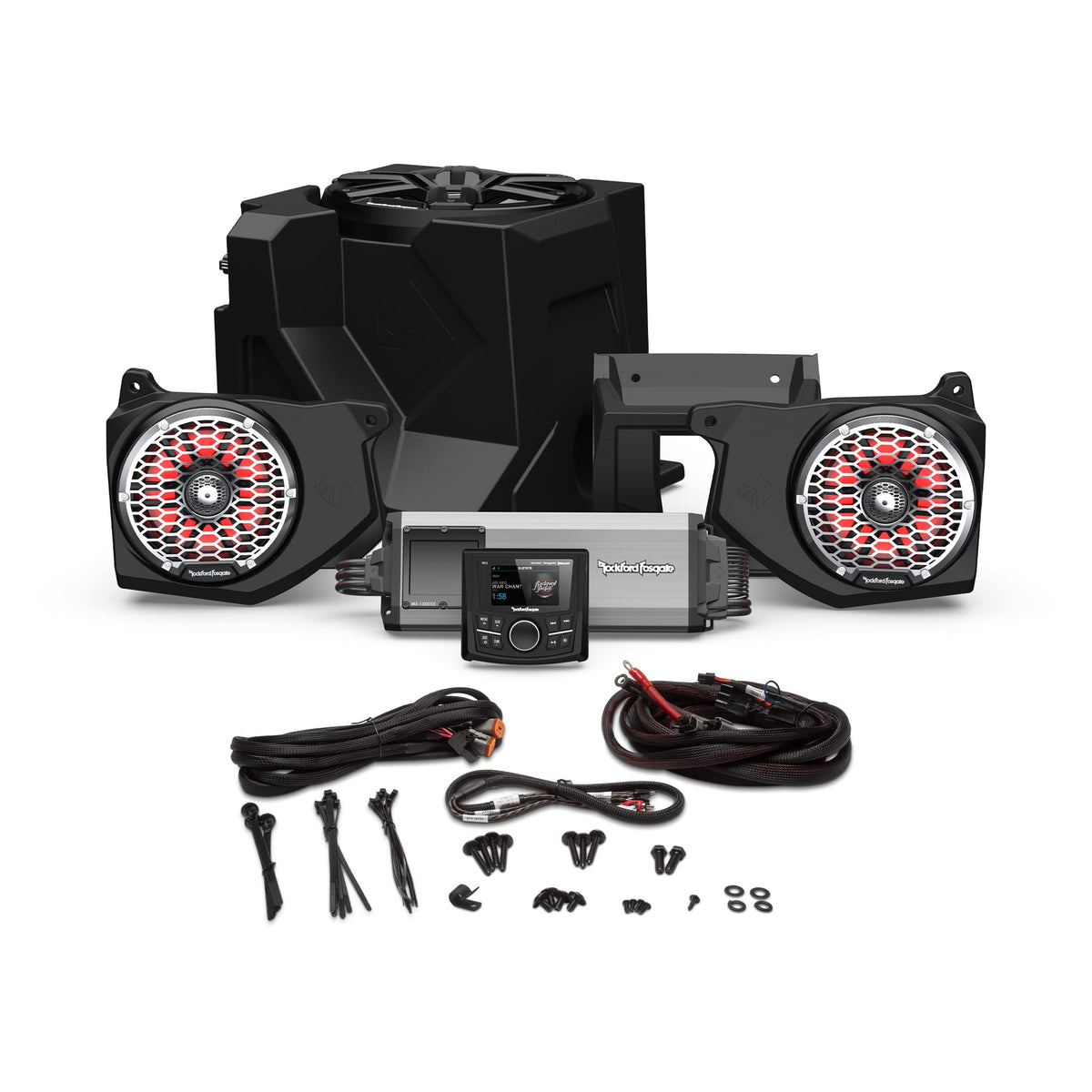

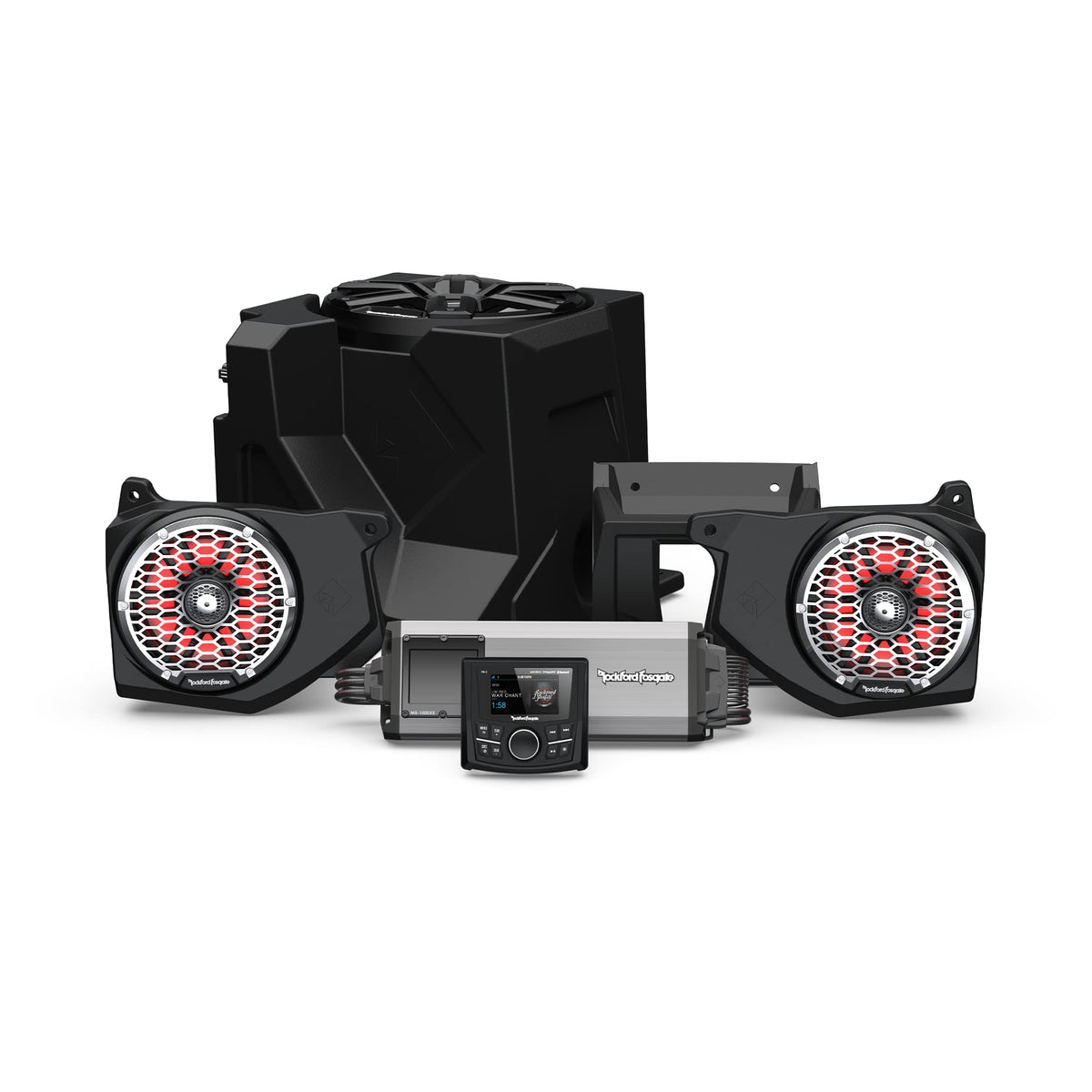

Confirm fitment for a 2018-2022 Polaris Ranger XP 1000 full-size three-seat or Crew six-seat model before ordering. The system includes the PMX-3 receiver, dash kit, front speaker enclosures, front under-seat subwoofer enclosure, amplifier installation kit, PMX-RGB controller, speakers, subwoofer, and amplifier. Follow the applicable Rockford Fosgate vehicle instructions for mounting, power wiring, signal connections, amplifier setup, and lighting connections; a SiriusXM tuner and backup camera are not listed as included.
