Rockford Fosgate RNGR-STAGE3 Ranger 6.5"/10" Audio Kit

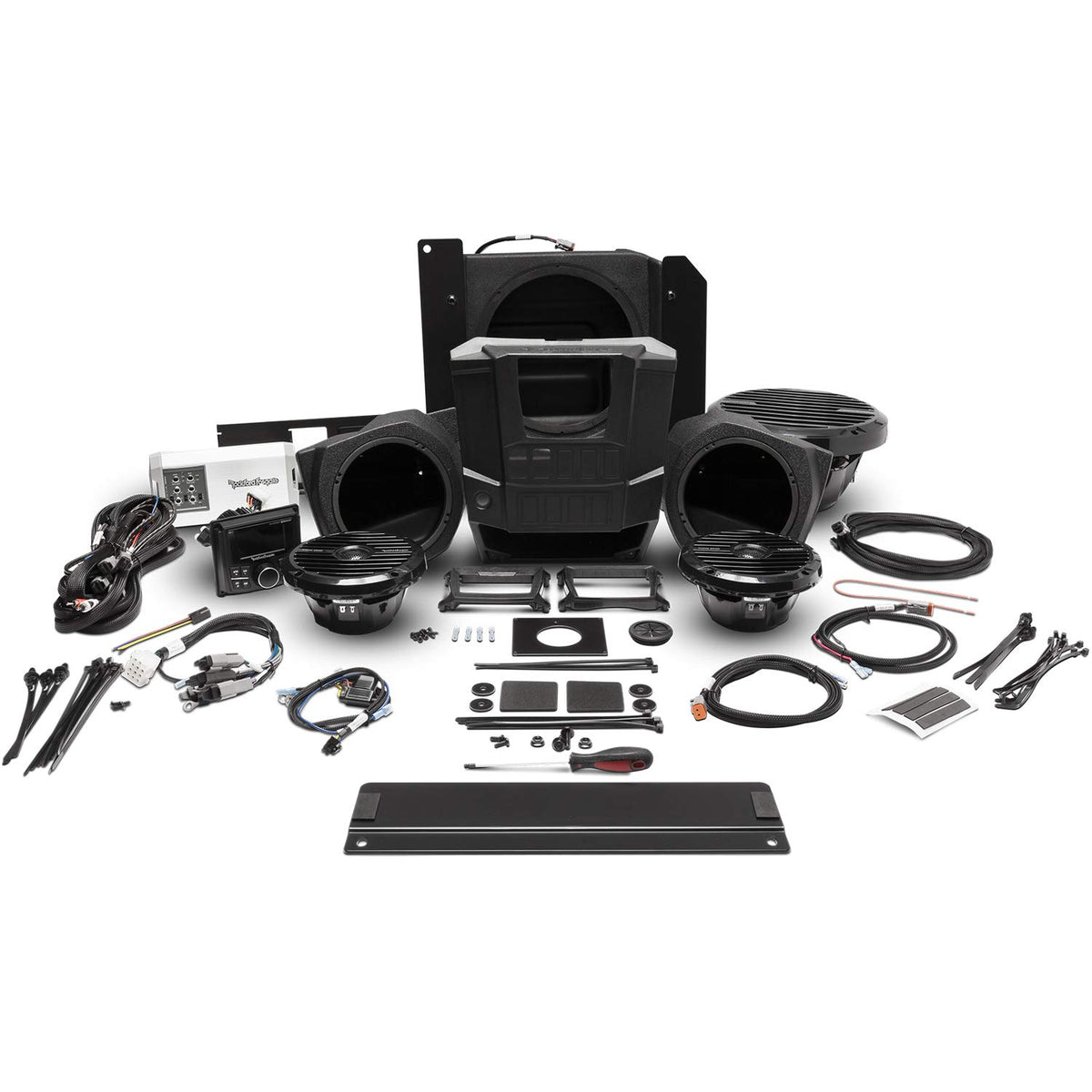

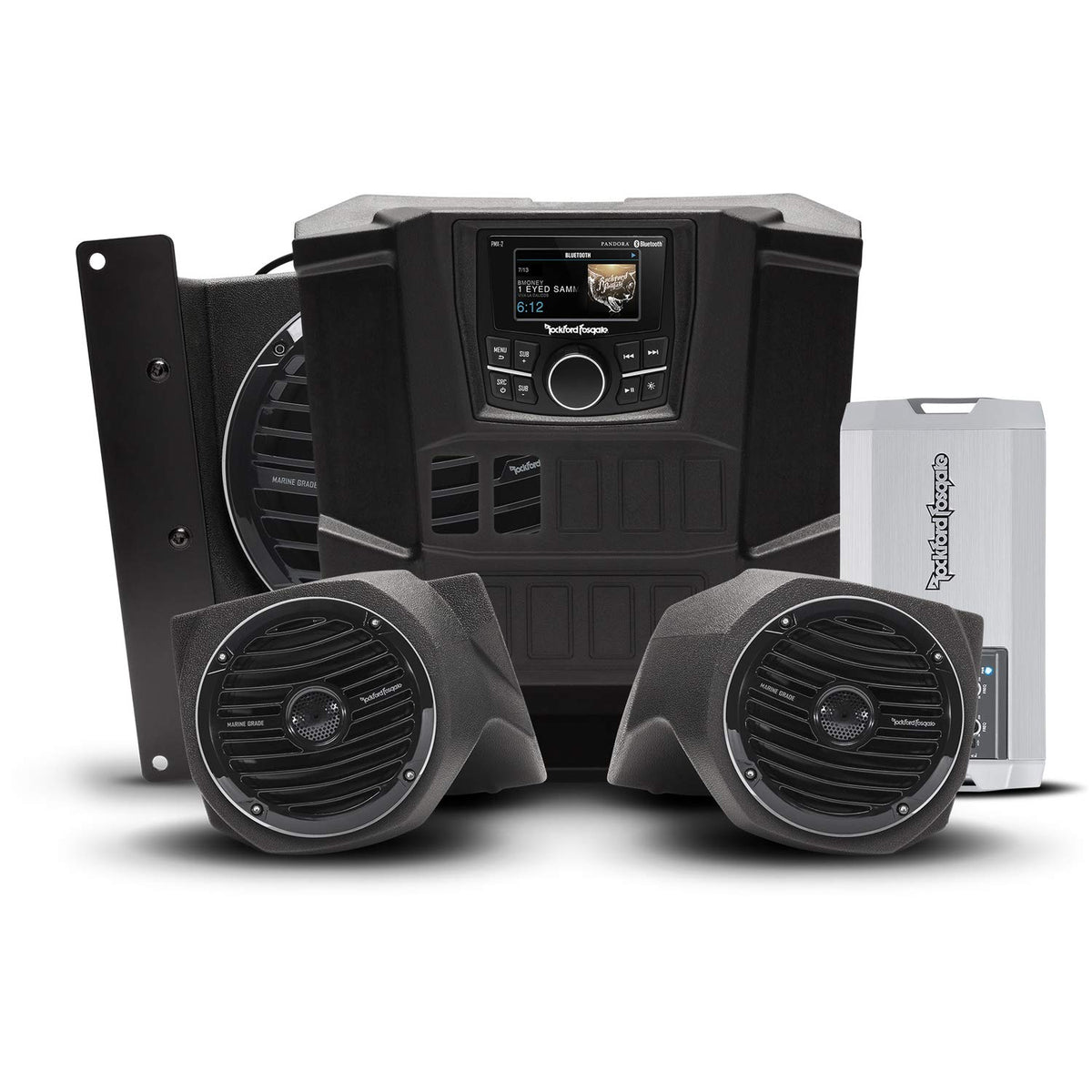

The Rockford Fosgate RNGR-STAGE3 is a vehicle-specific Stage 3 audio package for select Polaris Ranger Gen-1 models. It combines a compact digital media receiver, front 6.5-inch speakers, a 10-inch subwoofer, amplifier, enclosures, and model-specific installation hardware. The kit is designed for Ranger owners who want a more complete audio upgrade than a receiver-and-speaker system alone.

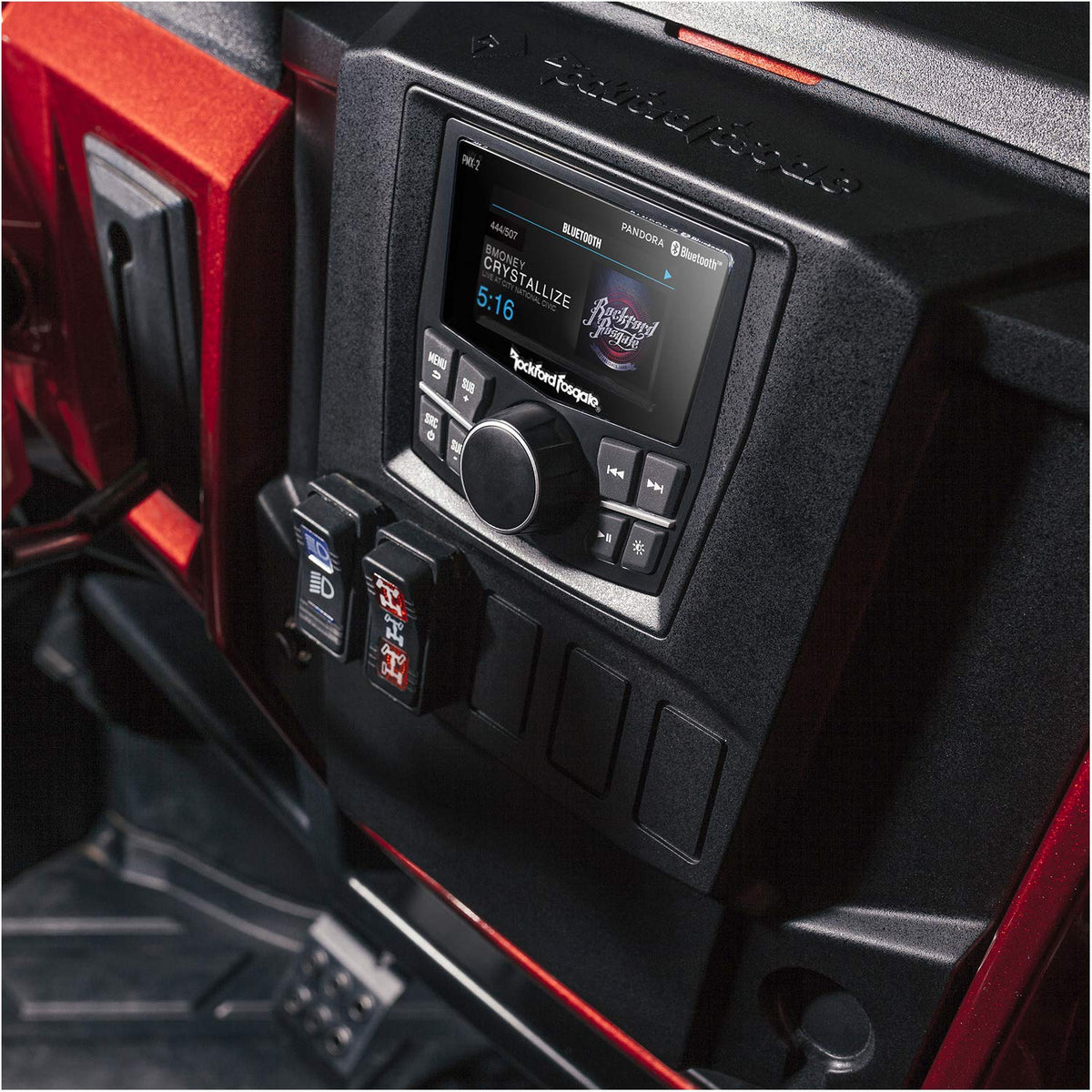

At the center of the system is the PMX-2 marine digital media receiver, which provides AM, FM, weather-band, Bluetooth, USB, and auxiliary playback options. A 2.7-inch color TFT display gives the system a dedicated in-dash control point. The receiver is paired with a Ranger-specific dash kit and direct-connect wiring to support an integrated installation.

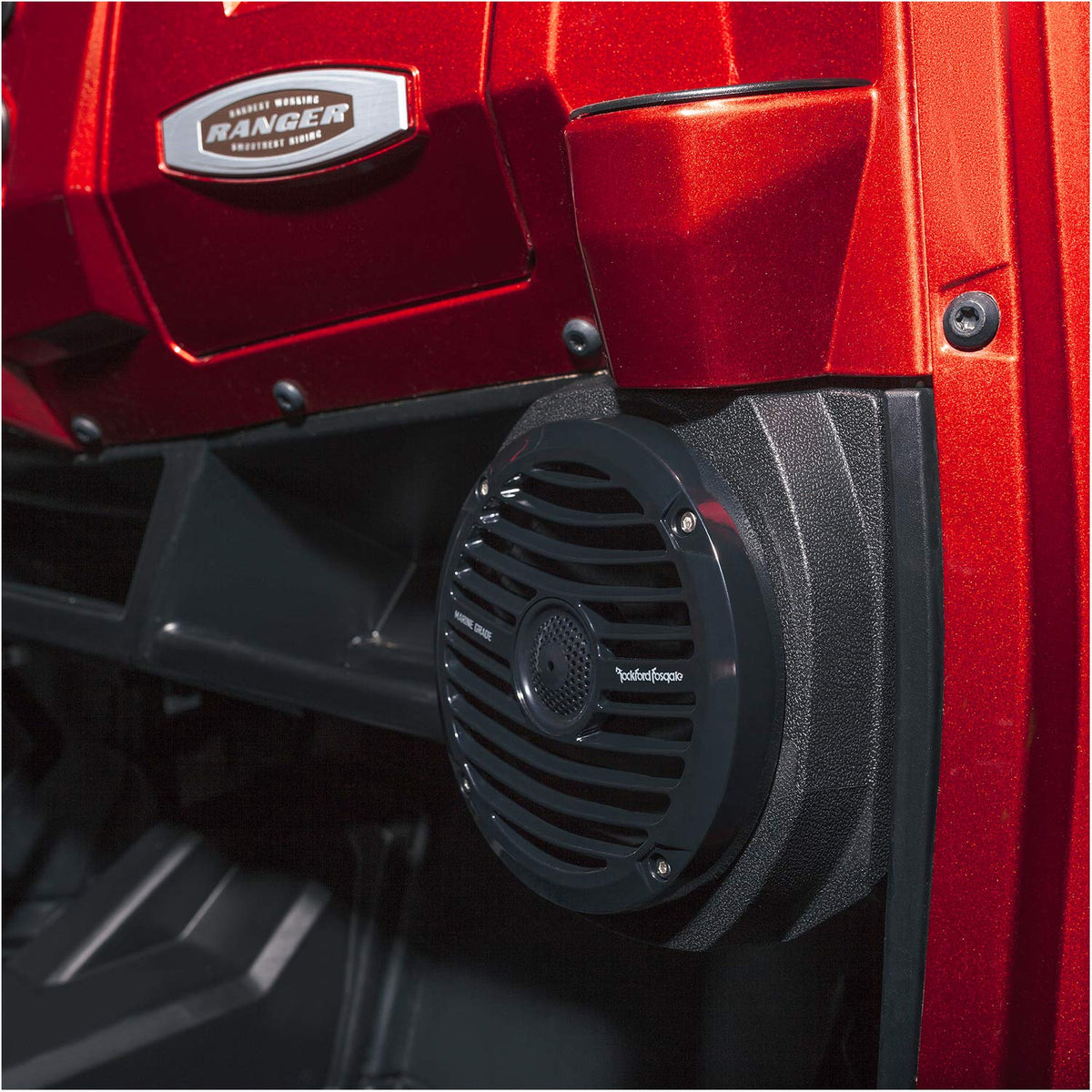

Front sound is handled by a pair of RM1652B 6.5-inch two-way marine coaxial speakers installed in dedicated lower speaker enclosures. Their marine-grade construction is intended for outdoor vehicle use, with UV-stable components and corrosion-resistant hardware. The speaker setup adds full-range output while preserving a factory-style fit in compatible Ranger models.

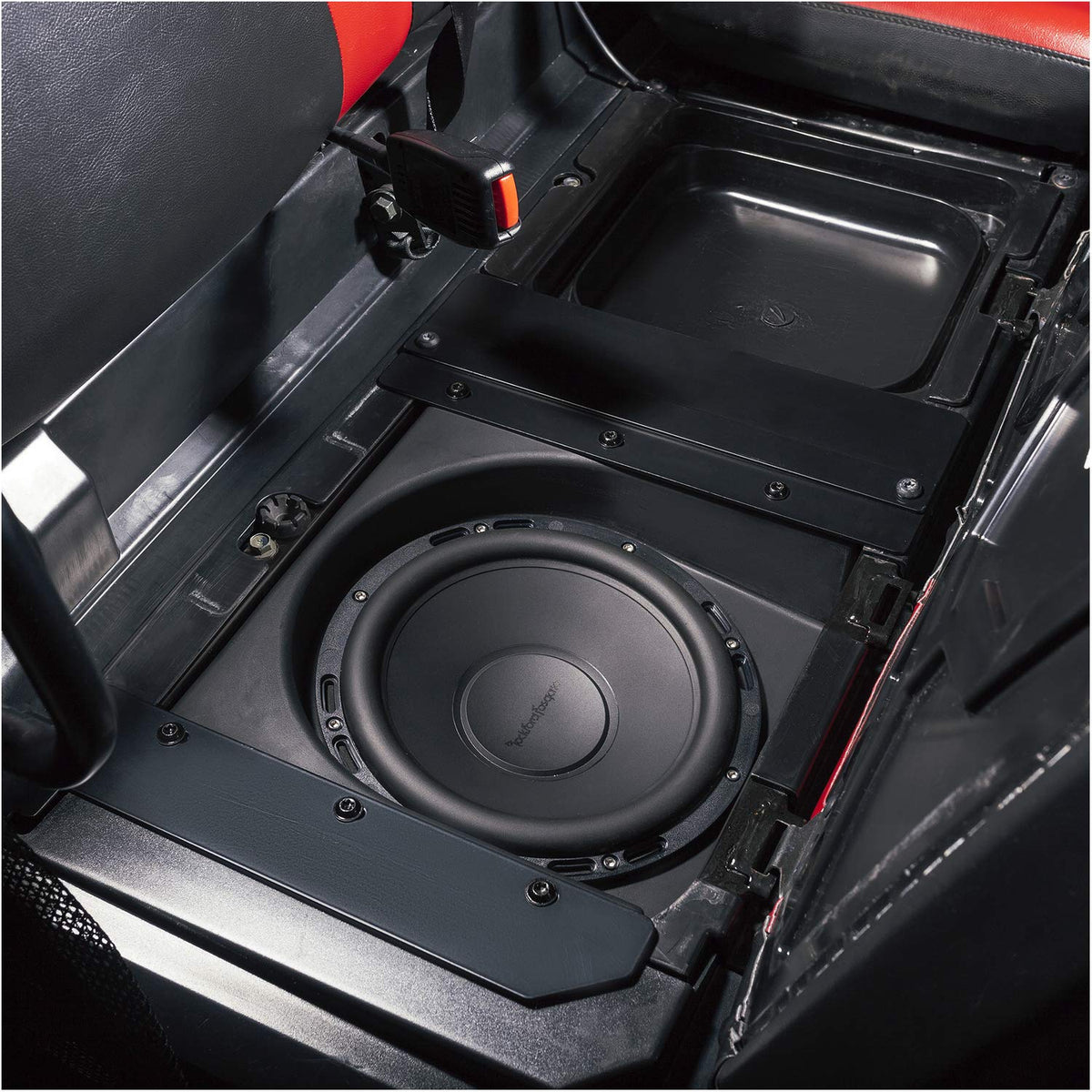

For low-frequency support, the kit includes an RM110D2B 10-inch dual 2-ohm marine subwoofer and a vehicle-specific subwoofer enclosure. The subwoofer uses an injection-molded polypropylene cone, Santoprene surround, aluminum voice coils, and a high-excursion motor and suspension design. This adds bass capability that a front-speaker-only Ranger system does not provide.

System amplification comes from the TM400X4ad, a 400-watt, four-channel Element Ready amplifier. Its constant-power Class AD design supports full-range channels and bridged operation, while adjustable crossovers help tailor the system for speakers and subwoofer use. The included amplifier mounting and wiring kit is intended to simplify the Stage 3 installation path for compatible Polaris Ranger vehicles.

Key Features

• Complete Stage 3 Package: Combines receiver, speakers, subwoofer, amplifier, enclosures, and installation hardware.
• 400-Watt Four-Channel Amplifier: TM400X4ad provides rated 100-watt-per-channel output.
• 6.5-Inch Front Speakers: RM1652B marine coaxials deliver full-range front audio.
• 10-Inch Marine Subwoofer: RM110D2B adds dedicated low-frequency reproduction.
• PMX-2 Digital Media Receiver: Supports Bluetooth, USB, auxiliary, AM, FM, and weather band.
• Element Ready Construction: Components are engineered for dust, water, UV, corrosion, and vibration exposure.

Design & Installation

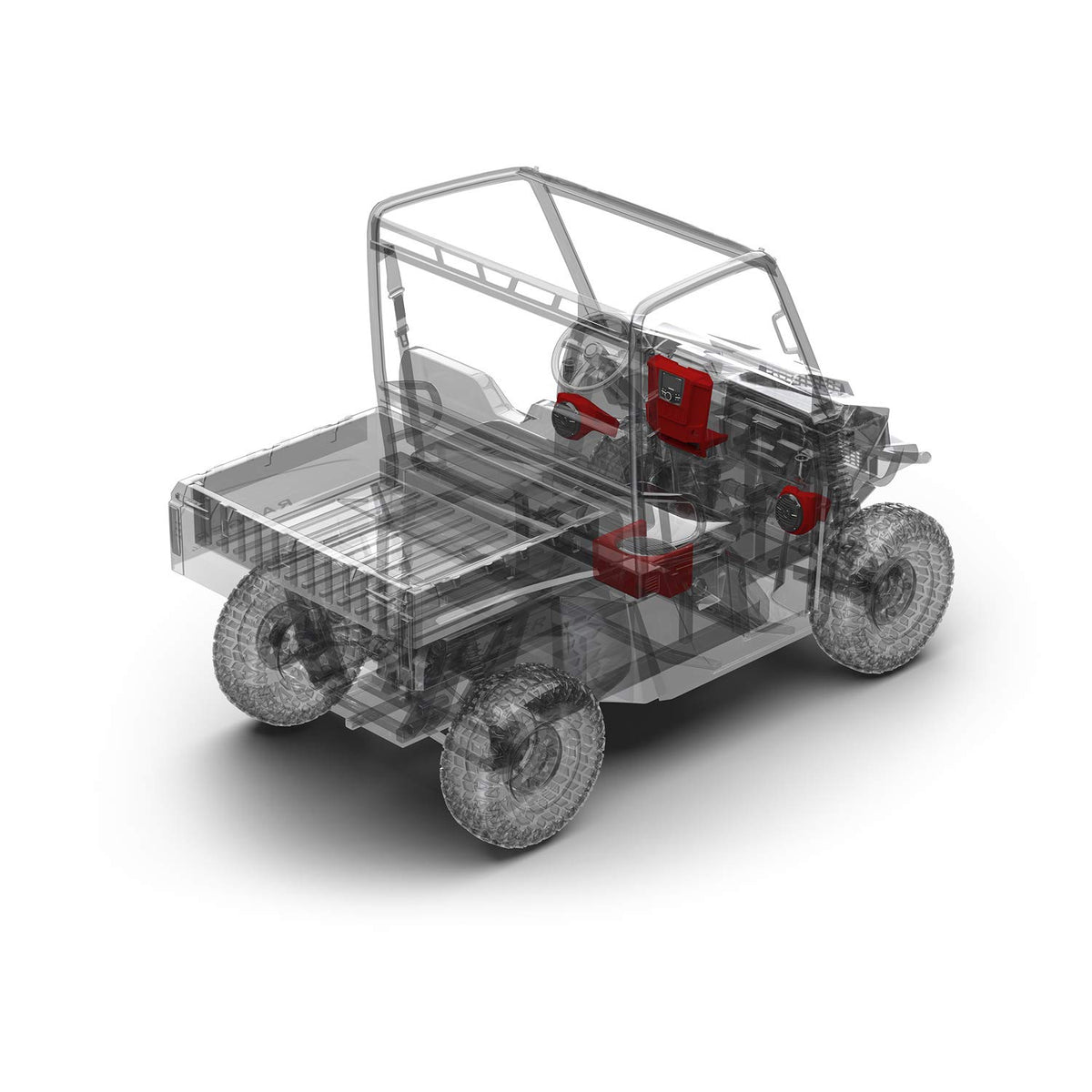

The RNGR-STAGE3 uses Ranger-specific enclosures, a dash mounting kit, direct-connect harnesses, and an amplifier mounting/wiring kit rather than relying on universal mounting solutions. The included marine-grade speakers and subwoofer use weather-conscious materials such as UV-stable plastics, polypropylene cones, Santoprene surrounds, silicone lead wire, and corrosion-resistant terminals. The amplifier uses a compact aluminum chassis, epoxy-coated circuit board, fan cooling, and protected connections suited to motorsports use.

Confirm vehicle fitment before ordering, since this kit is intended only for select Polaris Ranger Gen-1 configurations. Install the PMX-2 in the supplied dash kit, mount the front speaker enclosures and subwoofer enclosure in their designated vehicle locations, then use the included Ranger-specific harnesses and amplifier kit for connections. Rockford Fosgate estimates approximately three hours for installation; professional installation is a practical choice for users unfamiliar with vehicle electrical and audio-system setup.
