Rockford Fosgate RNGR-STAGE1 Polaris Ranger Stereo Kit

The Rockford Fosgate RNGR-STAGE1 is a vehicle-specific stereo upgrade kit for select Polaris Ranger models with the Gen-1 dash. It combines the PMX-2 compact digital media receiver with a Ranger-specific dash installation kit and direct-connect wiring. The package adds a dedicated audio source unit without requiring a universal radio mounting solution.

This kit is intended for compatible 2015-2017 Polaris Ranger models, plus select 2018 Crew XP 1000 EPS models that retain the Gen-1 dash. It is designed for Ranger owners who want AM, FM, Weather Band, USB, auxiliary-input, and Bluetooth music playback in an outdoor vehicle environment. Fitment should be confirmed against the specific Ranger model and dash configuration before installation.

The included PMX-2 receiver has a built-in four-channel amplifier rated at 25 watts RMS per channel at 4 ohms. It can power compatible speakers directly, while front and selectable rear-or-subwoofer RCA outputs support expansion with external amplifiers. A 7-band graphic EQ, Punch EQ control, selectable crossovers, and independent subwoofer level control provide useful system-tuning options.

The receiver uses a compact 2.7-inch color TFT display, backlit controls, and a water-resistant rotary encoder for straightforward operation in a Ranger cockpit. Bluetooth supports wireless music streaming, while the front USB port supports music playback and charging. The AM/FM/Weather Band tuner adds traditional radio and weather-band reception when an antenna is installed.

Rockford Fosgate's Element Ready design is intended for the dust, moisture, UV exposure, corrosion, vibration, and temperature changes common to off-road use. The PMX-2 front panel is IPX6 rated for water-jet resistance. RNGR-STAGE1 is a source-unit foundation for a larger Ranger audio system, as speakers, an amplifier, and a subwoofer can be added separately.

Key Features

• PMX-2 Digital Media Receiver: Adds Bluetooth streaming, USB playback, auxiliary input, and AM/FM/Weather Band listening.
• Ranger-Specific Dash Kit: Provides a tailored mounting solution for select Polaris Ranger Gen-1 dashboards.
• Direct-Connect Harnesses: Pre-terminated wiring helps reduce installation time and connection complexity.
• Four-Channel Built-In Amplifier: Supplies 25 watts RMS per channel at 4 ohms for compatible speakers.
• Element Ready Construction: Designed to withstand outdoor dust, water, UV exposure, corrosion, vibration, and temperature changes.
• System Expansion Outputs: Front and selectable rear-or-subwoofer RCA outputs support external amplifier upgrades.

Design & Installation

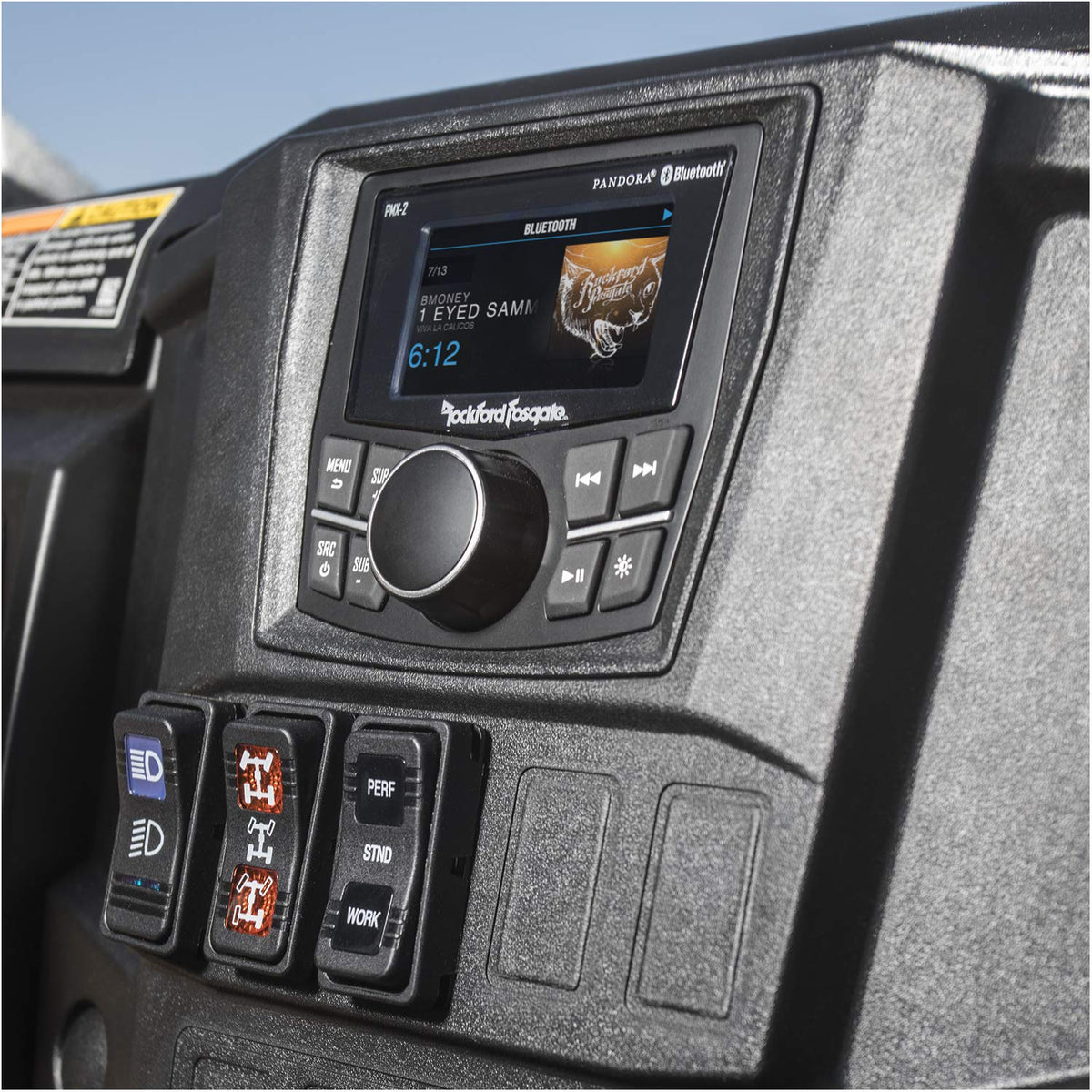

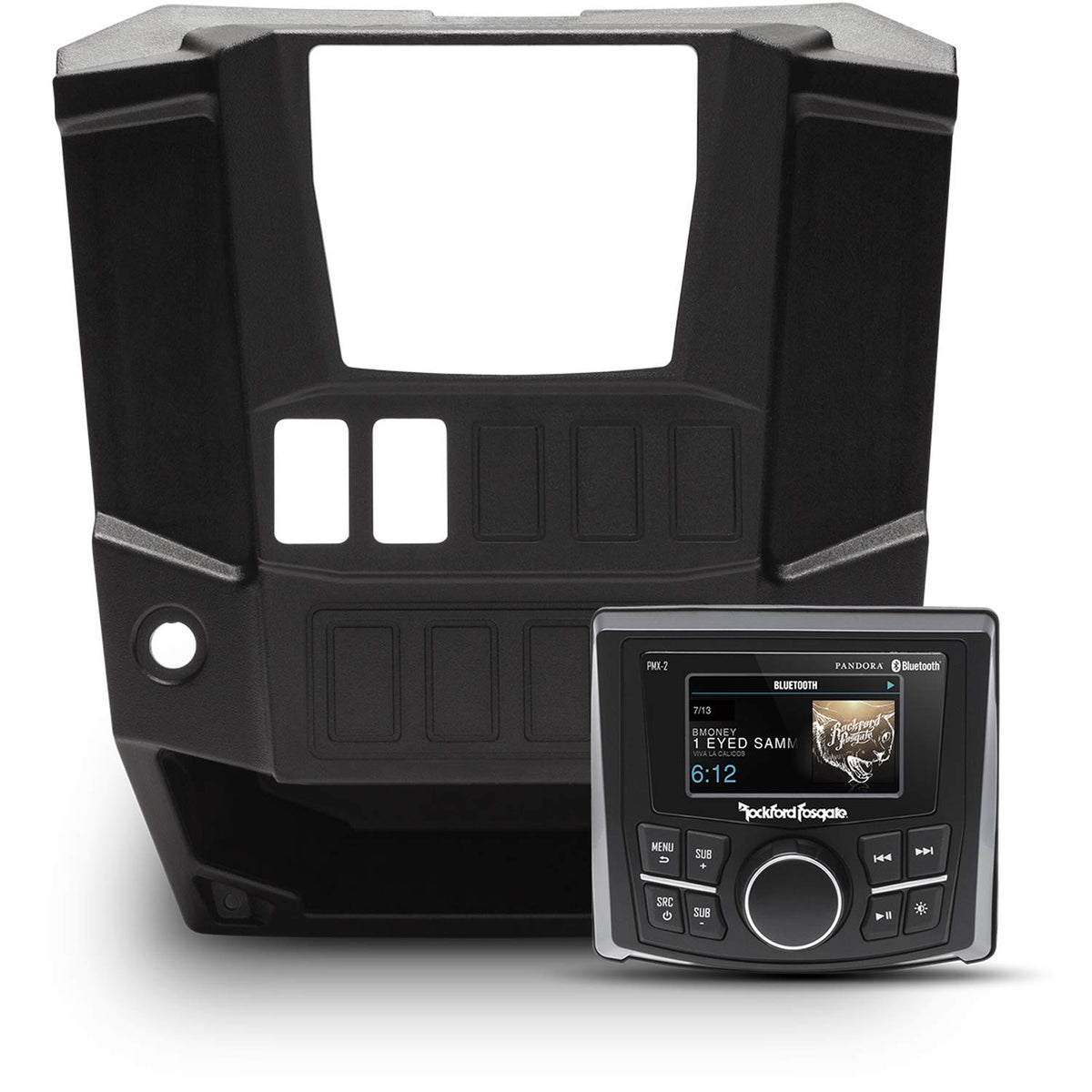

The kit pairs a compact, gauge-mount-style PMX-2 receiver with the RFRNGR-PMXDK dash kit. The dash panel is designed to match the Ranger interior texture and color, and the receiver uses an IPX6-rated front panel with backlit controls. The package is built around an outdoor-oriented installation rather than a conventional Single DIN or Double DIN dashboard opening.

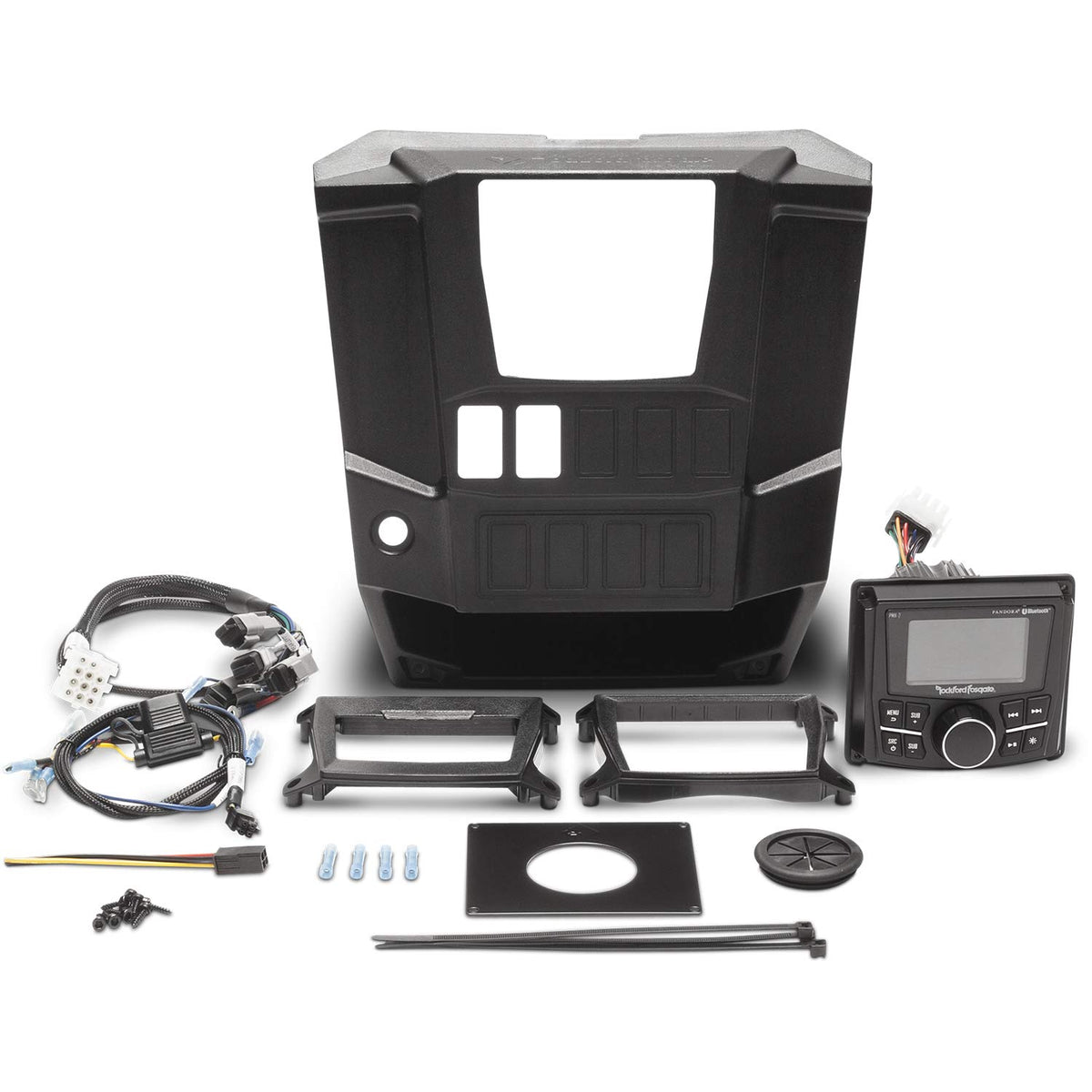

For compatible Rangers, the dash kit mounts using OEM mounting locations and the supplied harnesses connect directly to the vehicle wiring. Rockford Fosgate estimates installation time at approximately one hour; the kit includes the radio, dash components, mounting hardware, and wiring harnesses, but no antenna. Install compatible speakers before using the receiver's amplified speaker outputs, and add external amplification through the RCA outputs when building a larger system.
