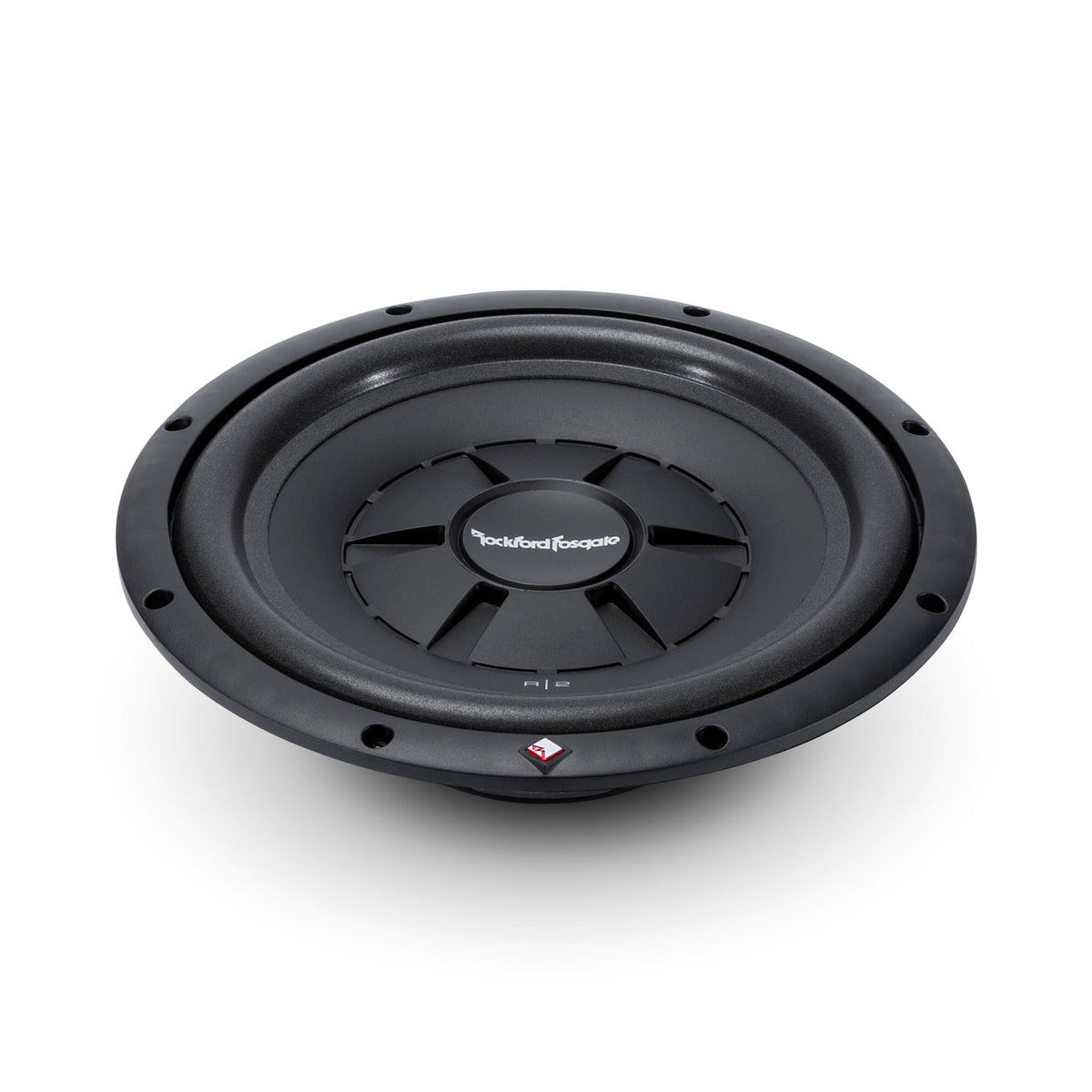

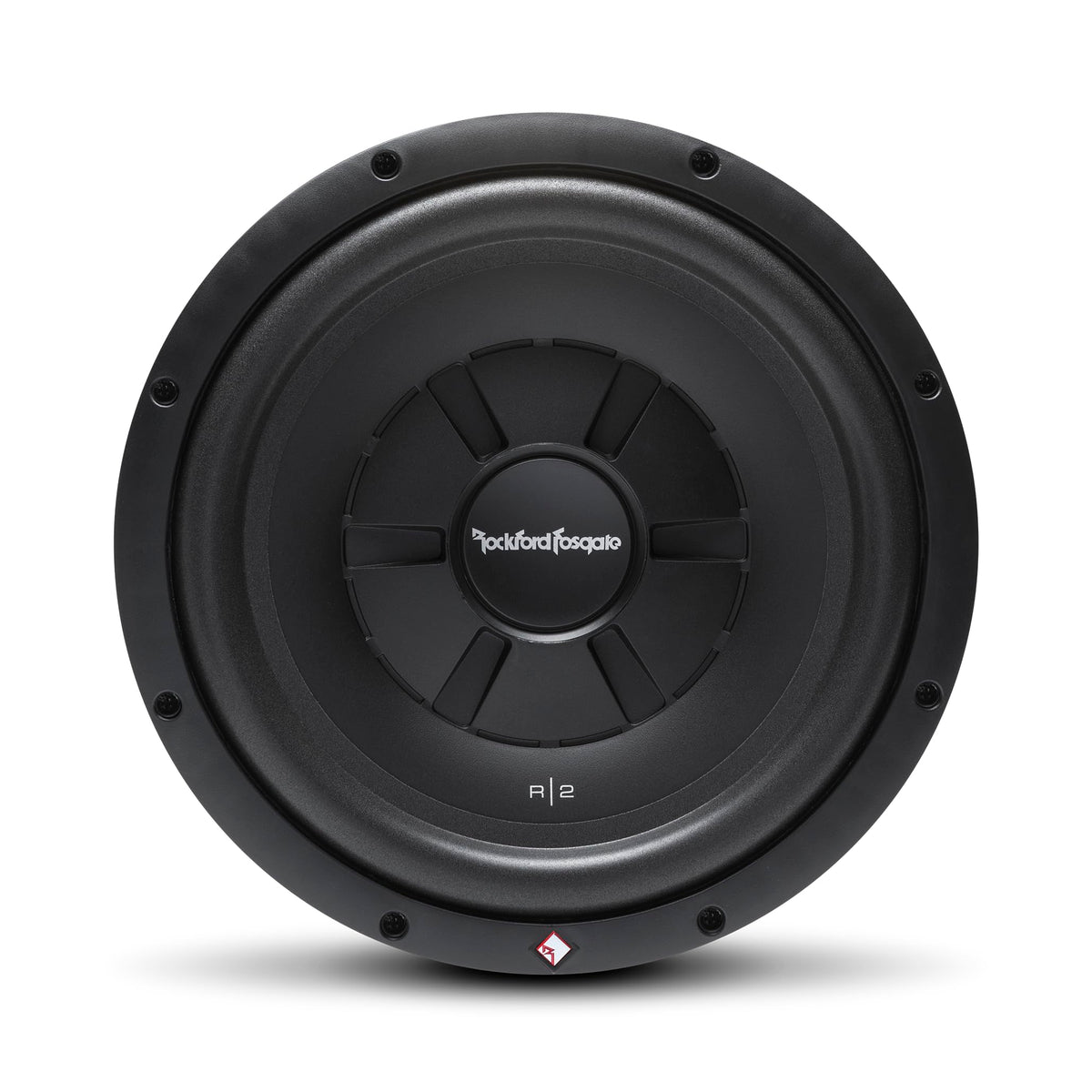

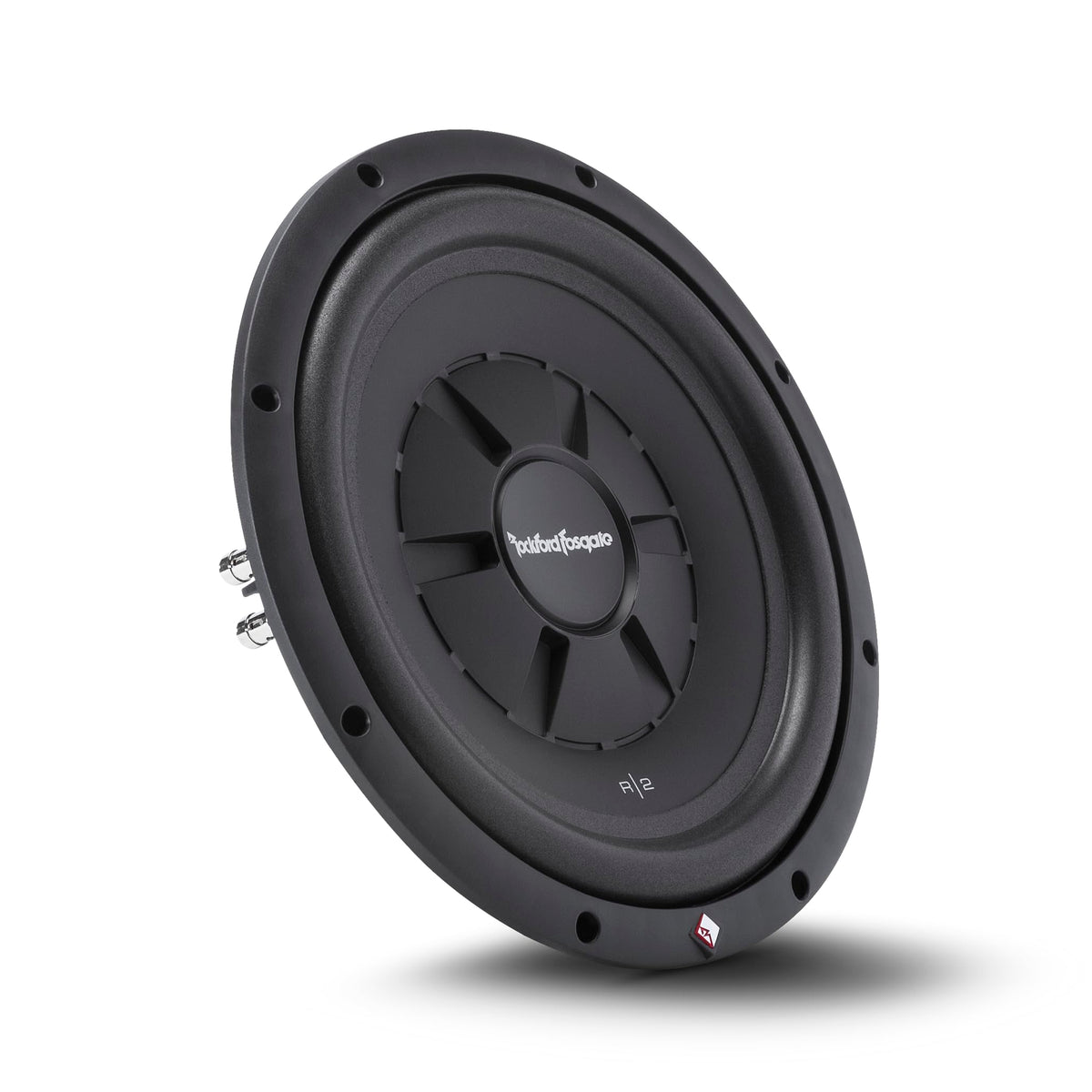

Rockford Fosgate R2SD2-12 12" Shallow DVC Subwoofer

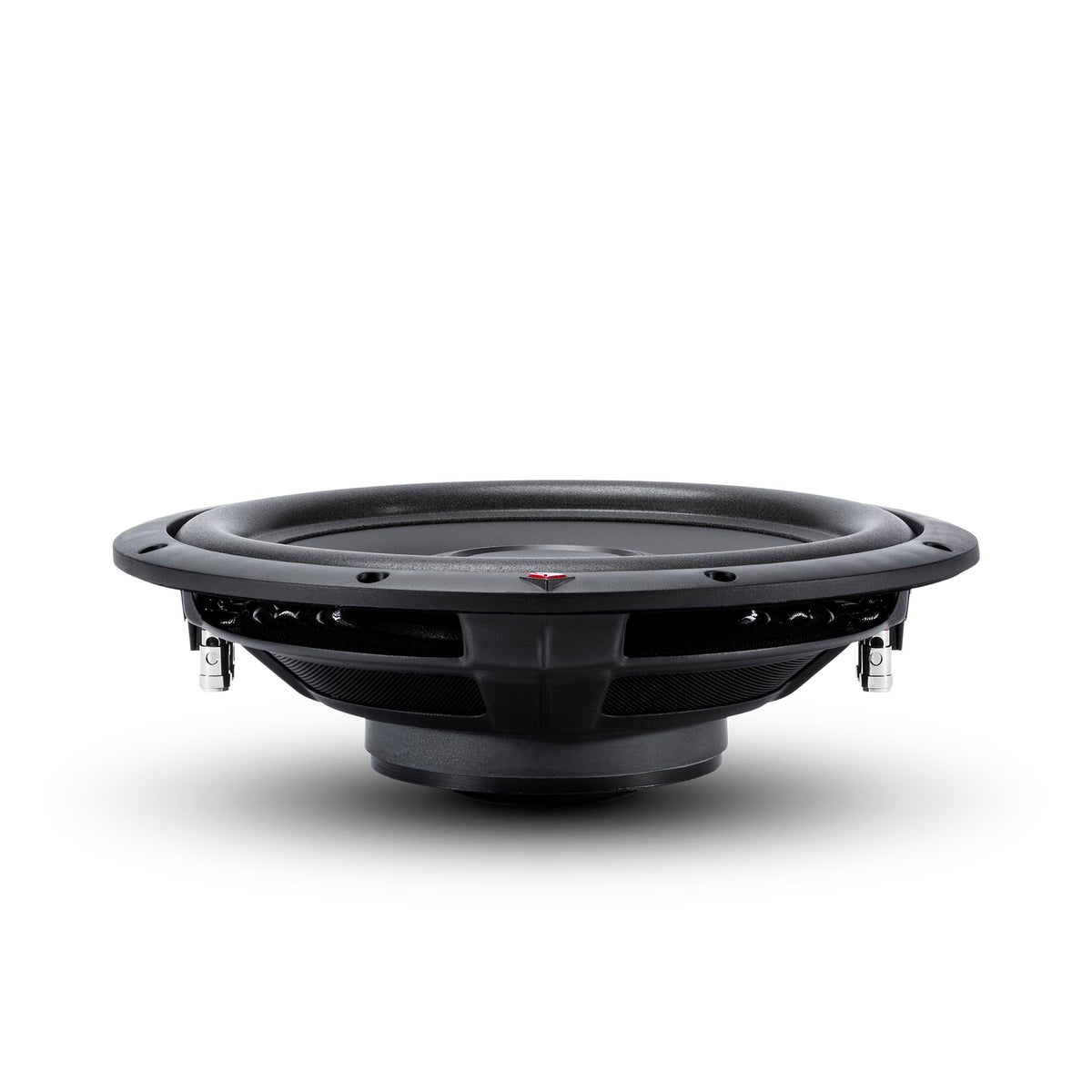

The Rockford Fosgate R2SD2-12 is a 12-inch shallow-mount subwoofer designed for vehicle installations where conventional deep subwoofers will not fit. Its low-profile design helps add bass to trucks, compact vehicles, and custom enclosures with limited mounting depth. The dual 2-ohm voice coils provide flexible wiring options when matching an amplifier.

Rated for 250 watts RMS and 500 watts peak, this Prime R2 subwoofer is intended for systems seeking controlled low-frequency output without requiring a large enclosure. Its 43-250 Hz frequency-response specification supports sub-bass and mid-bass reinforcement in a properly configured system. The 85 dB sensitivity rating reflects a design focused on shallow-installation practicality rather than maximum efficiency.

The R2SD2-12 uses a monolithic injection-molded polypropylene cone and a high-density compressed poly-foam surround. These materials are paired with a poly-cotton spider intended to support cone movement while resisting fatigue. A high-temperature copper voice coil on an aluminum former helps the driver manage sustained power within its rated range.

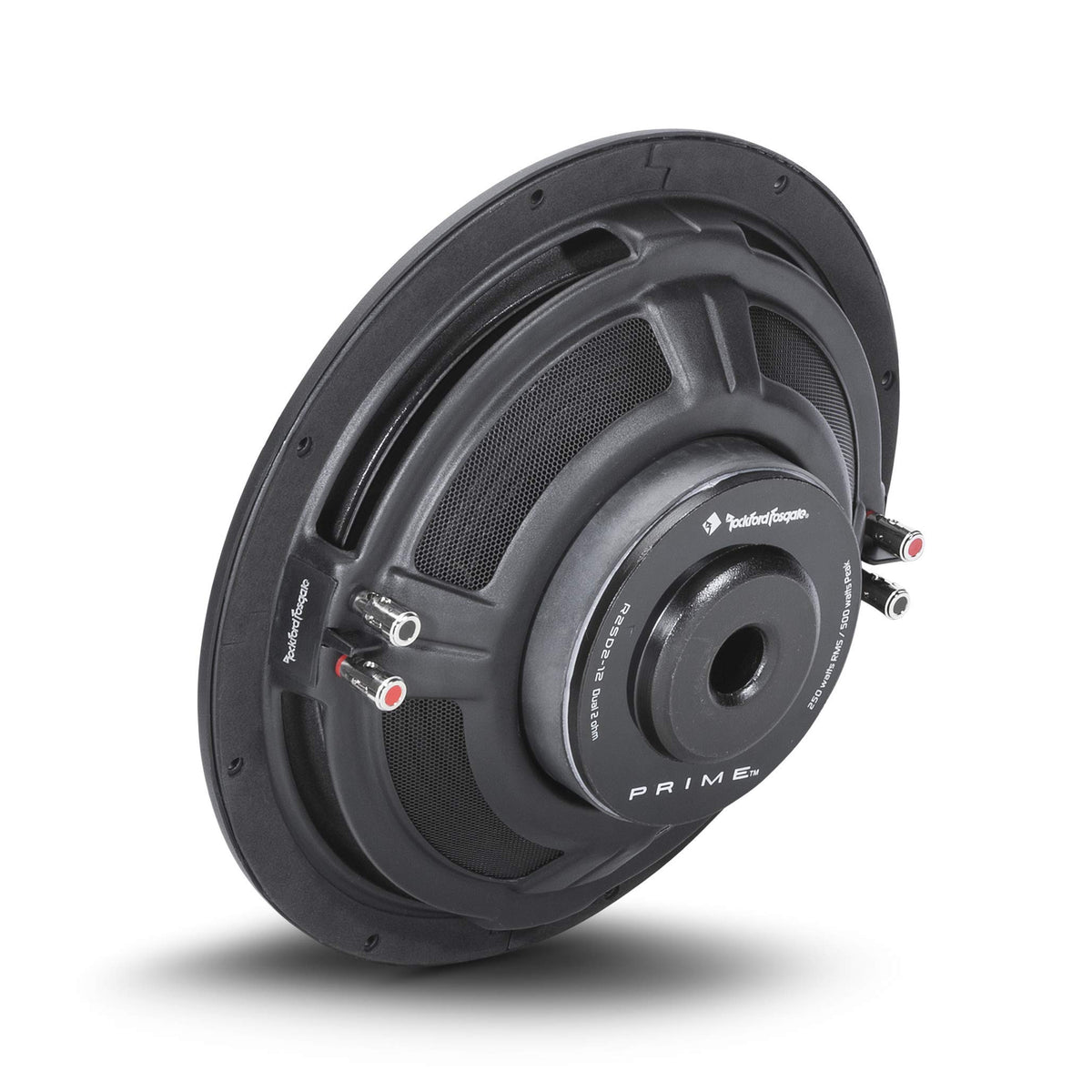

Its motor structure incorporates an extended pole and bumped, vented backplate, while the stamped-steel frame supports the shallow basket format. Spider venting helps move air around the motor assembly during operation. All-metal compression terminals provide a secure connection point for speaker wire.

This subwoofer is suited primarily to sealed-box applications, with a manufacturer-recommended sealed enclosure volume of 0.90 cubic feet. It can also be used in a properly designed vented enclosure when more enclosure space is available. Pair it with an amplifier whose stable impedance capability and RMS output match the final voice-coil wiring configuration.

Key Features

• Shallow-Mount 12-Inch Design: Fits installations with limited mounting-depth clearance.
• 250 Watts RMS Handling: Supports amplifier matching for sustained bass output.
• Dual 2-Ohm Voice Coils: Provides wiring flexibility for compatible amplifiers.
• Polypropylene Cone: Offers a rigid, moisture-resistant cone material.
• Vented Motor Structure: Helps manage heat around the motor assembly.
• Sealed-Box Optimization: Supports compact sealed enclosures for controlled bass.

Design & Installation

The R2SD2-12 combines a heavy-gauge stamped-steel frame with a polypropylene cone, poly-foam surround, attached poly-cotton spider, and aluminum voice-coil former. It also includes a semi-flexible PVC integrated trim ring. The design uses flexible stitched lead wires and high-temperature bonding at the neck joint to support repeated cone movement.

Confirm that the enclosure provides at least the required 11.25-inch cutout clearance and 3.60-inch mounting depth before installation. For a sealed system, use the recommended 0.90-cubic-foot enclosure target; a vented design requires 1.79 cubic feet, a 4-inch port, and the specified port length. Wire the two 2-ohm voice coils only in a configuration supported by the amplifier, and use an active low-pass crossover around 80-100 Hz at 12 dB per octave as recommended in the owner documentation.
