Rockford Fosgate PMX-HD9813 Harley-Davidson Media Receiver

The Rockford Fosgate PMX-HD9813 is a direct-fit digital media receiver made for select 1998-2013 Harley-Davidson touring motorcycles. It replaces the factory radio while adding modern music playback, Bluetooth streaming, USB connectivity, auxiliary input, and digital AM/FM reception. It is intended for riders who want updated source-unit functionality without modifying the motorcycle's factory radio location.

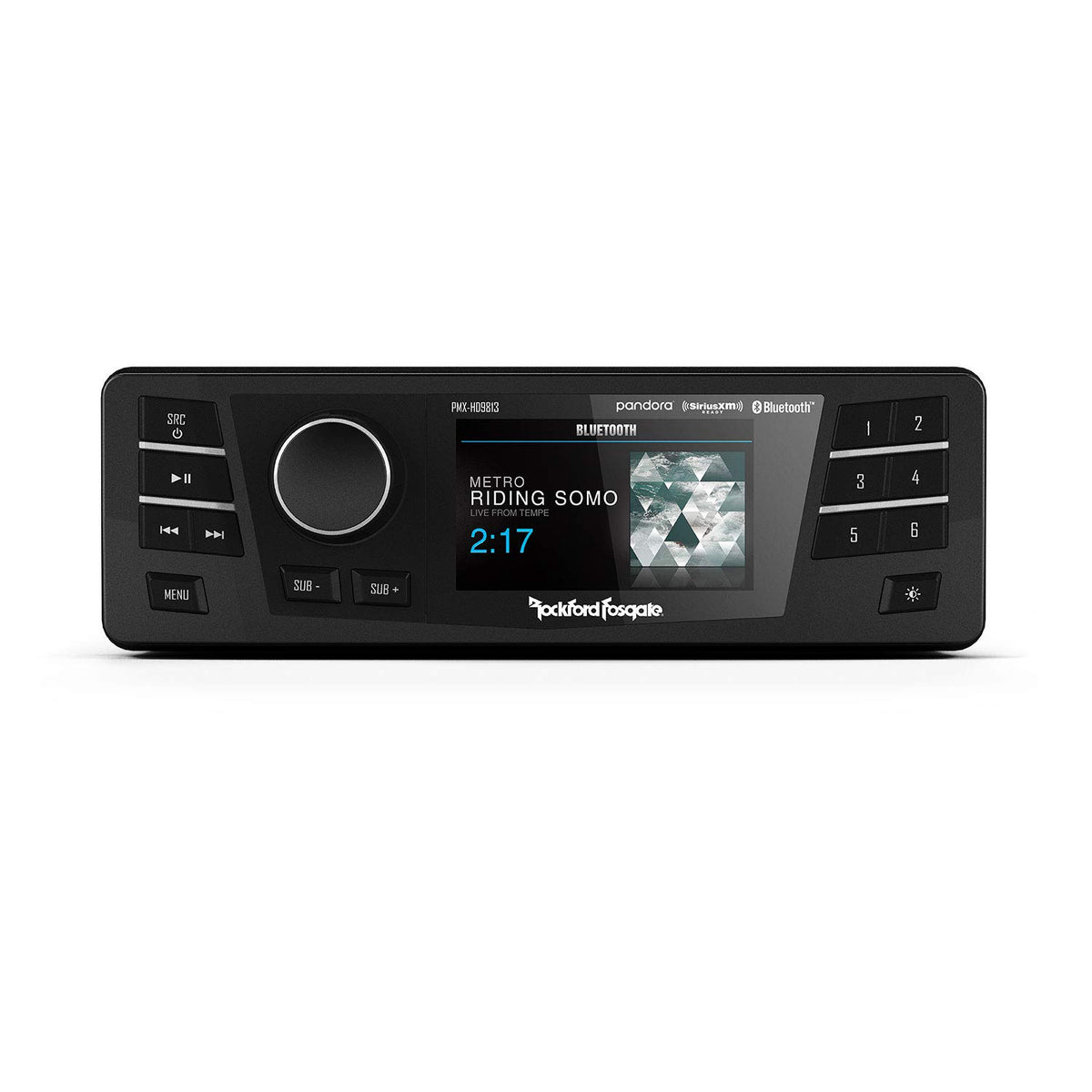

A 3-inch color TFT display provides source information and menu access in a compact factory-style layout. Day and night display modes, a dimmer function, a rotary encoder, and oversized controls help make adjustments more practical on a motorcycle. The receiver also retains factory thumb-control functionality without additional parts on compatible applications.

The PMX-HD9813 includes a built-in four-channel amplifier rated at 25 watts RMS per channel at 4 ohms. Its front, rear, and subwoofer RCA preamp outputs provide up to 4 volts for adding external amplification. Independent subwoofer level control, balance, fader, source gain adjustment, and crossover settings allow the receiver to serve as the control center of a staged motorcycle audio system.

Sound tuning includes a 7-band graphic equalizer, parametric EQ, selectable crossover settings, and Punch EQ processing. The crossover can be configured by front, rear, and subwoofer zones to help tailor the signal for speakers, amplifiers, and subwoofer systems. Bluetooth 3.0+EDR supports A2DP audio streaming, while USB playback supports compatible digital music files and connected iPhone or iPod devices.

Built for exposed motorcycle installations, the PMX-HD9813 has an IPX6-rated front face, an IPX4-rated rear chassis, ASTM D4329 UV certification, and CISPR 25 Class 3 EMI compliance. It is SiriusXM-ready when used with a separate SiriusXM Connect tuner, antenna, and subscription. This receiver is a practical upgrade path for compatible Harley-Davidson models using factory connectors and a stock-style fairing installation.

Key Features

• Direct-Fit Harley-Davidson Design: Replaces the factory radio in select compatible touring motorcycles.
• 3-Inch Color TFT Display: Provides clear source information with day and night viewing modes.
• Bluetooth Audio Streaming: Streams music wirelessly through Bluetooth 3.0+EDR with A2DP support.
• 4-Volt RCA Outputs: Supplies front, rear, and subwoofer preamp signals for external amplifiers.
• Built-In Audio Processing: Includes 7-band EQ, parametric EQ, Punch EQ, and crossover controls.
• Element-Ready Construction: Uses UV certification and IPX-rated protection for motorcycle exposure.

Design & Installation

The PMX-HD9813 uses a compact, factory-location design with a 3-inch color TFT display, rotary encoder, dedicated source and preset controls, subwoofer-level buttons, and display dimming control. Its front face is rated IPX6 for powerful water jets, while the rear chassis is rated IPX4 for splashing water. ASTM D4329 UV certification and CISPR 25 Class 3 EMI compliance support use in a motorcycle environment.

This receiver installs as a direct plug-and-play replacement on compatible motorcycles using the factory harness, antenna connection, mounting location, and existing factory fasteners. An RCA output harness is included for aftermarket amplifier connections, while systems needing rear speaker-line outputs require the RFK-HD9813 kit or separately available 1130-72997-01 rear harness. Disconnect the battery before installation, and use a qualified installer if you are not comfortable removing the fairing and factory radio.
