Rockford Fosgate P1-2X12 Dual 12" Ported Subwoofer Enclosure

The Rockford Fosgate P1-2X12 is a loaded dual-12-inch subwoofer enclosure built for adding dedicated low-frequency output to a car audio system. It combines two Punch P1S4-12 single-voice-coil subwoofers in a factory-built vented cabinet. The enclosure arrives internally wired as a 2-ohm load, simplifying amplifier matching and system installation.

This enclosure is intended for listeners who want a straightforward bass upgrade without designing or building a custom box. Its ported alignment is designed to support strong output in the lower bass range while retaining useful musical detail. With 500 watts RMS system power handling, it is suited to a properly matched mono amplifier that is stable at 2 ohms.

Each installed Punch P1S4-12 woofer uses a Kevlar-reinforced paper cone, high-density NBR half-roll surround, and high-temperature voice coil. The two 4-ohm single-voice-coil woofers are wired in parallel inside the enclosure to create the final 2-ohm nominal load. The system is rated for 1,000 watts maximum power handling.

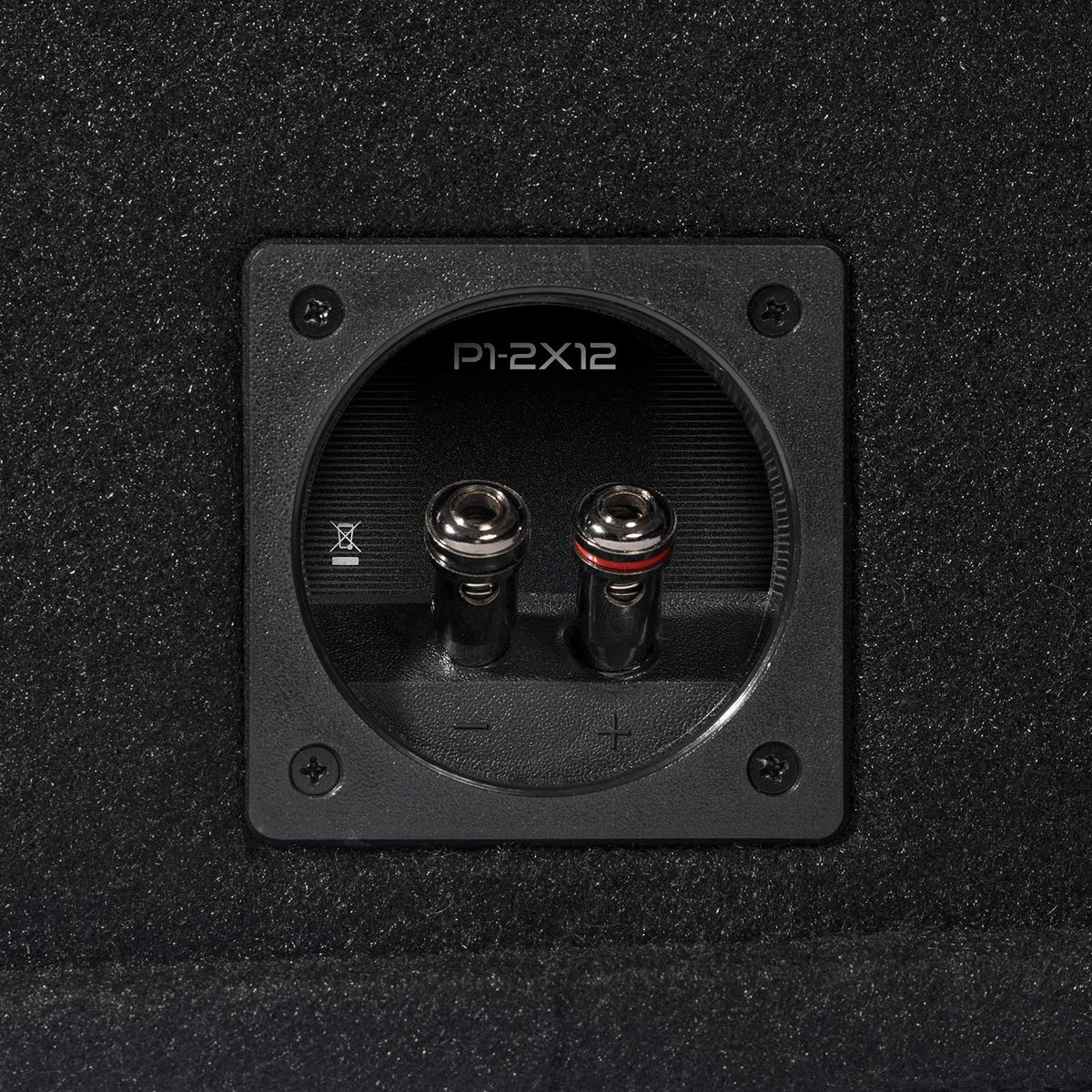

The cabinet uses 5/8-inch MDF construction and high-density carpet covering for a durable, finished appearance in a trunk or cargo area. Its proprietary high-flow, low-noise port is designed to move air efficiently while reducing port turbulence. High-current binding posts provide a single external connection point for the prewired enclosure.

The P1-2X12 works as the bass section of a complete aftermarket audio system. Pair it with a compatible amplifier delivering power within the enclosure's 100-500 watt RMS range at 2 ohms, then set a suitable low-pass filter for integration with full-range speakers. Its all-in-one design also makes it practical for vehicles where the enclosure may need to be removed to regain cargo space.

Key Features

• Dual 12-Inch Configuration: Two Punch P1S4-12 subwoofers provide a ready-to-install bass system.
• 2-Ohm Final Load: Internal wiring creates a 2-ohm nominal load for a compatible amplifier.
• 500 Watts RMS: Supports substantial continuous amplifier power when properly matched.
• Vented Cabinet: Ported enclosure design supports efficient low-frequency output.
• 5/8-Inch MDF Construction: Rigid cabinet material helps support dependable enclosure structure.
• High-Flow Port: Proprietary port design is intended to reduce audible port noise.

Design & Installation

The enclosure is constructed from 5/8-inch medium-density fiberboard and covered in high-density carpet. It houses two 12-inch P1S4-12 woofers with Kevlar-reinforced paper cones, NBR surrounds, and steel baskets. The vented design includes a proprietary high-flow, low-noise port and high-current binding posts for the external speaker connection.

Mount the enclosure securely in a trunk or cargo area, allowing the port and woofers adequate clearance. Connect the amplifier's positive speaker output to the enclosure's red terminal and the negative output to the black terminal; the installation documentation specifies 16- to 12-AWG speaker cable. Use a 2-ohm-stable amplifier, keep amplifier output within the enclosure's RMS rating range, and use an active low-pass crossover for integration with the rest of the system.
