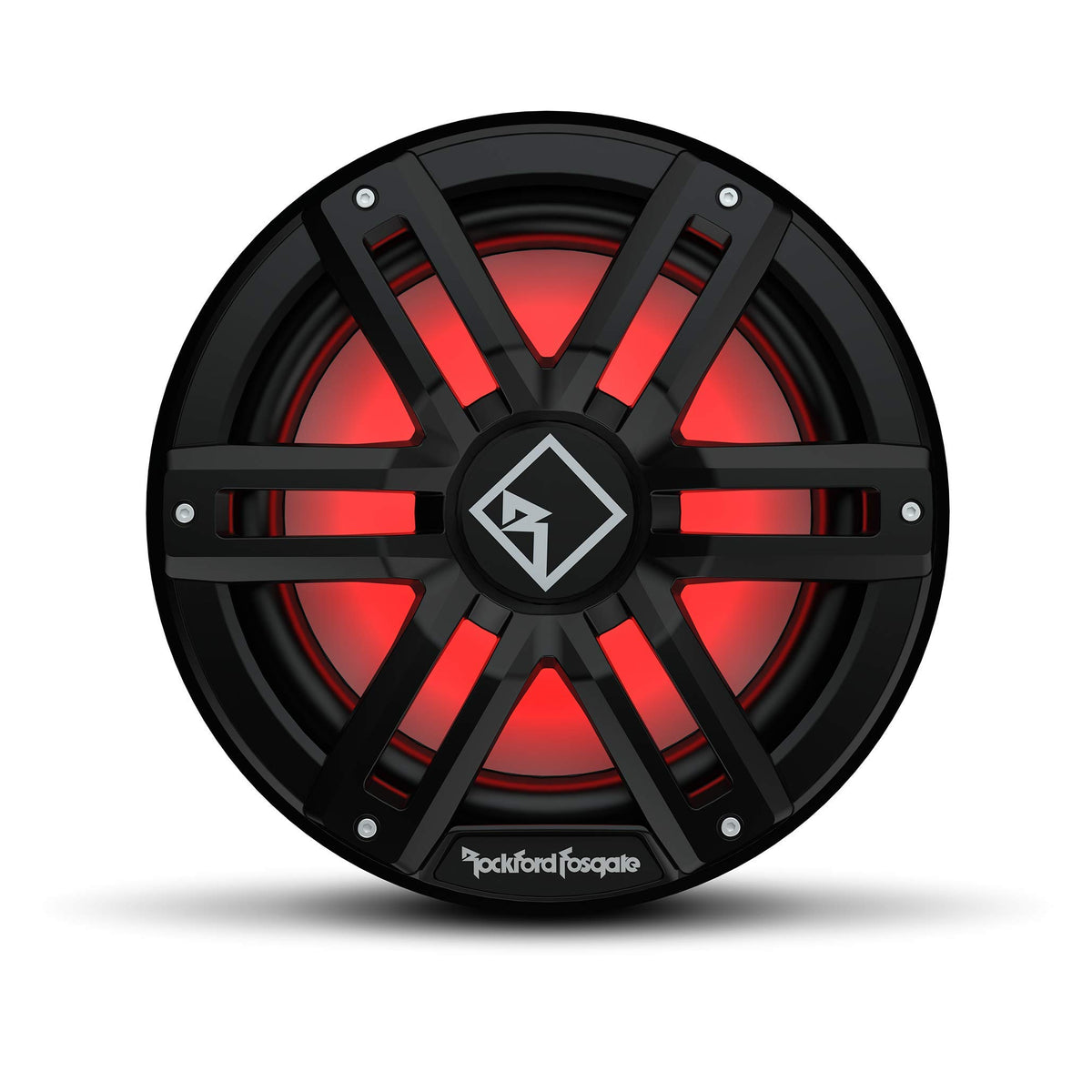

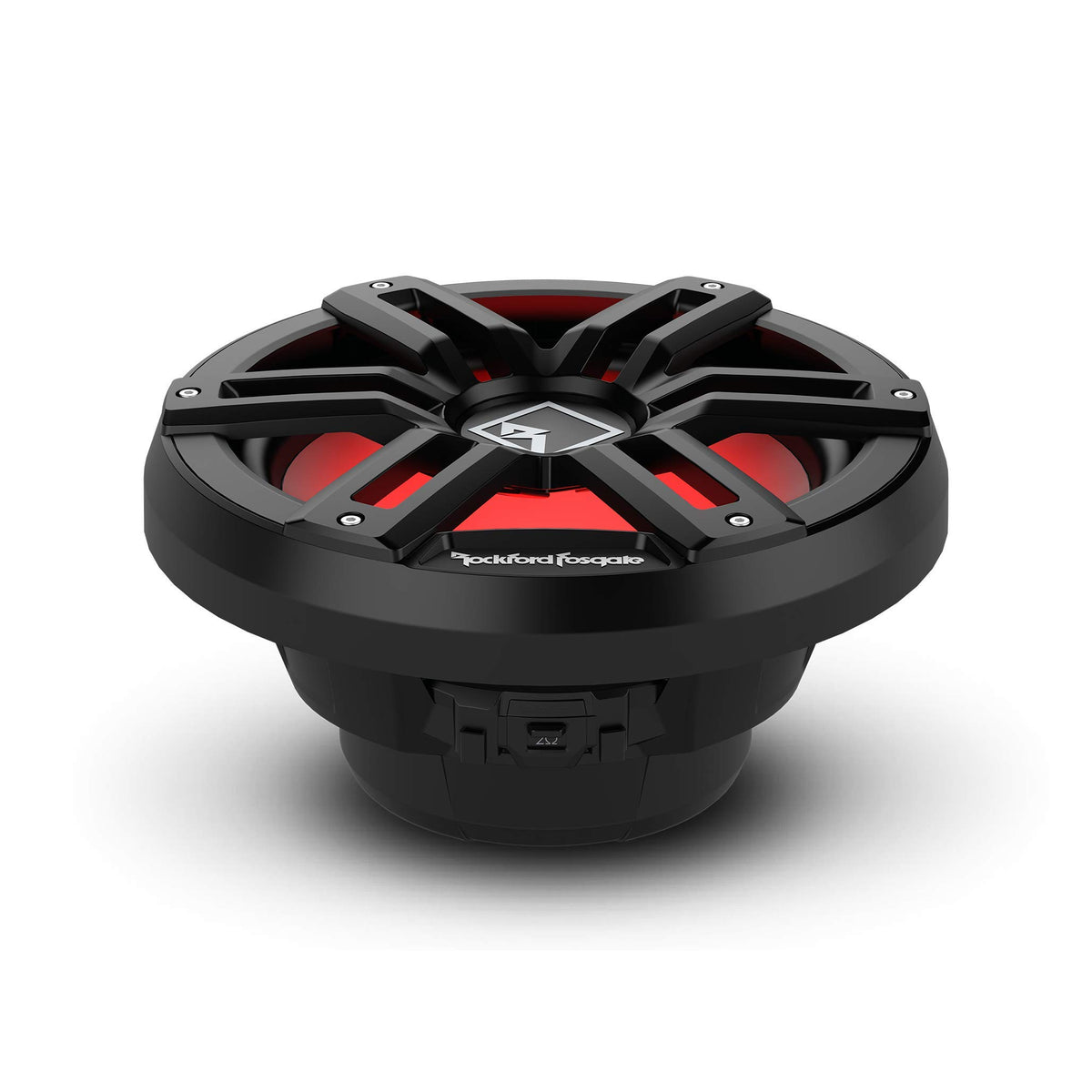

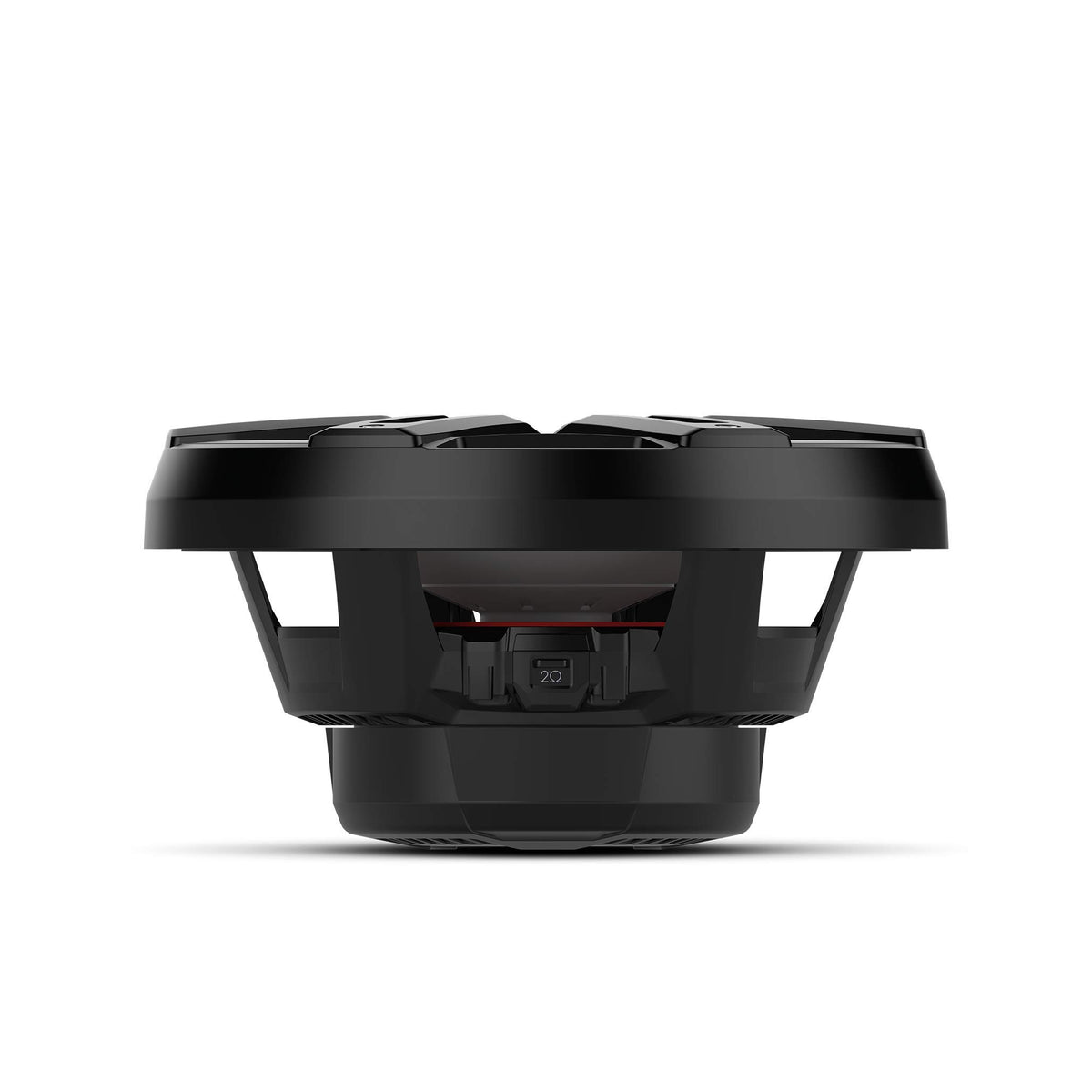

Rockford Fosgate M2D4-12SB 12" Marine LED Subwoofer

The Rockford Fosgate M2D4-12SB is a 12-inch marine subwoofer built for installations that need substantial bass while working within the space limits of a compact sealed enclosure. It uses a dual voice coil design and is intended for marine audio systems where weather exposure, wiring flexibility, and clean integration matter. The black version includes interchangeable grille styling for a coordinated appearance on boats and other outdoor vehicles.

Designed for sealed-box use, this subwoofer delivers low-frequency support from 20 Hz to 750 Hz and handles up to 400 watts RMS. Its sealed-enclosure design helps simplify enclosure planning and is suited to systems where available mounting volume is limited. With an 88 dB sensitivity rating at 1 watt/1 meter, it is designed to work with properly matched marine amplification.

Color Optix RGB LED lighting adds adjustable visual integration to a compatible Rockford Fosgate lighting system. The subwoofer connects to the separately sold PMX-RGB Color Optix controller and works with the RF Connect app for color and pattern customization. An included Color Optix harness supports the lighting connection at the speaker location.

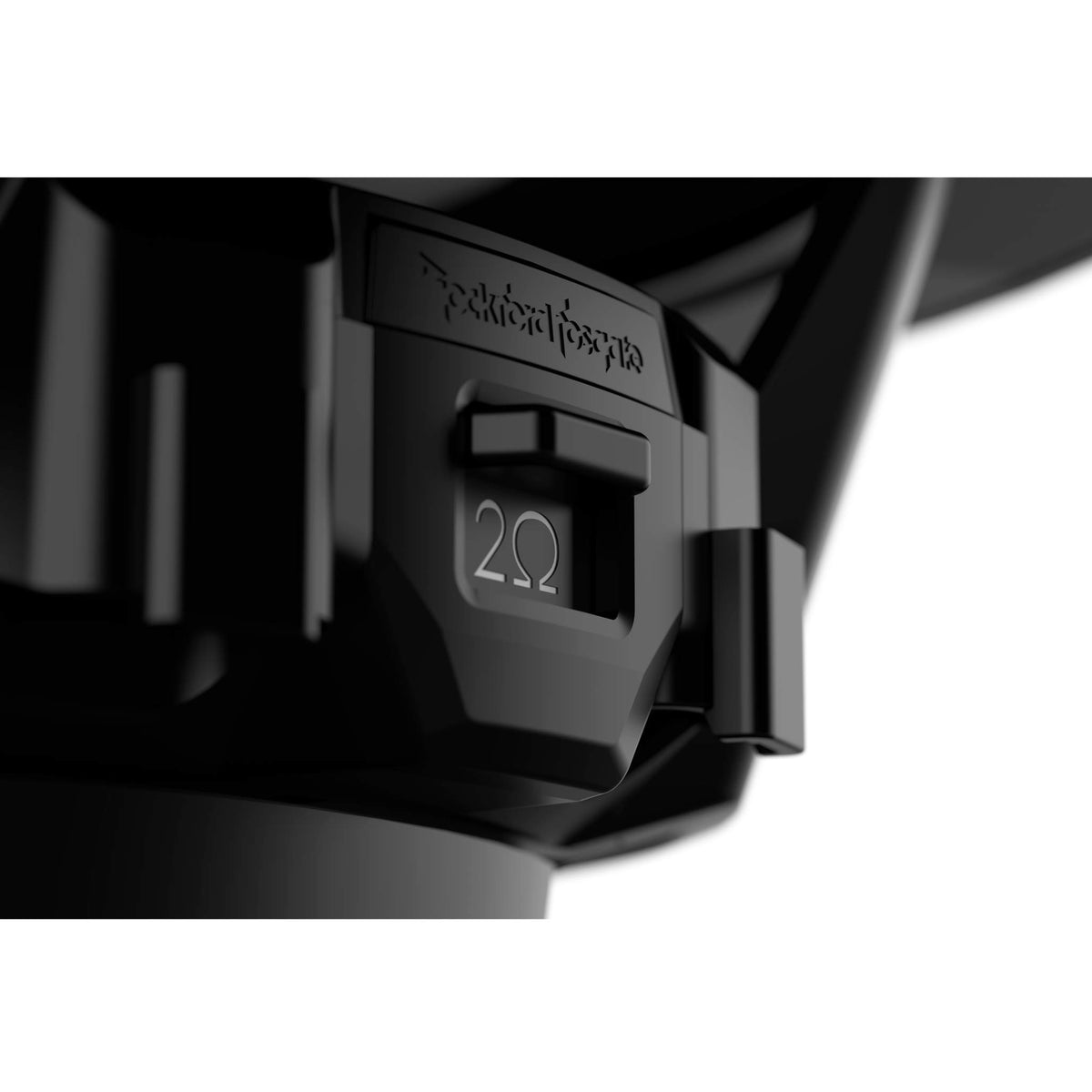

The M2D4-12SB uses Rockford Fosgate's VersaSwitch system, allowing the subwoofer to be set for either a 2-ohm or 8-ohm nominal impedance configuration. This gives installers a direct way to match the subwoofer to an amplifier's approved load range without conventional series or parallel voice-coil wiring. Standard speaker connections are also available through 1/8-inch spade terminals.

For outdoor service, the M2D4-12SB carries an IP67 certification and Rockford Fosgate's Element Ready design approach. Its marine-focused construction is intended to withstand exposure to water, salt, UV rays, corrosion, vibration, dust, and temperature changes. It is a practical choice for boats and motorsports systems using compatible Color Optix lighting components.

Key Features

• 12-Inch Sealed-Box Subwoofer: Designed for compact sealed enclosures with a recommended 0.75 cubic-foot internal volume.
• 400-Watt RMS Handling: Supports properly matched amplification up to 400 watts RMS and 1,600 watts peak.
• VersaSwitch Impedance: Selects either 2-ohm or 8-ohm nominal impedance with a switch.
• Color Optix RGB Lighting: Adds customizable multicolor illumination with the optional PMX-RGB controller.
• IP67 Element Ready Design: Provides marine-focused resistance to harsh outdoor conditions.

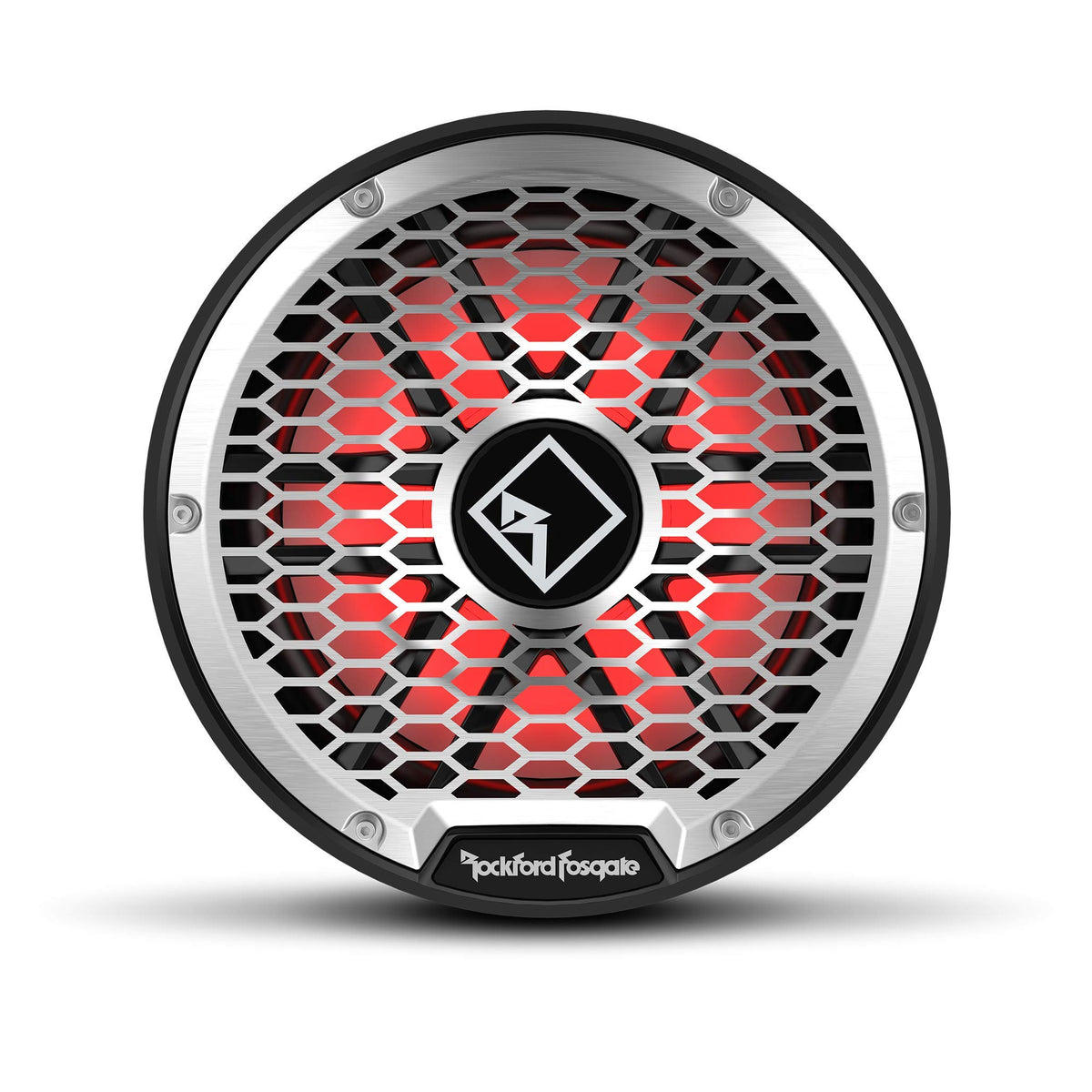

• Interchangeable Grille Inserts: Includes stainless-steel and black Sport grille styling options.

Design & Installation

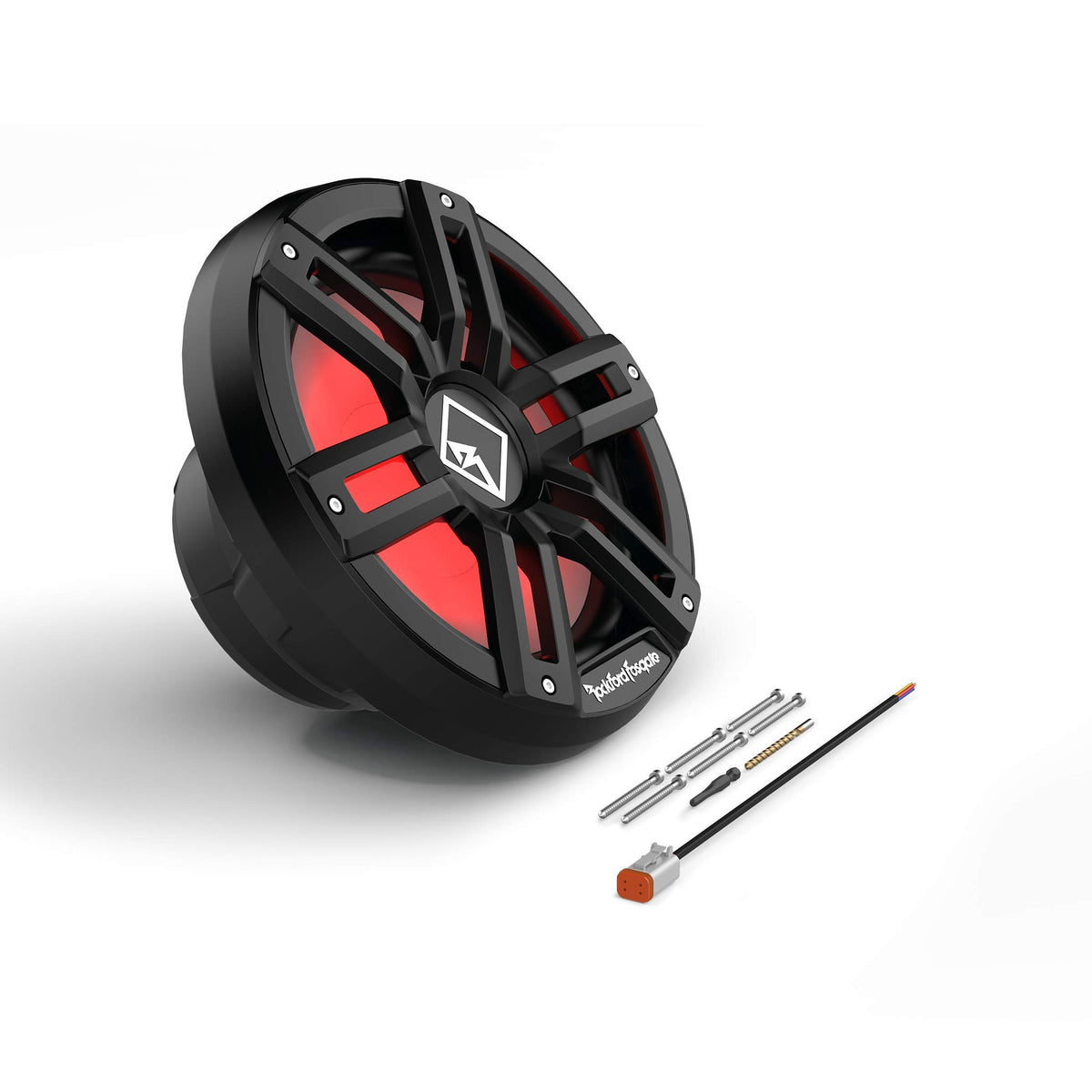

The M2D4-12SB uses a dual voice coil with a 1.95-inch diameter coil, a 61.09-ounce magnet, and 15 mm of Xmax. It includes a grille and trim ring, with stainless-steel and black Sport grille insert options. The lighting and speaker connections use marine-oriented Deutsch and Amphenol connectivity, while conventional 1/8-inch spade terminals are also provided.

Plan this subwoofer around a sealed enclosure with a recommended 0.75 cubic-foot volume, an 11-inch cutout, and at least 4.87 inches of mounting depth behind the mounting surface. Use the VersaSwitch setting that matches an amplifier's approved impedance range, and verify amplifier configuration before connecting the subwoofer. For RGB lighting control, add the separately sold Rockford Fosgate PMX-RGB Color Optix controller and use the RF Connect app.
