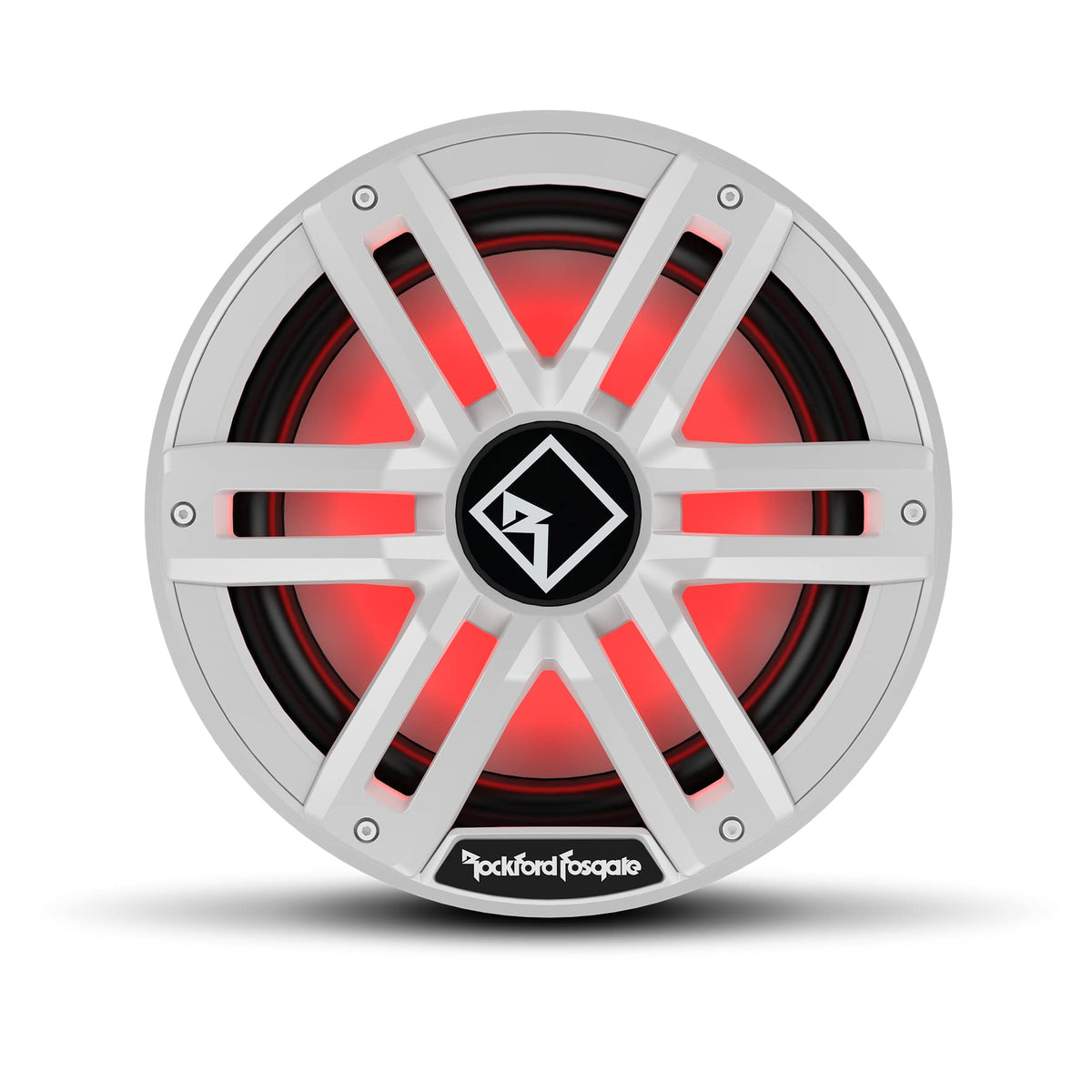

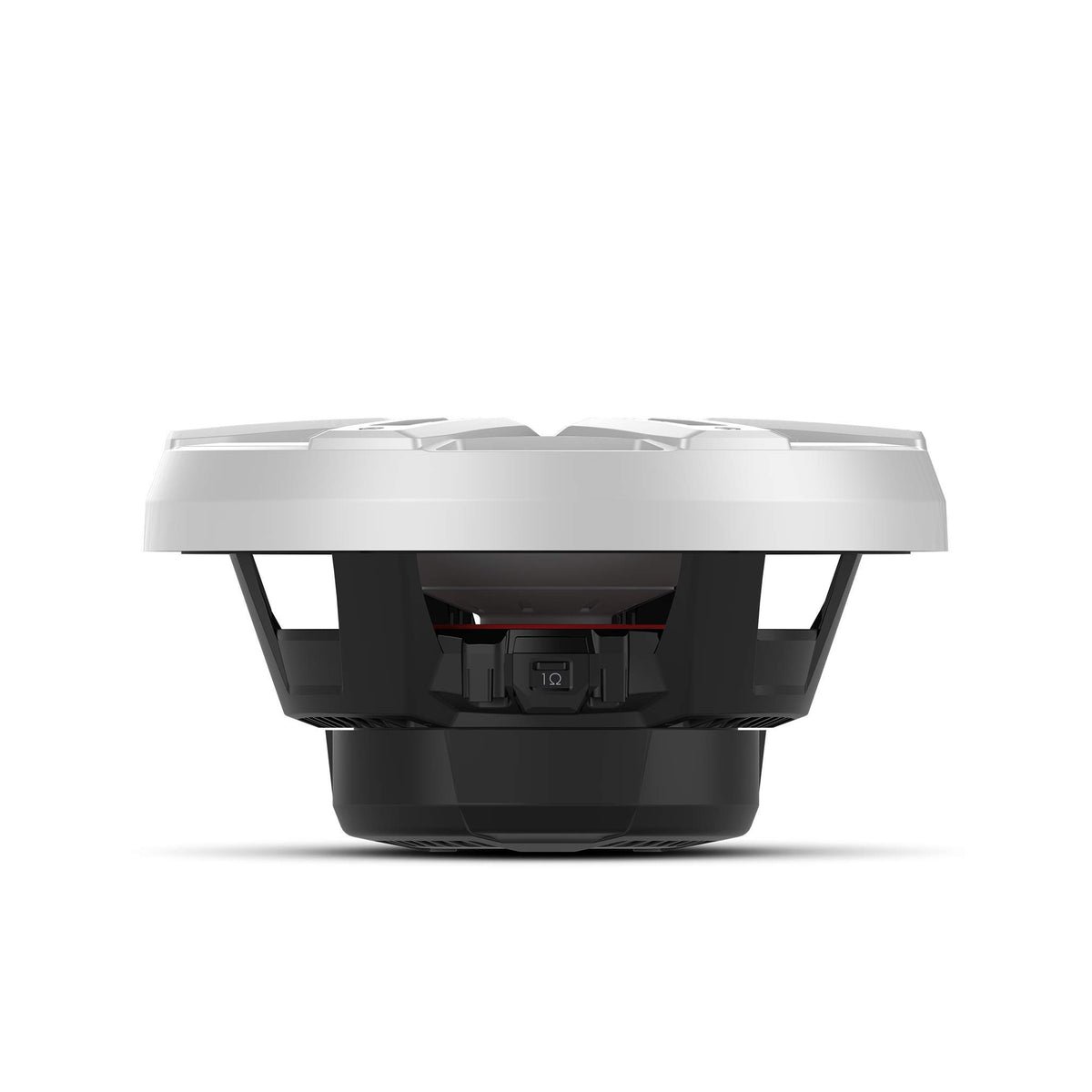

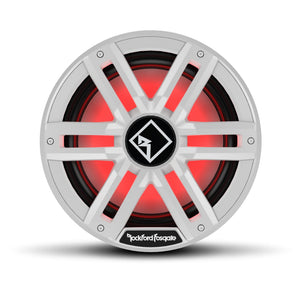

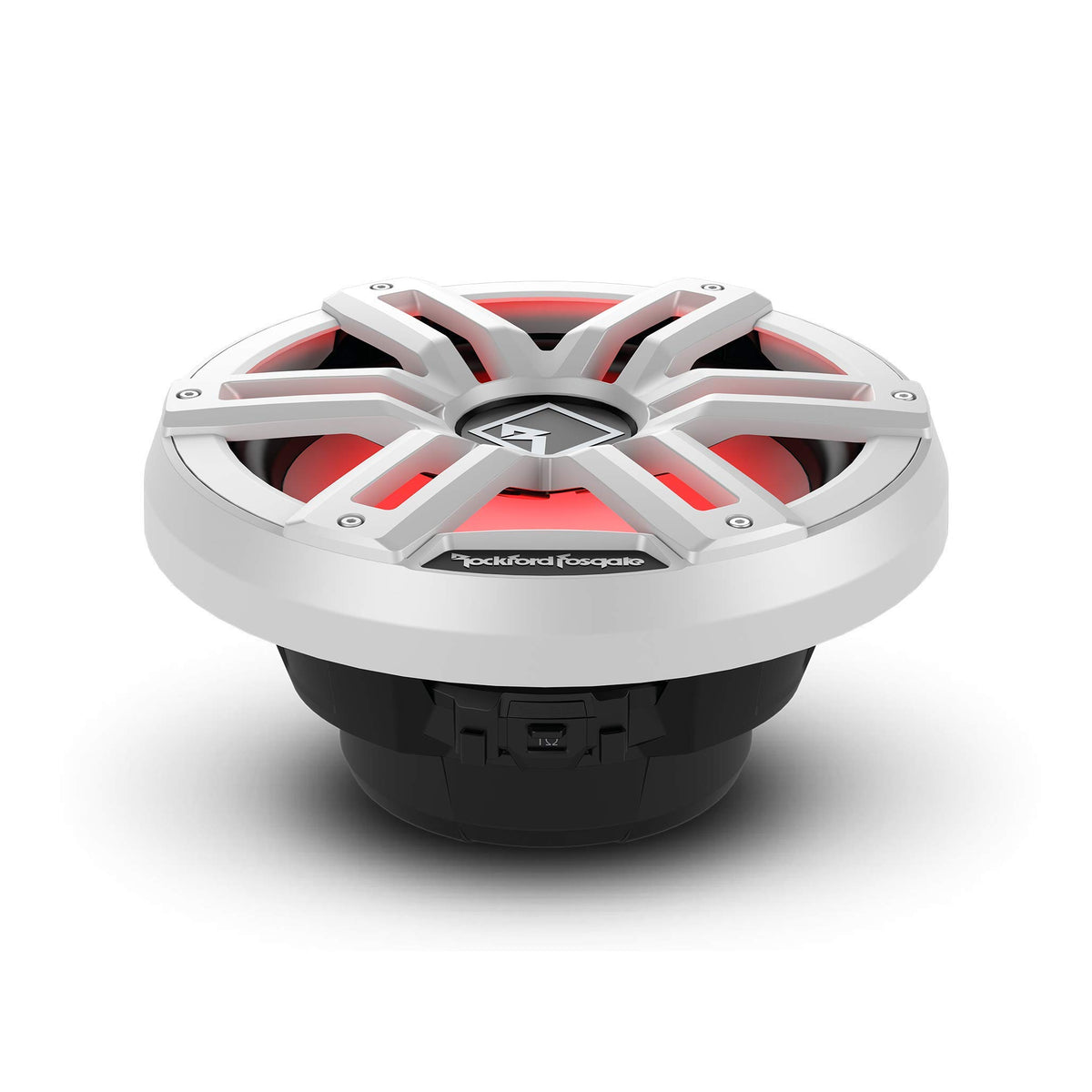

Rockford Fosgate M2D2-12I 12" Marine Infinite-Baffle Subwoofer

The Rockford Fosgate M2D2-12I is a 12-inch marine subwoofer built for infinite-baffle installations, making it suited to boats and other outdoor audio systems where a conventional subwoofer enclosure is impractical. It is designed to mount in a properly isolated baffle or panel, using the available airspace behind the mounting surface rather than a separate box. This approach helps add low-frequency output while preserving usable onboard space.

With a 400-watt RMS power rating and dual voice coils, the M2D2-12I is intended for amplified marine systems that need substantial bass support. Its 20 Hz to 750 Hz published frequency response and 15 mm Xmax support low-frequency reproduction in an open-baffle application. An active low-pass crossover and an infrasonic filter are recommended for dependable system operation.

The integrated VersaSwitch simplifies impedance setup by allowing the subwoofer to be switched to a 1-ohm or 4-ohm nominal load. This gives installers flexibility when matching the subwoofer to a compatible marine amplifier without conventional series or parallel voice-coil wiring. The switchable arrangement can also help when planning systems with multiple subwoofers.

Color Optix RGB LED lighting is integrated into the design for illuminated marine installations. When paired with the separately sold Rockford Fosgate PMX-RGB Color Optix controller and RF Connect app, the lighting can be customized within the larger Color Optix ecosystem. Integrated marine-style connector provisions help support a cleaner installation.

The M2D2-12I is part of Rockford Fosgate's Element Ready marine lineup and carries an IP67 rating for water and dust protection. Its UV-stable ASA frame and grille design, weather-conscious materials, and interchangeable grille styling make it appropriate for exposed marine mounting locations. It is sold individually and includes sport and stainless-steel grille options for coordinating with a boat's finish.

Key Features

• Infinite-Baffle Design: Optimized for installations that use a properly isolated mounting baffle instead of a separate enclosure.
• 400-Watt RMS Handling: Supports use with a suitably matched marine amplifier for strong bass output.

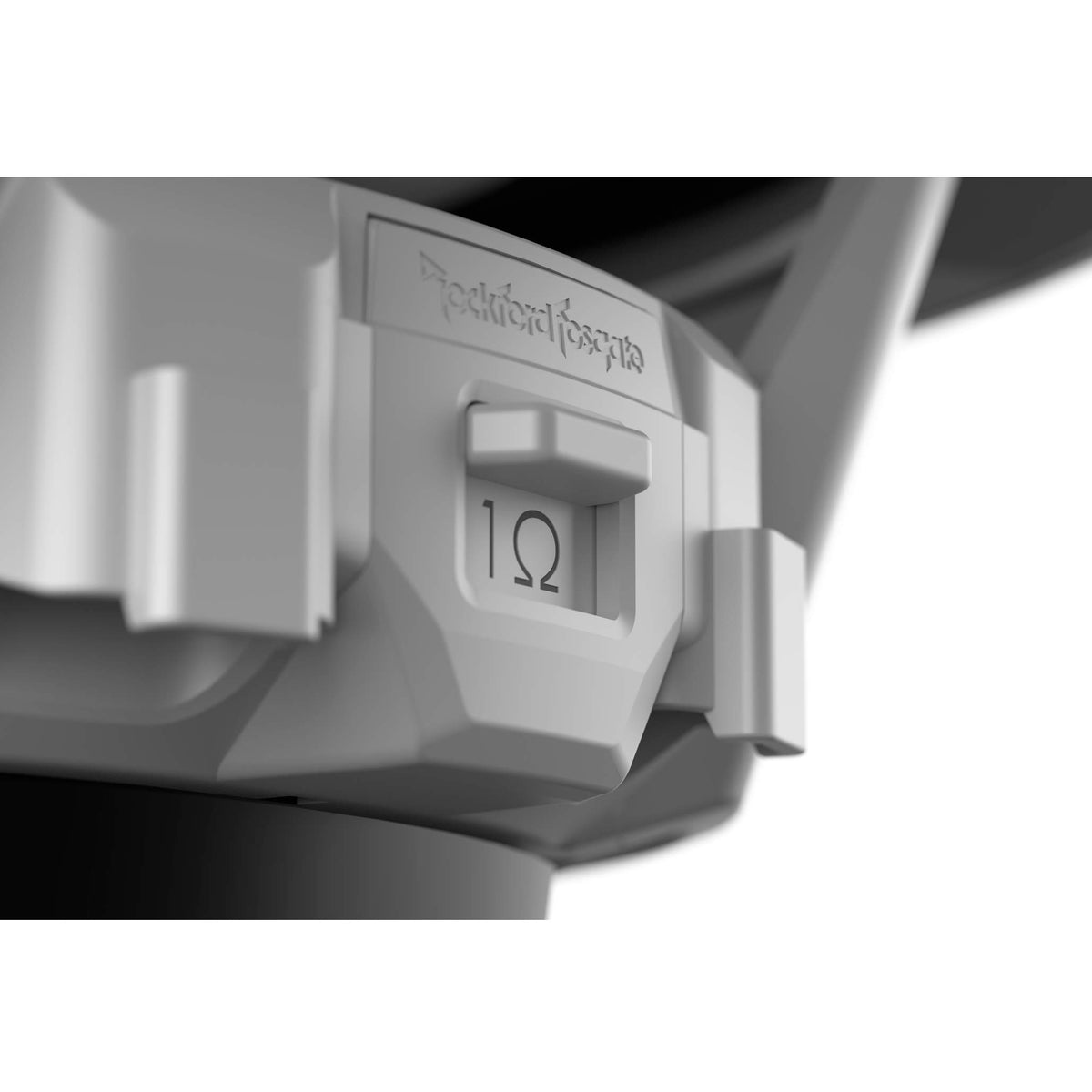

• VersaSwitch Impedance: Select 1-ohm or 4-ohm nominal impedance with a built-in switch.
• Color Optix RGB Lighting: Adds integrated multicolor illumination when connected to the compatible controller.
• IP67 Element Ready Construction: Helps protect the subwoofer in demanding marine environments.

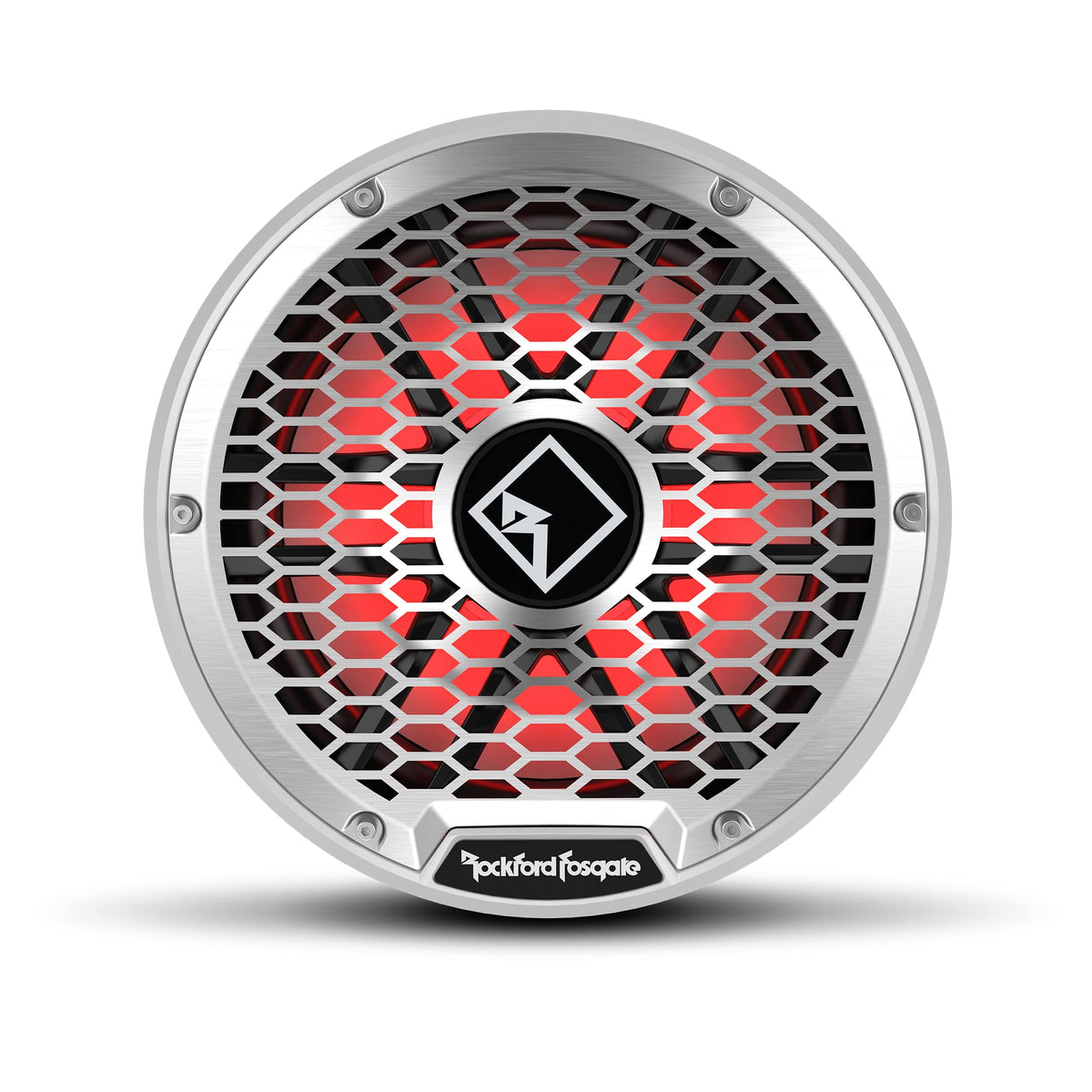

• Interchangeable Grille Inserts: Includes sport and stainless-steel styling options for a coordinated appearance.

Design & Installation

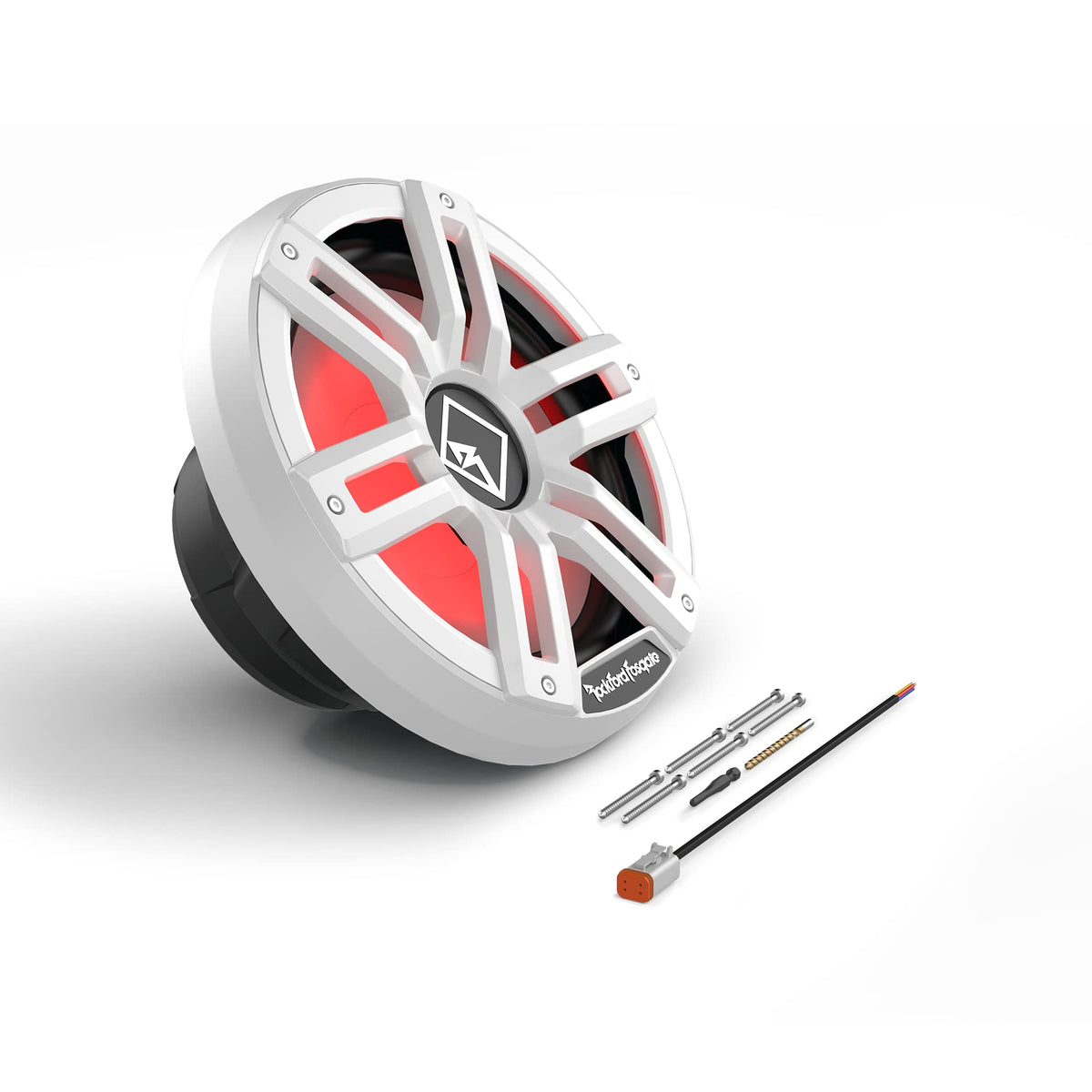

The M2D2-12I uses an injection-molded polypropylene cone, rubber surround, high-temperature aluminum voice coil, and double-stacked magnet structure. Its white UV-stable ASA frame and grille system are designed for marine exposure, while the removable two-piece grille accepts either sport or stainless-steel inserts. The subwoofer includes a grille/trim ring assembly and uses stainless mounting hardware.

Install this model in an infinite-baffle location with a mounting baffle that separates the front and rear wave paths to prevent acoustic cancellation. The manufacturer specifies an 11-inch cutout diameter and 5.13-inch mounting depth; verify panel clearance before cutting. Use a compatible amplifier, set the VersaSwitch for the intended impedance load, and use an active 80-100 Hz low-pass crossover plus an infrasonic filter at or above the subwoofer's resonant frequency for infinite-baffle use.
