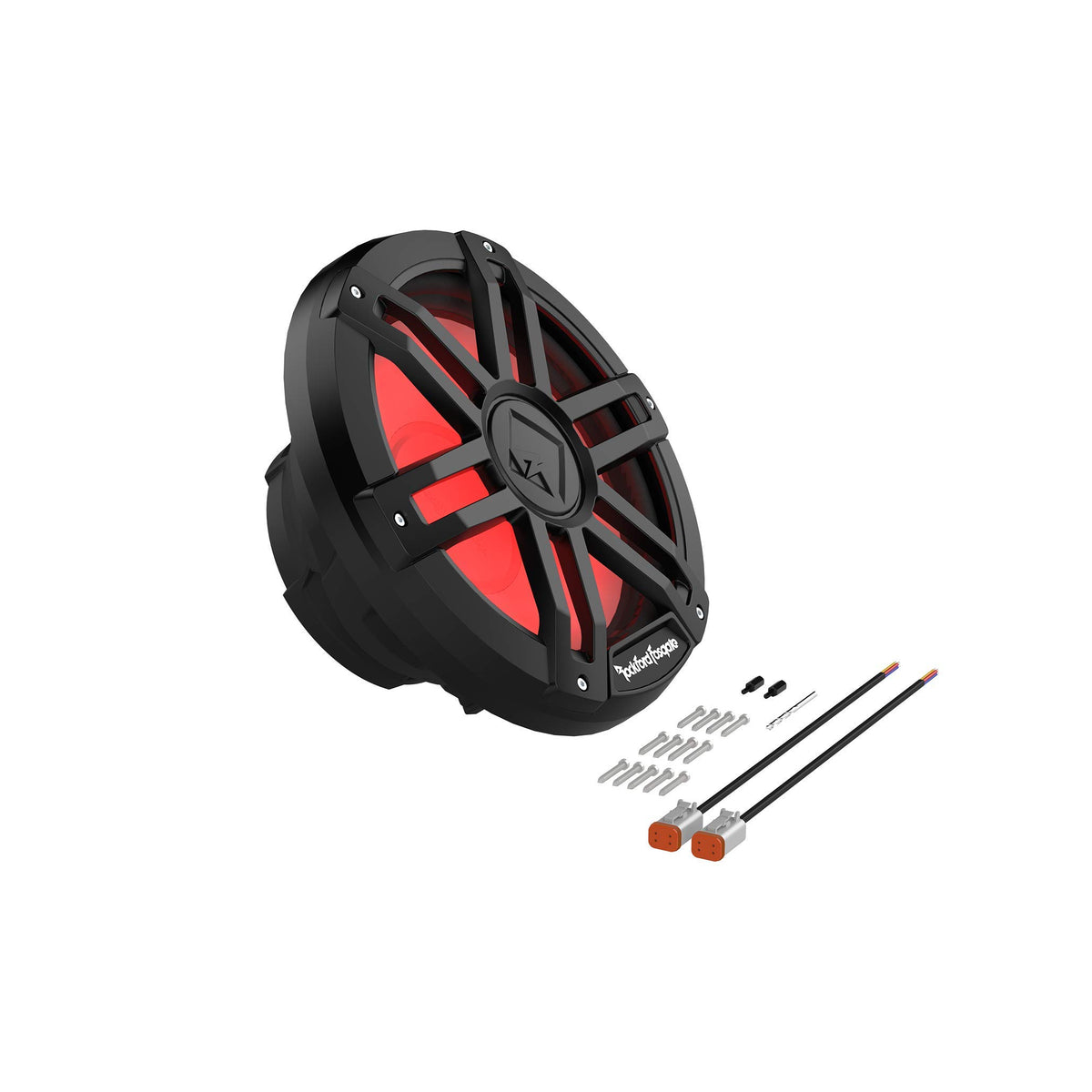

Rockford Fosgate M1D4-12B 12" RGB LED Marine Subwoofer

The Rockford Fosgate M1D4-12B is a 12-inch marine subwoofer designed to add low-frequency output to boat and powersports audio systems. Its dual 4-ohm voice-coil design uses a built-in VersaSwitch to select a 2-ohm or 8-ohm final impedance without rewiring the voice coils. The black grille and integrated RGB lighting give it a coordinated appearance in compatible Color Optix systems.

This subwoofer is intended for listeners who want dedicated bass in an open-air environment where engine, wind, and water noise can compete with music. It is rated for 300 watts RMS and 1,200 watts peak power, making amplifier matching straightforward around its continuous RMS rating. With 92 dB sensitivity and a 27 Hz free-air resonance, it is engineered for substantial low-end support in an appropriately designed enclosure.

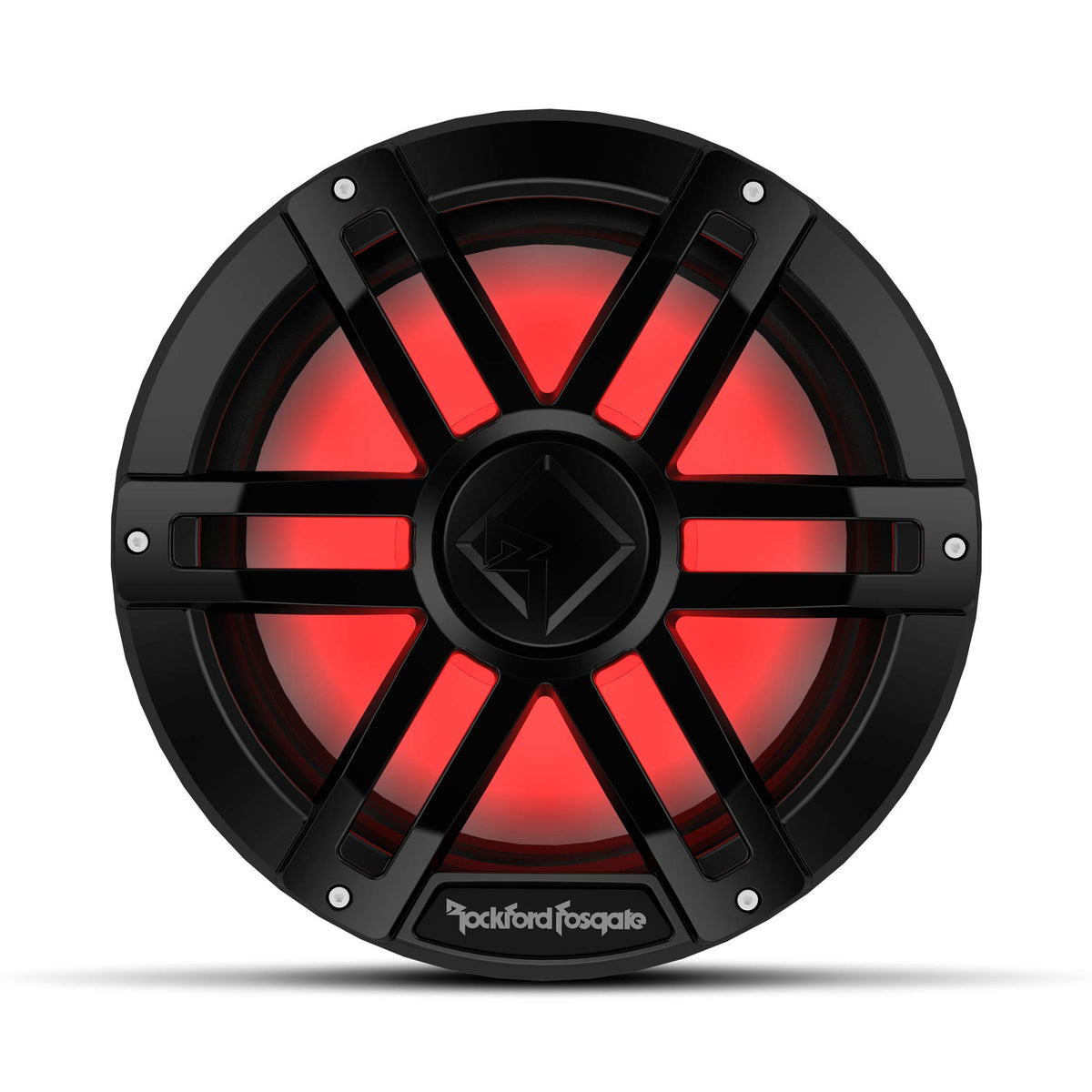

Color Optix RGB LEDs are integrated into the subwoofer and can be controlled through the separately sold Rockford Fosgate PMX-RGB controller and RF Connect app. The lighting uses integrated Deutsch and Amphenol-style connectivity to support plug-and-play system wiring. This makes the M1D4-12B a practical fit for marine installations that combine audio performance with coordinated accent lighting.

Its Element Ready construction is built for marine and motorsports use, with IP67 certification for environmental protection. UV-stable ASA frame and grille components, a mineral-filled polypropylene cone with UV inhibitors, and corrosion-resistant marine-grade terminals support use in exposed installations. A vented motor uses a water-repelling nano-coated mesh screen to help protect the driver assembly.

The M1D4-12B can be used in sealed or vented enclosures, with manufacturer-listed target volumes of 1.65 cubic feet sealed and 2.45 cubic feet vented. Its 10.85-inch cutout and 6.65-inch mounting depth should be checked against the available mounting surface and enclosure clearance before installation. Pair it with a compatible marine amplifier and a Color Optix controller when both bass output and adjustable RGB lighting are desired.

Key Features

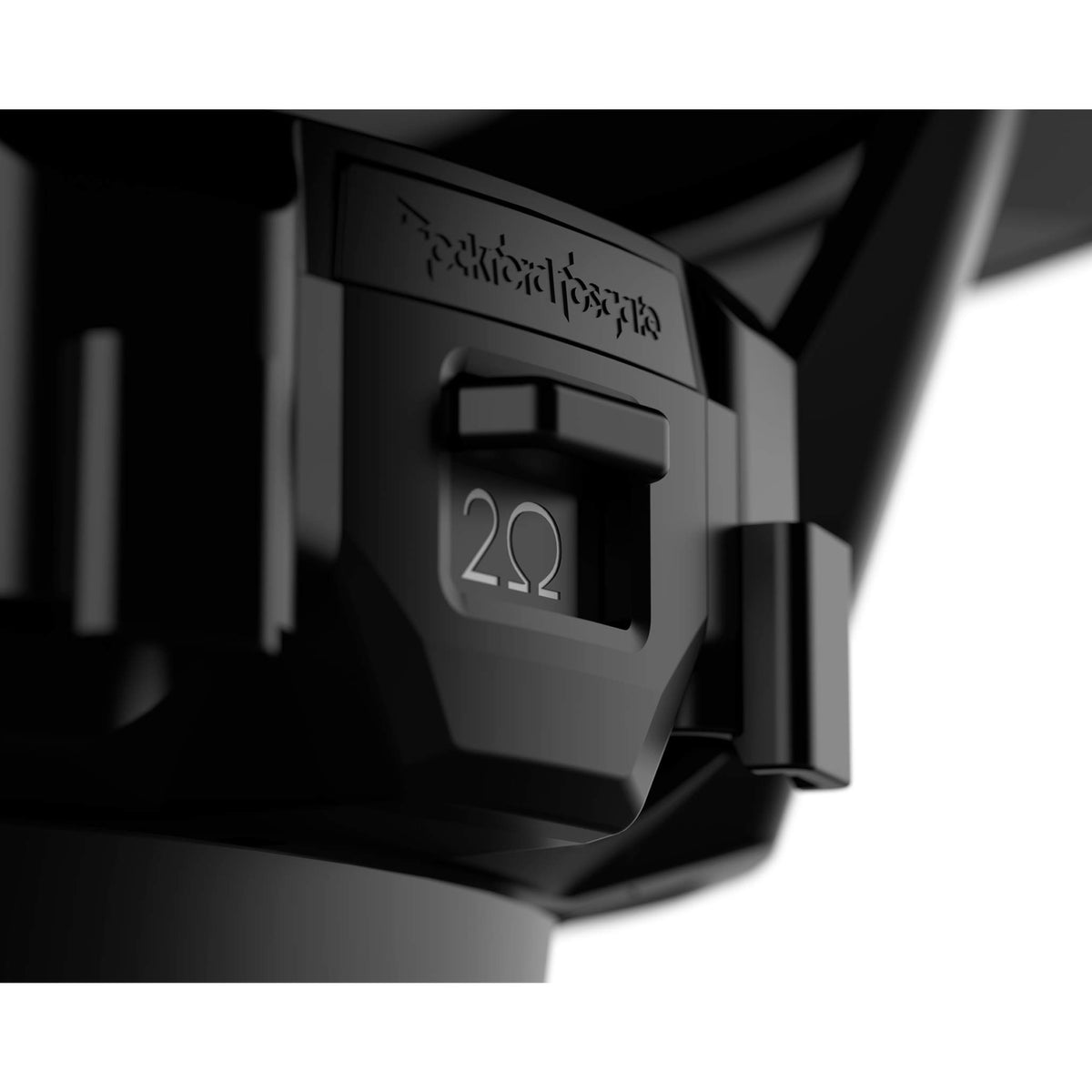

• VersaSwitch Impedance Selection: Selects a 2-ohm or 8-ohm load without conventional series or parallel voice-coil wiring.
• 300 Watts RMS Handling: Supports amplifier matching around a 300-watt continuous power rating.
• Color Optix RGB Lighting: Provides integrated multicolor illumination when connected to a compatible controller.
• IP67 Element Ready Design: Adds protection for marine and motorsports environments exposed to water, salt, and UV.
• VAST Surround Technology: Increases effective cone area for improved low-frequency radiating area.
• Integrated Marine Connectors: Deutsch and Amphenol-style connections simplify compatible speaker and lighting wiring.

Design & Installation

The M1D4-12B uses a co-molded Santoprene VAST surround and mineral-filled polypropylene cone body, along with a 2-inch high-temperature Kapton voice-coil former. Its frame and grille are made from UV-stable ASA plastic, while the terminals are zinc nickel-plated marine-grade brass. Fully insulated silicone tinsel leads, linear synthetic fiber blend spiders, and a vented motor with nano-coated mesh support long-term use in demanding environments.

Plan for a 10.85-inch mounting cutout and 6.65 inches of mounting depth, then select a sealed or vented enclosure suited to the installation. The built-in VersaSwitch lets the installer set a 2-ohm or 8-ohm load; verify that the connected amplifier is stable at the selected impedance. RGB lighting requires a compatible PMX-RGB controller and RF Connect app for app-based Color Optix control, while a minimum 20-gauge wire is recommended for hard-wired Color Optix lighting connections.
