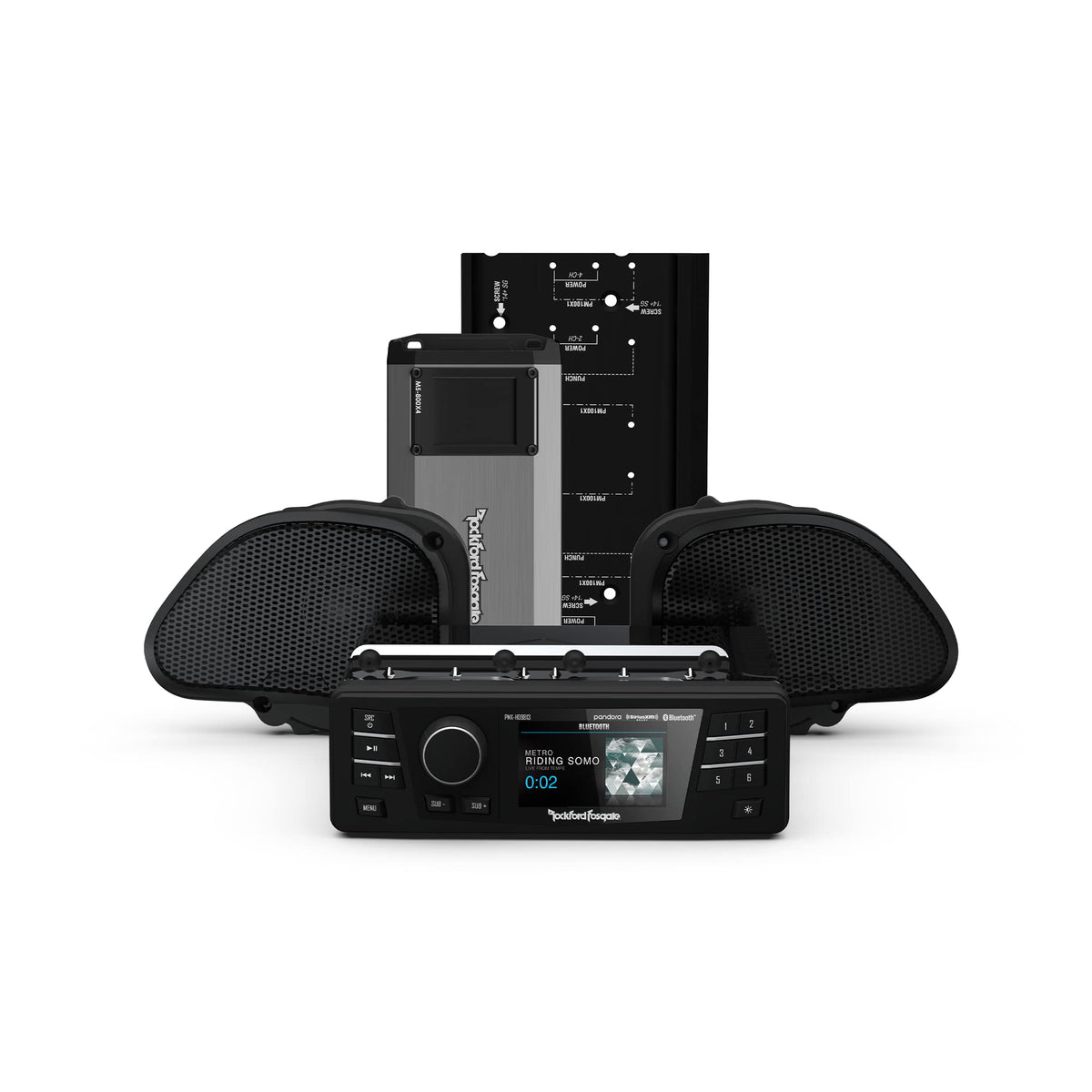

Rockford Fosgate HD9813RG-PMX-STG2 6.5" Road Glide Audio Kit

The Rockford Fosgate HD9813RG-PMX-STG2 is a complete amplified audio upgrade for select 1998-2013 Harley-Davidson Road Glide motorcycles. It combines a direct-replacement digital media receiver, a pair of 6.5-inch fairing speakers, a four-channel amplifier, and model-specific installation hardware. The system is intended for riders replacing the factory radio and adding amplified front audio in one coordinated package.

The included PMX-HD9813 receiver provides Bluetooth streaming, USB playback and charging, AUX input, AM/FM radio, Pandora control, and SiriusXM readiness with the required SXV300 tuner. Its 3-inch color TFT display has day and night modes, while oversized controls are designed for use on a motorcycle. The receiver also retains factory thumb-control functionality when installed with the factory harness and connectors.

Two TMS6RG 6.5-inch, two-way fairing speakers provide the front sound stage for Road Glide applications. Each speaker uses a phase-aligned 25 mm tweeter and is rated for 75 watts RMS. Their 65 Hz-20 kHz frequency response and 91 dB sensitivity support clear midrange and treble output in an open-air riding environment.

The M5-800X4 external amplifier supplies four channels of amplification and is rated at 100 watts RMS per channel at either 4 or 2 ohms under CTA-2006 continuous-power specifications. Its IPX6 water-intrusion rating, Class AD topology, selectable crossover controls, and C.L.E.A.N. clip indicators support use in exposed motorcycle installations. Two unused amplifier channels can support a later compatible speaker expansion when installed with the appropriate accessories.

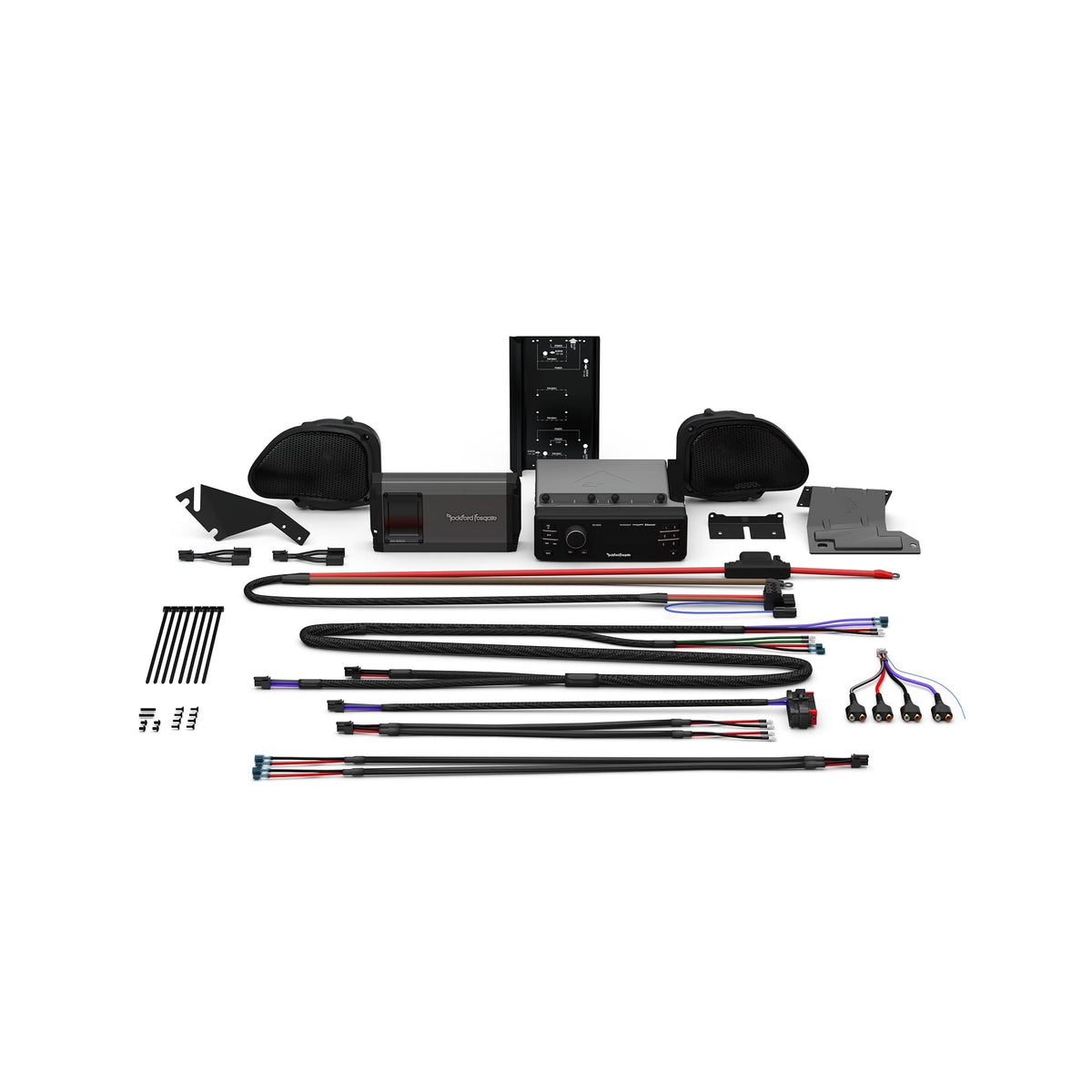

The included RFK-HD9813M5 installation kit is made for installing the M5-800X4 on select 1998-2013 Harley-Davidson applications. It supplies the mounting and plug-and-play wiring provisions needed for this system, including Y-adapters for compatible lower-fairing, saddlebag, or Tour-Pak speaker expansion. Confirm motorcycle fitment and factory-equipment compatibility before ordering.

Key Features

• Complete Stage 2 System: Combines a receiver, front speakers, amplifier, and installation kit in one package.
• PMX-HD9813 Receiver: Replaces the factory radio on select 1998-2013 Harley-Davidson motorcycles.
• Bluetooth Audio Streaming: Supports A2DP and AVRCP Bluetooth connectivity for compatible devices.
• 6.5-Inch TMS6RG Speakers: Two-way fairing speakers include Road Glide-specific grilles and 25 mm tweeters.
• M5-800X4 Amplifier: Four-channel, IPX6-rated amplifier provides amplified speaker power and future expansion capability.
• Vehicle-Specific Wiring: RFK-HD9813M5 hardware and harnessing support an OEM-style installation path.

Design & Installation

The system uses motorcycle-oriented components designed for outdoor exposure and vibration. The PMX-HD9813 receiver is rated IPX4 for water intrusion, while the M5-800X4 amplifier is rated IPX6. The TMS6RG speakers include Road Glide-specific grilles, and the amplifier uses protected connections and an Element Ready design.

This kit is intended for select 1998-2013 Road Glide FLTR models and the 2012 Road Glide Custom FLTRX. Installation uses factory attachment points and direct-connect harnessing, with no drilling or cutting specified for the kit. Disconnect the battery before installation, verify compatibility with factory equipment, and follow the supplied tuning guidance after installation.
