Rockford Fosgate HD14-PMX-STG2 Harley Audio Kit

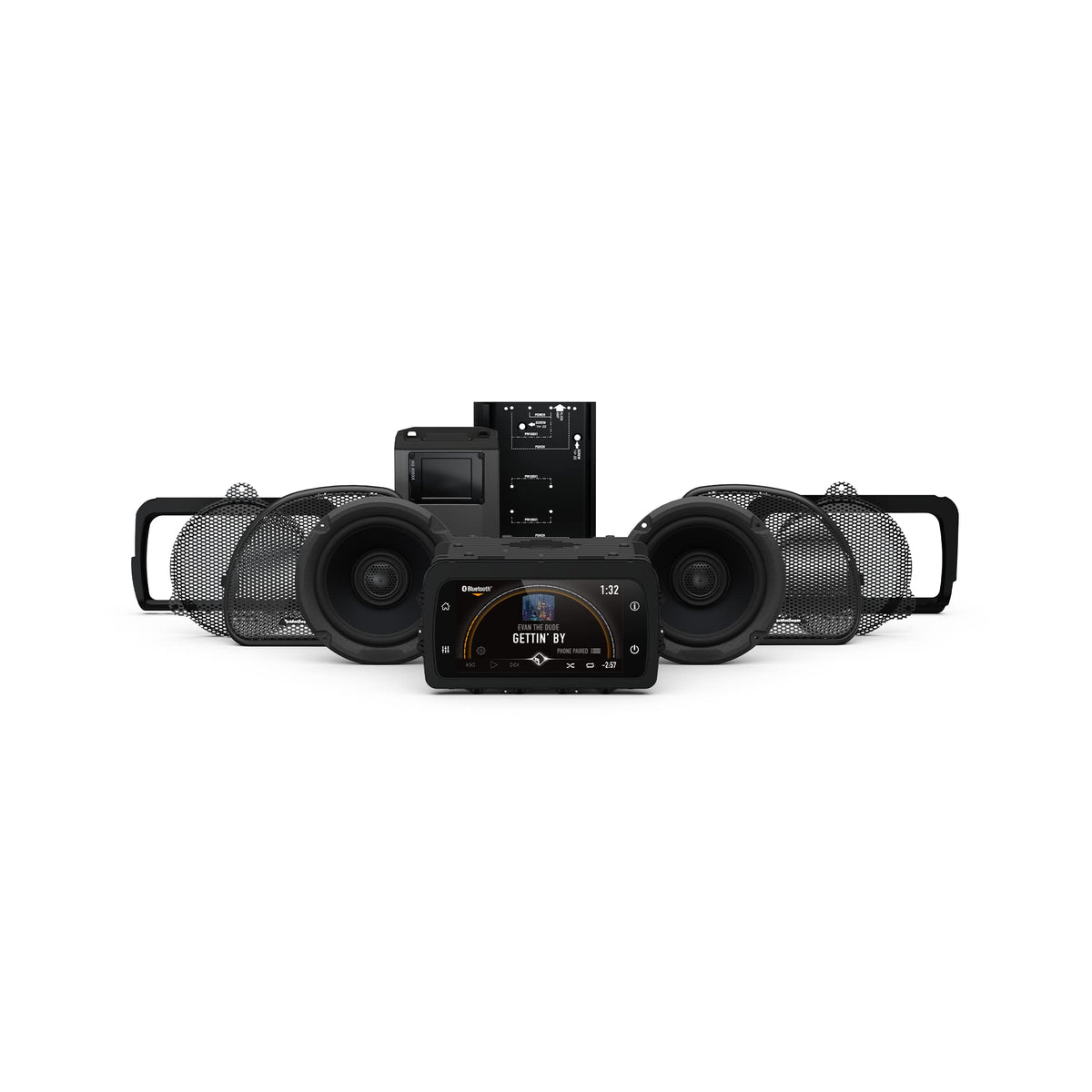

The Rockford Fosgate HD14-PMX-STG2 is a complete Stage-2 infotainment and amplified audio upgrade for select 2014-2023 Harley-Davidson Street Glide and Road Glide motorcycles. It combines a direct-replacement PMX-HD14 digital media receiver, a pair of 6.5-inch fairing speakers, an external four-channel amplifier, and a model-specific installation kit. The system is intended for riders replacing factory audio with a more capable, integrated on-bike solution.

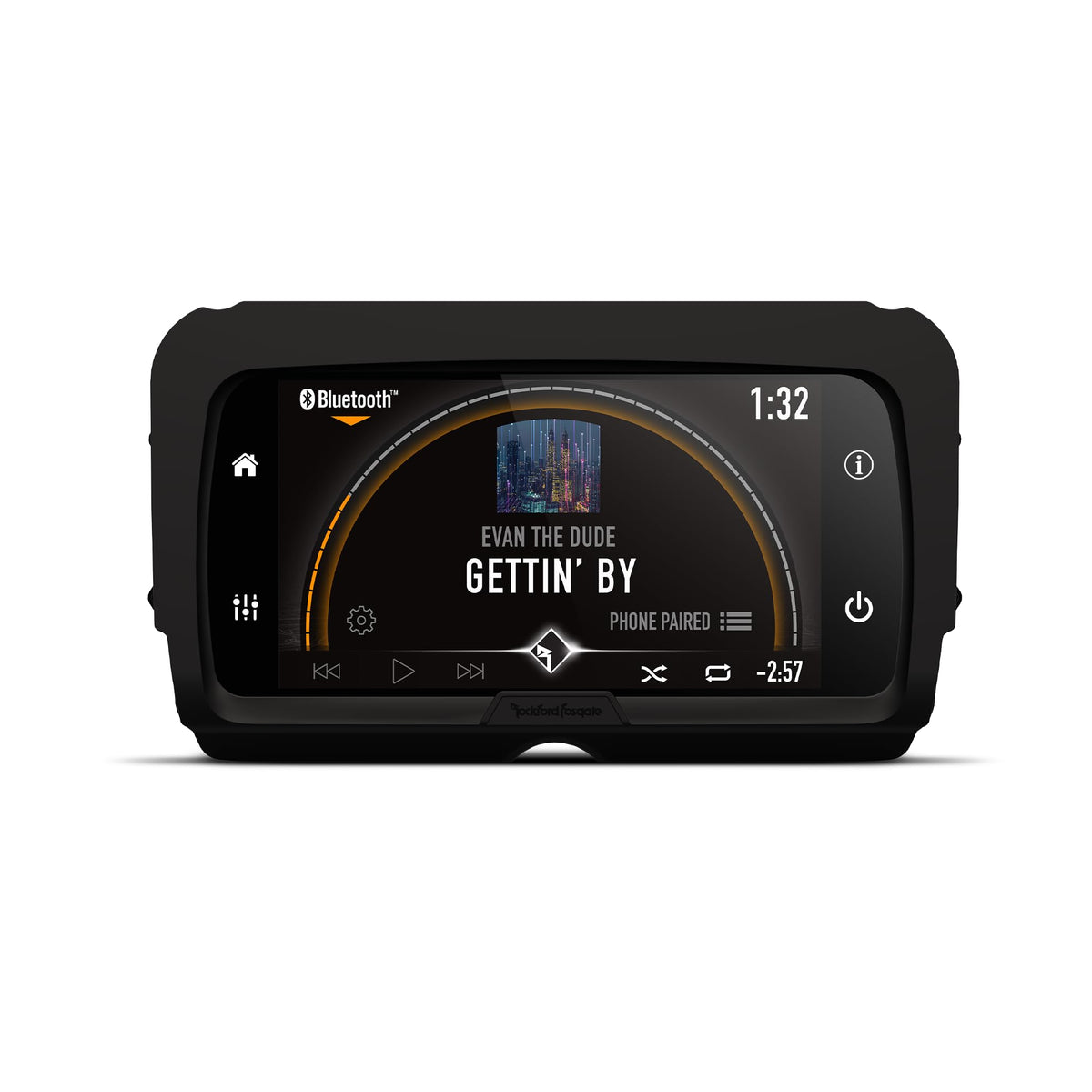

The PMX-HD14 source unit replaces the factory radio in compatible motorcycles while retaining factory thumb-control functionality. Its 7-inch color TFT touchscreen supports Apple CarPlay, Bluetooth audio streaming, AM/FM radio, USB playback, auxiliary input, and SiriusXM readiness with the required tuner. The display is designed for day and night use and can be operated with riding gloves.

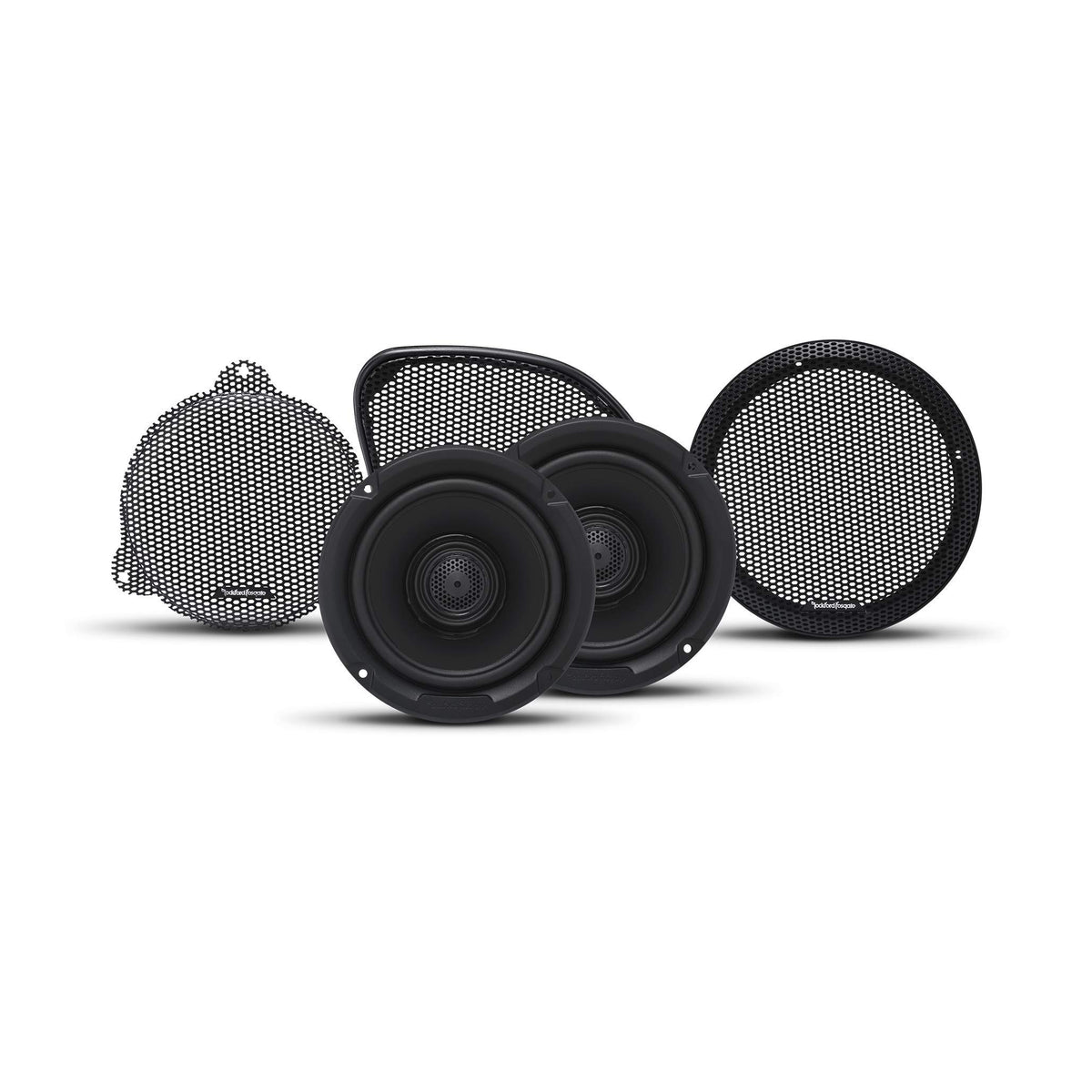

Two TMS65 6.5-inch two-way fairing speakers provide the front-stage sound in this package. Each speaker uses an integrated, phase-aligned 25 mm tweeter and is designed as a direct replacement for compatible factory fairing speaker locations. Their Element Ready construction is intended for the weather, vibration, and operating conditions associated with motorcycle use.

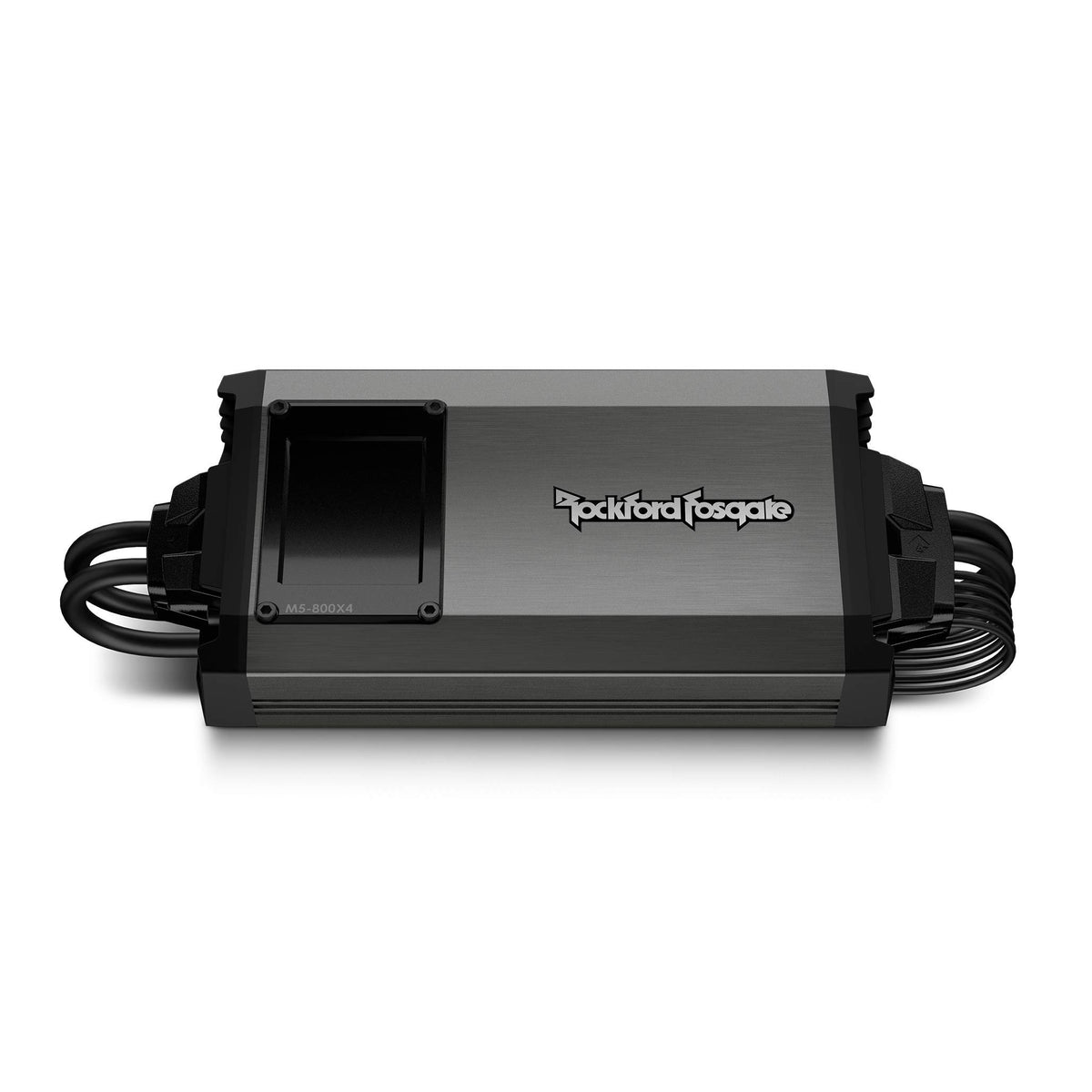

The included M5-800X4 is an IPX6-rated, four-channel Class-AD amplifier with 800 watts of maximum power handling. It delivers 100 watts RMS per channel at either 2 or 4 ohms, allowing channels to power the supplied front speakers while preserving expansion capability for compatible rear-speaker upgrades. Variable high-pass and low-pass filters, Punch EQ, and C.L.E.A.N. setup indicators support system tuning.

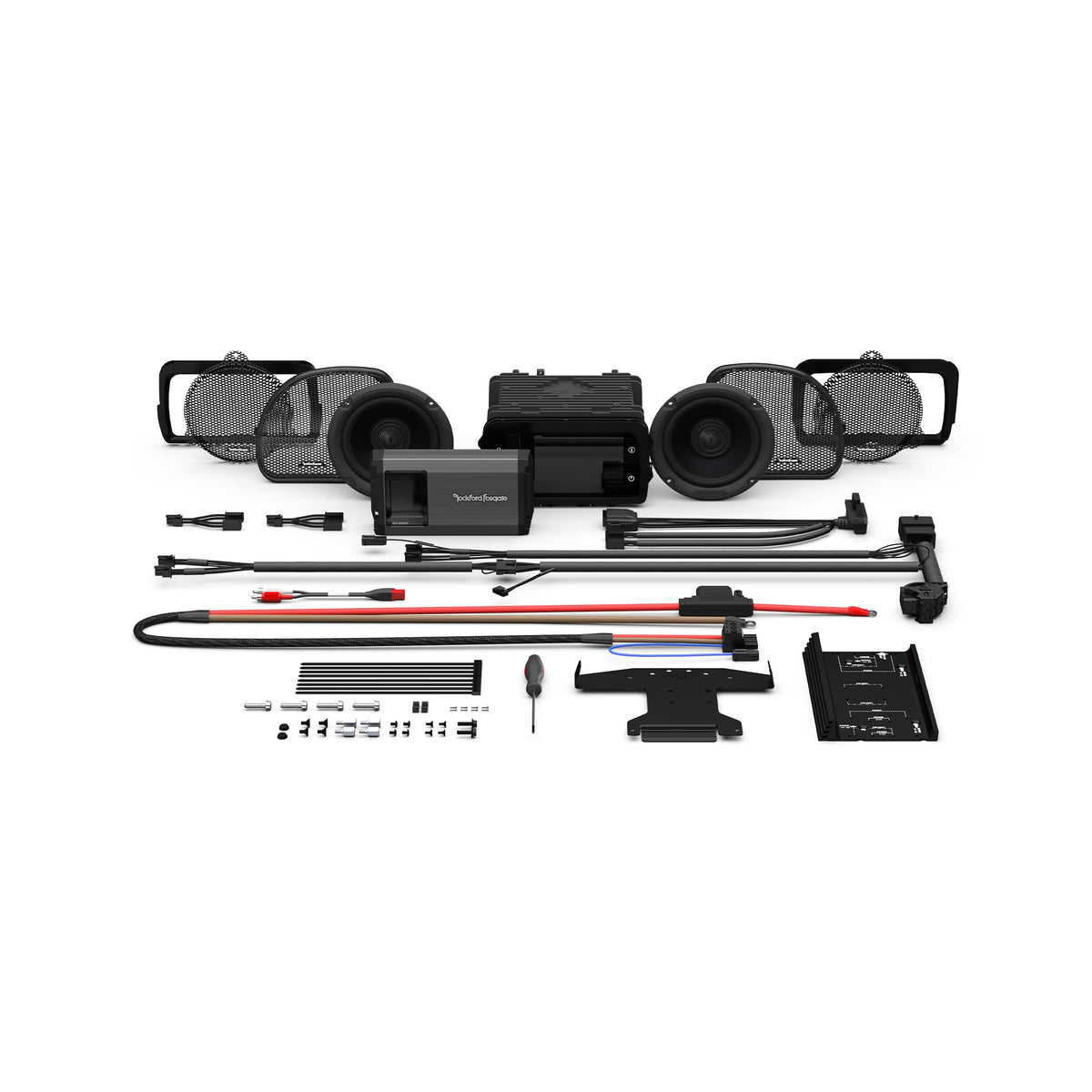

Rockford Fosgate includes the RFK-HD14M5 installation kit to integrate the amplifier with compatible 2014-and-newer Harley-Davidson models. The kit uses direct-connect harnesses, factory attachment points, and includes grilles for Street Glide and Road Glide applications. It can also serve as a foundation for later system expansion with compatible saddlebag, lower-fairing, Tour-Pak, or subwoofer upgrades.

Key Features

• Complete Stage-2 Package: Includes receiver, speakers, amplifier, grilles, and installation hardware.
• PMX-HD14 Receiver: Adds Apple CarPlay, Bluetooth, USB, radio, and touchscreen control.
• 6.5-Inch Fairing Speakers: TMS65 two-way speakers fit compatible factory fairing locations.
• Four-Channel Amplifier: M5-800X4 provides four amplified channels for system expansion.
• Element Ready Components: Speakers and amplifier are built for outdoor motorcycle environments.
• Direct-Connect Harnessing: Model-specific wiring reduces the need for custom vehicle wiring.

Design & Installation

The system is built around motorcycle-specific components rather than universal car-audio parts. The M5-800X4 amplifier has an IPX6 water-intrusion rating, conformal-coated circuit boards, and a die-cast aluminum heatsink, while the TMS65 speakers are Element Ready designs. Included trim grilles provide Street Glide, Road Glide, and Tour-Pak grille options.

Confirm motorcycle fitment before ordering, especially if the motorcycle has factory amplified audio, special-edition equipment, or a no-radio configuration. The PMX-HD14 installs as a direct-replacement source unit on compatible motorcycles, while the RFK-HD14M5 kit supplies the amplifier bracket, heatsink, T-harness, power harness, output harnesses, adapters, and bypass plugs. Use the supplied harnessing and follow Rockford Fosgate installation and tuning instructions; front/rear fader operation may require the specified radio flash.
