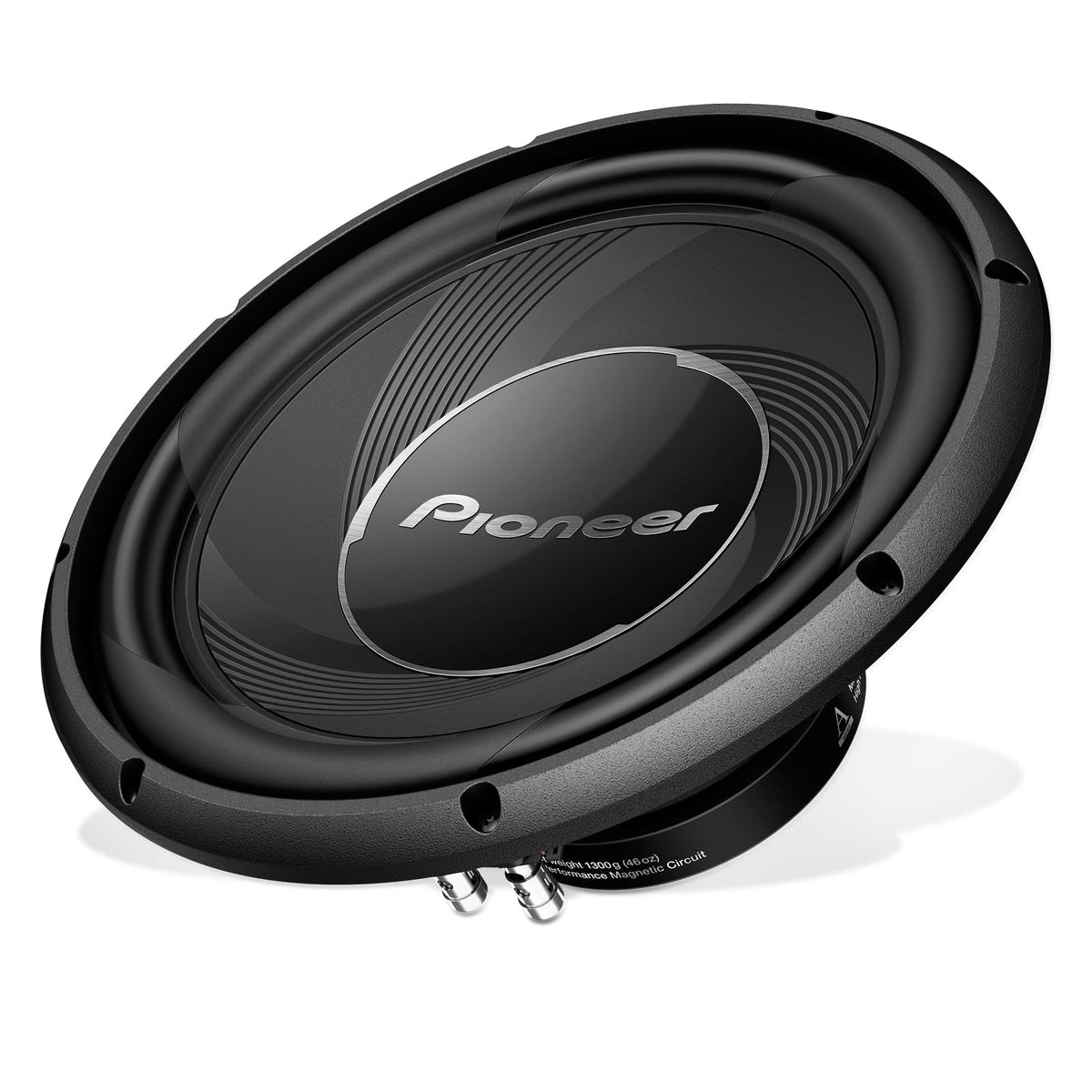

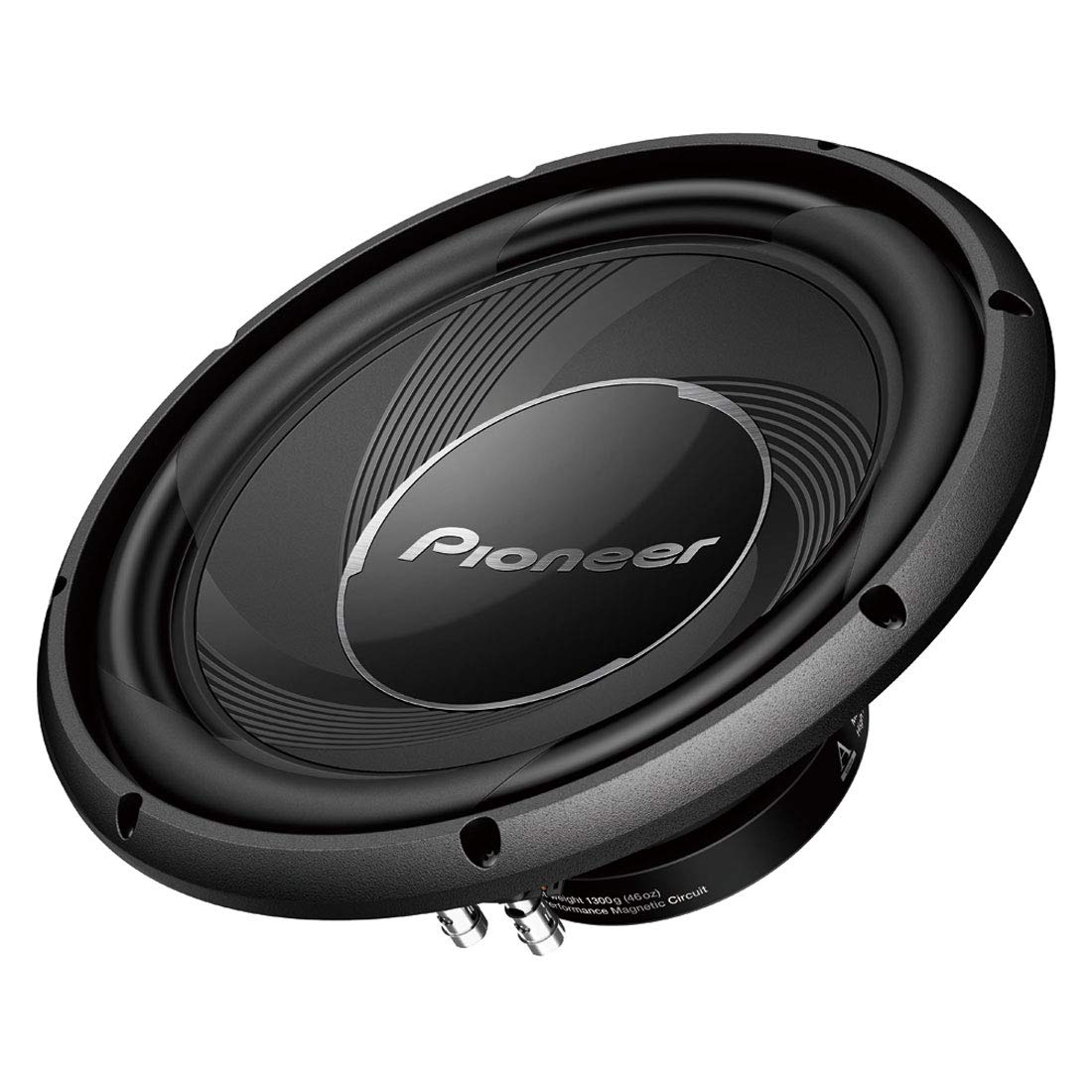

Pioneer TS-A30S4 12" Component Subwoofer

The Pioneer TS-A30S4 is a 12-inch passive component subwoofer designed to add dedicated low-frequency output to a car audio system. It is intended for listeners who want more bass presence than factory speakers or full-range aftermarket speakers can provide on their own. Because it is a passive subwoofer, it requires a separate compatible external amplifier and enclosure.

With 400 watts RMS power handling and 1,400 watts maximum power handling, the TS-A30S4 is suited to systems built around a properly matched mono or bridged amplifier. Its single 4-ohm voice coil provides a straightforward load for compatible amplification. The 87 dB sensitivity rating and 22 Hz to 1.6 kHz frequency range support use as a dedicated bass driver.

The woofer uses Pioneer’s glass-fiber and mica-reinforced injection-molded polypropylene cone. This rigid composite cone is paired with an elastic polymer/butyl-rubber surround and a polycotton spider assembly. Together, these components are designed to support controlled cone movement during bass playback.

The TS-A30S4 is part of Pioneer’s A-Series range and can be paired with A-Series full-range speakers as part of a coordinated vehicle upgrade. It provides the low-end foundation while the main speakers handle midrange and high-frequency detail. An amplifier with appropriate crossover settings helps direct bass frequencies to the subwoofer.

Installation flexibility comes from support for sealed or vented enclosures. Pioneer specifies a 1.25 cubic foot sealed enclosure or a 1.5 cubic foot vented enclosure, allowing the system to be tailored for available space and enclosure preference. Confirm cutout, mounting depth, enclosure volume, and amplifier compatibility before installation.

Key Features

• 12-Inch Component Subwoofer: Adds dedicated bass output to a custom car audio system.
• 400W RMS Handling: Supports amplifier matching around its continuous power rating.
• Single 4-Ohm Voice Coil: Provides straightforward wiring with compatible external amplifiers.
• IMPP Composite Cone: Uses glass-fiber and mica-reinforced polypropylene construction.
• 22 Hz–1.6 kHz Range: Covers low bass through upper bass frequencies.
• Sealed Or Vented Compatibility: Supports manufacturer-specified enclosure options for system planning.

Design & Installation

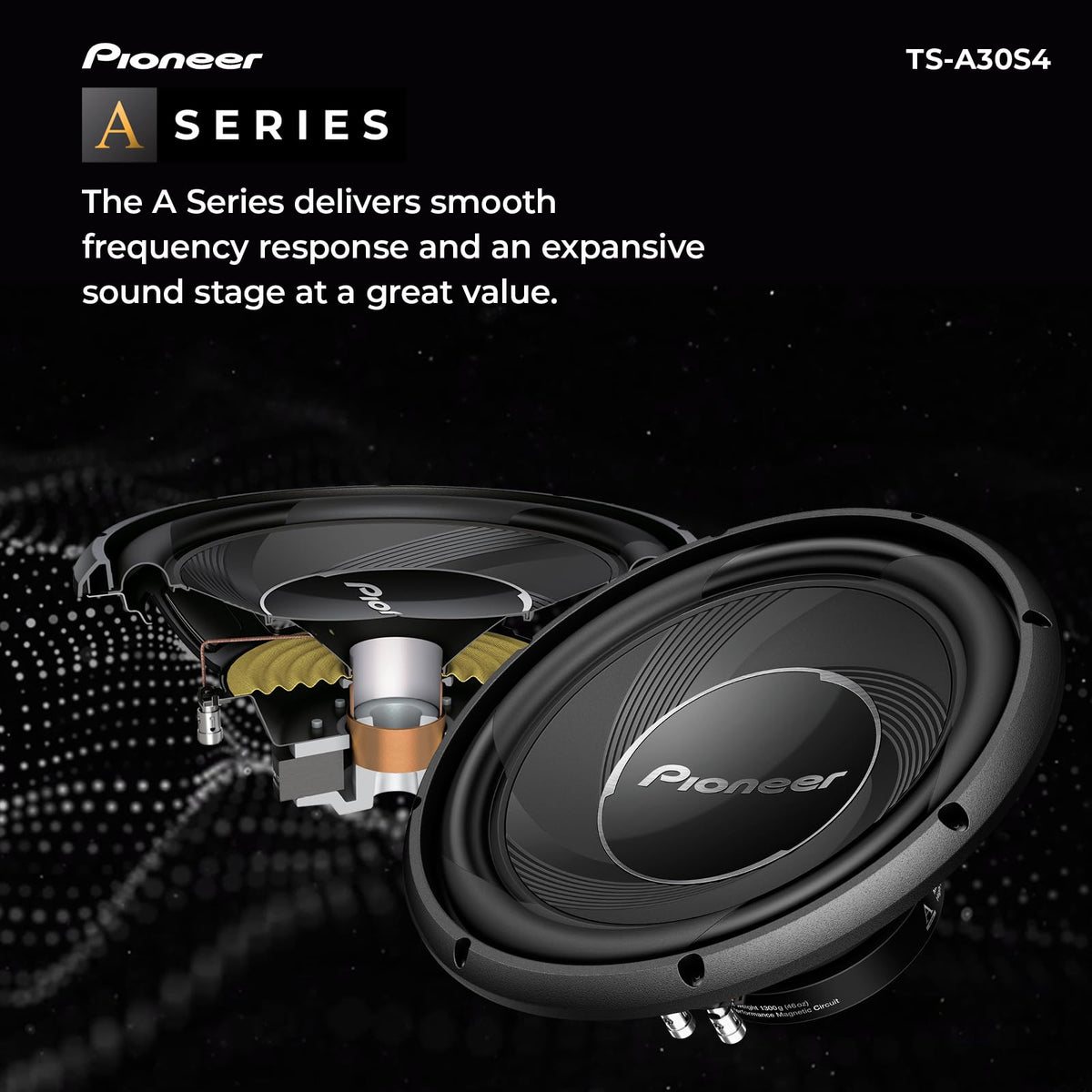

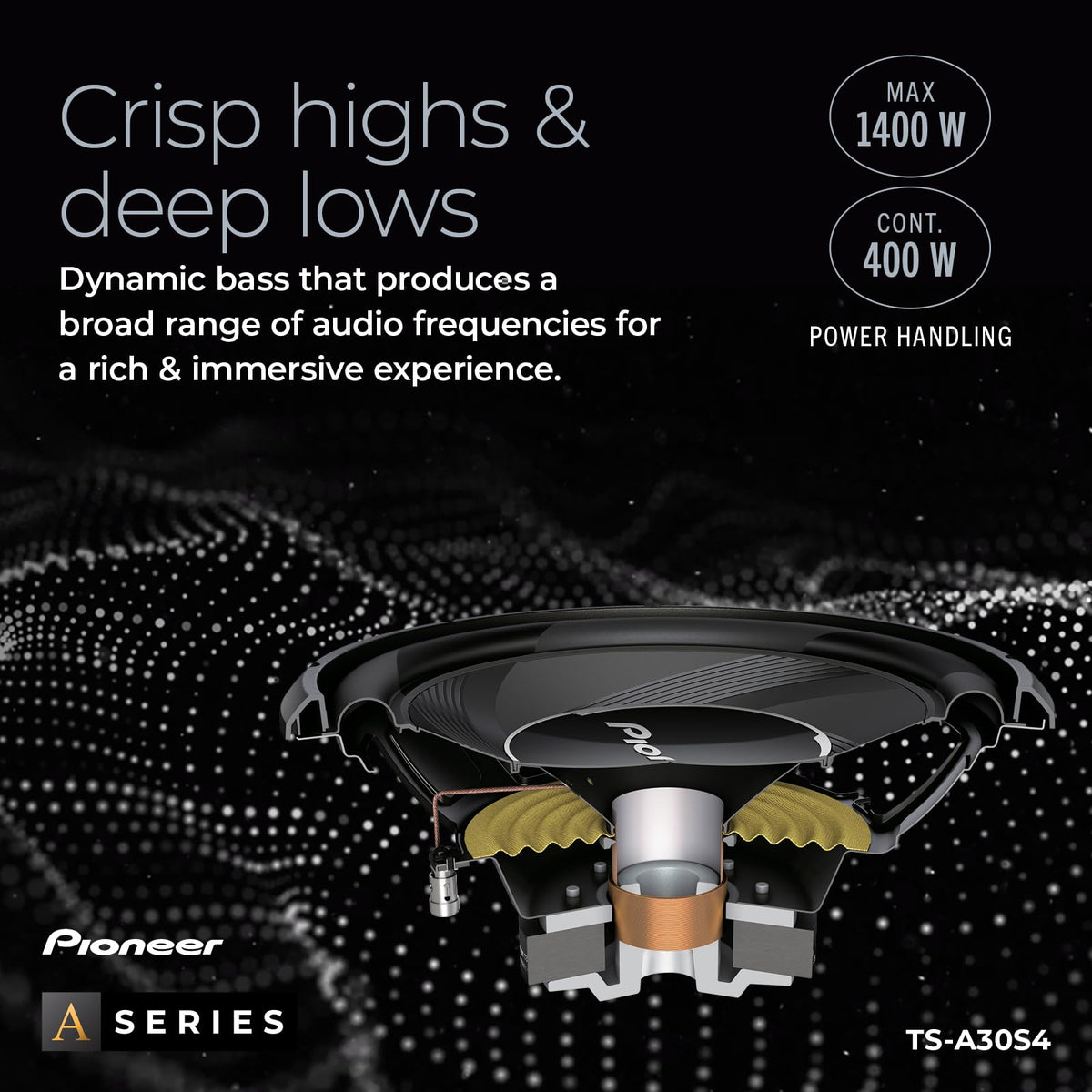

The TS-A30S4 combines a glass-fiber and mica-reinforced IMPP cone with a ferrite magnet, elastic polymer/butyl-rubber surround, and polycotton spider. Its single voice coil uses an aluminum bobbin, while push terminals provide the speaker-wire connection. The driver has a 318 mm outside diameter and a 281 mm cutout requirement.

Plan for a 136 mm mounting depth behind the mounting surface and use the supplied gasket when installing the driver. A sealed enclosure of 35.4 L (1.25 cu. ft.) or a vented enclosure of 42.5 L (1.5 cu. ft.) is recommended. Use an external amplifier compatible with a 4-ohm load, set gain carefully, and apply a suitable low-pass crossover for subwoofer duty.
