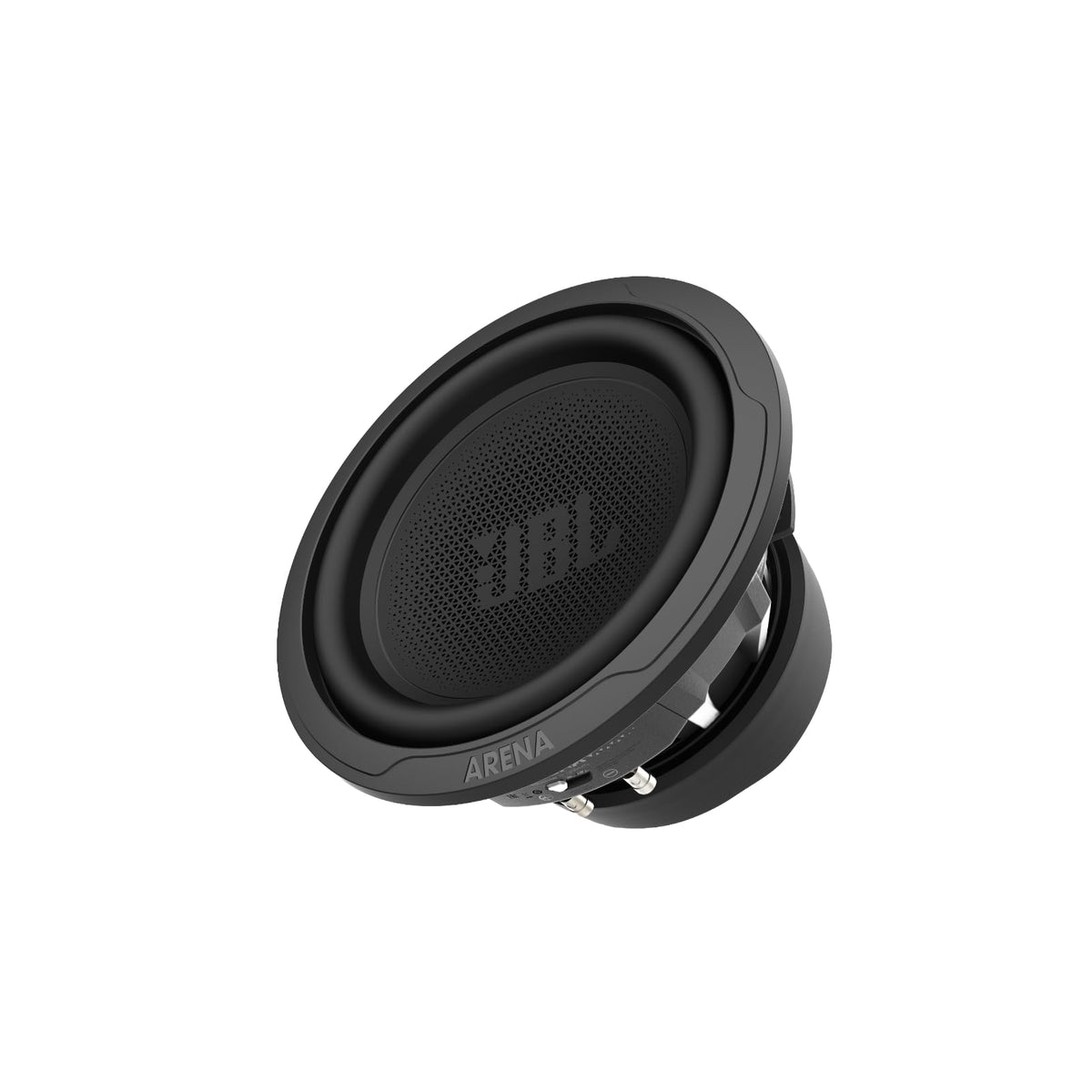

JBL ARENA 12 JBLSUBAR12AM 12" Car Subwoofer

The JBL ARENA 12 is a 12-inch passive automotive subwoofer designed to add dedicated low-frequency output to a car audio system. It is intended for installations where factory speakers or a full-range system need deeper bass extension and greater low-end capacity. An external amplifier and a properly built subwoofer enclosure are required for operation.

Rated for 800 watts RMS and 2,400 watts peak, the ARENA 12 is suited to systems built around a substantial mono or multi-channel amplifier. Its Selectable Smart Impedance (SSI) switch lets the installer select a 2-ohm or 4-ohm nominal load to better match compatible amplifier configurations. This flexibility can help simplify system planning when choosing an amplifier or adding more than one subwoofer.

The subwoofer uses dual 2.5-inch voice coils operating in separate magnetic gaps. JBL's design is intended to maintain cone control as excursion and power demand increase. A progressive spider provides restoring force to support controlled cone movement at higher excursion.

A composite-paper cone and full-edge dust cap combine low mass with rigidity for bass reproduction, while the one-piece NBR surround is designed for environmental stability. The die-cast aluminum basket includes venting and heat-sink fins to support cooling and maintain alignment of the moving assembly. Gold-plated speaker-terminal binding posts provide the connection point for bare speaker wire.

The ARENA 12 can be installed in either a sealed or vented enclosure using JBL's published enclosure guidance. A sealed box is a practical choice where space is limited, while the specified vented alignment is intended for stronger output in the 40 Hz to 60 Hz range. It is a component subwoofer, so it is a fit for custom enclosures and system upgrades rather than a direct replacement for a powered enclosure.

Key Features

• 800-Watt RMS Handling: Supports use with a properly matched external amplifier.
• SSI Impedance Switch: Select 2-ohm or 4-ohm nominal impedance for amplifier matching.
• Dual 2.5-Inch Voice Coils: Uses separate magnetic gaps to help control cone movement.
• Composite-Paper Cone: Combines low mass and rigidity for bass output.
• Vented Die-Cast Basket: Aluminum frame adds rigidity and supports voice-coil cooling.
• NBR One-Piece Surround: Designed for stable performance across changing temperatures.

Design & Installation

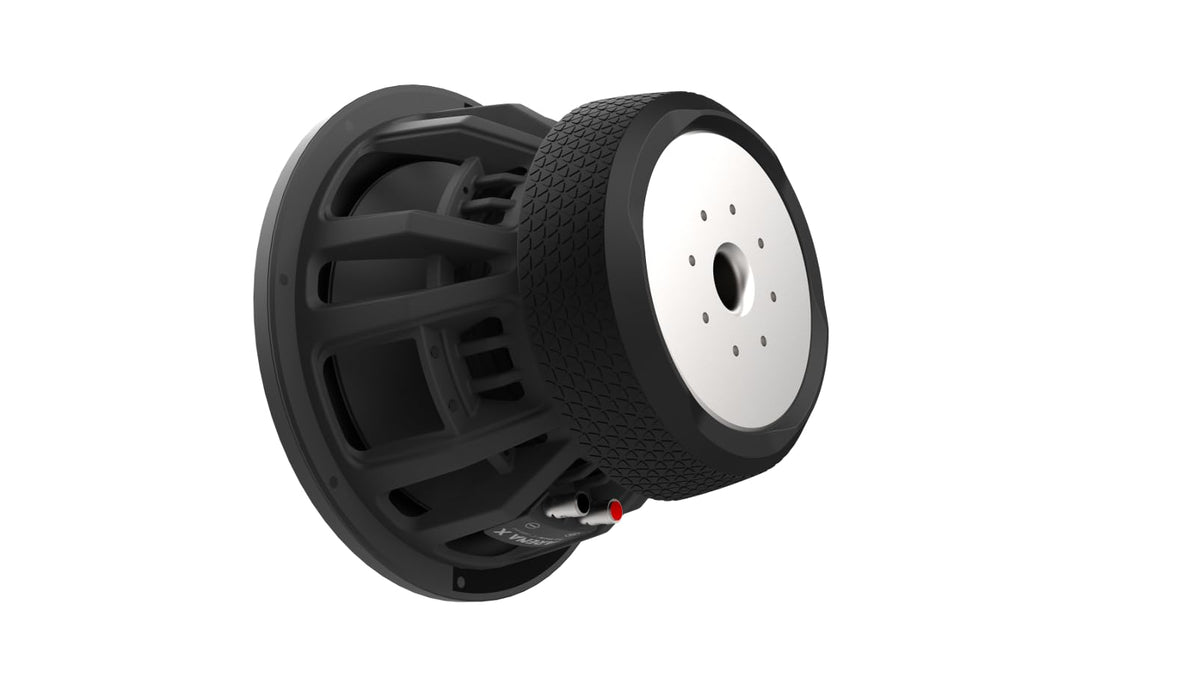

The ARENA 12 combines a die-cast, vented aluminum frame with a composite-paper cone, full-edge dust cap, NBR surround, progressive spider, and vented pole piece. Its 2.5-inch voice coils and 9.0-inch magnet diameter are housed in a 13.0-inch outer-diameter assembly. The subwoofer uses bare-wire-compatible terminals and is supplied with a foam mounting gasket for sealing the frame to the enclosure.

Mount the subwoofer from the outside of a compatible enclosure and allow at least 6.76 inches of mounting depth, with an 11.30-inch cutout. JBL specifies 14 AWG to 8 AWG speaker wire depending on run length, with heavier wire preferred for runs over 6 feet. Follow the selected 2-ohm or 4-ohm SSI setting, amplifier load requirements, enclosure volume, and port dimensions; JBL recommends an electronic infrasonic filter when using a vented enclosure.
