JBL Club 1200SSL 12" Shallow Loaded Subwoofer Enclosure

The JBL Club 1200SSL is a loaded 12-inch shallow subwoofer enclosure designed to add low-frequency output where cargo space is limited. Its low-profile enclosure is suited to vehicle installations that cannot accommodate a conventional full-depth subwoofer box. The enclosure comes loaded and ready to connect to a compatible external amplifier.

This model uses a down-firing sealed enclosure design with a passive radiator and a 12-inch aluminum driver. JBL rates it at 400 watts RMS and 1,200 watts peak power handling at a nominal 2-ohm impedance. The specified frequency response is 30Hz to 400Hz at -6dB.

The down-firing arrangement places the active subwoofer beneath the enclosure, helping protect the driver in everyday cargo-area use. A passive radiator supports bass performance without requiring a large ported enclosure. This approach is intended for listeners who want a compact bass upgrade with controlled, accurate low-frequency reproduction.

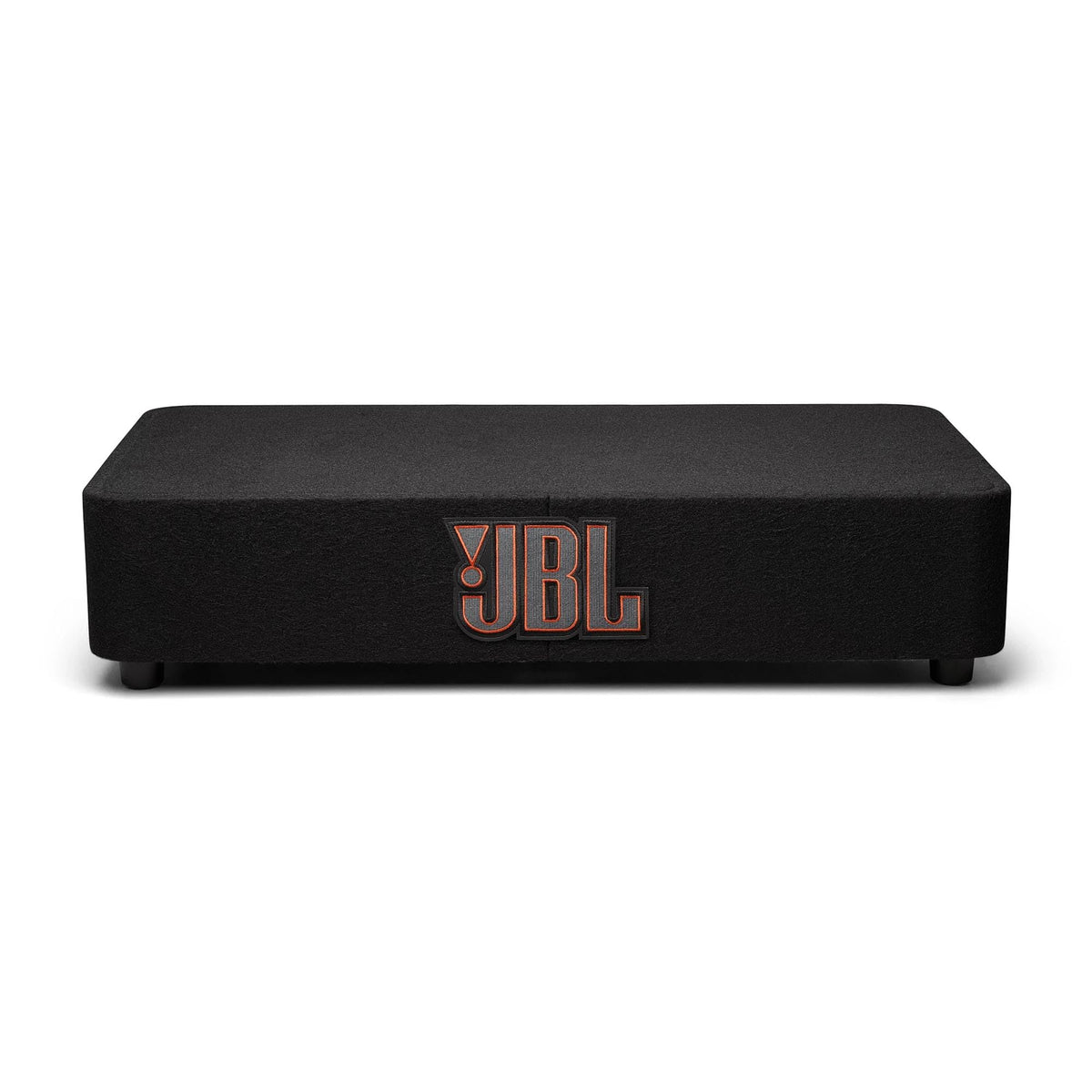

With a height of just 4-7/8 inches, the Club 1200SSL can work in space-conscious vehicle layouts. Removable feet allow the enclosure to be positioned for the available space and preferred orientation. The removable JBL logo badge also gives installers flexibility in how the enclosure is presented after installation.

The Club 1200SSL is a passive subwoofer enclosure, so it should be paired with an amplifier that is compatible with its 2-ohm nominal load and 400-watt RMS rating. It can be used as the bass foundation in an aftermarket audio system alongside a factory or aftermarket head unit and appropriate amplifier integration. JBL specifies at least 4 mm² (11 AWG) speaker wire for connections to the enclosure.

Key Features

• 12-Inch Aluminum Driver: Provides a purpose-built low-frequency driver in a compact loaded enclosure.
• 400W RMS Power Handling: Supports amplifier matching up to its continuous 400-watt RMS rating.
• Down-Firing Sealed Design: Places the active driver under the enclosure for a protected, space-conscious layout.
• Passive Radiator: Supports bass output without the space requirements of a conventional port.

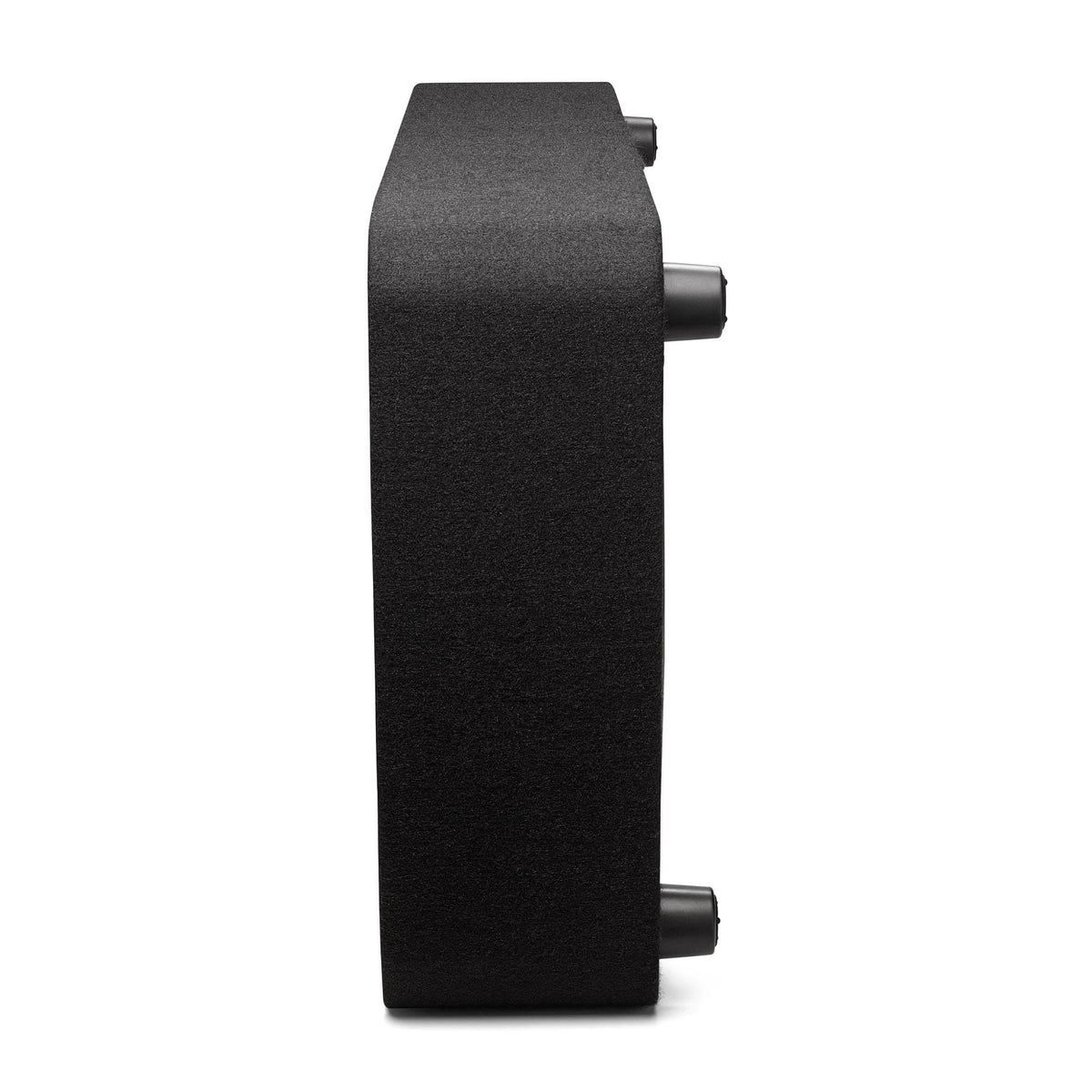

• Removable Feet: Allow flexible placement direction to suit available vehicle space.

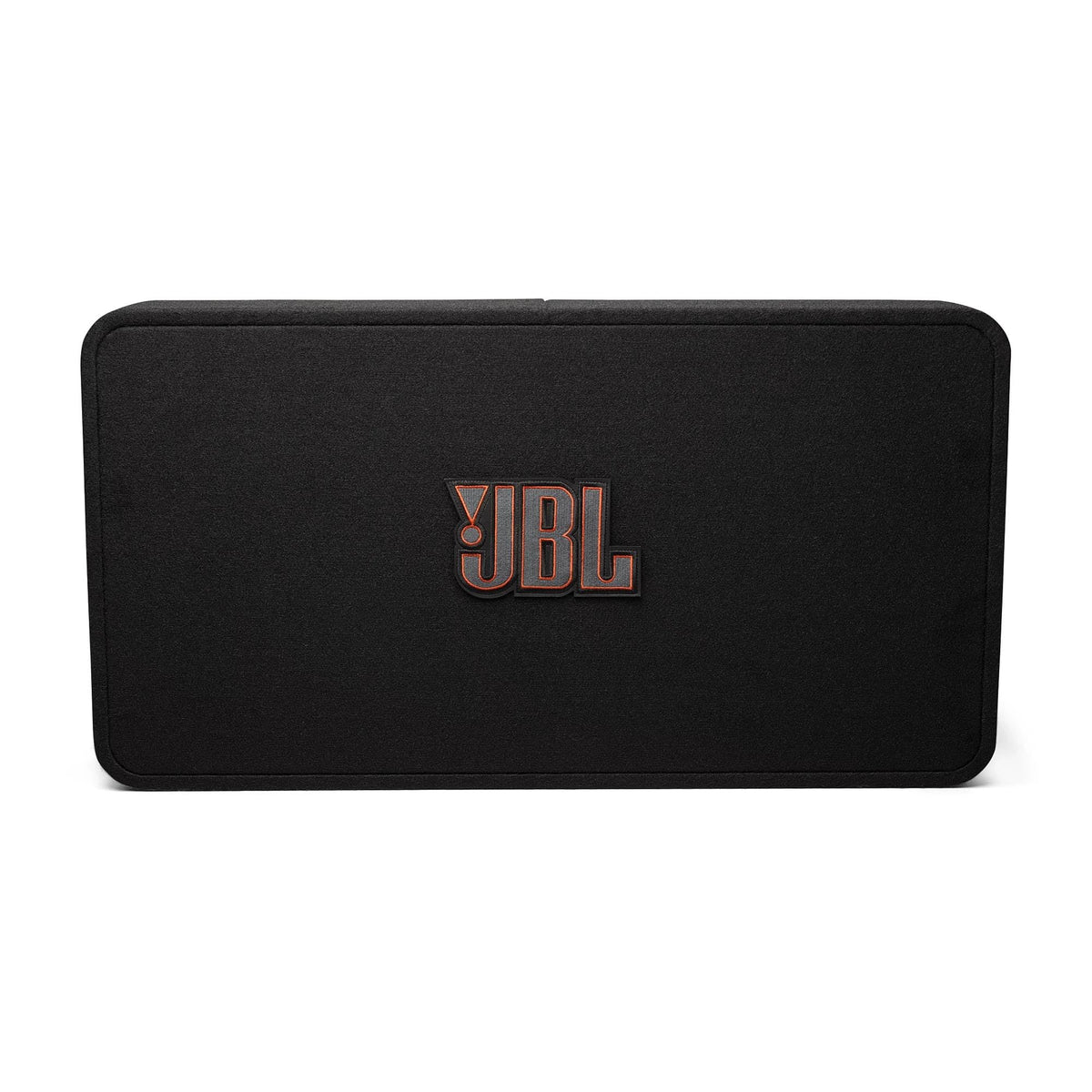

• Removable Logo Badge: Lets installers position the JBL badge where it suits the installation.

Design & Installation

The enclosure is built from 3/4-inch (18mm) medium-density fiberboard with a rugged black carpet covering. Its shallow cabinet measures 27-5/8 inches wide, 14-5/8 inches deep, and 4-7/8 inches high. The down-firing layout, removable feet, and removable logo badge support a clean, adaptable installation.

Connect the enclosure's positive and negative terminals to the speaker outputs of a compatible amplifier, observing correct polarity. JBL specifies speaker wire of at least 4 mm² (11 AWG) for enclosure connections. Secure the enclosure to a suitable mounting surface in a cargo or trunk area that does not interfere with cargo, fold-down seats, or trunk-lid operation.
