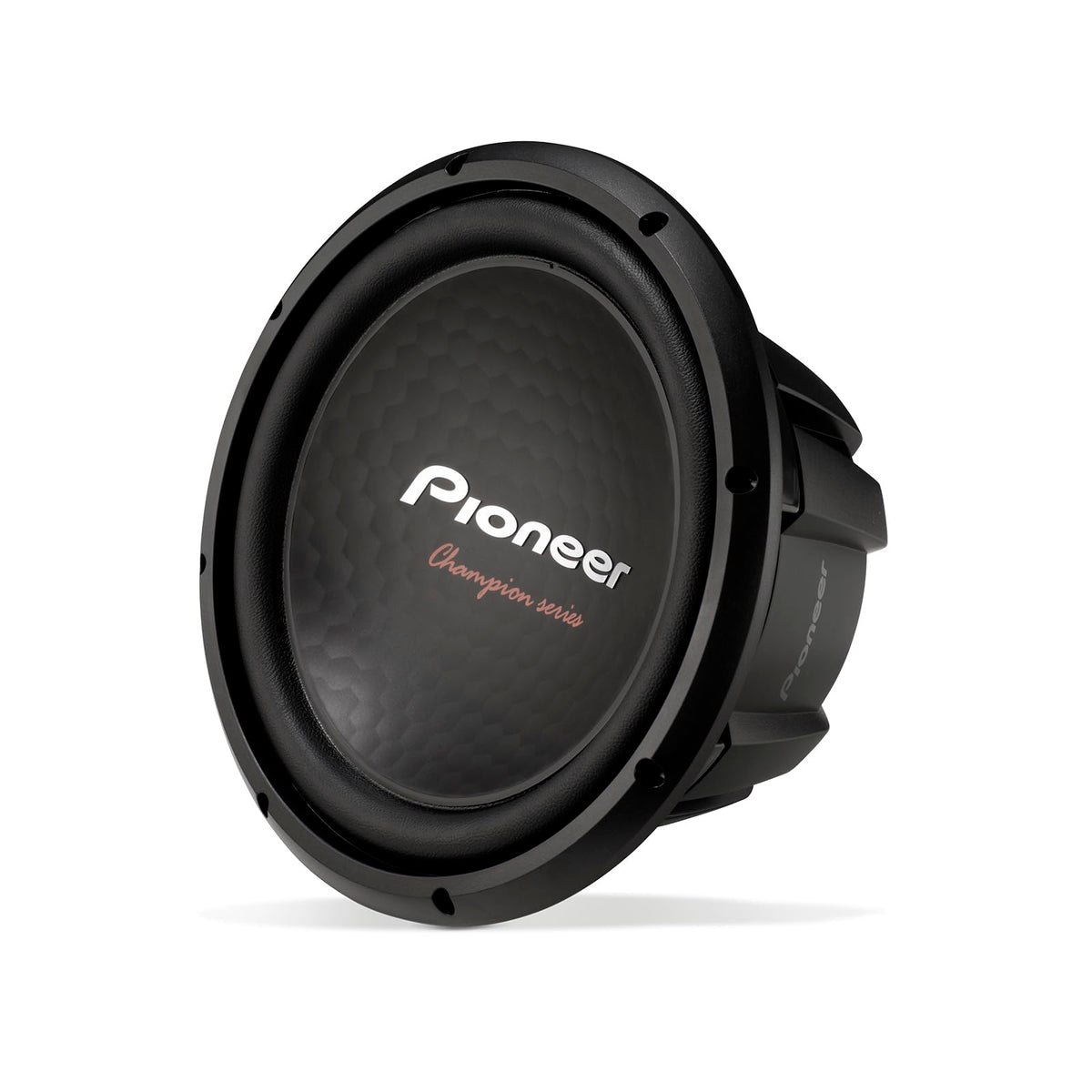

Pioneer TS-A301S4 12" Champion Series Subwoofer

The Pioneer TS-A301S4 is a 12-inch component car subwoofer designed to add low-frequency bass to an amplified vehicle audio system. Its single 4-ohm voice coil configuration makes it suited to systems built around a compatible mono or bridged amplifier channel. It is intended for listeners who want stronger bass extension than full-range door or rear-deck speakers can provide.

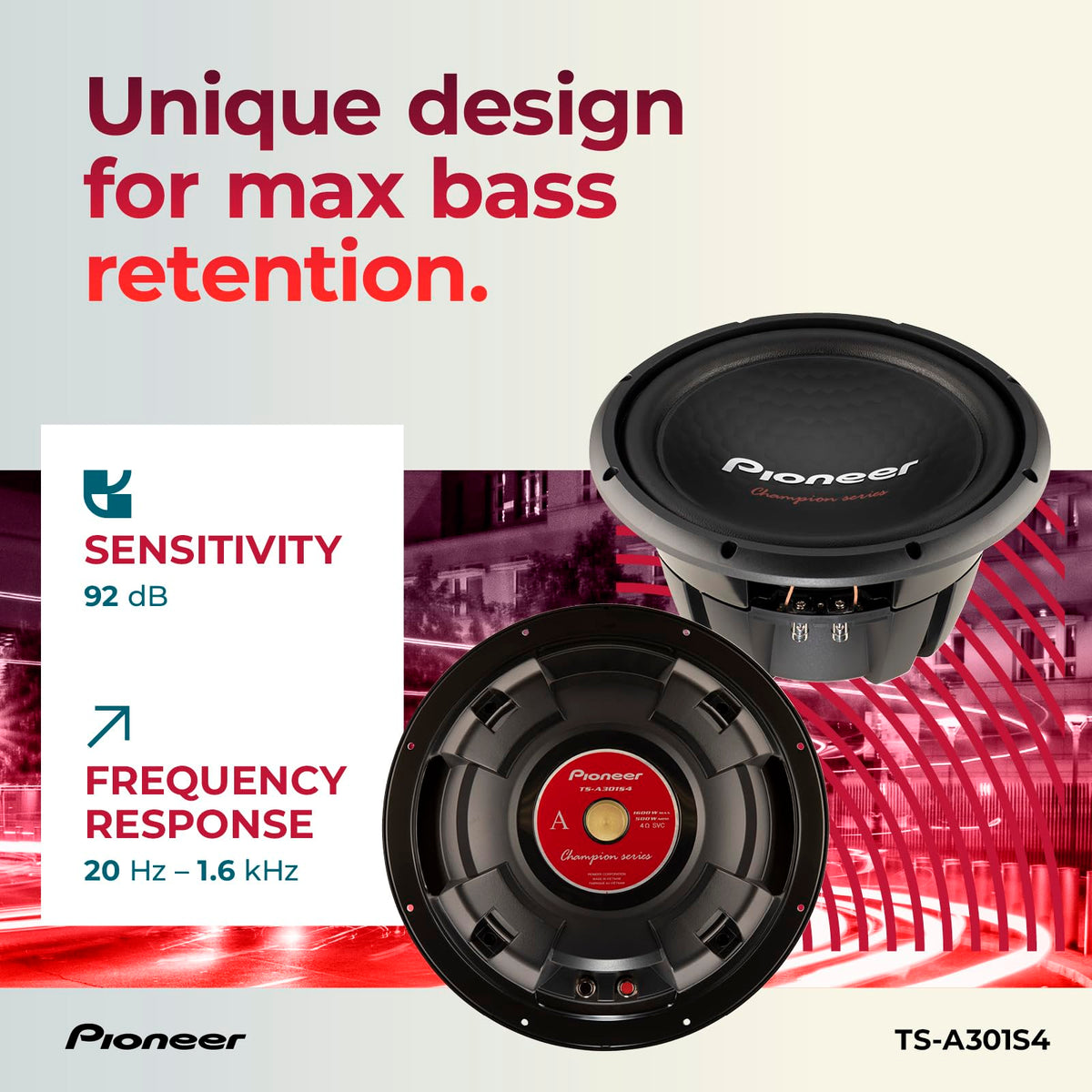

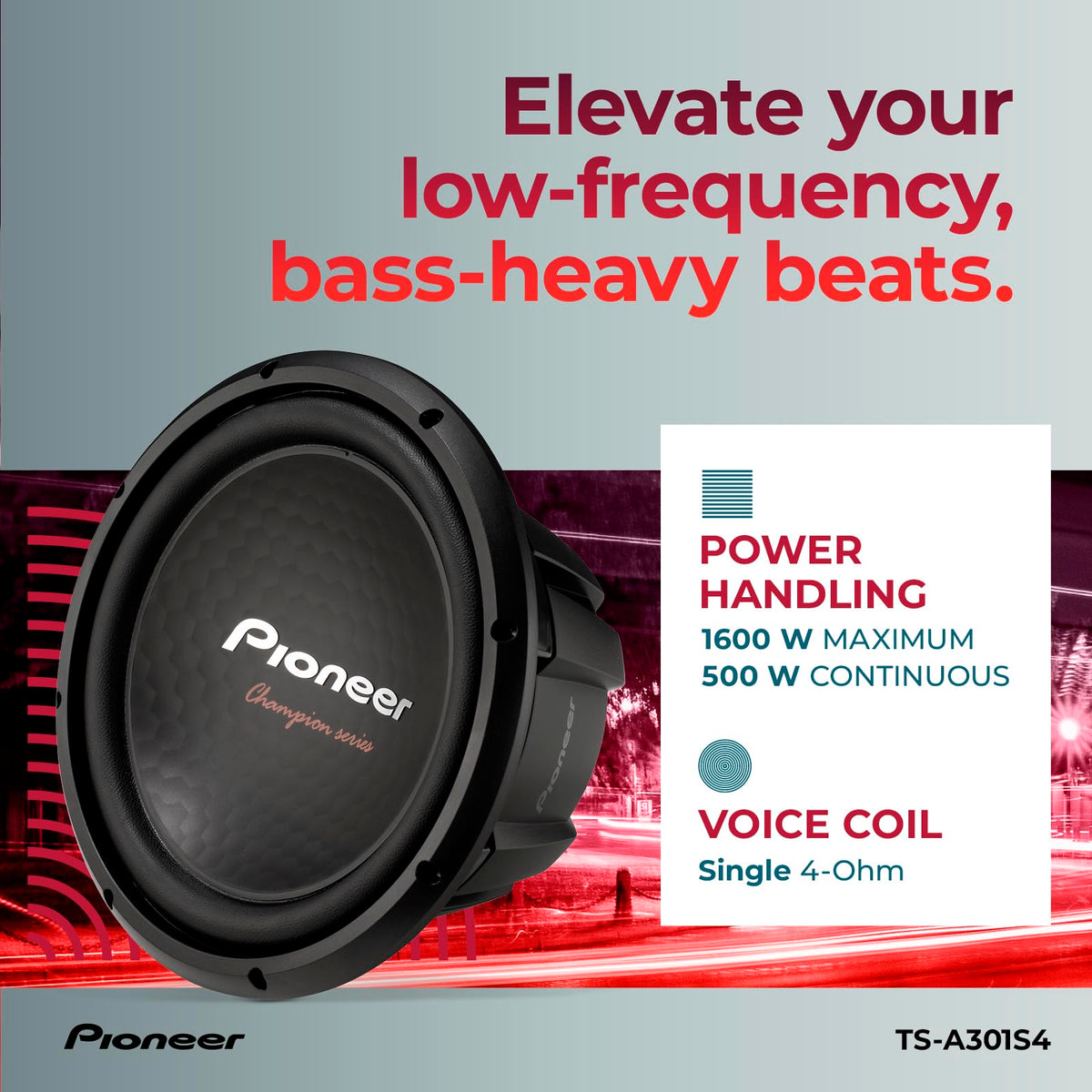

This Champion Series model is rated for 500 watts RMS continuous power handling and 1,600 watts maximum music power. Its 20 Hz to 1.6 kHz frequency response supports dedicated low-frequency reproduction when paired with an appropriate crossover and amplifier setup. With 92 dB sensitivity measured in-car at 1 watt input, it is built to produce useful output from a properly matched system.

The TS-A301S4 uses a two-piece Honeycomb IMPP composite cone structure with a rigid drive cone. Pioneer specifies carbon- and mica-reinforced injection-molded polypropylene for the cone material, combining rigidity with controlled operation. A dual-layer fiber-reinforced elastic polymer surround and red spider help support stable, linear cone travel.

A double-stacked 90-ounce magnet assembly and long voice coil on an aluminum bobbin are designed to manage power and heat during operation. The steel basket is optimized to support the motor assembly while helping maintain accurate cone motion. Its enclosed basket bottom is designed to reduce unwanted vibration that can affect bass output.

This subwoofer can be used in either a sealed or vented enclosure, allowing the installation to be tailored to available cargo space and bass preferences. Pioneer lists a 1.25-cubic-foot sealed enclosure recommendation and a 1.5-cubic-foot vented enclosure recommendation. It is a practical upgrade for a complete system with an external amplifier, enclosure, power wiring, signal connection, and low-pass filtering.

Key Features

• 500W RMS Power Handling: Supports amplifier matching based on continuous power rather than peak ratings.
• Single 4-Ohm Voice Coil: Provides a straightforward impedance load for compatible amplifier channels.
• 12-Inch Honeycomb IMPP Cone: Uses a rigid composite cone structure for low-frequency reproduction.
• Dual-Layer Polymer Surround: Helps control cone movement during bass-heavy playback.
• Double-Stacked 90-Ounce Magnet: Supports the motor assembly for sustained subwoofer operation.
• Sealed or Vented Enclosure Support: Offers enclosure options for different installation goals.

Design & Installation

The TS-A301S4 combines a carbon- and mica-reinforced IMPP cone, dual-layer fiber-reinforced elastic polymer surround, aluminum voice-coil bobbin, and reinforced steel basket. Its 90-ounce double-stacked magnet assembly is paired with a long voice coil and a closed lower basket structure. These elements are engineered to support controlled cone movement and reduce unnecessary vibration.

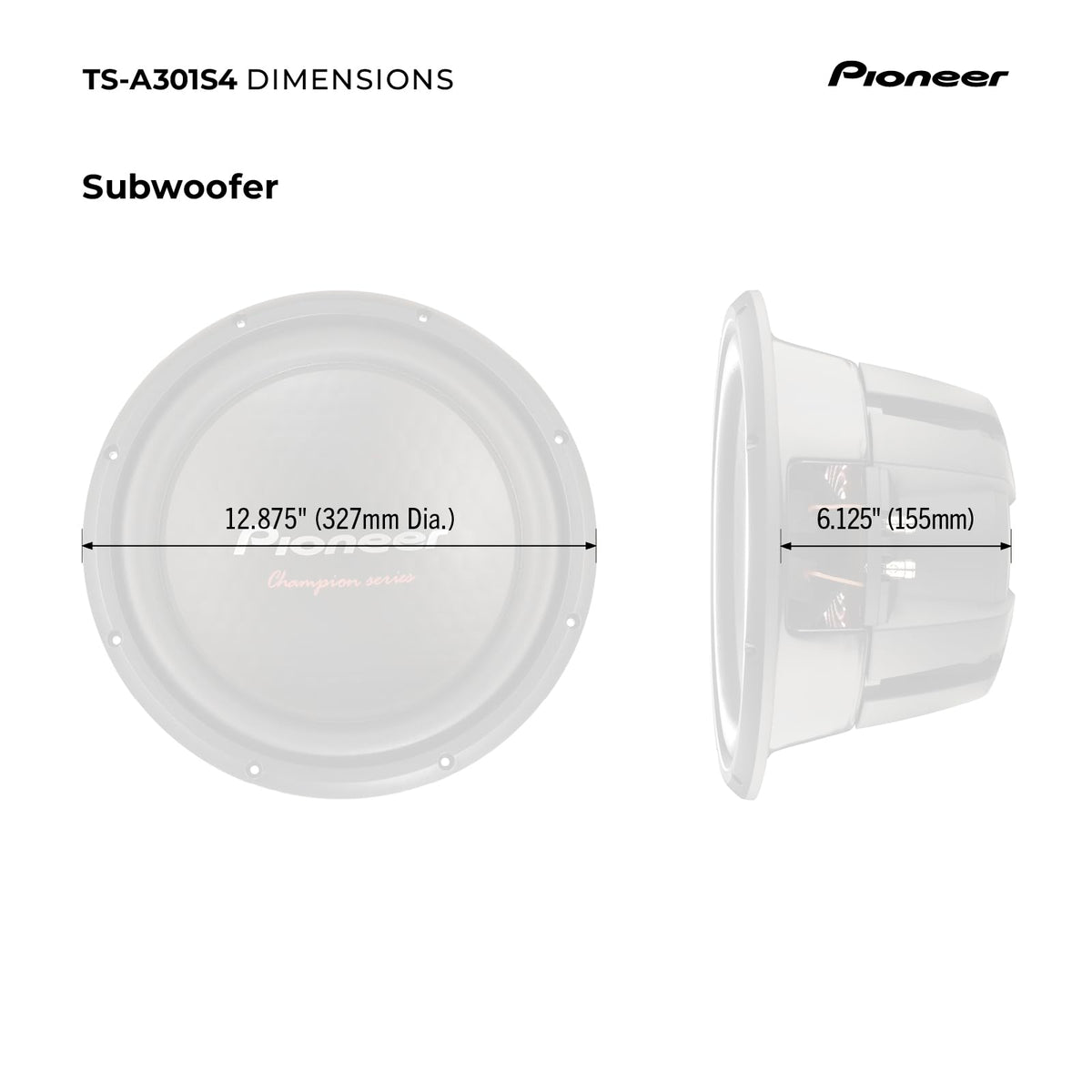

Confirm space for the 11.125-inch cutout and 6.125-inch mounting depth before selecting an enclosure or mounting location. Pioneer recommends a 1.25-cubic-foot sealed enclosure or a 1.5-cubic-foot vented enclosure; the listed vented design uses a 3-inch-diameter, 6.5-inch-long port. Use a compatible amplifier and set crossover, gain, wiring, and enclosure construction appropriately; Pioneer recommends amplifier RMS output below the subwoofer's nominal power rating.
