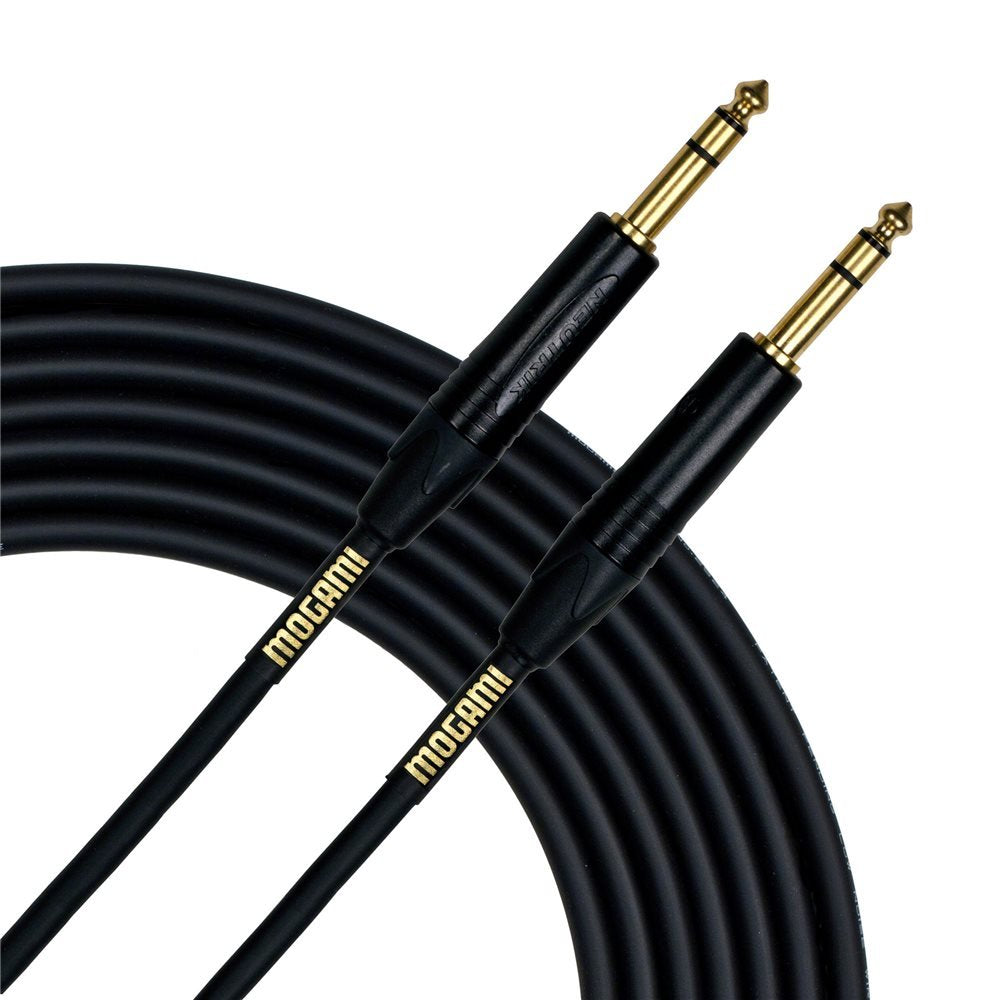

Mogami GOLD TRS-TRS-30 30 Ft Balanced TRS Cable

The Mogami GOLD TRS-TRS-30 is a 30-foot balanced audio interconnect with 1/4-inch TRS male connectors at both ends. It is designed to carry line-level balanced signals between compatible studio, live-sound, and playback components. The long reach supports installations where equipment cannot be placed close together.

This cable is suited to connecting balanced outputs and inputs on audio interfaces, mixers, soundboards, outboard processors, and powered speakers. Its 1/4-inch TRS connectors are intended for equipment that uses balanced TRS line connections. It is not a speaker wire and is not a direct substitute for RCA, XLR, or 3.5 mm connections without appropriate adapters.

Mogami builds this assembly with W2534 Neglex Studio Quad cable, a four-conductor oxygen-free copper design. The quad construction and served bare-copper shield help reduce susceptibility to electromagnetic and radio-frequency interference. This makes the cable particularly practical for longer balanced runs near power equipment, lighting, or other potential noise sources.

Gold-plated contacts and black-bodied straight TRS plugs provide the physical connection at each end. The cable uses XLPE conductor insulation and a flexible PVC outer jacket for regular routing and handling. Its approximately 6.0 mm outer diameter balances durability with manageable cable routing.

Use the GOLD TRS-TRS-30 as a balanced line-level link in a recording, podcast, PA, or powered-monitor system. It can connect a balanced 1/4-inch line output to a matching balanced 1/4-inch input when the equipment supports that signal format. A limited lifetime manufacturer warranty is included with the cable.

Key Features

• 30-Foot Length: Provides reach for more flexible equipment placement.
• Balanced TRS Ends: Connects compatible 1/4-inch balanced line-level gear.
• W2534 Neglex Quad: Uses four-conductor Mogami Studio Quad cable.
• OFC Conductors: Uses 24 AWG oxygen-free copper conductors.
• Spiral Copper Shield: Helps reduce external noise pickup.
• Gold-Plated Contacts: Provides corrosion-resistant connector contact surfaces.

Design & Installation

The cable combines four 24 AWG OFC conductors, XLPE insulation, a served bare-copper shield, and a flexible PVC jacket. Both ends terminate in straight 1/4-inch TRS male plugs with black bodies and gold-plated contacts. The W2534 cable stock has an approximately 6.0 mm outer diameter.

For installation, connect each end to a compatible 1/4-inch TRS balanced line-level jack, such as an interface output and powered-speaker input or a mixer and processor connection. Route the cable away from AC power cords, transformers, and high-current wiring where practical. If either device uses XLR, RCA, 3.5 mm, or another connector type, a correctly wired adapter or different cable is required.
