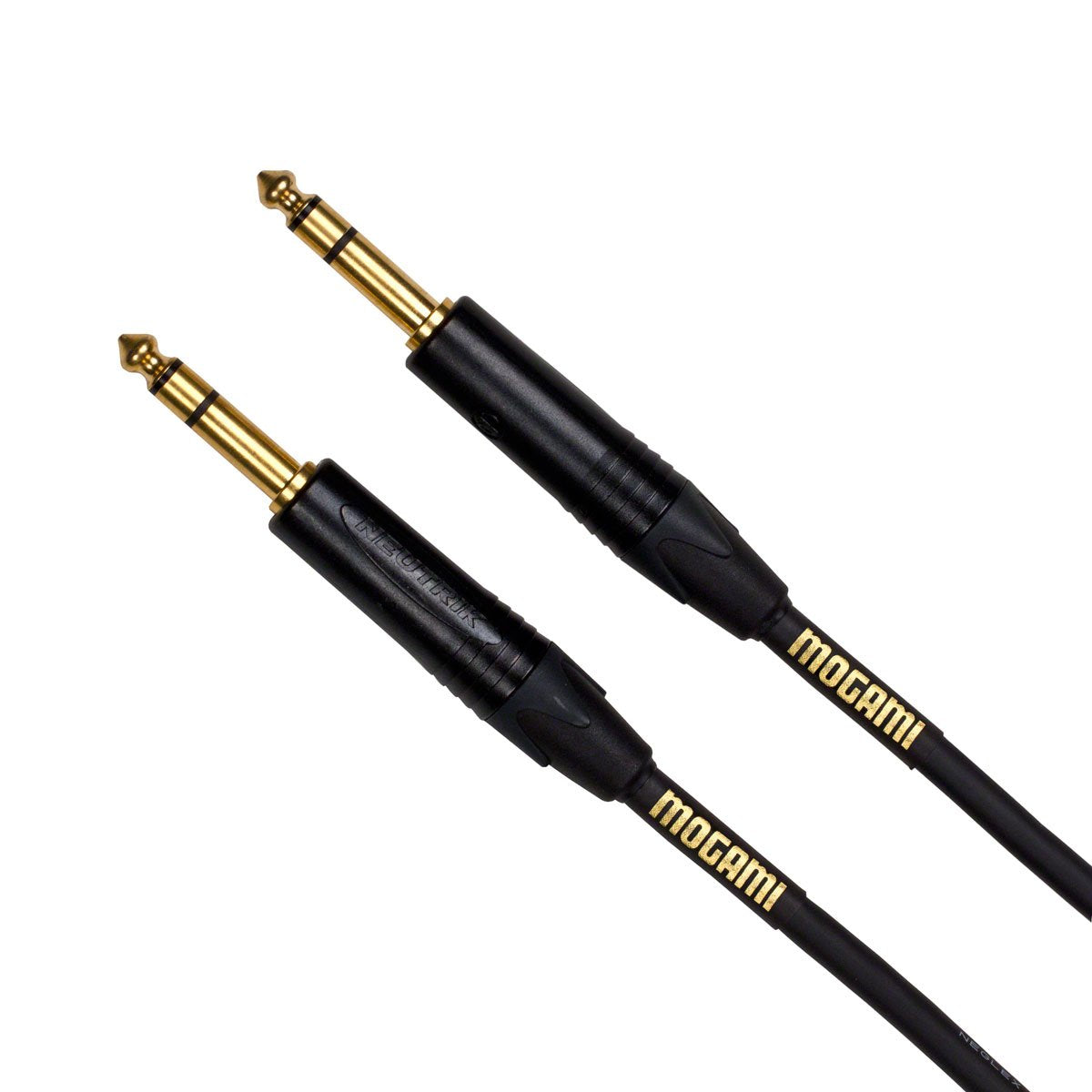

Mogami GOLD TRS-TRS-20 20 Ft Balanced TRS Cable

The Mogami GOLD TRS-TRS-20 is a 20-foot balanced audio interconnect with 1/4-inch TRS male connectors at both ends. It is designed to carry line-level audio between compatible balanced equipment while helping reduce the hum and interference that can occur in electrically busy studio or live-sound setups. It is a practical choice for connecting audio interfaces, mixers, patch bays, outboard processors, powered speakers, and similar gear.

This cable uses Mogami Neglex Studio Quad W2534 cable, a four-conductor design intended for balanced analog signal paths. Its construction supports clear signal transfer with strong rejection of electromagnetic and radio-frequency interference. The cable is suited to recording, broadcast, rehearsal, performance, and installed audio applications where a balanced 1/4-inch connection is available.

Each end is fitted with a straight 1/4-inch TRS male connector with gold-plated contacts and a black connector body. The TRS format supports balanced mono line-level connections when used with appropriately wired equipment. It is not an adapter cable and does not change connector formats or convert balanced and unbalanced signal types.

A served bare-copper spiral shield surrounds the internal conductors, while the flexible PVC outer jacket helps protect the cable during routine handling and routing. The W2534 cable construction uses oxygen-free copper conductors and cross-linked polyethylene insulation. Its approximately 6 mm outer diameter provides a substantial yet manageable cable profile for studio and stage runs.

The 20-foot length is useful when equipment is separated by a console, rack, desktop, speaker stand, or stage position. Use it between two devices with 1/4-inch TRS balanced input and output connections for the intended signal path. For systems using XLR, RCA, TS, 3.5 mm, or speaker-level connections, select the correct cable or adapter for those connections instead.

Key Features

• 20-Foot Length: Provides reach for studio, stage, and powered-speaker connections.
• Balanced TRS Ends: Connects compatible 1/4-inch balanced line-level equipment.
• Neglex Studio Quad: Uses Mogami W2534 four-conductor cable construction.
• Spiral Copper Shield: Helps reduce externally induced noise and interference.
• Gold-Plated Contacts: Provides durable connector contact surfaces.
• PVC Outer Jacket: Adds flexible protection for regular cable routing.

Design & Installation

The GOLD TRS-TRS-20 combines 24 AWG oxygen-free copper conductors, cross-linked polyethylene insulation, a served bare-copper shield, and a black PVC jacket. Its straight TRS connectors use black bodies and gold-plated contacts. The cable is built around Mogami W2534 Neglex Studio Quad bulk cable.

Connect one TRS plug to a balanced 1/4-inch line output and the other to a balanced 1/4-inch line input, such as an interface-to-monitor controller, mixer-to-powered speaker, or processor-to-mixer connection. Route the cable away from AC power cords and power supplies when possible, and avoid sharply bending or crushing it. This package includes one 20-foot TRS-to-TRS cable; additional cables are needed for separate left and right stereo channels when each channel uses its own balanced output.
