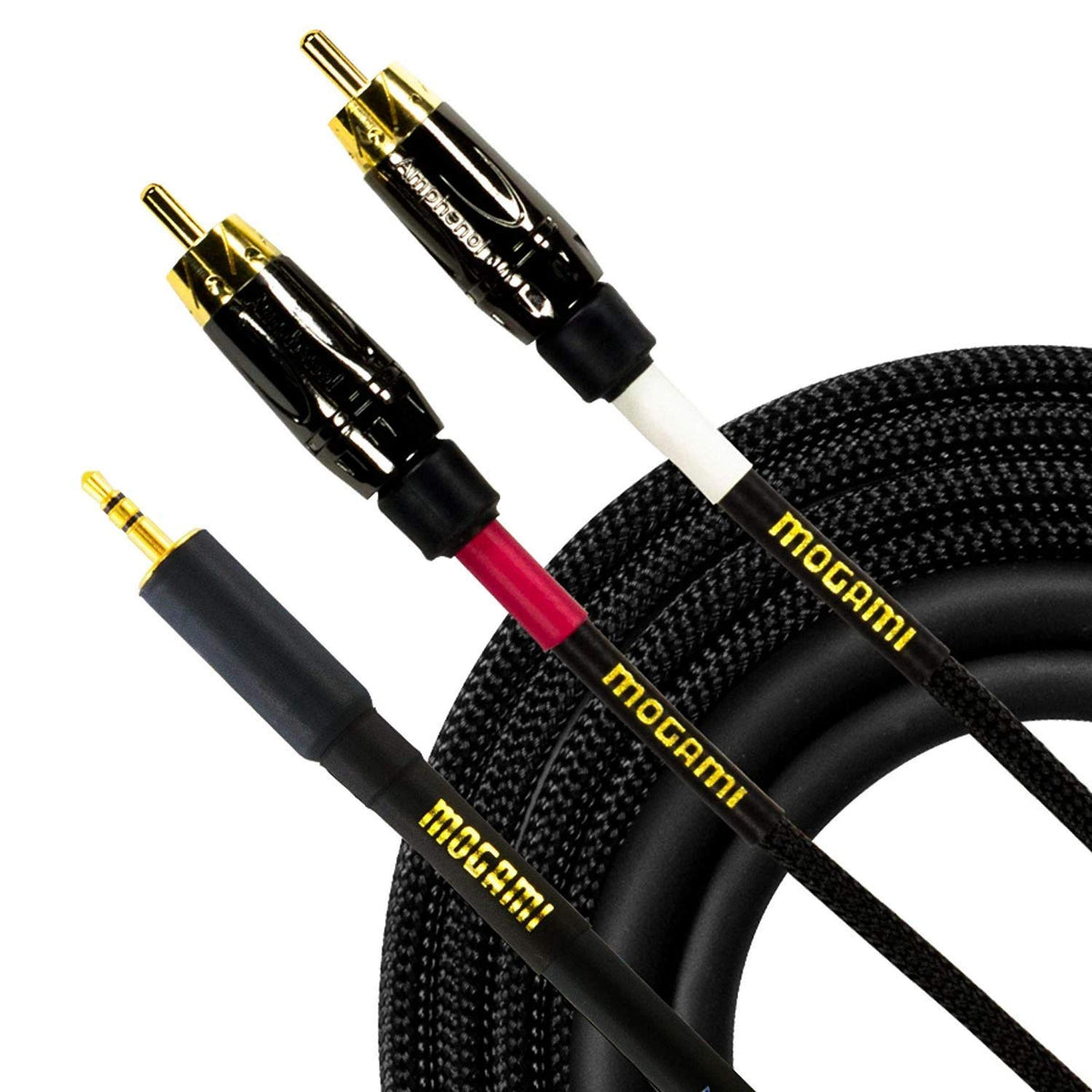

Mogami GOLD 3.5-2RCA-06 3.5mm TRS to Dual RCA Cable

The Mogami GOLD 3.5 2 RCA 06 is a 6-foot stereo breakout cable with one 3.5mm TRS male plug on one end and two RCA male plugs on the other. It is designed to route left/right analog audio from a device with a 3.5mm stereo output to equipment with stereo RCA inputs. This format is useful for connecting portable players, computers, media devices, and other compatible sources to an amplifier, receiver, mixer, or powered audio system.

The cable carries a stereo analog signal, with the dual RCA connectors separating the left and right channels at the destination. Its 6-foot length provides practical reach for nearby components while keeping cable routing manageable. It is intended for line-level stereo connections rather than speaker-level wiring.

Mogami builds this assembly with its 2930 two-channel snake cable, using 26 AWG conductors and a shielded construction. XLPE insulation, a drain wire, and a served spiral shield are part of the underlying cable design. These construction details support tidy, durable analog audio routing in systems where cable handling and electrical noise control matter.

Gold-plated contacts are used on the connectors, and the cable uses straight connectors at both ends. The 3.5mm TRS plug is male, while each RCA connector is also male. This makes the cable a direct connection solution when the source has a 3.5mm stereo output and the receiving equipment has open left/right RCA inputs.

For vehicle, home, studio, DJ, or portable-audio integration, this cable can bridge compatible stereo outputs and RCA inputs without combining channels. It is a useful option when adding an external source to a system with analog RCA connectivity. As with any analog connection, the source and destination should be powered down or volume reduced before connecting equipment.

Key Features

• 3.5mm-to-RCA Stereo Breakout: Connects one 3.5mm TRS stereo output to separate left and right RCA inputs.
• 6-Foot Cable Length: Provides 6 feet of reach for nearby source components and audio equipment.
• Mogami 2930 Snake Cable: Uses Mogami 2930 two-channel snake cable as the cable platform.
• Shielded 26 AWG Construction: Uses shielded 26 AWG conductors for analog audio signal routing.
• Gold-Plated Contacts: Gold-plated connector contacts support repeated connection and disconnection.
• Straight Male Connectors: Features a straight 3.5mm TRS male plug and two straight RCA male plugs.

Design & Installation

The GOLD 3.5 2 RCA 06 uses a black flexible PVC outer jacket over Mogami 2930 cable construction. Its underlying cable design includes XLPE insulation, a drain wire, and a served spiral shield. The assembly is terminated with gold-plated contacts and straight male connectors on both ends.

Connect the 3.5mm TRS male plug to a compatible stereo line or headphone output, then connect the two RCA male plugs to matching left and right RCA inputs. Confirm that the receiving equipment has RCA inputs rather than outputs, and observe left/right channel markings where provided. Devices without a 3.5mm output or systems without RCA inputs require appropriate separate adapters or conversion hardware.
