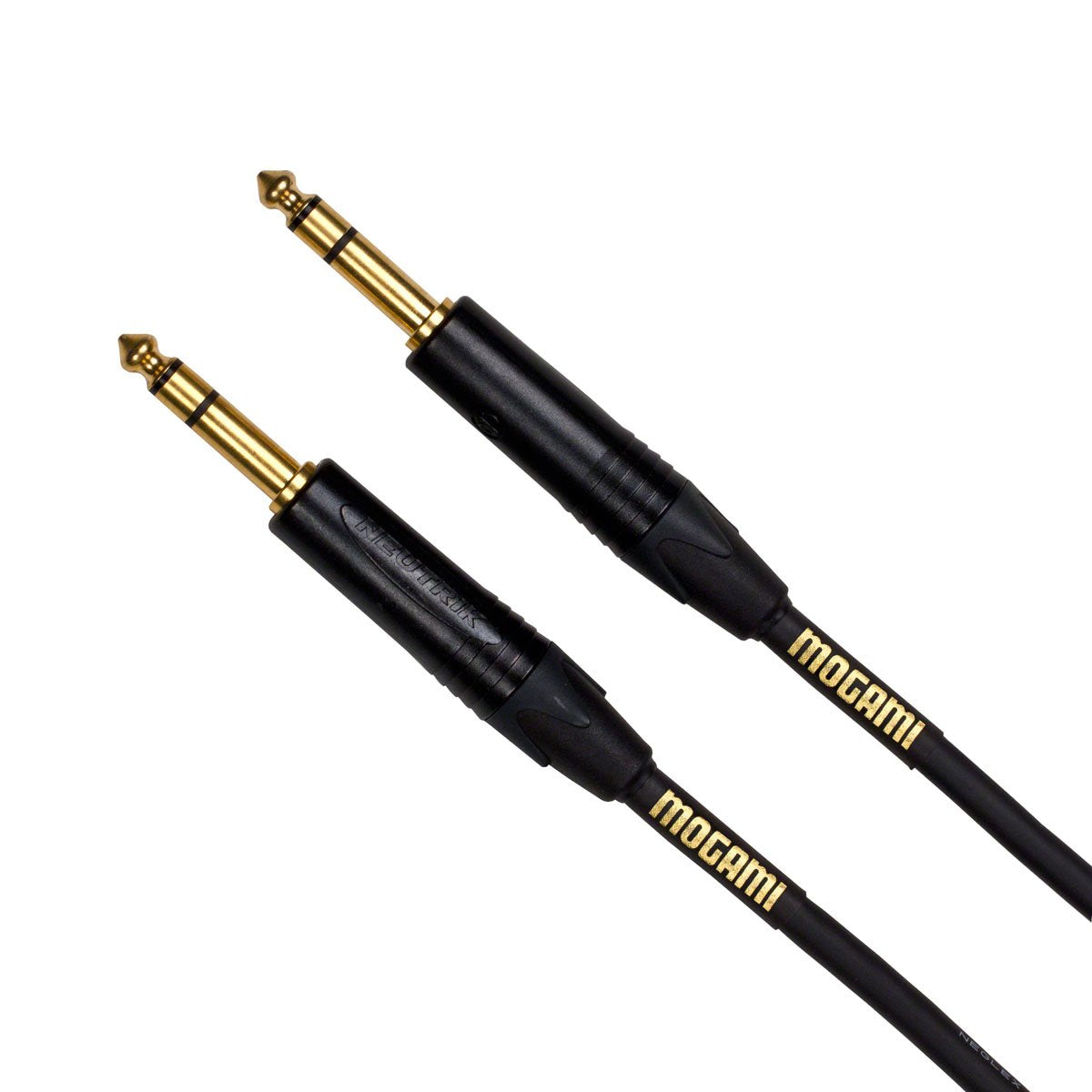

Mogami GOLD TRS-TRS-06 6 ft Balanced TRS Audio Cable

The Mogami GOLD TRS-TRS-06 is a 6-foot balanced audio interconnect with 1/4-inch TRS male connectors at both ends. It is intended for routing balanced line-level audio between compatible equipment, including audio interfaces, mixers, patch points, and powered speakers. Its short length is practical for nearby components in studio, stage, broadcast, or desktop audio systems.

This cable is designed for users who need a dependable balanced connection where electrical noise can be a concern. Balanced TRS wiring helps compatible source and destination equipment reject common-mode noise along the signal path. It is appropriate for recording, monitoring, live-sound, and equipment-rack interconnect applications.

The GOLD TRS-TRS-06 uses Mogami W2534 Neglex Studio Quad cable, a four-conductor design with an overall served bare-copper shield. The quad conductor geometry is designed to improve rejection of electromagnetic and radio-frequency interference compared with conventional two-conductor cable designs. This makes it well suited to installations near power supplies, lighting, computers, and other potential noise sources.

Each end is fitted with a straight 1/4-inch TRS male connector with gold-plated contacts and a black body. The flexible PVC outer jacket helps the cable route cleanly between adjacent equipment while protecting the internal conductors. Cross-linked polyethylene conductor insulation is used in the cable construction.

Use this cable when both devices provide compatible 1/4-inch balanced TRS connections. It is an interconnect cable rather than a speaker cable, so it is not intended to carry amplified speaker output to passive loudspeakers. The 6-foot length can be used as a direct connection within a compact signal chain without leaving excessive slack.

Key Features

• Balanced TRS Connectivity: Connects compatible 1/4-inch balanced line-level equipment.
• Six-Foot Length: Provides 6 feet of reach for nearby gear.
• Neglex Studio Quad Cable: Uses four conductors for noise-rejection performance.
• Served Copper Shield: Adds an overall shield against external interference.
• Gold-Plated Contacts: Uses gold-plated contacts on both straight TRS connectors.
• Flexible PVC Jacket: Supports practical routing in studio and live-audio setups.

Design & Installation

The cable is built around Mogami W2534 quad cable with 24 AWG oxygen-free copper conductors, XLPE insulation, a served bare-copper shield, and a flexible black PVC jacket. Its cable diameter is approximately 6.0 mm, while the straight black-body connectors use gold-plated contacts. The assembly is shielded and uses the same connector type on each end.

Connect one TRS plug to a balanced 1/4-inch line output and the other to a balanced 1/4-inch line input, such as an interface-to-monitor or mixer-to-powered-speaker connection. Verify that both devices use 1/4-inch TRS balanced analog connections; adapters may be needed for XLR, RCA, 3.5 mm, or other connector formats. Do not use this cable between a power amplifier's speaker outputs and passive speakers.
