Memphis SRXE12DP Dual 12" Ported Bass Package

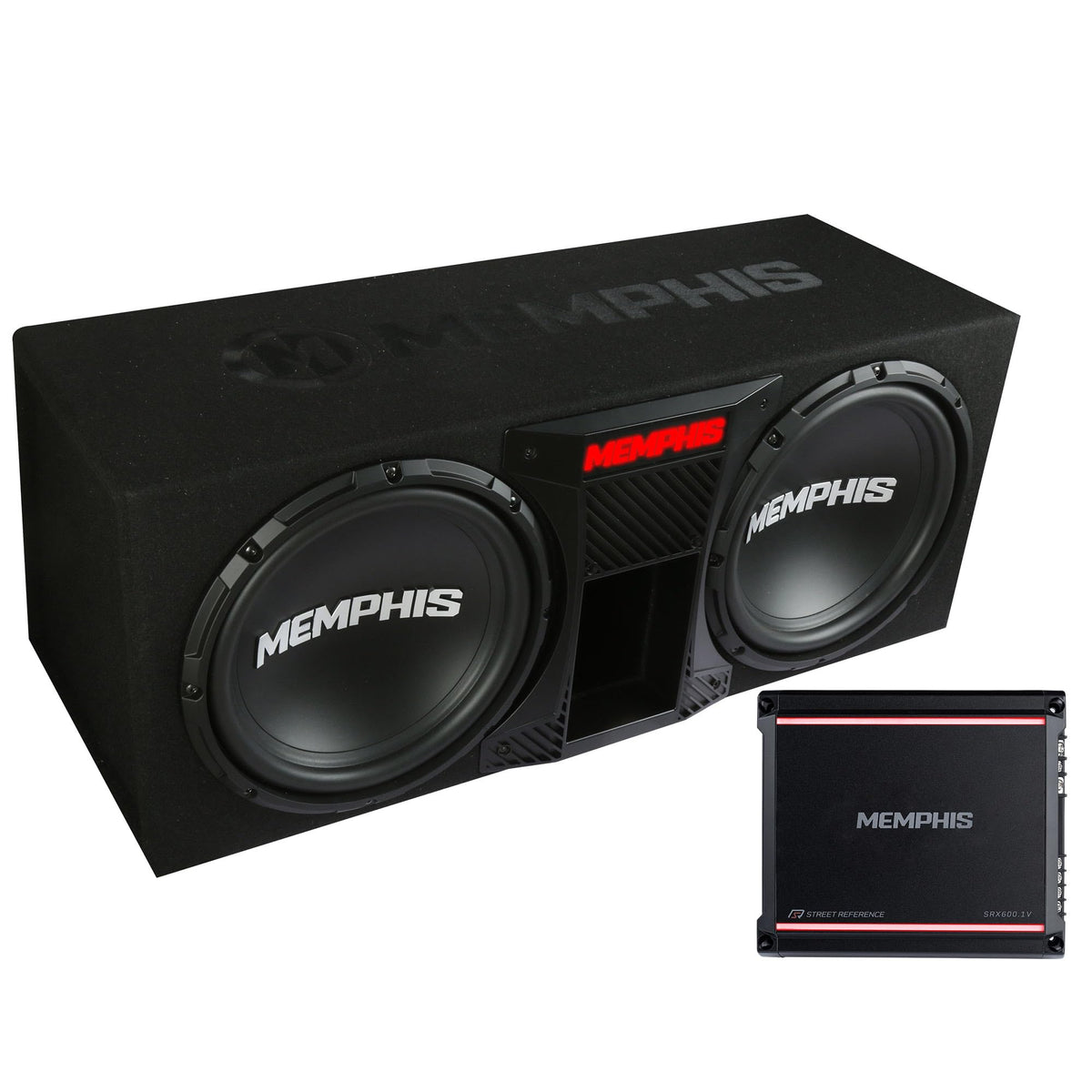

The Memphis SRXE12DP is a complete bass package built for vehicle owners who want to add a dedicated low-frequency system without separately matching an enclosure, subwoofers, and amplifier. It combines two 12-inch SRX subwoofers in a ported enclosure with a separate SRX600.1V amplifier. The package provides a focused upgrade path for systems that need stronger bass extension and output.

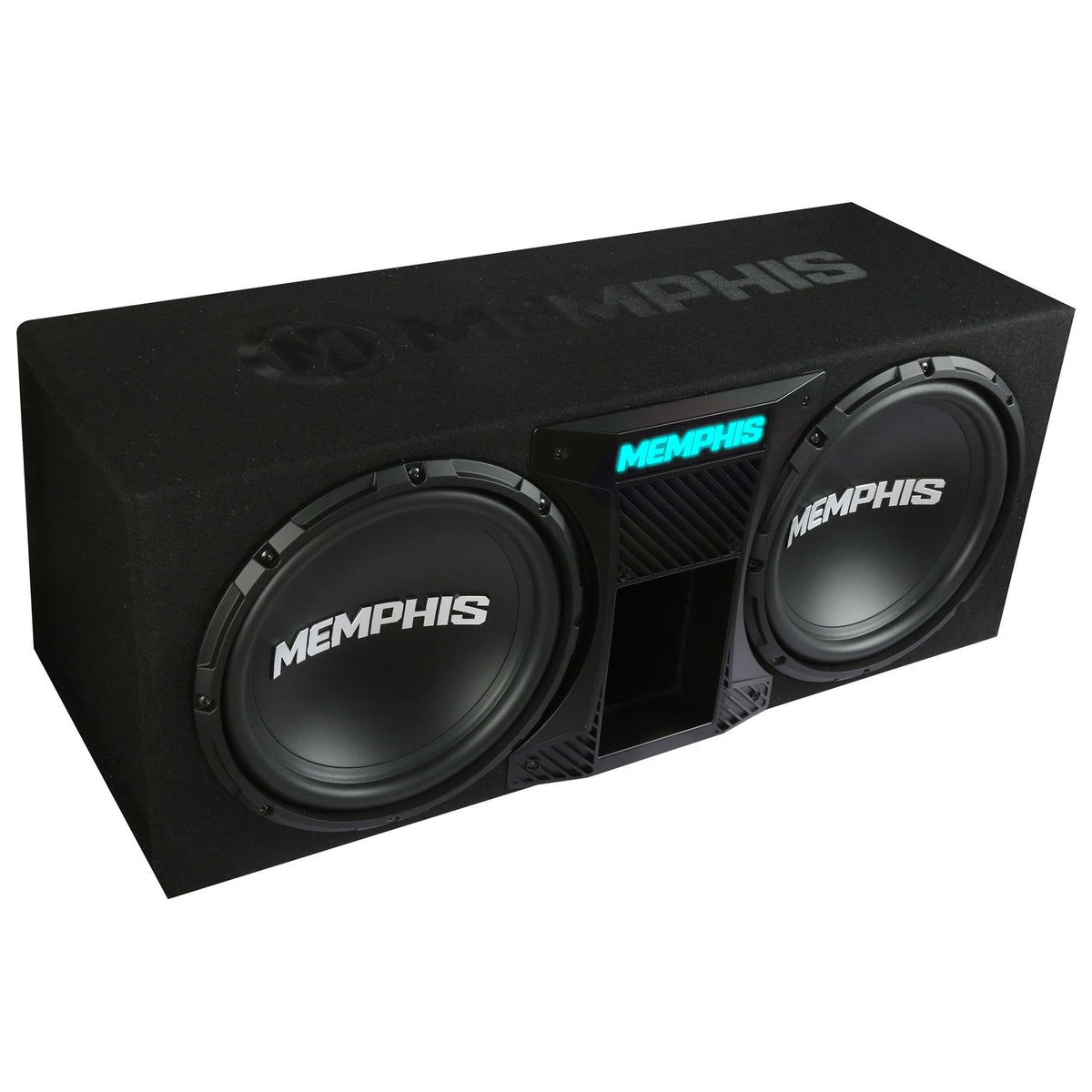

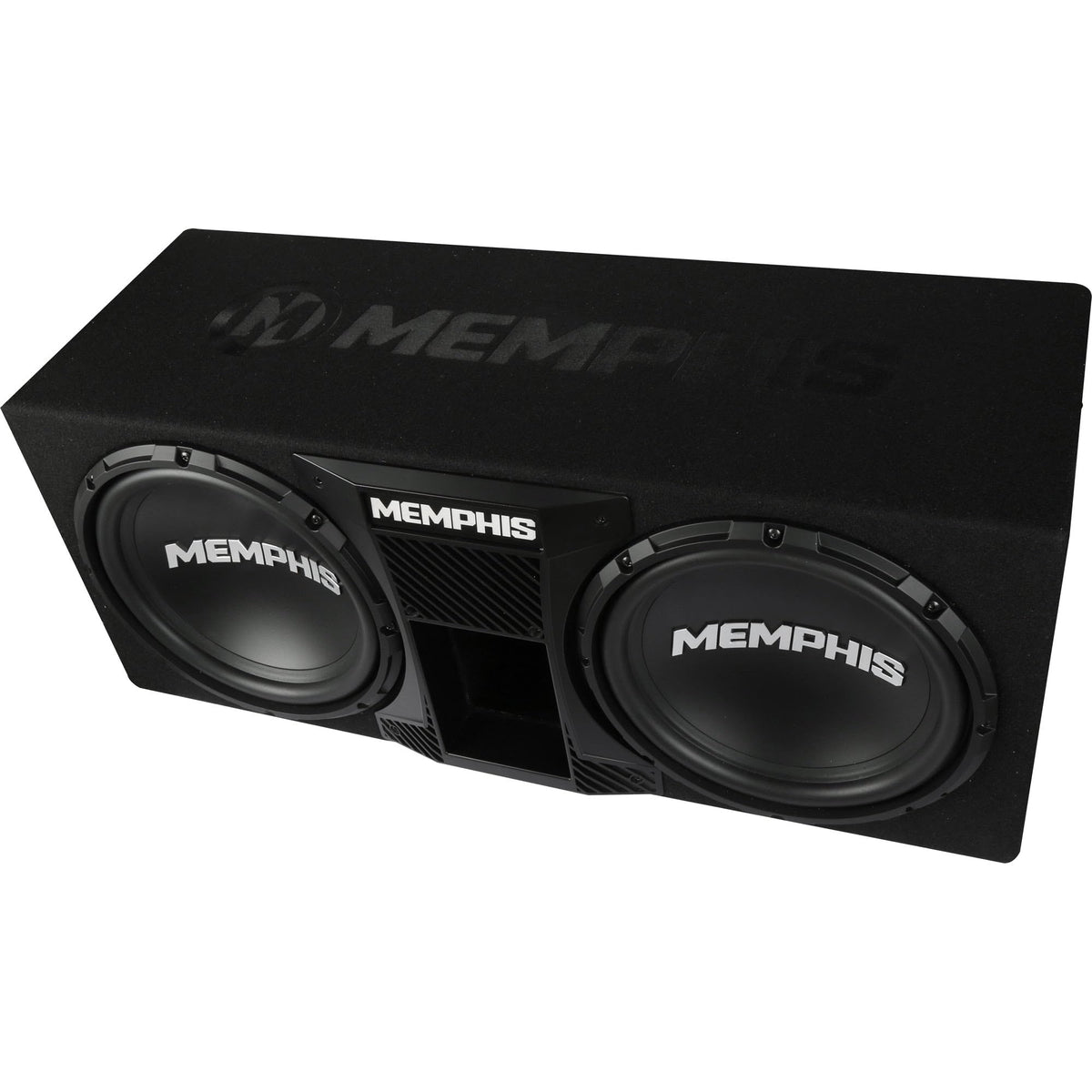

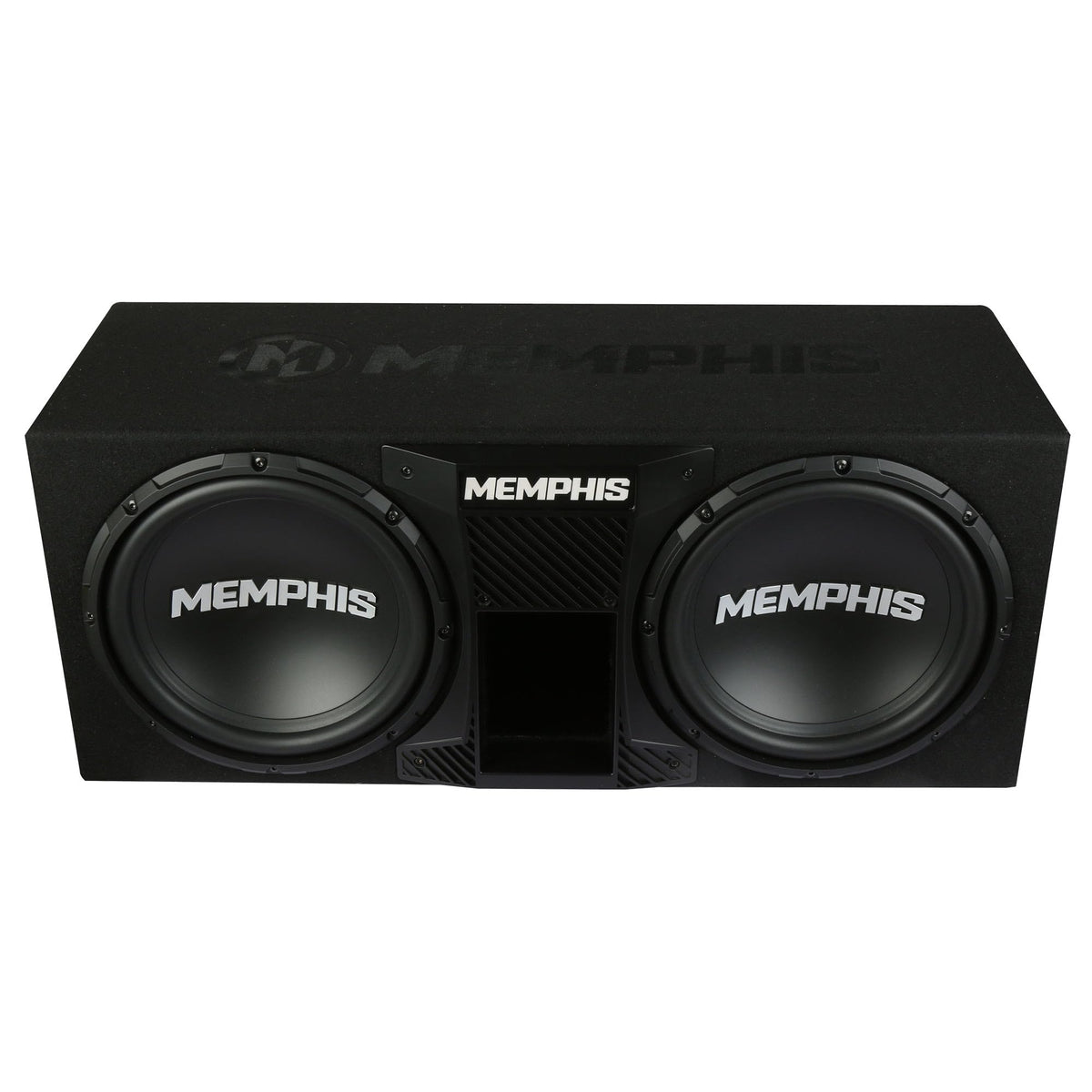

The enclosure uses a large front vent and is tuned to the SRX subwoofers' parameters. This design is intended to support efficient airflow and controlled low-frequency performance from the dual-driver layout. Its front-facing layout also makes the enclosure suitable for trunk or cargo-area installations where the front panel remains visible.

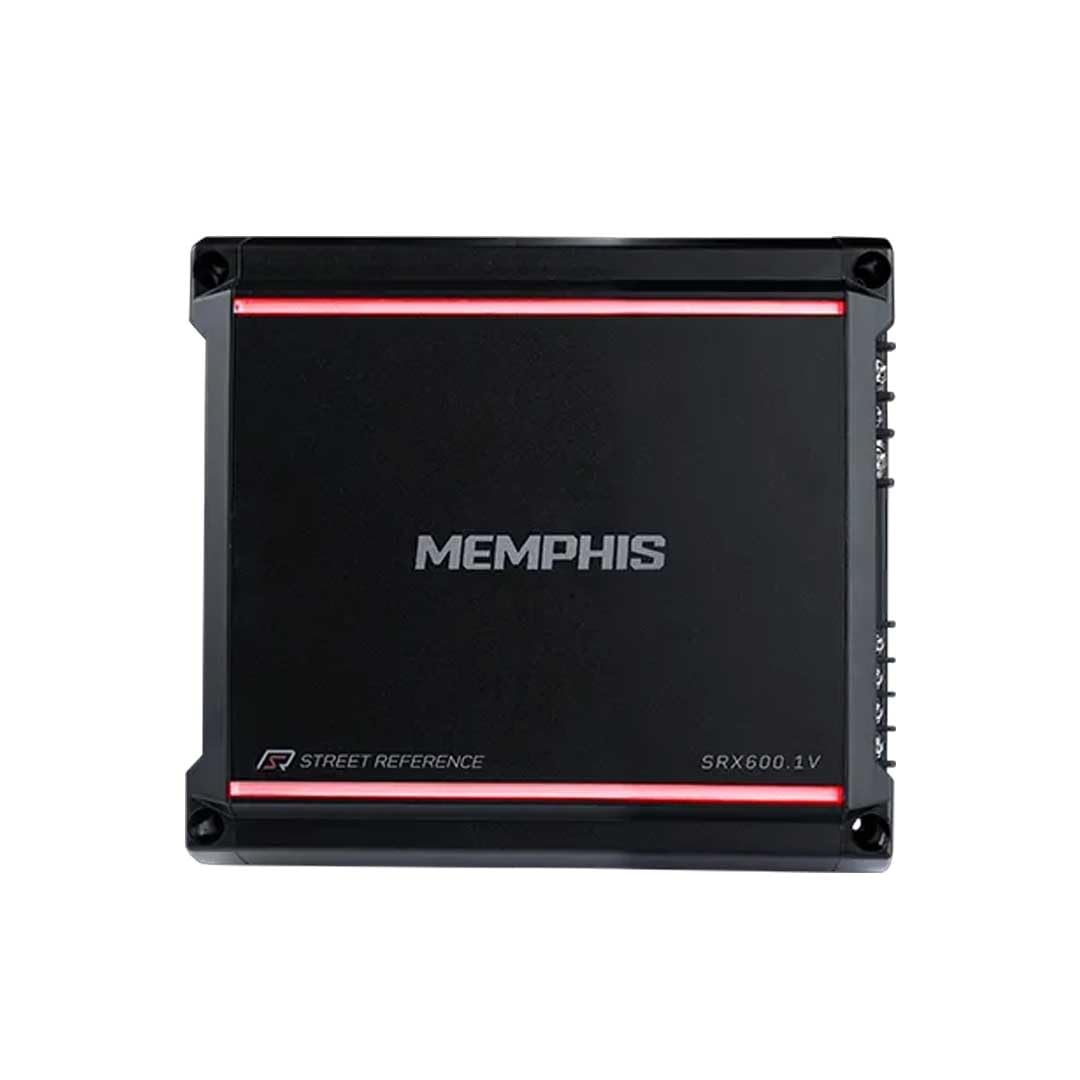

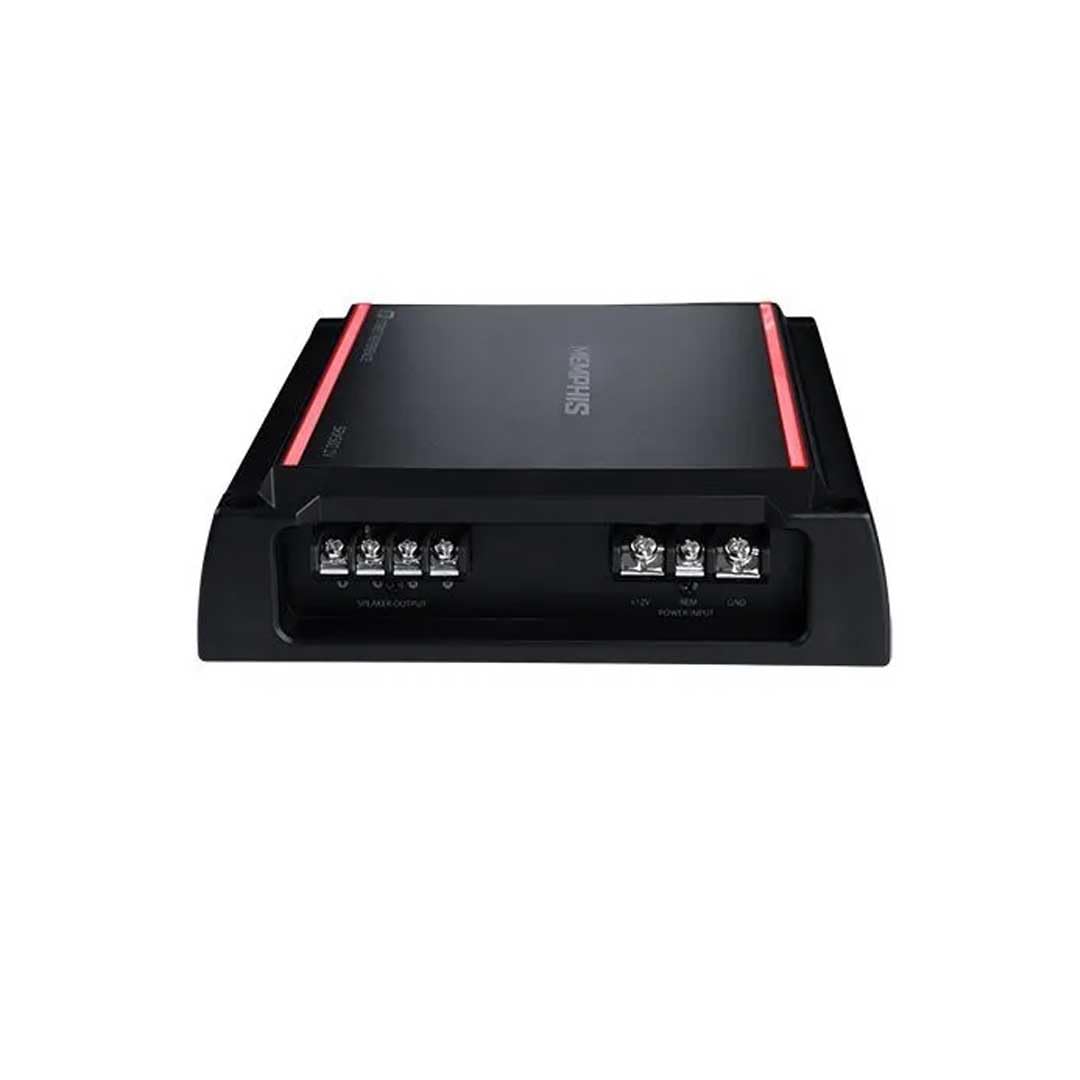

A 600-watt RMS SRX600.1V amplifier is included and matched as part of the package. The amplifier provides adjustable low-pass filtering, bass boost, and a phase switch to help integrate the bass system with the vehicle's main speakers. A remote bass knob is included for convenient level adjustment from the driver's seat.

The SRXE12DP supports both RCA and high-level signal inputs, providing options for aftermarket receivers and systems retaining a factory radio. This flexibility can simplify integration when preamp outputs are unavailable. Correct power, ground, signal, and speaker wiring are still required for installation.

Integrated RGB LED illumination is built into the enclosure's front panel for a customized appearance. The lighting can be hardwired for a single color or used with the optional Memphis MXRGBBTC controller for expanded color control. The result is a dual-12-inch bass package that combines a preconfigured enclosure, included amplifier, and adjustable lighting in one system.

Key Features

• Dual 12-Inch Subwoofers: Two SRX woofers provide a dedicated bass solution in one enclosure.
• Included SRX600.1V Amplifier: A separate 600-watt RMS amplifier is supplied with the package.
• Front-Vented Enclosure: The large front vent supports the ported enclosure design.
• Adjustable Low-Pass Filter: Variable 50Hz–200Hz filtering helps blend bass with the main system.
• RGB Front-Panel Lighting: Integrated lighting can be hardwired or used with an optional controller.
• Flexible Signal Inputs: RCA and high-level inputs support different source-unit configurations.

Design & Installation

The SRXE12DP uses a precision-tuned ported enclosure with a modern front panel, a large front vent, and integrated RGB illumination. Memphis specifies the enclosure's exterior dimensions and dual-12-inch driver configuration, but does not publish enclosure-material composition. The angled cabinet profile uses different top and bottom depth measurements.

Install the enclosure securely in a suitable trunk or cargo area and allow clearance around the front vent. Connect the included amplifier using either RCA or high-level signal input as appropriate for the vehicle's audio system, then set the low-pass filter, bass boost, phase switch, and remote level control for the installation. The manufacturer lists the amplifier and bass knob as included, while an installation wiring kit is not listed as part of the package contents.
