Memphis SRX600.1V 600W 1-Ohm Mono Amplifier

The Memphis SRX600.1V is a mono car amplifier designed to power a subwoofer system with controlled low-frequency output. It delivers 300 watts RMS at 4 ohms, 500 watts RMS at 2 ohms, and 600 watts RMS at 1 ohm. This makes it a practical choice for building or upgrading an entry-level to mid-level bass system.

Its 1-ohm stability provides flexibility when matching compatible subwoofer voice-coil configurations. The amplifier accepts both RCA low-level signals and speaker-level input, helping it work with many aftermarket and factory-source systems. A wired remote level control is included for convenient adjustment from the front seat.

The SRX600.1V is focused on subwoofer duty, with a 17 Hz to 250 Hz frequency response and adjustable low-pass filtering. Its variable subsonic filter helps limit ultra-low frequencies outside a subwoofer system's usable range. Selectable bass boost allows additional low-frequency adjustment when used carefully during system tuning.

A Class D design helps the amplifier provide substantial mono output in a compact chassis. The textured aluminum heatsink is designed to support heat dissipation, while integrated LED accent strips add visible illumination when the amplifier is powered. Protection circuitry addresses overload, short-circuit, thermal, and battery-voltage conditions.

This amplifier is well suited to a dedicated subwoofer installation using a properly matched 1-, 2-, or 4-ohm final load. Use its crossover, subsonic filter, gain control, and remote level control to integrate bass output with the rest of the vehicle audio system. A 4-gauge amplifier wiring kit is recommended for installation.

Key Features

• 600W RMS At 1 Ohm: Supplies substantial mono power for a compatible subwoofer load.
• Class D Amplifier: Delivers efficient subwoofer amplification in a compact chassis.
• Variable Low-Pass Filter: Adjusts the upper bass cutoff from 50 to 250 Hz.
• Variable Subsonic Filter: Filters very low frequencies from 15 to 50 Hz.
• High- And Low-Level Inputs: Supports RCA preamp signals or speaker-level source connections.
• Wired Remote Level Control: Lets the driver adjust subwoofer output level remotely.

Design & Installation

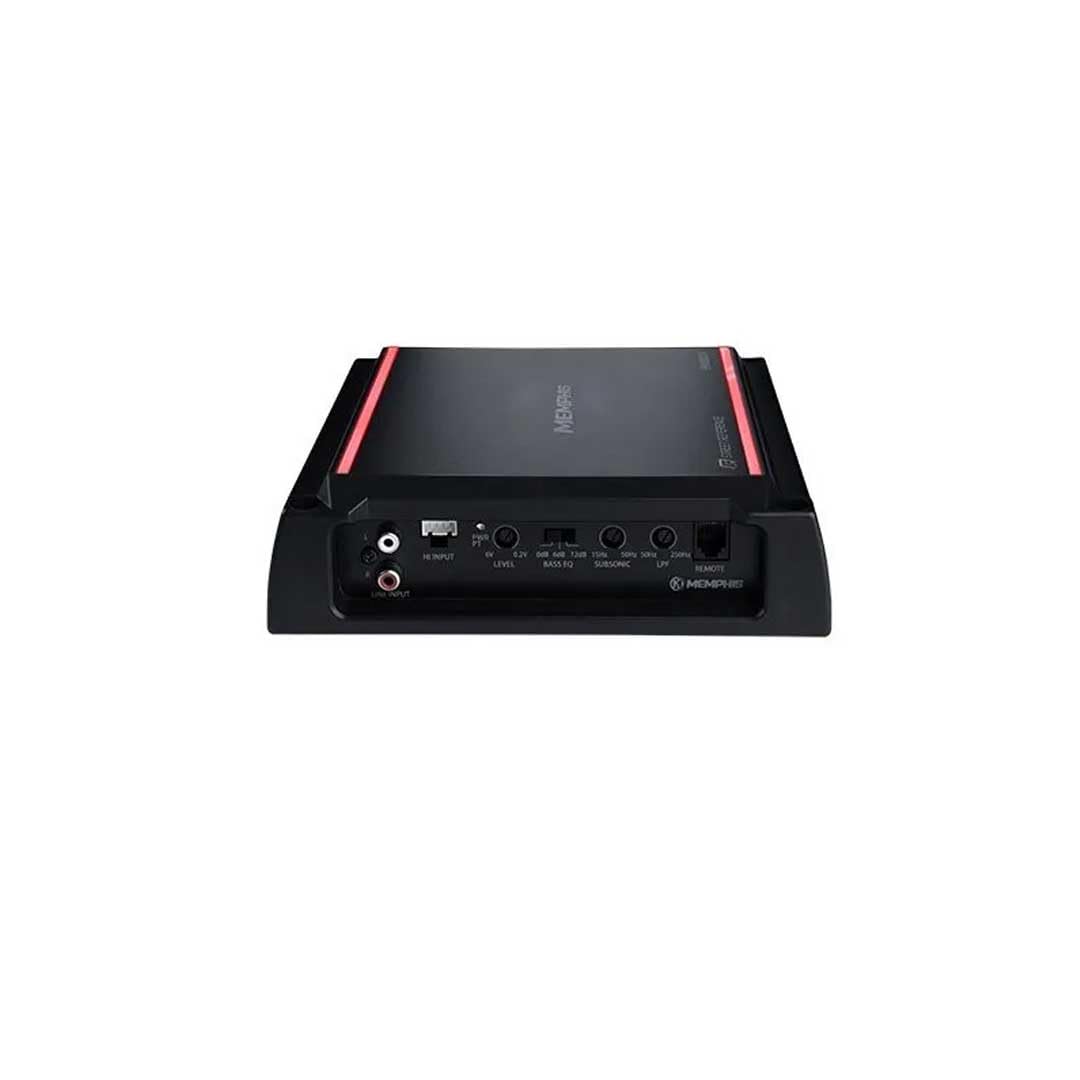

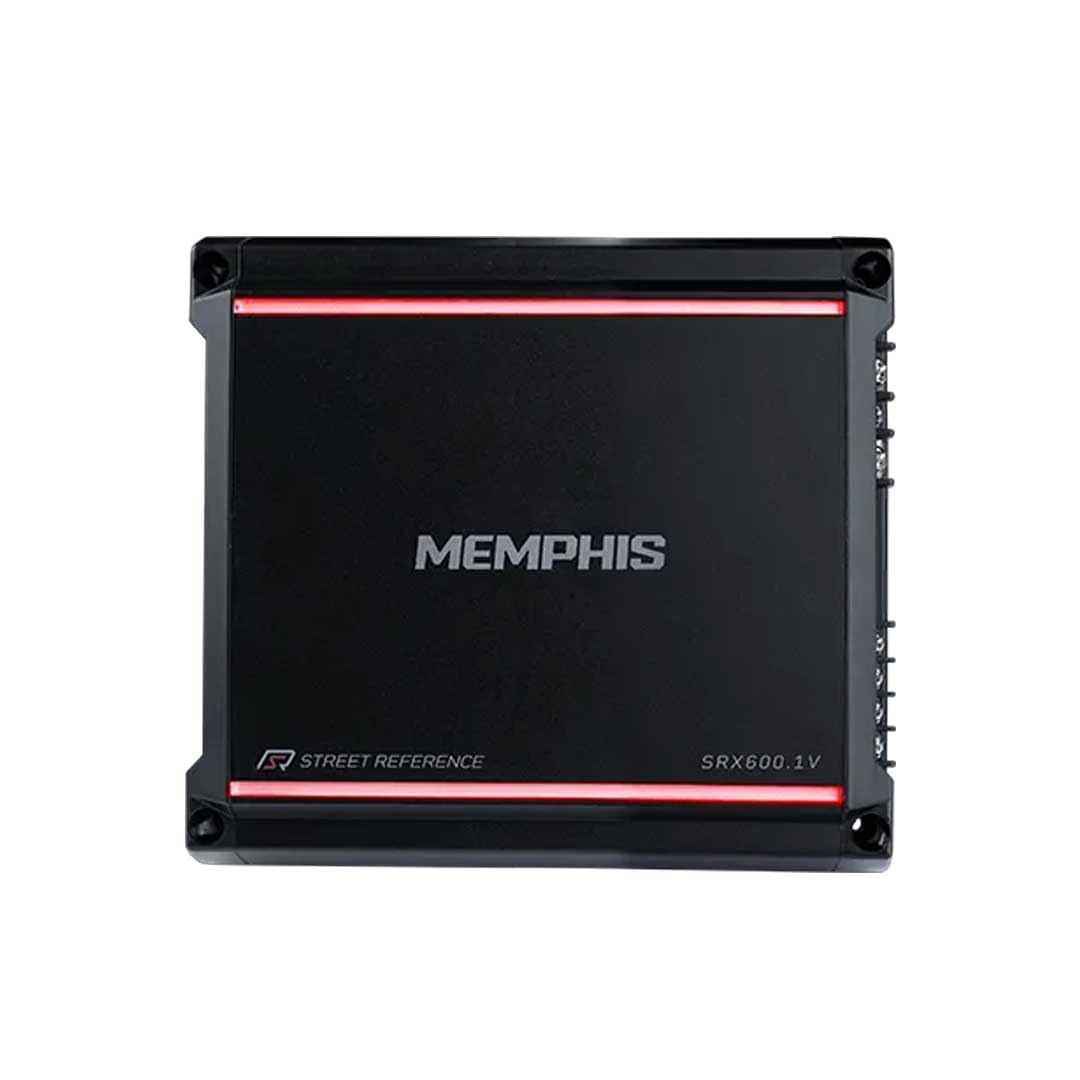

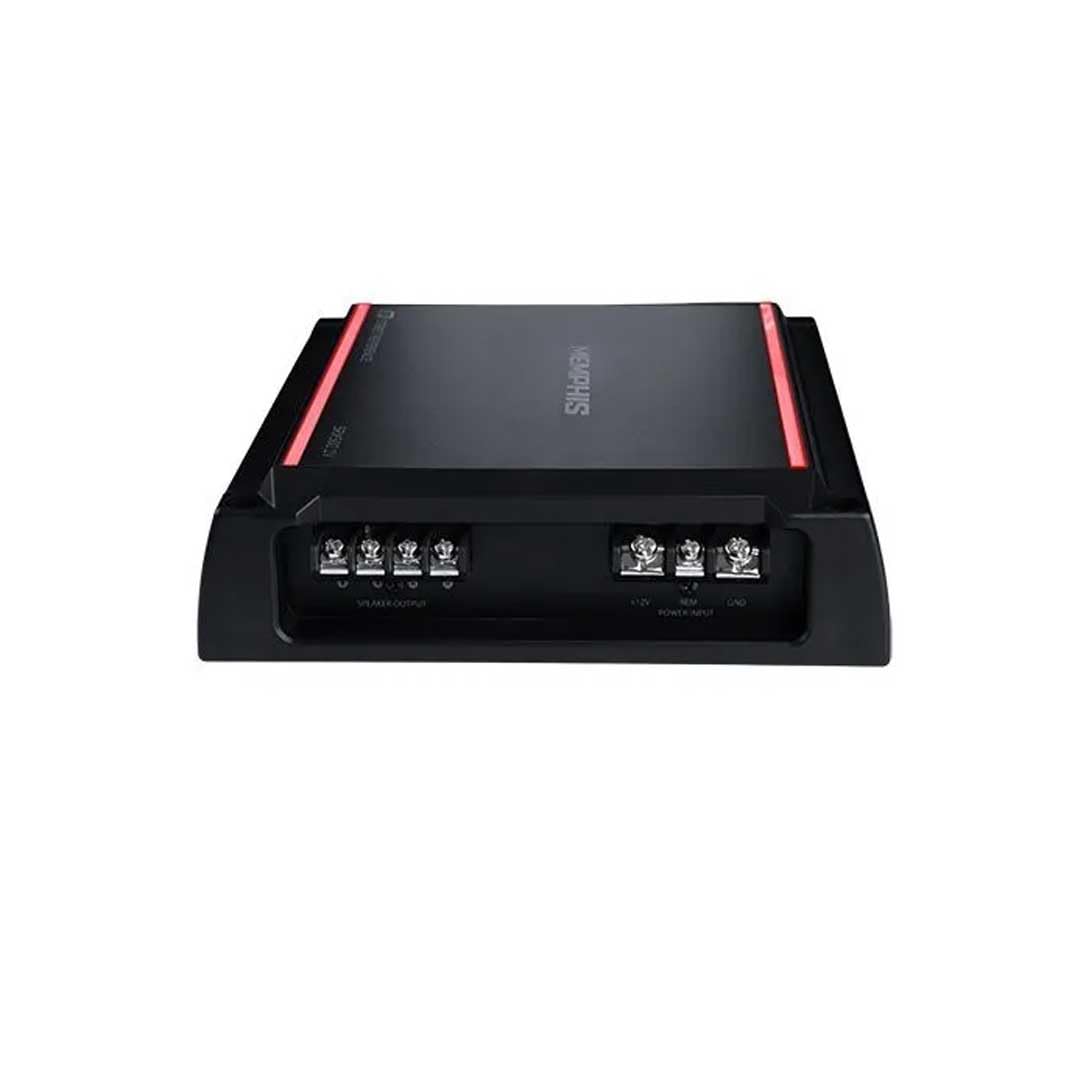

The SRX600.1V uses a black textured aluminum heatsink with LED accent strips across the top of the amplifier. Its compact chassis measures 8.92 inches long, 7.87 inches wide, and 2.16 inches high. Blue and red Power/Protect LED indication helps identify normal operation or a protection condition.

Mount the amplifier securely in a dry, well-ventilated location and verify the connected speaker load is not below 1 ohm. Use properly sized power and ground wiring, with a fused power connection close to the battery; a 4-gauge kit is recommended. The included speaker-level input harness can be used when the source unit does not provide RCA preamp outputs.
