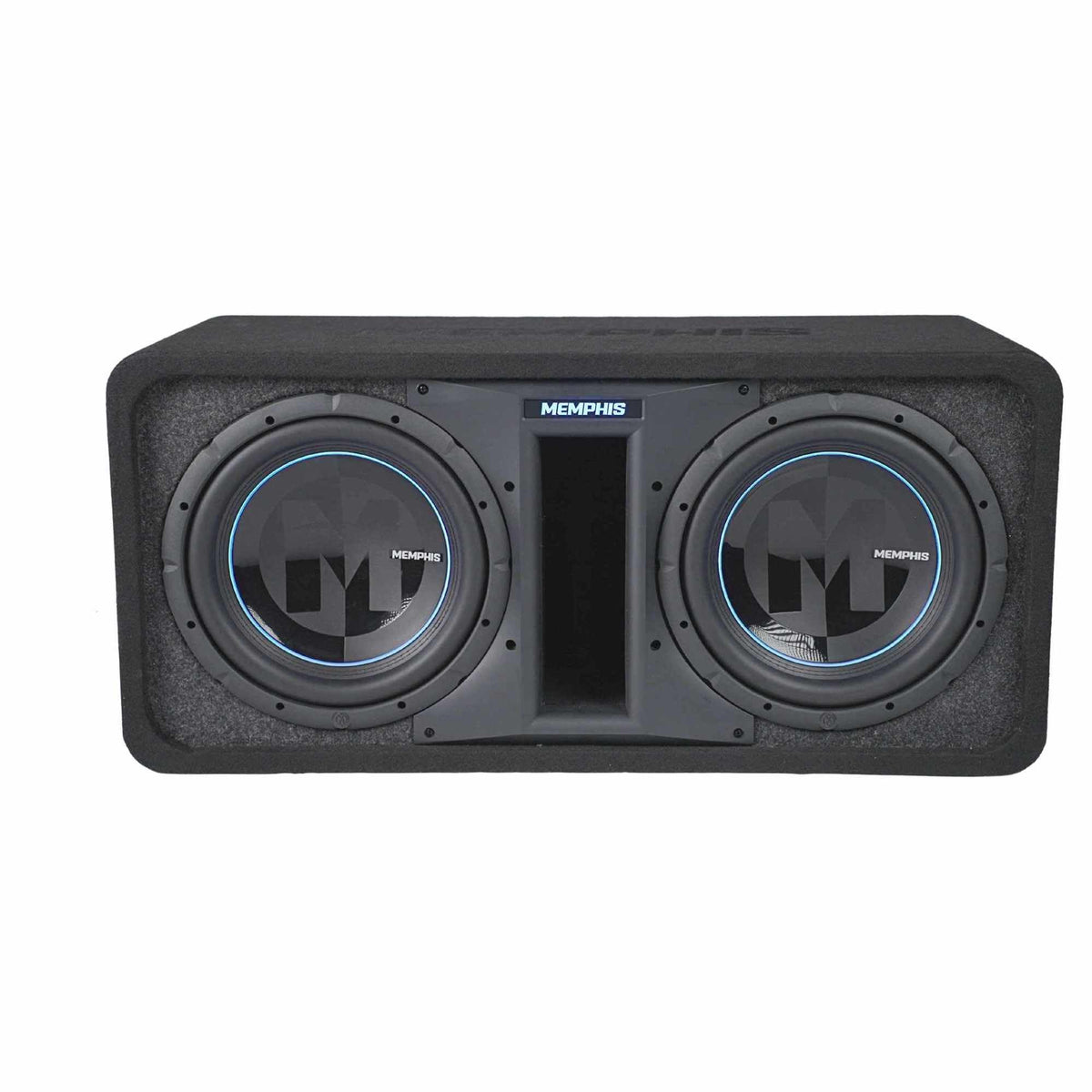

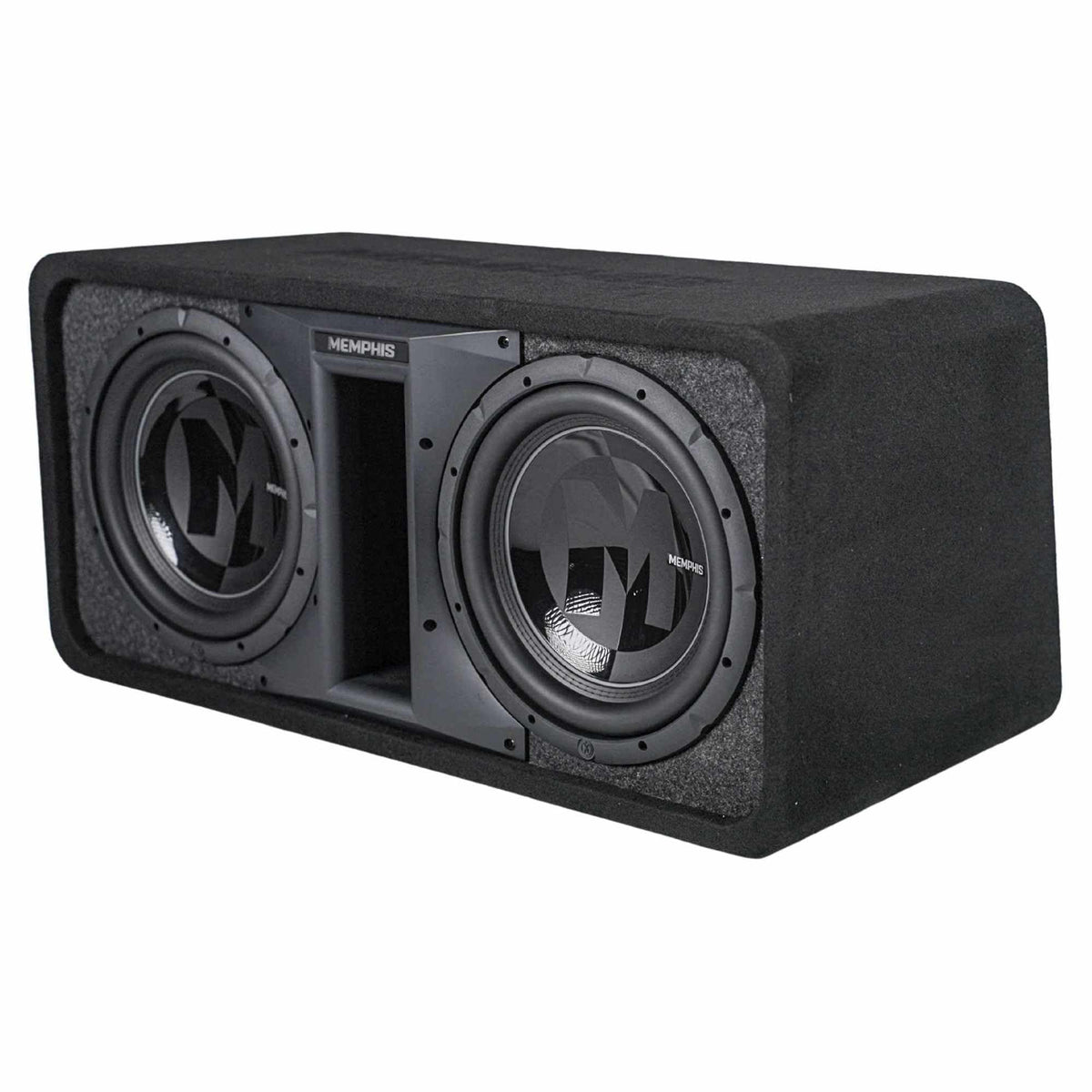

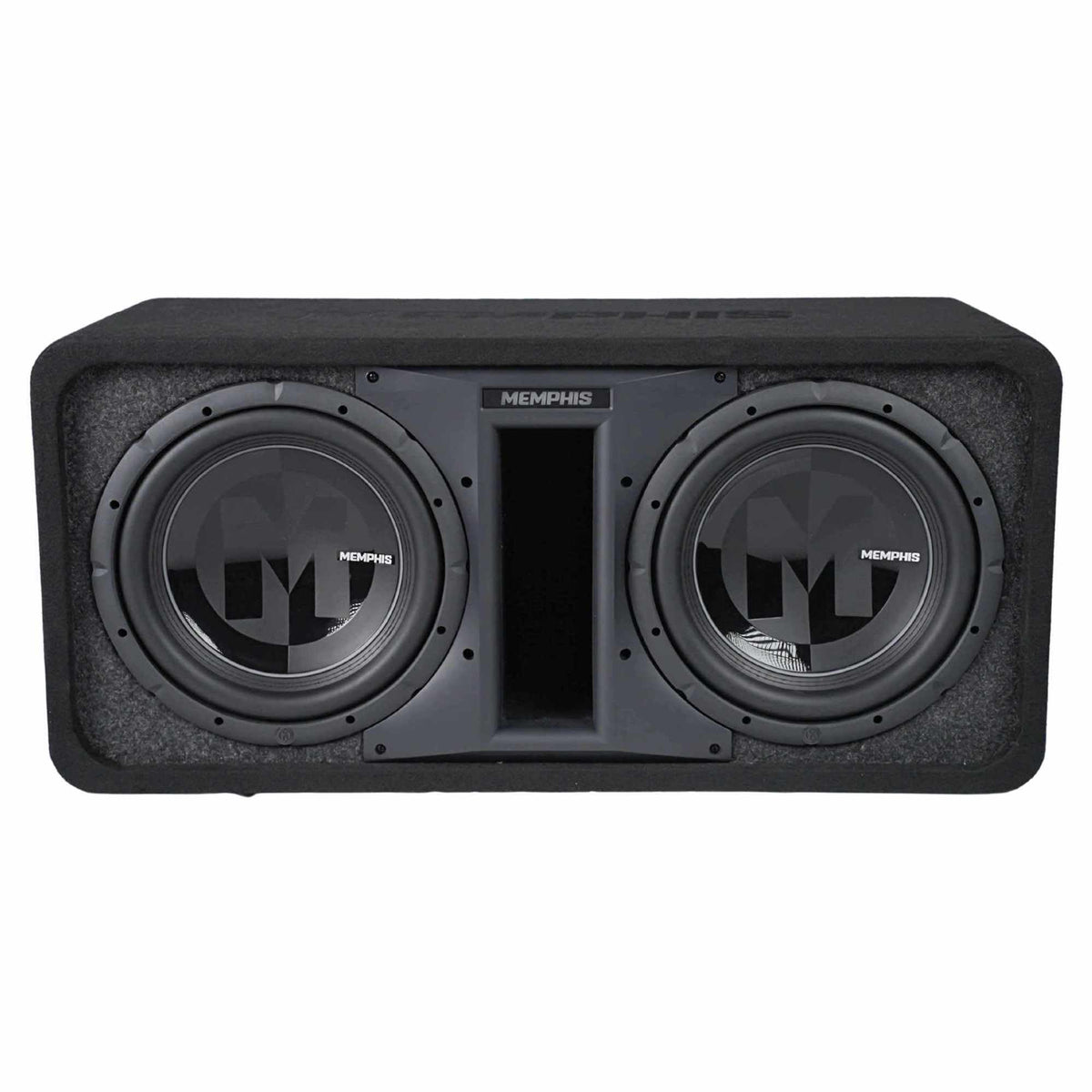

Memphis PRXE12DFT Dual 12" Ported Loaded Enclosure

The Memphis PRXE12DFT is a preloaded dual 12-inch subwoofer enclosure for adding substantial bass to a car-audio system without designing a separate box and driver combination. It combines two Memphis Power Reference PRXL12FT subwoofers in one front-ported cabinet. This makes it a practical option for listeners who want a single, complete bass enclosure for a trunk or cargo-area installation.

The enclosure is rated for 800 watts RMS and 1,600 watts peak power handling. Its dual 12-inch driver layout is intended to provide strong low-frequency output when paired with an appropriately matched mono amplifier. Because it is already loaded, the buyer can focus on amplifier selection, wiring, and vehicle placement rather than choosing and mounting separate subwoofers.

Each included PRXL12FT subwoofer uses Memphis FLEX Triple Selectable Impedance technology. The driver impedance can be configured for 1-, 2-, or 4-ohm operation, while the complete enclosure offers 0.5-, 1-, or 2-ohm wiring configurations. This flexibility can help the enclosure work with different compatible amplifier load ratings.

A front-firing rectangular port is part of the enclosure design, with a plastic port flare at the opening. The port and flare are designed to support vented-box bass output while helping reduce audible port turbulence. The result is a loaded enclosure suited to systems where a ported bass character is preferred.

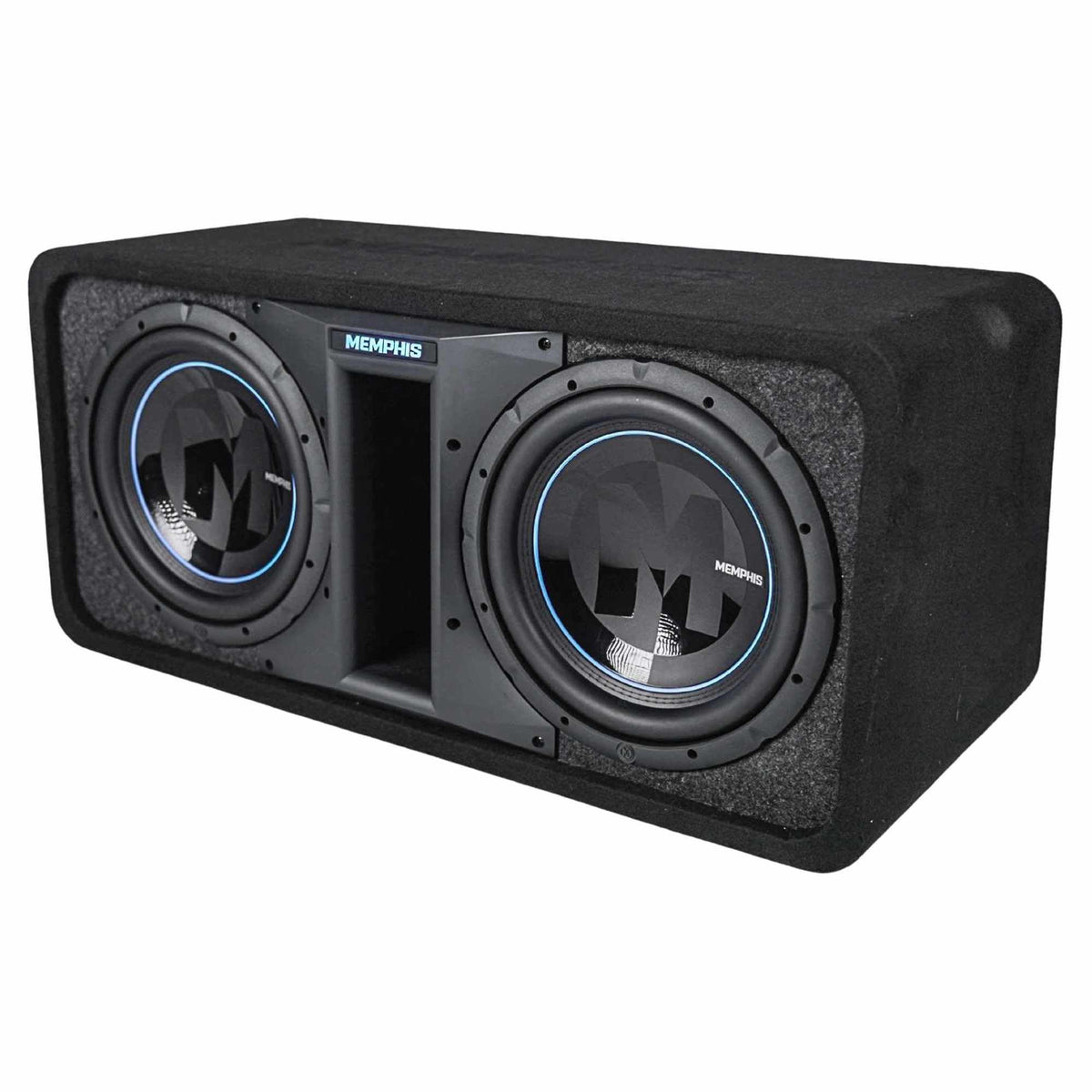

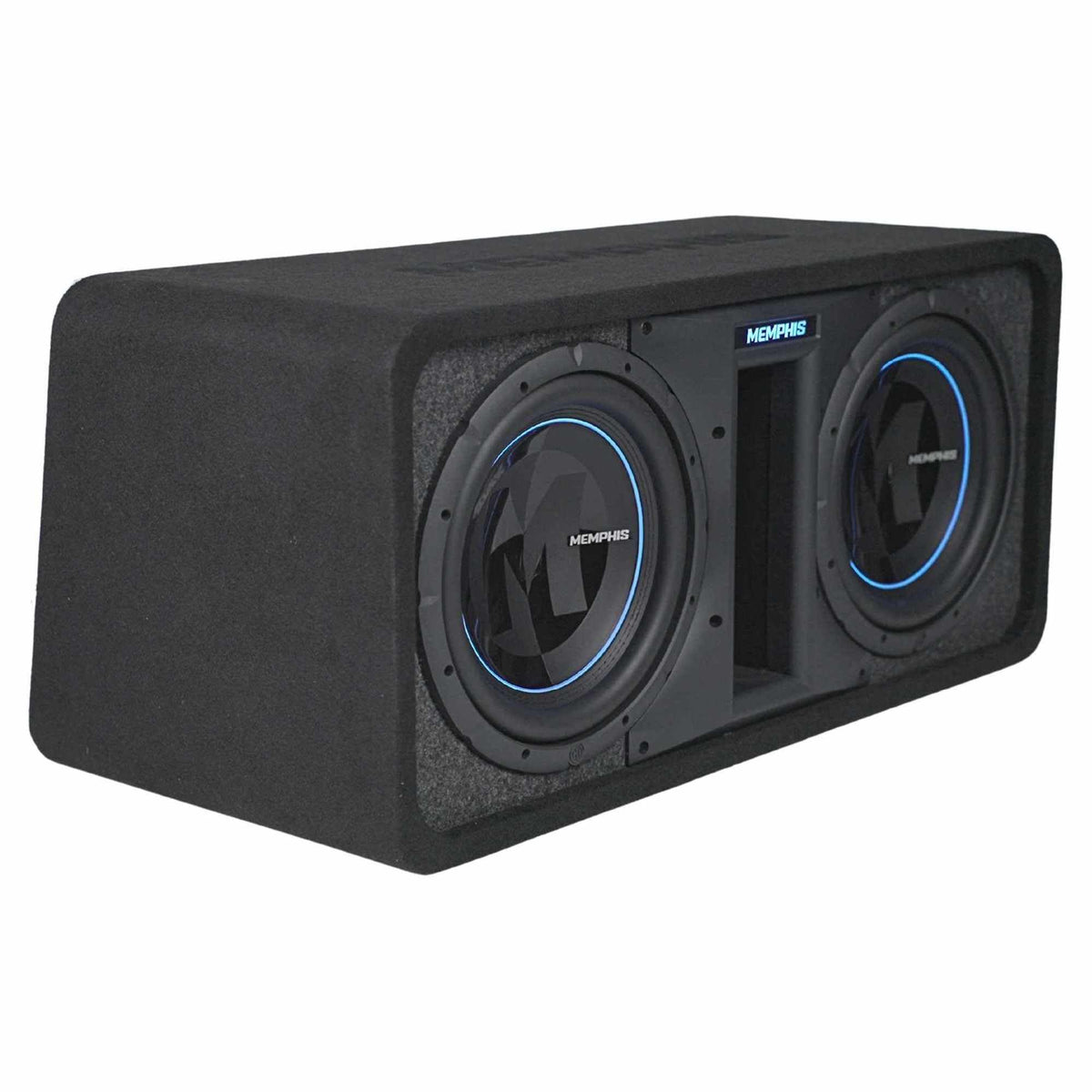

RGB lighting is integrated into the woofer cone accents and the Memphis logo on the front of the enclosure. The lighting can be hardwired to a 12-volt source for fixed colors, or used with the separately sold Memphis MXRGBBTC RGB controller for additional control. This lets the enclosure serve as both a bass upgrade and a visible component in a custom audio installation.

Key Features

• Dual 12-Inch Loaded Design: Two preinstalled Power Reference subwoofers simplify system planning.
• 800W RMS Handling: Supports a properly matched high-output mono amplifier.
• FLEX Selectable Impedance: Offers multiple enclosure load options for compatible amplifiers.
• Front-Firing Port: Directs port output toward the cabin area.
• Flared Port Opening: Helps reduce turbulence at the port outlet.
• Integrated RGB Lighting: Illuminates woofer accents and the Memphis front logo.

Design & Installation

The PRXE12DFT is an integrated, ported loaded enclosure with two 12-inch PRXL12FT subwoofers, a front-facing rectangular port, and a molded plastic port flare. The black enclosure presentation is complemented by RGB cone accents and an illuminated Memphis logo. Its tapered cabinet dimensions are listed as 35 inches long, 15.5 inches high, 14 inches top depth, and 16.5 inches bottom depth.

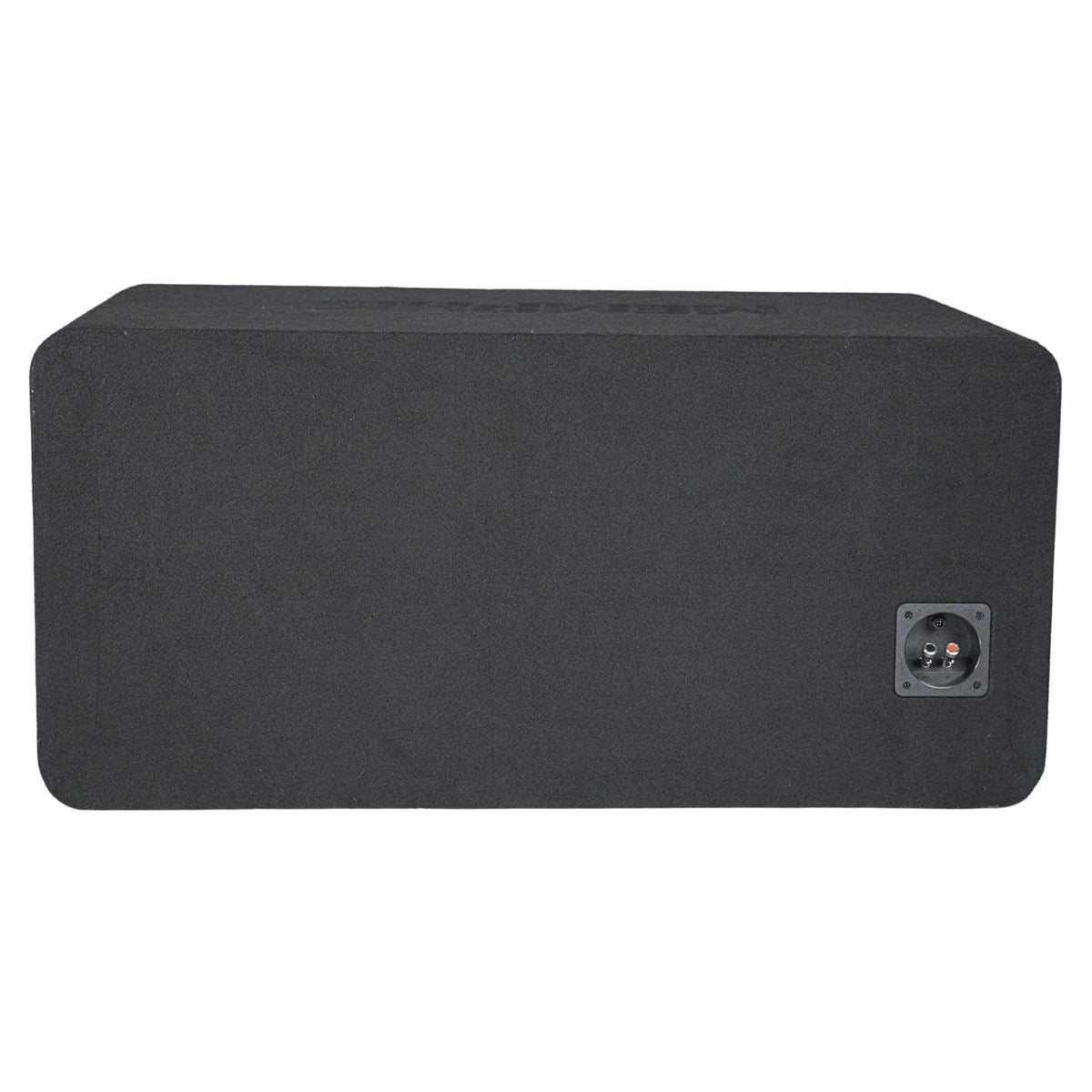

Install the enclosure securely in a suitable cargo area and connect its spring-post input with speaker wire up to 10 AWG. Match the amplifier to the selected final enclosure impedance and its 800-watt RMS rating; the default enclosure load is listed as 2 ohms. Changing the enclosure impedance requires removing both subwoofers to access their wiring, and RGB lighting requires a 12-volt power and ground connection or a compatible optional RGB controller.
