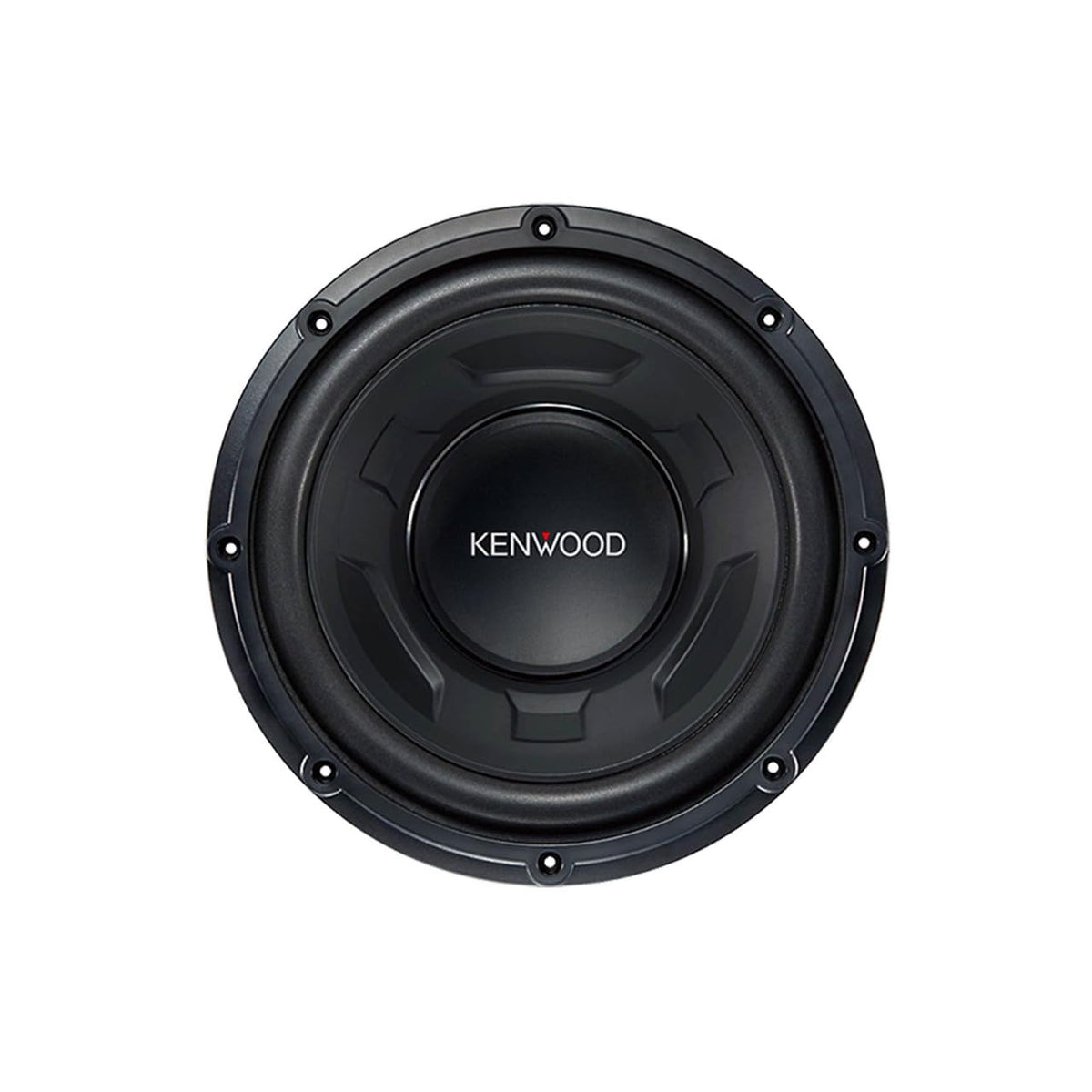

Kenwood KFC-W3042 12" 4-Ohm Subwoofer

The Kenwood KFC-W3042 is a 12-inch, single 4-ohm car subwoofer designed to add dedicated low-frequency output to an aftermarket audio system. It is intended for listeners who want bass support beyond what full-range door or rear speakers typically provide. Its 4-ohm nominal impedance makes it suited to an amplifier channel that is stable at a 4-ohm speaker load.

This subwoofer is a practical choice for a vehicle system being built around a separate amplifier and enclosure. It handles 350 watts RMS and 1,800 watts peak input power, so amplifier selection should be based on its continuous RMS rating rather than peak power. The KFC-W3042 can serve as a single-subwoofer upgrade or as one part of a matched multi-subwoofer system.

Kenwood specifies a 38-300 Hz frequency response and 82 dB sensitivity at 1 meter. That operating range is focused on bass and upper-bass reproduction rather than full-range playback. Proper enclosure design, crossover settings, and amplifier tuning will strongly affect the final in-vehicle result.

A durable 6-layer copper voice coil is built on an aluminum former to support heat resistance during operation. Kenwood also uses air convection created by diaphragm movement to help cool the voice coil. This heat-dissipation approach is designed to support sustained power handling in an appropriately configured system.

The KFC-W3042 supports either a sealed or ported enclosure layout using Kenwood's published recommended dimensions. A sealed design uses 1.00 cubic foot of internal volume, while the published ported design uses 1.50 cubic feet of internal volume. Choose the enclosure type according to available cargo space, installation goals, and the system's amplifier and crossover setup.

Key Features

• 12-Inch Subwoofer: Provides dedicated bass reproduction for aftermarket vehicle audio systems.
• 4-Ohm Impedance: Matches amplifiers designed to drive a 4-ohm subwoofer load.
• 350W RMS Rating: Supports continuous-power amplifier matching based on RMS output.
• 6-Layer Copper Voice Coil: Uses a heat-resistant coil construction with an aluminum former.
• PP Cone And Foam Surround: Combines a polypropylene diaphragm with a foam surround.
• Sealed Or Ported Enclosure Support: Accommodates Kenwood-published box recommendations for either design.

Design & Installation

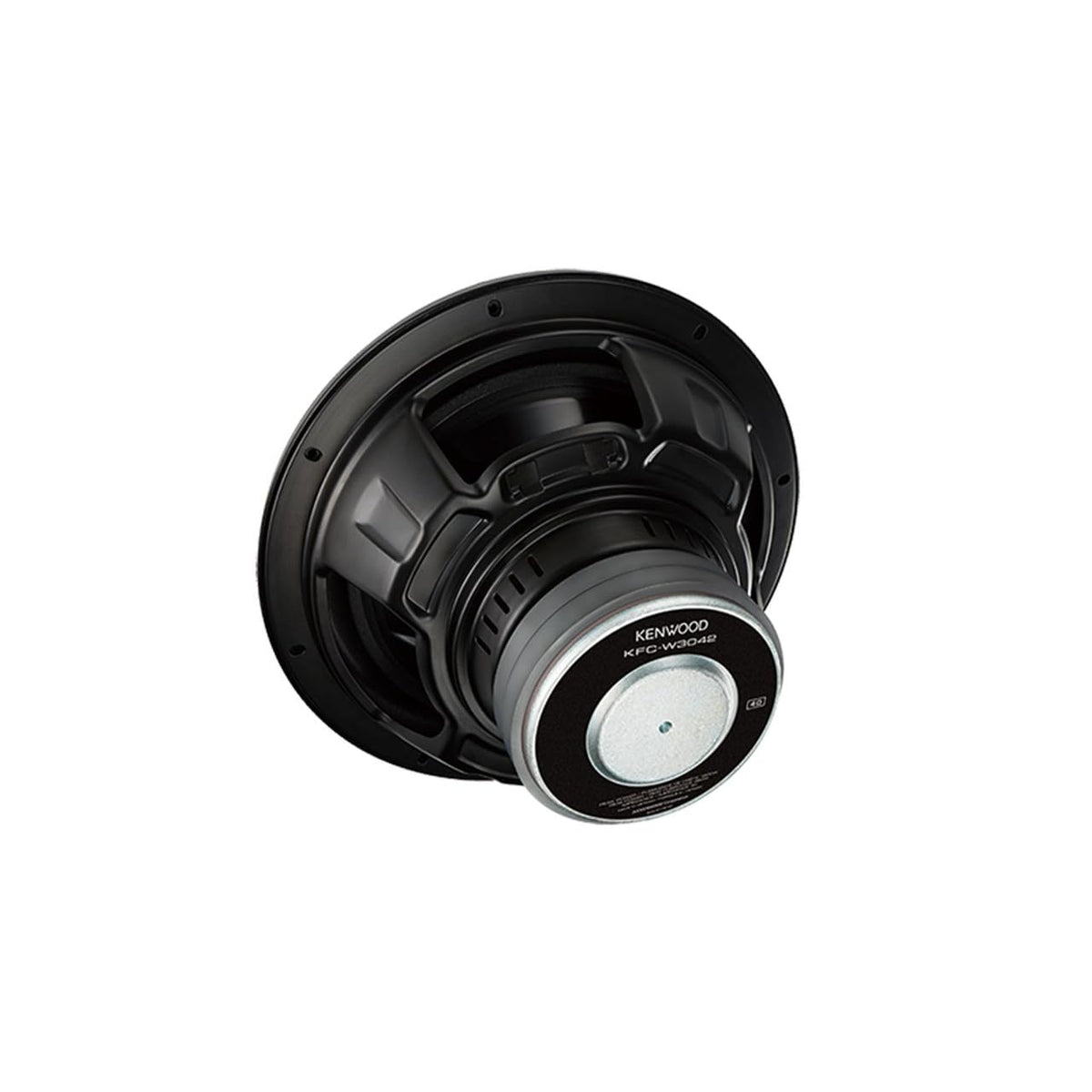

The KFC-W3042 uses a polypropylene cone, foam surround, steel basket, and ferrite magnet. Its 61.4-ounce magnet is paired with a 6-layer copper voice coil on an aluminum former. The driver measures 12-13/16 inches in both overall width and height and has a net weight of 10.58 pounds.

Confirm that the enclosure provides at least the required 11-inch cutout diameter and 6-3/16-inch mounting depth before installation. Connect the subwoofer to an amplifier that is appropriate for a 4-ohm load and its 350-watt RMS rating, then set a low-pass crossover as part of the system tuning process. Use a sealed or ported enclosure built to Kenwood's published recommendations and verify clearances before final mounting.
