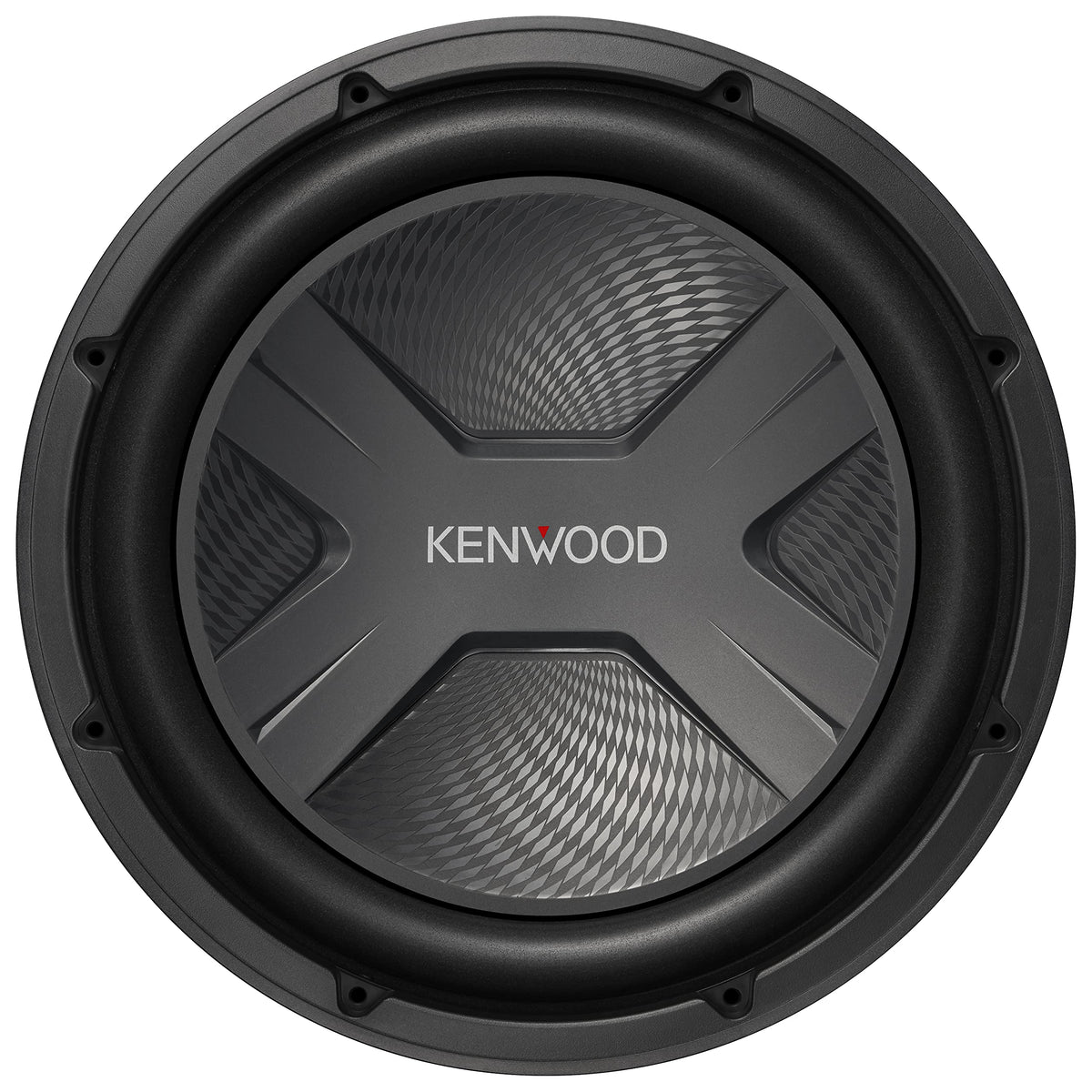

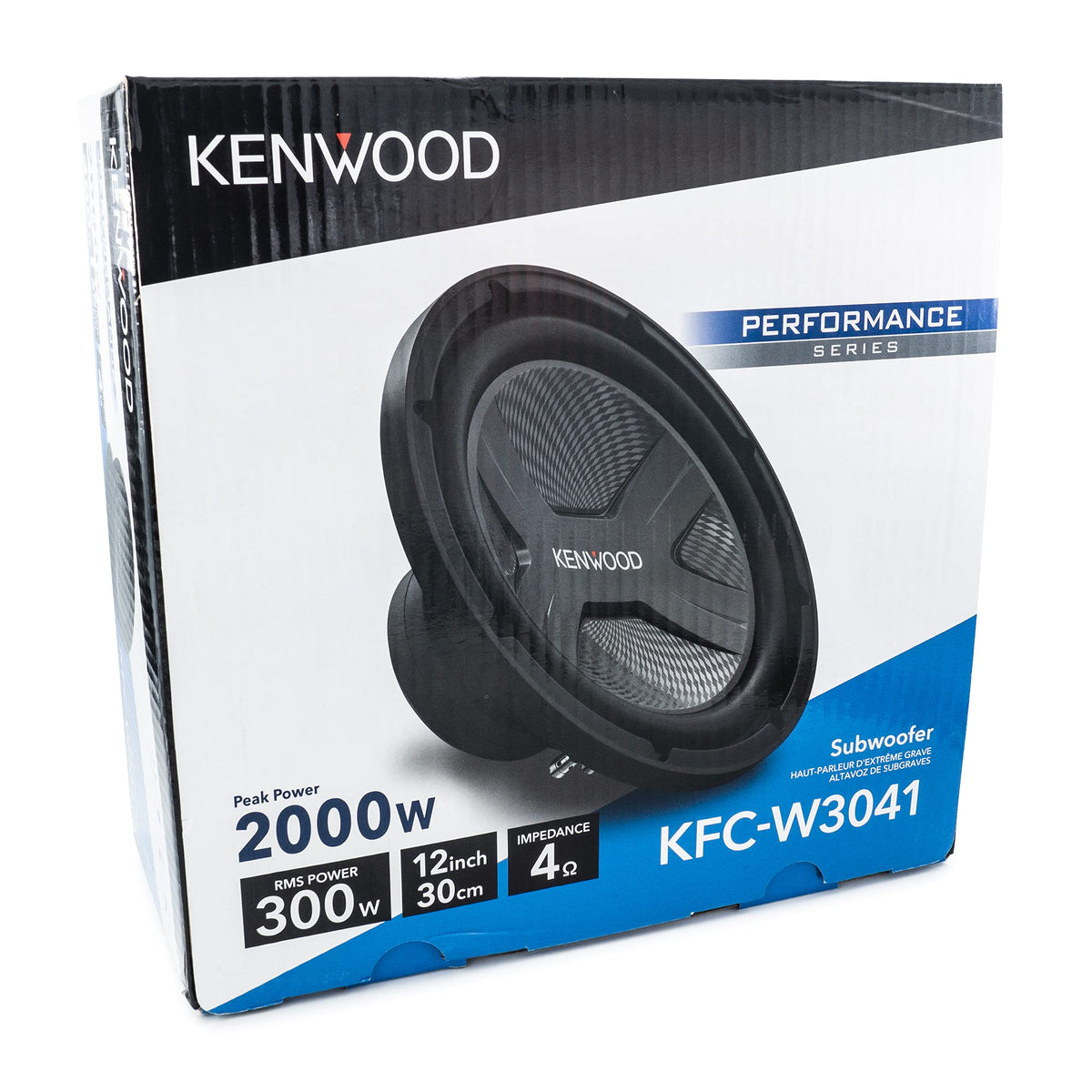

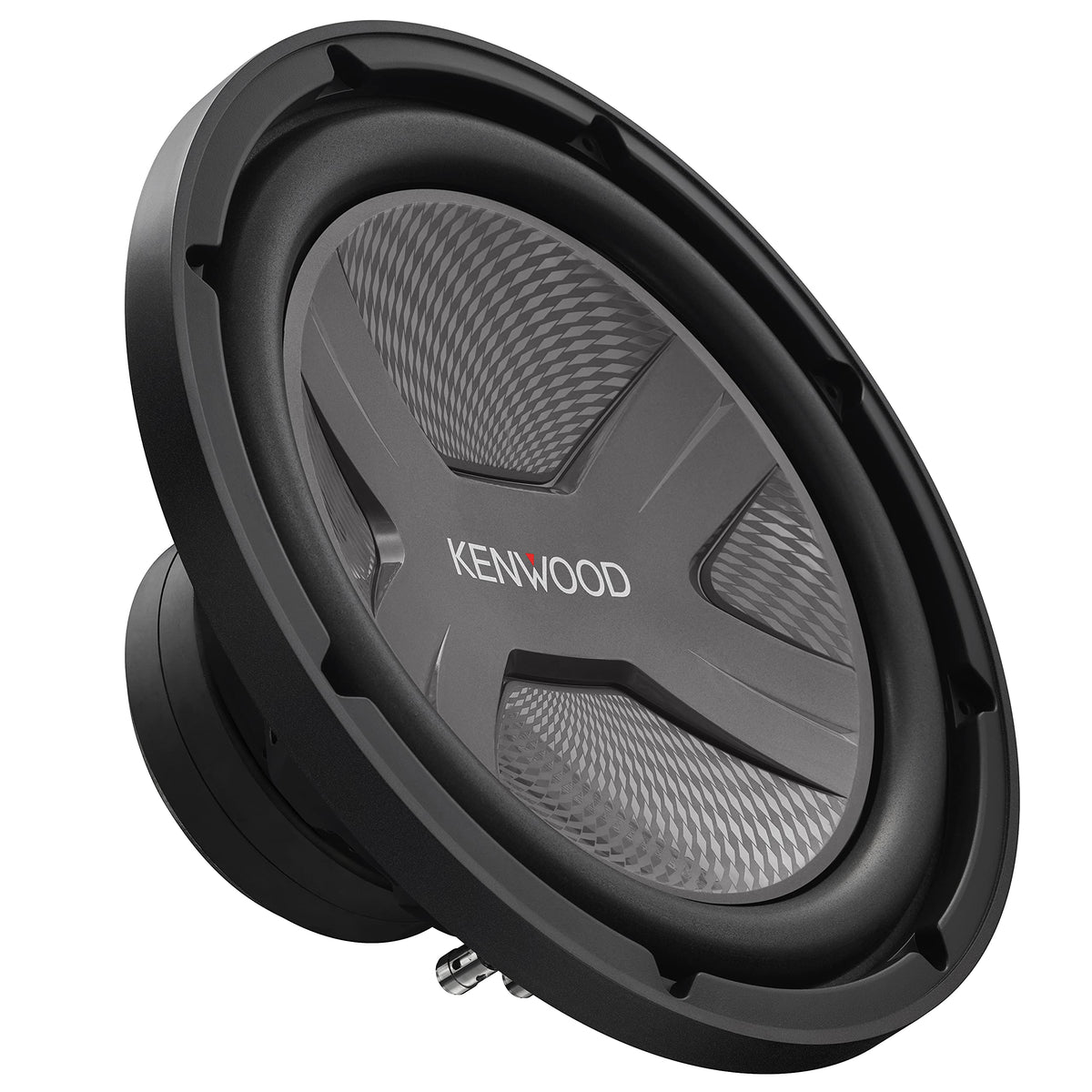

Kenwood KFC-W3041 12" 4-Ohm Subwoofer

The Kenwood KFC-W3041 is a 12-inch car subwoofer designed to add dedicated low-frequency output to an aftermarket mobile-audio system. Its 4-ohm impedance and 300-watt RMS power rating make it appropriate for a matched external subwoofer amplifier. It is intended for listeners who want fuller bass than factory full-range speakers can provide.

This subwoofer uses an Injection PP X-Motif cone with a Diamond Array Pattern to help control resonance. Kenwood pairs that cone design with a urethane surround and stress-controlled spider for controlled movement. The result is a bass driver built for low-frequency reproduction across its rated 29 to 300 Hz response range.

Thermal management is a key part of the KFC-W3041 design. It uses an aluminum bobbin, a closed-yoke structure, and Advanced Airflow Control to manage heat during operation. These features support sustained use when the subwoofer is powered within its specified RMS rating.

The KFC-W3041 can be used in either a sealed or ported enclosure, allowing the installation to be tailored to available vehicle space and system goals. Kenwood specifies a 1.25 cubic-foot sealed enclosure or a 1.50 cubic-foot ported enclosure. A sealed enclosure is a compact option, while the specified ported design uses a larger cabinet with a defined port arrangement.

As a component subwoofer, the KFC-W3041 requires a compatible external amplifier and an enclosure; it is not a self-powered bass solution. Kenwood identifies the KAC-D5101 amplifier as a power-matched companion. It can serve as the bass foundation of a system with an aftermarket receiver, amplifier wiring, and full-range speakers.

Key Features

• 12-Inch Subwoofer: Adds dedicated bass capability to a vehicle audio system.
• 300-Watt RMS Rating: Supports amplifier matching based on continuous power handling.
• 4-Ohm Impedance: Works with amplifiers designed for a 4-ohm subwoofer load.
• X-Motif PP Cone: Helps control resonance for more controlled bass reproduction.
• Advanced Airflow Control: Supports thermal management during sustained listening.
• Sealed Or Ported Use: Allows installation in either specified enclosure alignment.

Design & Installation

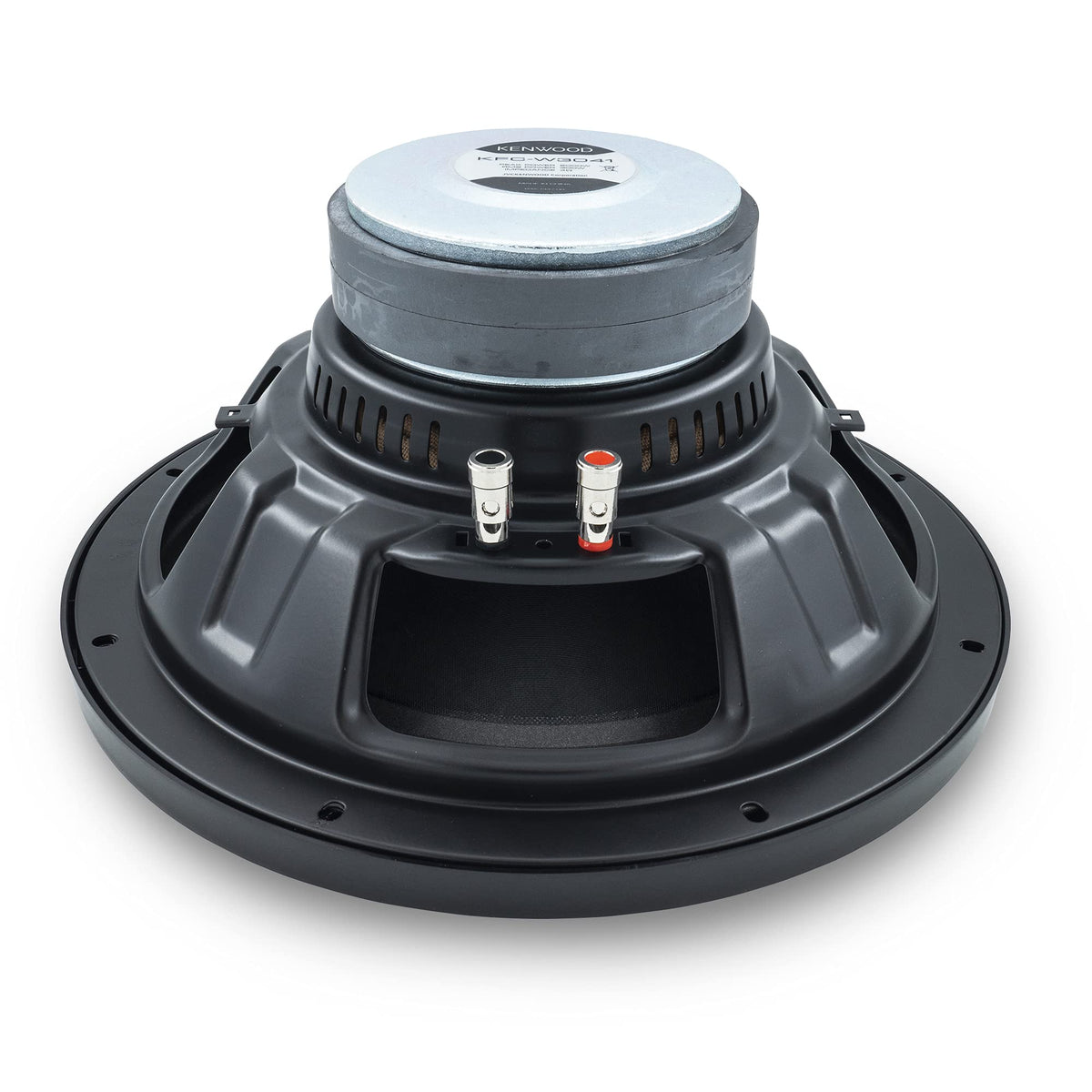

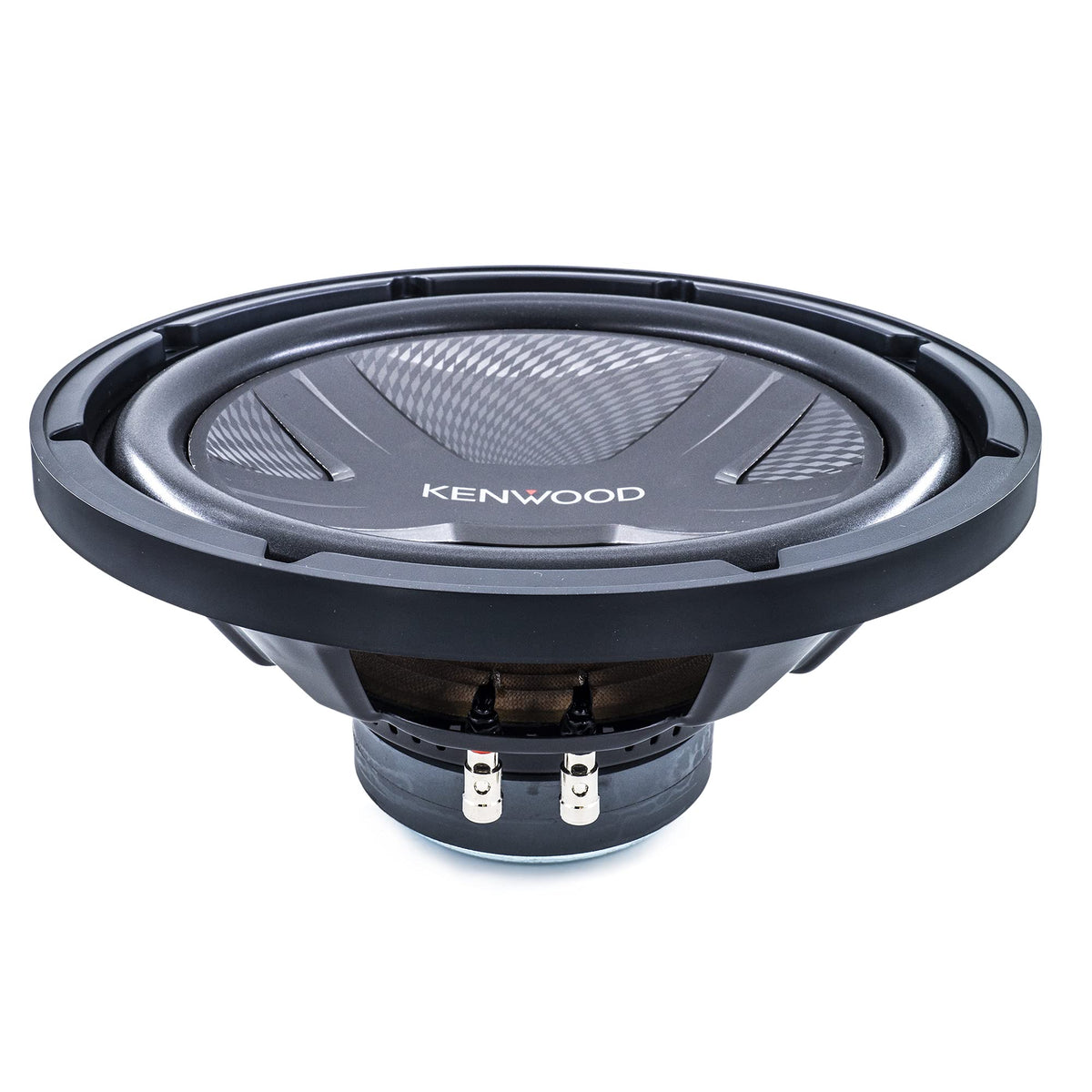

The KFC-W3041 uses a steel basket, ABS gasket, ferrite magnet, urethane surround, and Injection PP cone cap with Kenwood's X-Motif Diamond Array Pattern. Its closed-yoke structure and aluminum bobbin are part of the subwoofer's thermal-management design. The speaker measures 12-13/16 inches wide and deep overall, with a 6-1/8-inch total depth.

Confirm that the enclosure provides an 11-inch cutout and at least 5-3/8 inches of mounting depth before installation. Use a properly matched external amplifier, enclosure, wiring, and crossover setup, while keeping amplifier output appropriate for the 300-watt RMS rating. The optional Kenwood CA-121G grille may be added where cone protection is needed.
