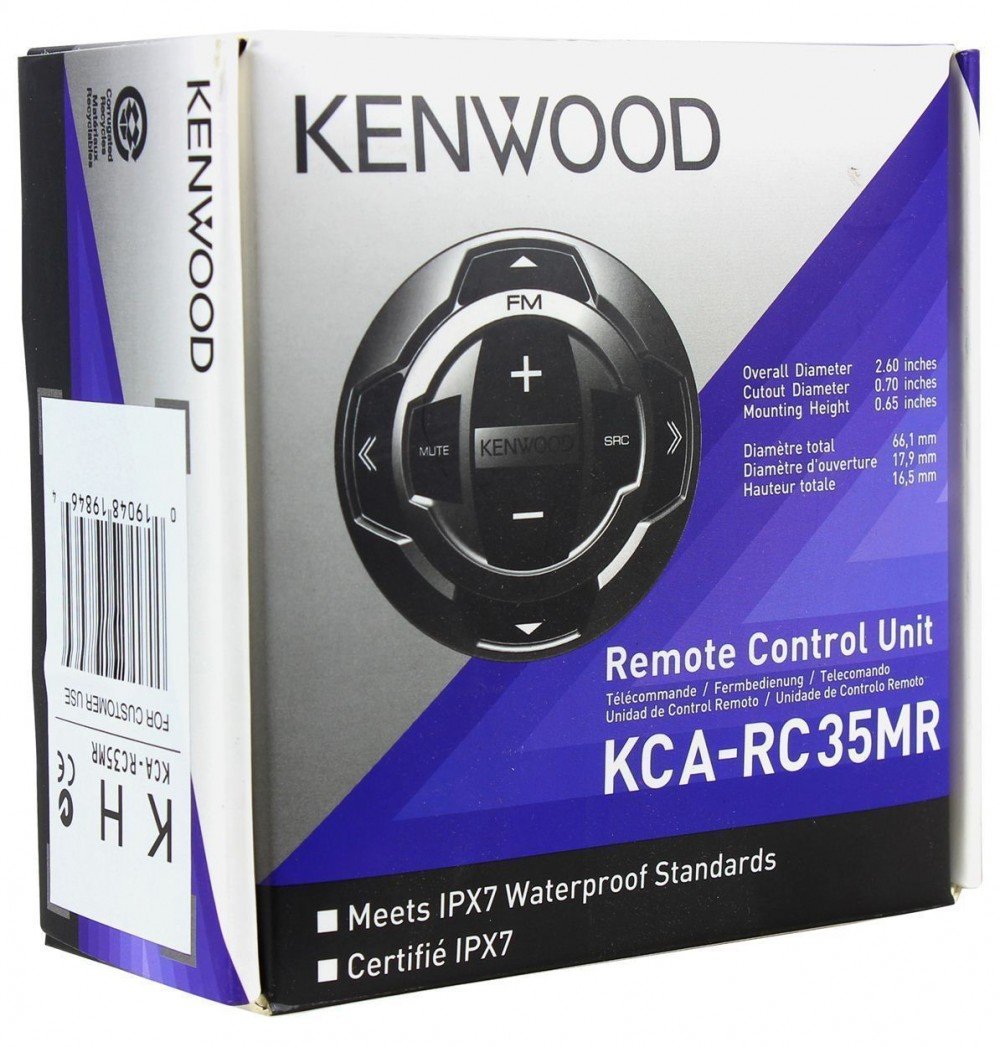

Kenwood KCA-RC35MR Wired Marine Remote Control

The Kenwood KCA-RC35MR is a compact wired remote control for compatible Kenwood marine and motorsports receivers. It places essential receiver commands at an additional location, helping keep source, track, and volume controls within reach away from the main head unit. It is intended for boat, UTV, and other powersports installations where the receiver may not be conveniently accessible.

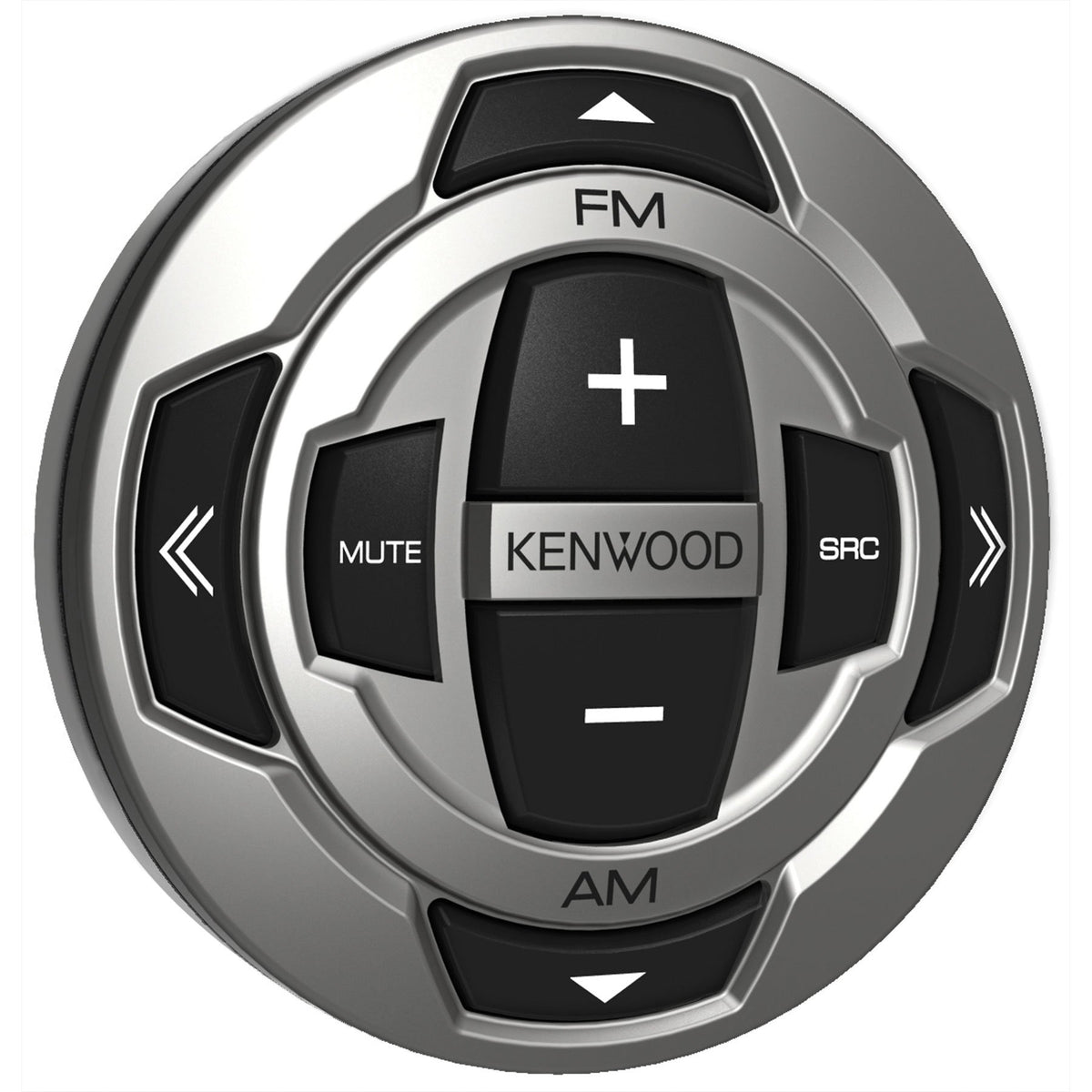

This remote does not produce audio itself; it provides direct command of the connected receiver so the system can be adjusted from a secondary position. Its button layout includes source selection, seek controls, preset up/down functions, volume adjustment, and mute or pause control. White key illumination supports visibility when operating the system in low-light conditions.

The KCA-RC35MR is designed for marine and motorsports use with an IPX7 waterproof design. Its round 2-5/8-inch format and 5/8-inch mounting height support a compact, low-profile installation. A supplied gasket and mounting hardware help create a clean surface-mounted fit.

For expanded systems, the remote provides a remote-control input and output for in-line installation. Kenwood specifies that up to six remotes can be connected in-line with a compatible receiver. This makes it suitable for adding control access at locations such as a helm, passenger area, transom, or other secondary operating position.

The KCA-RC35MR connects through a four-wire installation with ignition, illumination, ground, and remote-control wiring. It requires a compatible Kenwood receiver with a light blue/yellow remote-control connection. It is an add-on control accessory rather than a standalone radio or audio source.

Key Features

• Wired Remote Control: Adds receiver control at a convenient secondary location.
• IPX7 Waterproof Design: Supports use in wet marine and motorsports environments.
• White Key Illumination: Helps make controls easier to identify in low light.
• Compact Round Format: Uses a 2-5/8-inch-diameter remote body for space-conscious installations.
• Multi-Remote Expansion: Allows up to six remotes to be connected in-line.
• Receiver Function Access: Controls source, track, volume, mute, and preset functions.

Design & Installation

The KCA-RC35MR uses a round, gray surface-mount design with illuminated keys and an IPX7 waterproof rating. Its compact 2-5/8-inch diameter and 5/8-inch mounting height help it fit locations where a full receiver faceplate would be impractical. The supplied foam gasket, bracket, bolt, lock washer, and wing nut support secure mounting.

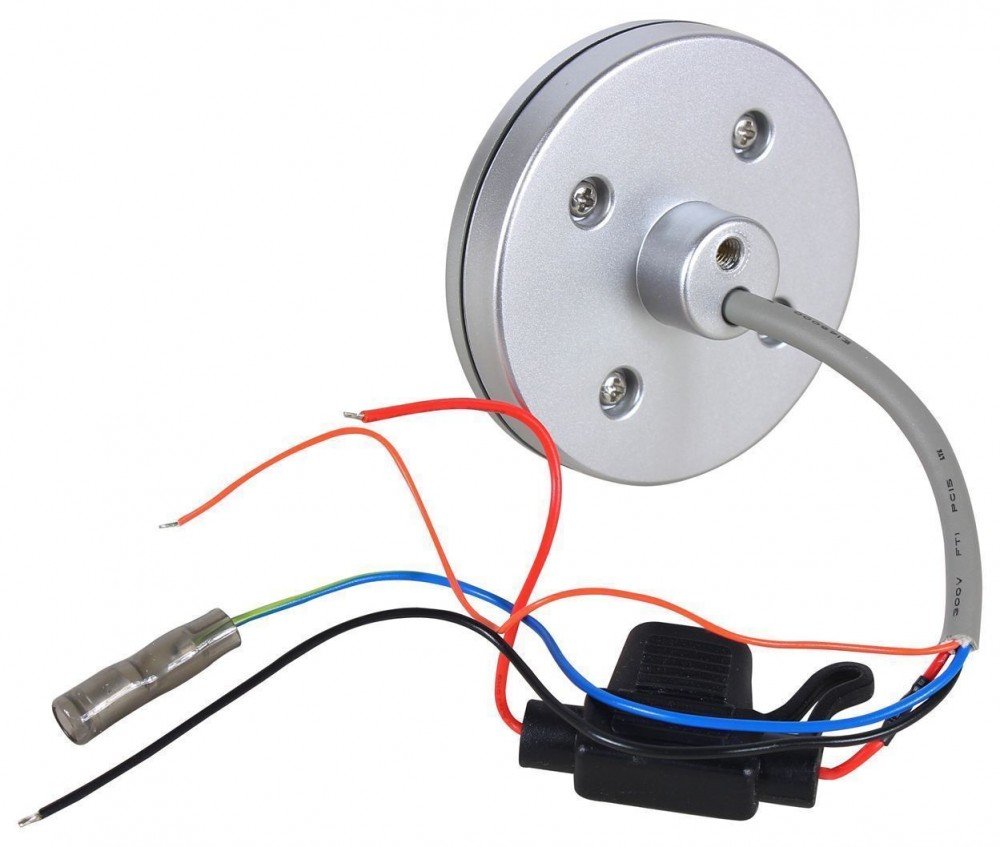

Installation requires routing the attached four-wire harness through the mounting surface and connecting ignition, illumination, ground, and light blue/yellow remote-control wiring to a compatible receiver system. The attached harness is 8 inches long, so additional wiring may be needed depending on the mounting location. Use the supplied hardware and fuse, and have marine wiring performed by a qualified installer when appropriate.
